• Diatop Wet Cured Concrete Blades Supreme (WCFMS, Medium Power Flat Saws)
1 1

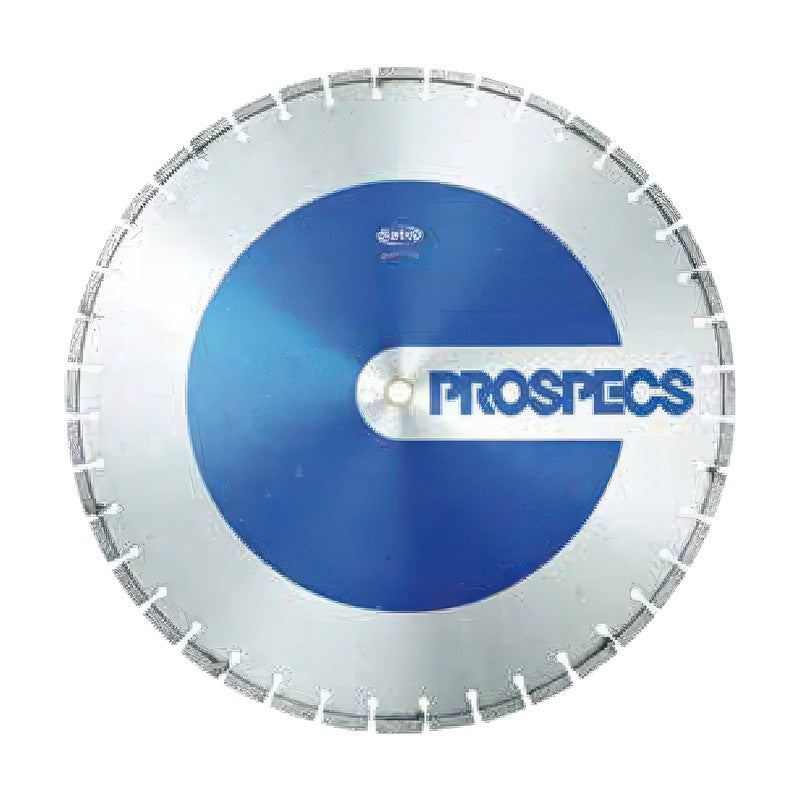

Diatop Wet Cured Concrete Blades Supreme (WCFMS, Medium Power Flat Saws)

Diatop Wet Cured Concrete Blades Supreme (WCFMS, Medium Power Flat Saws)

Laser-welded wet diamond saw blades for cured concrete on medium-power floor saws of 25-40 HP.

Key features

  • Supreme grade for large and demanding applications, cutting heavily reinforced concrete with ease
  • Double laser welded on both sides; TCT and kicker segment protection against undercut
  • Suited to highways, airport runways, city streets, parking lots, bridge decks, floors and walkways
  • Bond selection from very hard to soft according to aggregate hardness

Specifications

Segment Height 12 mm (.472 in)
Quality Supreme
WCFMS353212 Diameter: 350 mm (14 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS354812 Diameter: 350 mm (14 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS403212 Diameter: 400 mm (16 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS403612 Diameter: 400 mm (16 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS453212 Diameter: 450 mm (18 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS453612 Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS454812 Diameter: 450 mm (18 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS503612 Diameter: 500 mm (20 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS504012 Diameter: 500 mm (20 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS604012 Diameter: 600 mm (24 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS604212 Diameter: 600 mm (24 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS664212 Diameter: 660 mm (26 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS664812 Diameter: 660 mm (26 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS704812 Diameter: 700 mm (28 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS754812 Diameter: 750 mm (30 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS804812 Diameter: 800 mm (32 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS904812 Diameter: 900 mm (36 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS104812 Diameter: 1060 mm (42 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS105612 Diameter: 1060 mm (42 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS106412 Diameter: 1060 mm (42 in) | Segment Thickness: 6.4 mm (.250 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS125612 Diameter: 1200 mm (48 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS126412 Diameter: 1200 mm (48 in) | Segment Thickness: 6.4 mm (.250 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS135612 Diameter: 1350 mm (54 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS136412 Diameter: 1350 mm (54 in) | Segment Thickness: 6.4 mm (.250 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
Diamond Saw BladesDiatop
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Wet Cured Concrete Blades Supreme (WCFMS, Medium Power Flat Saws)

Brand Diatop·Diamond Saw Blades

Available part numbers (24)

WCFMS353212, WCFMS354812, WCFMS403212, WCFMS403612, WCFMS453212, WCFMS453612, WCFMS454812, WCFMS503612, WCFMS504012, WCFMS604012 + 14 more — see full table ↓

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WCFMS353212Diameter: 350 mm (14 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS354812Diameter: 350 mm (14 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS403212Diameter: 400 mm (16 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS403612Diameter: 400 mm (16 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS453212Diameter: 450 mm (18 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS453612Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS454812Diameter: 450 mm (18 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS503612Diameter: 500 mm (20 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS504012Diameter: 500 mm (20 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS604012Diameter: 600 mm (24 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS604212Diameter: 600 mm (24 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS664212Diameter: 660 mm (26 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS664812Diameter: 660 mm (26 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS704812Diameter: 700 mm (28 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS754812Diameter: 750 mm (30 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS804812Diameter: 800 mm (32 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS904812Diameter: 900 mm (36 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS104812Diameter: 1060 mm (42 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS105612Diameter: 1060 mm (42 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS106412Diameter: 1060 mm (42 in) | Segment Thickness: 6.4 mm (.250 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS125612Diameter: 1200 mm (48 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS126412Diameter: 1200 mm (48 in) | Segment Thickness: 6.4 mm (.250 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS135612Diameter: 1350 mm (54 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
WCFMS136412Diameter: 1350 mm (54 in) | Segment Thickness: 6.4 mm (.250 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme
