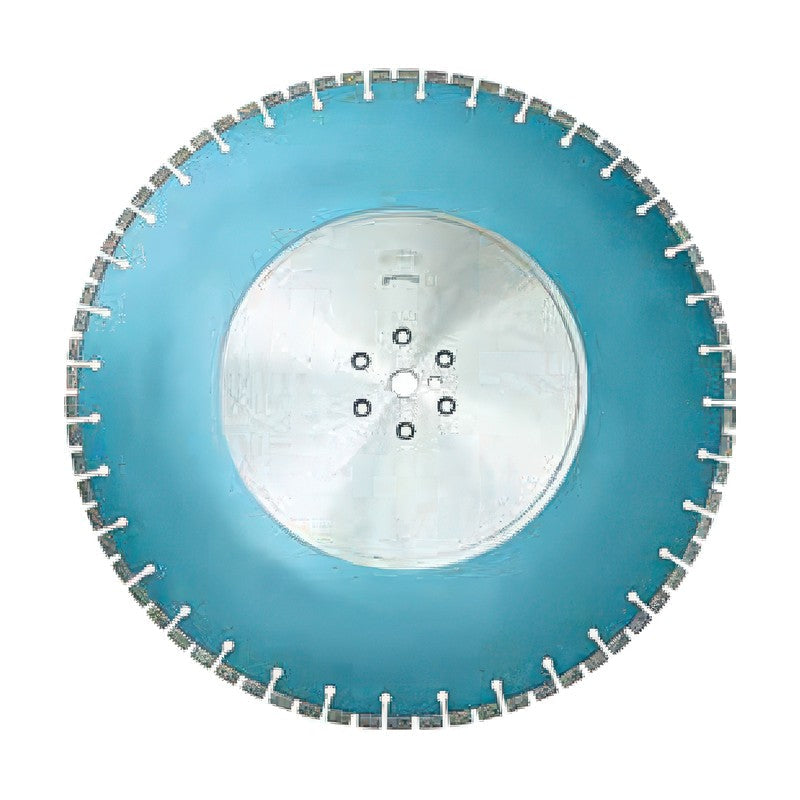

Diatop Wet Wall Saw Blades (WS, Sandwich Segment)

Diatop Wet Wall Saw Blades (WS, Sandwich Segment)

Wet diamond wall saw blades, laser welded or silver brazed, for hydraulic track-mounted wall saws.

Key features

  • Sandwich segments give fast, consistent, accurate cuts, improve straight sawing and reduce pinching, and let the blade wear out completely
  • Split segment design for easy sawing
  • Bond selection: WSVS for high-strength concrete with heavy rebar, WSMS for high to medium strength concrete, WSMH for regular strength concrete

Specifications

Pin holes on request
WS453610 Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS504410 Diameter: 500 mm (20 in) | Segment Thickness: 4.4 mm (.175 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS604810 Diameter: 600 mm (24 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS664810 Diameter: 660 mm (26 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS754810 Diameter: 750 mm (30 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS904810 Diameter: 900 mm (36 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS1004810 Diameter: 1000 mm (40 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS114813 Diameter: 1060 mm (42 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS115613 Diameter: 1060 mm (42 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS124813 Diameter: 1200 mm (48 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS125613 Diameter: 1200 mm (48 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS126413 Diameter: 1200 mm (48 in) | Segment Thickness: 6.4 mm (.250 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS135613 Diameter: 1350 mm (54 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS136413 Diameter: 1350 mm (54 in) | Segment Thickness: 6.4 mm (.250 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
Wall Saw BladesDiatop
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Wet Wall Saw Blades (WS, Sandwich Segment)

Brand Diatop·Wall Saw Blades

Available part numbers (14)

WS453610, WS504410, WS604810, WS664810, WS754810, WS904810, WS1004810, WS114813, WS115613, WS124813 + 4 more — see full table ↓

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WS453610Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS504410Diameter: 500 mm (20 in) | Segment Thickness: 4.4 mm (.175 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS604810Diameter: 600 mm (24 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS664810Diameter: 660 mm (26 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS754810Diameter: 750 mm (30 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS904810Diameter: 900 mm (36 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS1004810Diameter: 1000 mm (40 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 10 mm (.394 in) | Pin holes: on request
WS114813Diameter: 1060 mm (42 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS115613Diameter: 1060 mm (42 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS124813Diameter: 1200 mm (48 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS125613Diameter: 1200 mm (48 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS126413Diameter: 1200 mm (48 in) | Segment Thickness: 6.4 mm (.250 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS135613Diameter: 1350 mm (54 in) | Segment Thickness: 5.6 mm (.220 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
WS136413Diameter: 1350 mm (54 in) | Segment Thickness: 6.4 mm (.250 in) | Segment Height: 13 mm (.500 in) | Pin holes: on request
