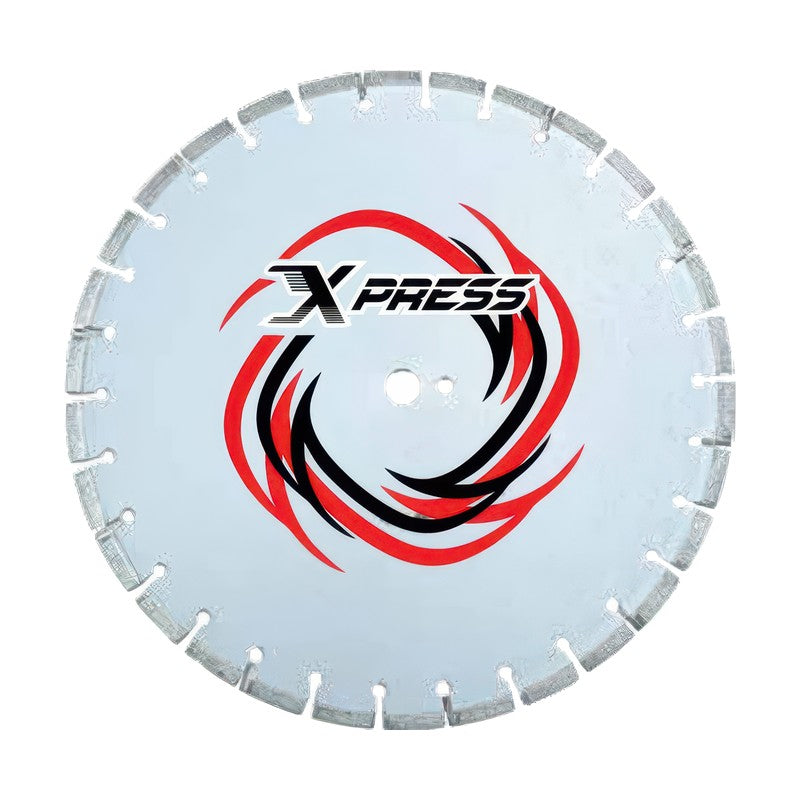

Diatop Xpress Asphalt Supreme Wet Saw Blades (WAXFS, 30-50 HP Floor Saws)

Diatop Xpress Asphalt Supreme Wet Saw Blades (WAXFS, 30-50 HP Floor Saws)

Wet-cutting laser-welded diamond saw blades with patterned diamond sandwich segments for asphalt on medium-HP floor saws of 30-50 HP.

Key features

  • Faster cutting and longer life than traditional random-mix diamonds, with even segment wear from the sandwich design
  • Very hard bond with a high volume of tungsten carbide for durability; slanted segments every third segment protect against undercut
  • Segments are laser welded on both sides and weld strength is checked with a torque tester

Specifications

Segment Height 12 mm (.472 in)
Quality Supreme
Arbor 25.4 mm with pin hole
WAXFS 403212 Diameter: 400 mm (16 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WAXFS 453612 Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WAXFS 503612 Diameter: 500 mm (20 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WAXFS 504012 Diameter: 500 mm (20 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WAXFS 604212 Diameter: 600 mm (24 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WAXFS 604812 Diameter: 600 mm (24 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WAXFS 654812 Diameter: 650 mm (26 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WAXFS 704812 Diameter: 700 mm (28 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WAXFS 754812 Diameter: 750 mm (30 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
Diamond Saw BladesDiatop
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Xpress Asphalt Supreme Wet Saw Blades (WAXFS, 30-50 HP Floor Saws)

Brand Diatop·Diamond Saw Blades

Available part numbers (9)

WAXFS 403212, WAXFS 453612, WAXFS 503612, WAXFS 504012, WAXFS 604212, WAXFS 604812, WAXFS 654812, WAXFS 704812, WAXFS 754812

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
