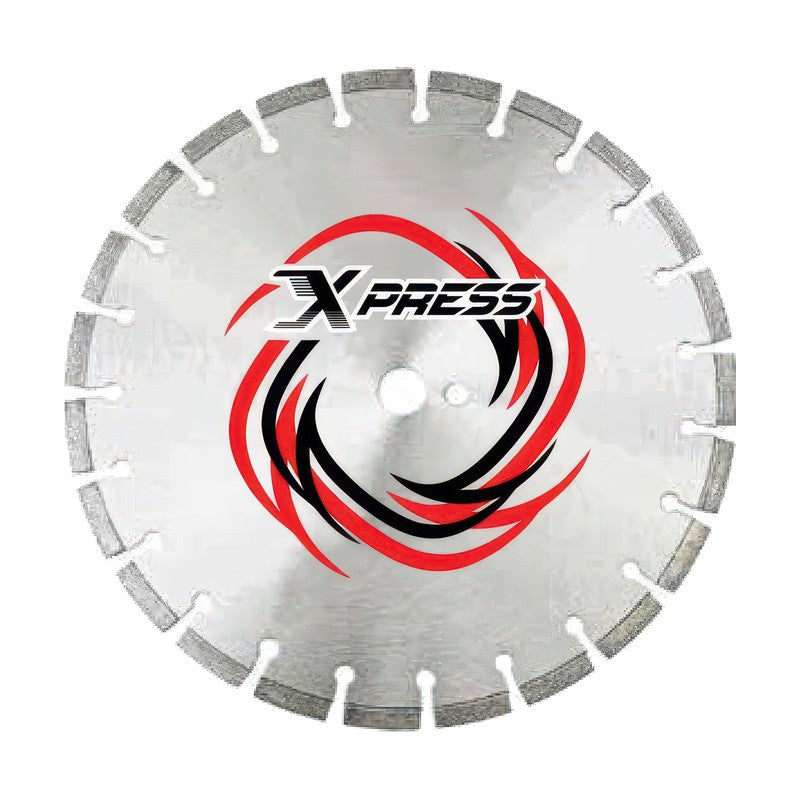

Diatop Xpress Concrete Premium Wet Saw Blades (WCXFP, 20-30 HP Floor Saws)

Diatop Xpress Concrete Premium Wet Saw Blades (WCXFP, 20-30 HP Floor Saws)

Wet-cutting laser-welded diamond saw blades with patterned diamond placement for cured concrete on floor saws of 20-30 HP.

Key features

  • The original bond and diamond layout make the blades faster and longer lasting, saving cutting time
  • All segments are double laser welded and weld strength is tested on both sides
  • Available bonds: very hard, hard, medium, medium soft and soft

Specifications

Segment Height 10 mm (.394 in)
Quality Premium
Arbor 25.4 mm with pin hole
WCXFP 353210 Diameter: 350 mm (14 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 403210 Diameter: 400 mm (16 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 403610 Diameter: 400 mm (16 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 453210 Diameter: 450 mm (18 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 453610 Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 503610 Diameter: 500 mm (20 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 504010 Diameter: 500 mm (20 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
Diamond Saw BladesDiatop
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Xpress Concrete Premium Wet Saw Blades (WCXFP, 20-30 HP Floor Saws)

Brand Diatop·Diamond Saw Blades

Available part numbers (7)

WCXFP 353210, WCXFP 403210, WCXFP 403610, WCXFP 453210, WCXFP 453610, WCXFP 503610, WCXFP 504010

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WCXFP 353210Diameter: 350 mm (14 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 403210Diameter: 400 mm (16 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 403610Diameter: 400 mm (16 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 453210Diameter: 450 mm (18 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 453610Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 503610Diameter: 500 mm (20 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
WCXFP 504010Diameter: 500 mm (20 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 10 mm (.394 in) | Quality: Premium | Arbor: 25.4 mm with pin hole
