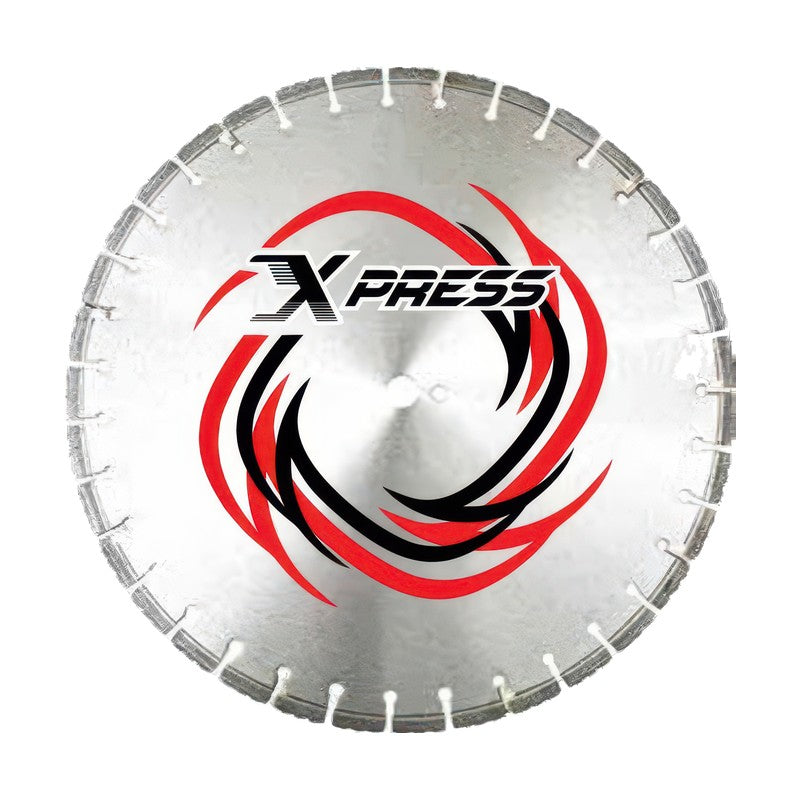

Diatop Xpress Concrete Supreme Wet Saw Blades (WCXFS, Medium HP Floor Saws)

Diatop Xpress Concrete Supreme Wet Saw Blades (WCXFS, Medium HP Floor Saws)

Wet-cutting laser-welded diamond saw blades with patterned diamond segments for cured concrete on medium-power floor saws of 30-50 HP.

Key features

  • Faster cutting and longer life than traditional random-mix diamond blades
  • Segments are double laser welded and torque tested on both sides; TCT inserts protect against undercut
  • Available bonds: very hard, medium hard, medium, medium soft and soft

Specifications

Segment Height 12 mm (.472 in)
Quality Supreme
Arbor 25.4 mm with pin hole
WCXFS 403212 Diameter: 400 mm (16 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 453612 Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 503612 Diameter: 500 mm (20 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 504012 Diameter: 500 mm (20 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 604212 Diameter: 600 mm (24 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 604812 Diameter: 600 mm (24 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 654812 Diameter: 650 mm (26 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 704812 Diameter: 700 mm (28 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 754812 Diameter: 750 mm (30 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 804812 Diameter: 800 mm (32 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 904812 Diameter: 900 mm (36 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
Diamond Saw BladesDiatop
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Xpress Concrete Supreme Wet Saw Blades (WCXFS, Medium HP Floor Saws)

Brand Diatop·Diamond Saw Blades

Available part numbers (11)

WCXFS 403212, WCXFS 453612, WCXFS 503612, WCXFS 504012, WCXFS 604212, WCXFS 604812, WCXFS 654812, WCXFS 704812, WCXFS 754812, WCXFS 804812 + 1 more — see full table ↓

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WCXFS 403212Diameter: 400 mm (16 in) | Segment Thickness: 3.2 mm (.125 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 453612Diameter: 450 mm (18 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 503612Diameter: 500 mm (20 in) | Segment Thickness: 3.6 mm (.141 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 504012Diameter: 500 mm (20 in) | Segment Thickness: 4.0 mm (.155 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 604212Diameter: 600 mm (24 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 604812Diameter: 600 mm (24 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 654812Diameter: 650 mm (26 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 704812Diameter: 700 mm (28 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 754812Diameter: 750 mm (30 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 804812Diameter: 800 mm (32 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
WCXFS 904812Diameter: 900 mm (36 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 12 mm (.472 in) | Quality: Supreme | Arbor: 25.4 mm with pin hole
