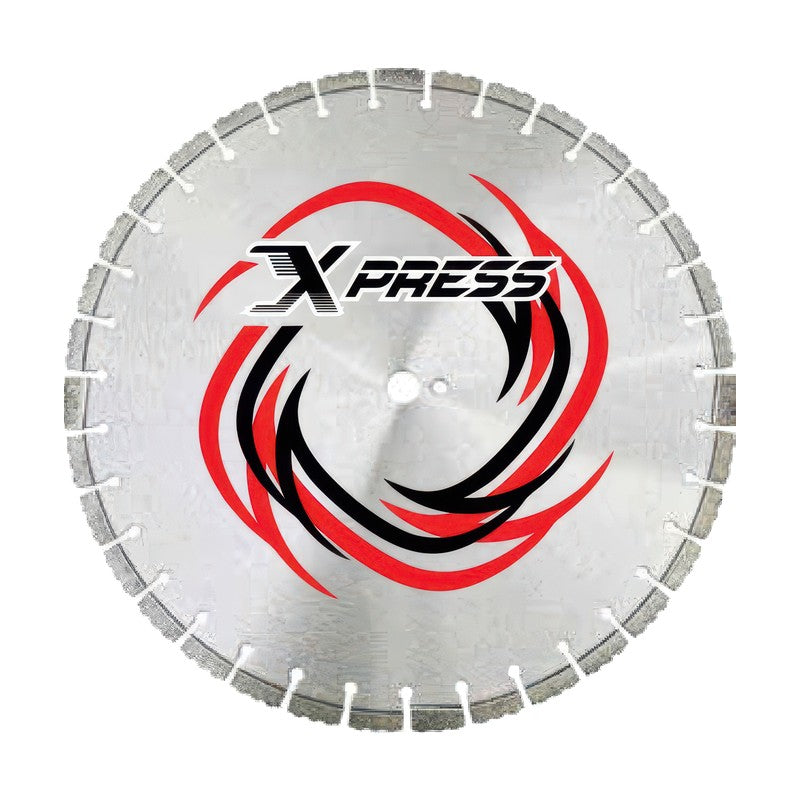

Diatop Xpress Concrete Ultra Wet Saw Blades (WCXFU, High HP Floor Saws)

Diatop Xpress Concrete Ultra Wet Saw Blades (WCXFU, High HP Floor Saws)

Wet-cutting laser-welded diamond saw blades with patterned diamond segments for cured concrete, designed for high-power floor saws of 50-72 HP.

Key features

  • The patterned diamond placement gives faster cutting speed and longer life, increasing footage and reducing operating time
  • Segments are double laser welded on both sides and weld strength is tested on both sides; slanted segments protect against undercut
  • Ultra grade with 14 mm segment height for large, high-production jobs such as highways, airport runways, city streets, parking lots, bridge decks and loading docks

Specifications

Segment Height 14 mm (.551 in)
Quality Ultra
Arbor 25.4 mm with pin hole
WCXFU 504014 Diameter: 500 mm (20 in) | Segment Thickness: 4.0 mm (.157 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 504214 Diameter: 500 mm (20 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 604214 Diameter: 600 mm (24 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 604814 Diameter: 600 mm (24 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 664214 Diameter: 660 mm (26 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 664814 Diameter: 660 mm (26 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 704814 Diameter: 700 mm (28 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 754214 Diameter: 750 mm (30 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 754814 Diameter: 750 mm (30 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 804814 Diameter: 800 mm (32 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 904814 Diameter: 900 mm (36 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
Diamond Saw BladesDiatop
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Diatop Xpress Concrete Ultra Wet Saw Blades (WCXFU, High HP Floor Saws)

Brand Diatop·Diamond Saw Blades

Available part numbers (11)

WCXFU 504014, WCXFU 504214, WCXFU 604214, WCXFU 604814, WCXFU 664214, WCXFU 664814, WCXFU 704814, WCXFU 754214, WCXFU 754814, WCXFU 804814 + 1 more — see full table ↓

How to order

Send the Diatop part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WCXFU 504014Diameter: 500 mm (20 in) | Segment Thickness: 4.0 mm (.157 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 504214Diameter: 500 mm (20 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 604214Diameter: 600 mm (24 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 604814Diameter: 600 mm (24 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 664214Diameter: 660 mm (26 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 664814Diameter: 660 mm (26 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 704814Diameter: 700 mm (28 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 754214Diameter: 750 mm (30 in) | Segment Thickness: 4.2 mm (.165 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 754814Diameter: 750 mm (30 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 804814Diameter: 800 mm (32 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
WCXFU 904814Diameter: 900 mm (36 in) | Segment Thickness: 4.8 mm (.187 in) | Segment Height: 14 mm (.551 in) | Quality: Ultra | Arbor: 25.4 mm with pin hole
