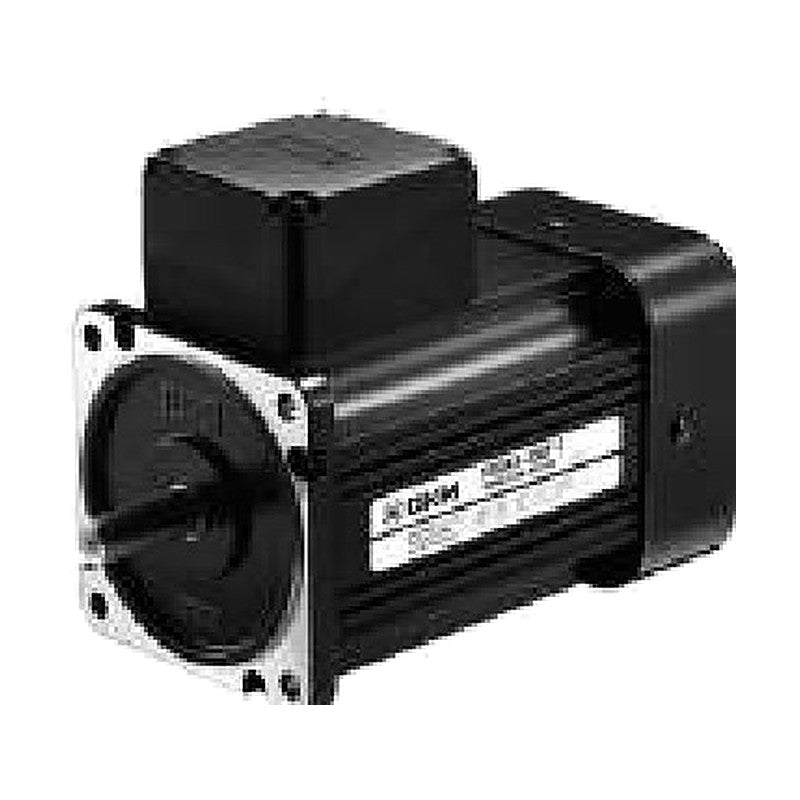

DKM 10ID-400F Induction Motor 400W, 104 mm Frame

DKM 10ID-400F Induction Motor 400W, 104 mm Frame

400 W three-phase AC induction motor with 104 mm square frame for unidirectional continuous operation such as conveyors; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Suitable for unidirectional continuous operation such as conveyor systems
  • Single-phase capacitor-run and three-phase versions
  • Three-phase versions offer higher starting torque and can run directly from a three-phase supply
  • Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only

Specifications

Output 400 W
Frame size 104 mm square
Poles 4
Duty Continuous
Rated speed 1600 r/min (depends on voltage/frequency)
Rated torque 2.435 N·m
Starting torque 4.793 N·m
Shaft options D-cut, key, gear type (U, HC)
Connection Terminal box
Matching gearboxes 10UBK□BH, 10WHD□-040, 10HC□ (Helicross) (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
DKM 10ID-400F Induction Motor 400W, 104 mm Frame
10IDD6-400F-T Power supply: 3ø AC 220 / 380 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 2.435 N·m | Rated current: 1.21-2.1 A | Starting torque: 4.793 N·m | Output shaft: D-cut (motor only)
10IDK6-400F-T Power supply: 3ø AC 220 / 380 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 2.435 N·m | Rated current: 1.21-2.1 A | Starting torque: 4.793 N·m | Output shaft: Key (motor only)
10IDG6-400FU-T Power supply: 3ø AC 220 / 380 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 2.435 N·m | Rated current: 1.21-2.1 A | Starting torque: 4.793 N·m | Output shaft: Gear type (U) for ultra-power box-type gearbox
10IDG6-400FHC-T Power supply: 3ø AC 220 / 380 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 2.435 N·m | Rated current: 1.21-2.1 A | Starting torque: 4.793 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox
AC Induction MotorsDKM
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 10ID-400F Induction Motor 400W, 104 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (4)

10IDD6-400F-T, 10IDK6-400F-T, 10IDG6-400FU-T, 10IDG6-400FHC-T

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 10ID-400F Induction Motor 400W, 104 mm Frame
0 selected
RFQ List (0)
Product codeSpec
10IDD6-400F-TPower supply: 3ø AC 220 / 380 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 2.435 N·m | Rated current: 1.21-2.1 A | Starting torque: 4.793 N·m | Output shaft: D-cut (motor only)
10IDK6-400F-TPower supply: 3ø AC 220 / 380 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 2.435 N·m | Rated current: 1.21-2.1 A | Starting torque: 4.793 N·m | Output shaft: Key (motor only)
10IDG6-400FU-TPower supply: 3ø AC 220 / 380 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 2.435 N·m | Rated current: 1.21-2.1 A | Starting torque: 4.793 N·m | Output shaft: Gear type (U) for ultra-power box-type gearbox
10IDG6-400FHC-TPower supply: 3ø AC 220 / 380 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 2.435 N·m | Rated current: 1.21-2.1 A | Starting torque: 4.793 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox
