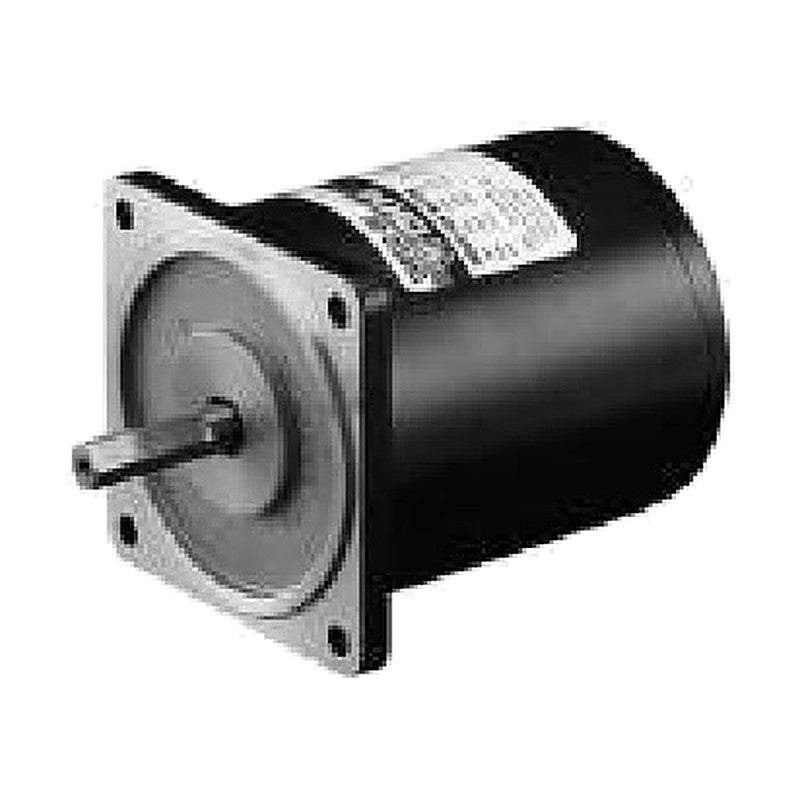

DKM 6RD-6 Reversible Motor 6W, 60 mm Frame

DKM 6RD-6 Reversible Motor 6W, 60 mm Frame

6 W single-phase reversible motor with 60 mm square frame, designed for frequent forward/reverse switching, with built-in friction brake; D-cut or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Designed for applications that require frequent changes of direction
  • Capacitor-run single-phase motor with higher starting torque than an induction motor
  • Built-in simple friction brake (approx. 10% of motor output) reduces overrun and improves instant reversing
  • Rated time 30 minutes; longer operation possible with intermittent duty
  • Gear-type shaft models combine with DKM gearboxes

Specifications

Output 6 W
Frame size 60 mm square
Poles 4
Duty 30 minutes (short-time rating)
Rated speed 1200 / 1250 / 1550 r/min (depends on voltage/frequency)
Rated torque 0.038-0.049 N·m
Starting torque 0.05-0.065 N·m
Shaft options D-cut, gear type (G)
Connection Lead wire or terminal box (-T)
Matching gearboxes 6GBD□MH (□ = gear ratio)
Built-in brake Friction brake, approx. 10% of motor output
Insulation class Class B (130 °C)
DKM 6RD-6 Reversible Motor 6W, 60 mm Frame
6RDD1-6 Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.25 A | Starting torque: 0.06 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: alternative printed code 6RDDA-6; terminal-box version 6RDD1-6-T
6RDG1-6G Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.25 A | Starting torque: 0.06 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6RDGA-6G; terminal-box version 6RDG1-6G-T
6RDDB-6 Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.23-0.24 A | Starting torque: 0.061-0.064 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 6RDDB-6-T
6RDGB-6G Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.23-0.24 A | Starting torque: 0.061-0.064 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 6RDGB-6G-T
6RDDC-6 Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.13-0.14 A | Starting torque: 0.061-0.065 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 6RDDC-6-T
6RDGC-6G Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.038-0.047 N·m | Rated current: 0.13-0.14 A | Starting torque: 0.061-0.065 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 6RDGC-6G-T
6RDD2-6 Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.15 A | Starting torque: 0.062 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: alternative printed code 6RDDD-6; terminal-box version 6RDD2-6-T
6RDG2-6G Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1550 r/min | Rated torque: 0.038 N·m | Rated current: 0.15 A | Starting torque: 0.062 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: alternative printed code 6RDGD-6G; terminal-box version 6RDG2-6G-T
6RDDE-6 Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.049 N·m | Rated current: 0.1-0.11 A | Starting torque: 0.05-0.055 N·m | Capacitor: 0.7 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 6RDDE-6-T
6RDGE-6G Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1200 r/min | Rated torque: 0.049 N·m | Rated current: 0.1-0.11 A | Starting torque: 0.05-0.055 N·m | Capacitor: 0.7 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 6RDGE-6G-T
