DKM 7BD-6 Electromagnetic Brake Motor 6W, 70 mm Frame
DKM 7BD-6 Electromagnetic Brake Motor 6W, 70 mm Frame

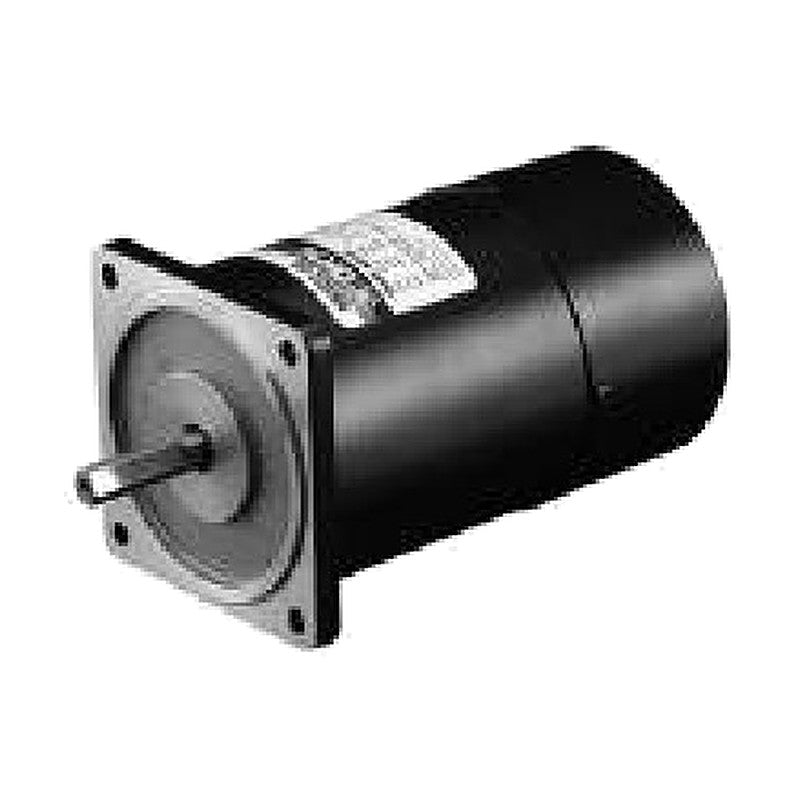

6 W single-phase AC motor with built-in power-off activated electromagnetic brake and 70 mm square frame, for stopping and holding loads (e.g. vertical axes, emergency stop); D-cut or gear-type (pinion) output shaft for DKM gearboxes.
Key features
- Power-off activated electromagnetic brake stops the motor instantly and holds the load when power is removed
- Overrun approx. 2-3 revolutions (induction motor: 30-40, reversible motor: 5-6)
- Motor and brake use the same power supply
- Frequent start/stop and direction changes possible
- Gear-type shaft models combine with DKM gearboxes
Specifications
| Output | 6 W |
|---|---|
| Frame size | 70 mm square |
| Poles | 4 |
| Duty | 30 minutes (short-time rating) |
| Rated speed | 1250 / 1300 / 1600 r/min (depends on voltage/frequency) |
| Rated torque | 0.037-0.047 N·m |
| Starting torque | 0.056-0.075 N·m |
| Shaft options | D-cut, gear type (G) |
| Connection | Lead wire |
| Matching gearboxes | 7GBK□BMH (□ = gear ratio) |
| Brake static friction torque | 0.1 N·m |
| Brake type | Power-off activated electromagnetic brake |
| 7BDD1-6 | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.27 A | Starting torque: 0.056 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7BDDA-6 | |
| 7BDG1-6G | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.27 A | Starting torque: 0.056 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7BDGA-6G | |
| 7BDDB-6 | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.063-0.066 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: D-cut (motor only) | |
| 7BDGB-6G | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.063-0.066 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | |
| 7BDDC-6 | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.064-0.067 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | |
| 7BDGC-6G | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.064-0.067 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | |
| 7BDD2-6 | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.17 A | Starting torque: 0.075 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7BDDD-6 | |
| 7BDG2-6G | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.17 A | Starting torque: 0.075 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7BDGD-6G | |
| 7BDDE-6 | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.047 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.061-0.072 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: D-cut (motor only) | |
| 7BDGE-6G | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.047 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.061-0.072 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox |
AC Brake MotorsDKM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
DKM 7BD-6 Electromagnetic Brake Motor 6W, 70 mm Frame
Available part numbers (10)
7BDD1-6, 7BDG1-6G, 7BDDB-6, 7BDGB-6G, 7BDDC-6, 7BDGC-6G, 7BDD2-6, 7BDG2-6G, 7BDDE-6, 7BDGE-6G
How to order
Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
DKM
AC Brake Motors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 7BDD1-6 | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.27 A | Starting torque: 0.056 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7BDDA-6 | ||
| 7BDG1-6G | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.27 A | Starting torque: 0.056 N·m | Capacitor: 3.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7BDGA-6G | ||
| 7BDDB-6 | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.063-0.066 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: D-cut (motor only) | ||
| 7BDGB-6G | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.25-0.29 A | Starting torque: 0.063-0.066 N·m | Capacitor: 3.5 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | ||
| 7BDDC-6 | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.064-0.067 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | ||
| 7BDGC-6G | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.037-0.045 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.064-0.067 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | ||
| 7BDD2-6 | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.17 A | Starting torque: 0.075 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 7BDDD-6 | ||
| 7BDG2-6G | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.037 N·m | Rated current: 0.17 A | Starting torque: 0.075 N·m | Capacitor: 1.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 7BDGD-6G | ||
| 7BDDE-6 | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.047 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.061-0.072 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: D-cut (motor only) | ||
| 7BDGE-6G | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.047 N·m | Rated current: 0.15-0.17 A | Starting torque: 0.061-0.072 N·m | Capacitor: 0.8 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox |
Need a different model, or a part not listed here? Send us your parts list →
