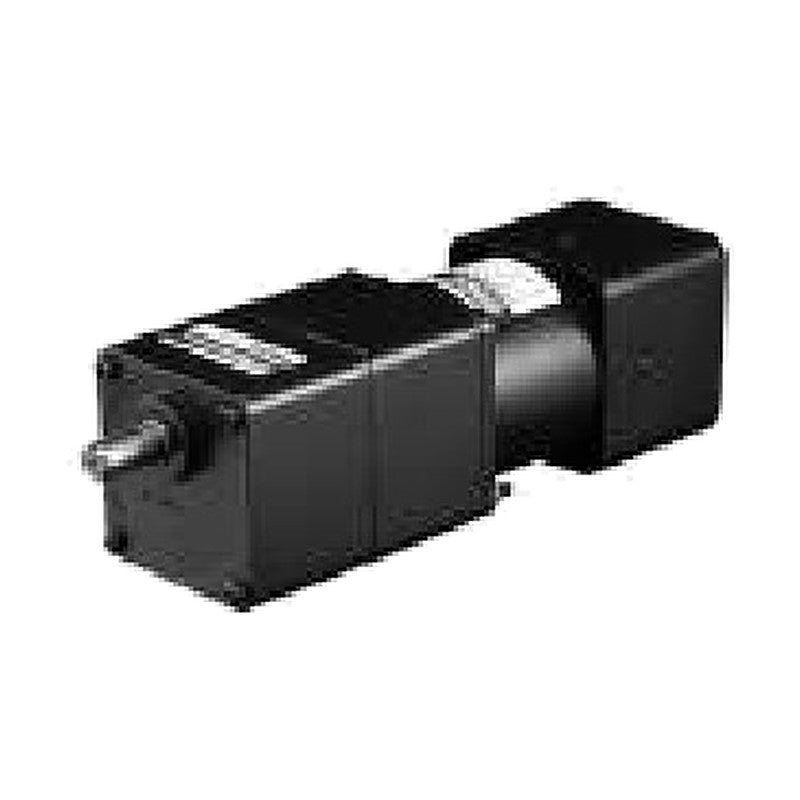

DKM 9CID-120F2 Clutch & Brake Motor 120W, 90 mm Frame

DKM 9CID-120F2 Clutch & Brake Motor 120W, 90 mm Frame

120 W single- and three-phase AC induction motor with built-in 24 VDC clutch & brake unit and 90 mm square frame, for frequent start/stop, positioning, indexing and incremental feeding; gear-type output shaft for direct mounting of a DKM gearbox.

Key features

  • Internal clutch & brake mechanism between a continuously running induction motor and the gearbox
  • Run/stop operation up to 100 times per minute
  • Output shaft stops without influence of motor inertia; motor keeps rotating
  • For unidirectional motion (not for frequent bi-directional start/stop)
  • Clutch and brake coils: 24 VDC

Specifications

Output 120 W
Frame size 90 mm square
Poles 4
Duty Continuous
Rated speed 1250 / 1300 / 1350 / 1600 r/min (depends on voltage/frequency)
Rated torque 0.731-0.935 N·m
Starting torque 0.62-2.75 N·m
Shaft options Gear type (P) only
Connection Lead wire
Matching gearboxes 9PBK□BH, 9PFK□BH (□ = gear ratio)
Clutch/brake coil 24 VDC (clutch 0.354 A, brake 0.253 A)
Insulation class Class B (130 °C)
DKM 9CID-120F2 Clutch & Brake Motor 120W, 90 mm Frame
9CIDG1-120F2P Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGA-120F2P
9CIDG2-120F2P Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGD-120F2P
9CIDGE-120F2P Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox
9CIDG3-120F2P Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGG-120F2P
9CIDG4-120F2P Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGK-120F2P
9CIDG5-120F2P Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGL-120F2P
AC Clutch & Brake MotorsDKM
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9CID-120F2 Clutch & Brake Motor 120W, 90 mm Frame

Brand DKM·AC Clutch & Brake Motors

Available part numbers (6)

9CIDG1-120F2P, 9CIDG2-120F2P, 9CIDGE-120F2P, 9CIDG3-120F2P, 9CIDG4-120F2P, 9CIDG5-120F2P

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9CID-120F2 Clutch & Brake Motor 120W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9CIDG1-120F2PPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 2 A | Starting torque: 0.65 N·m | Capacitor: 25.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGA-120F2P
9CIDG2-120F2PPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.731 N·m | Rated current: 1.04 A | Starting torque: 0.62 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGD-120F2P
9CIDGE-120F2PPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1250 r/min | Rated torque: 0.935 N·m | Rated current: 0.9-1 A | Starting torque: 0.64-0.75 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox
9CIDG3-120F2PPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.71-0.88 A | Starting torque: 2-2.7 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGG-120F2P
9CIDG4-120F2PPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.41-0.5 A | Starting torque: 1.99-2.71 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGK-120F2P
9CIDG5-120F2PPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1600 / 1350 r/min | Rated torque: 0.731-0.899 N·m | Rated current: 0.37-0.47 A | Starting torque: 1.99-2.75 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9CIDGL-120F2P
