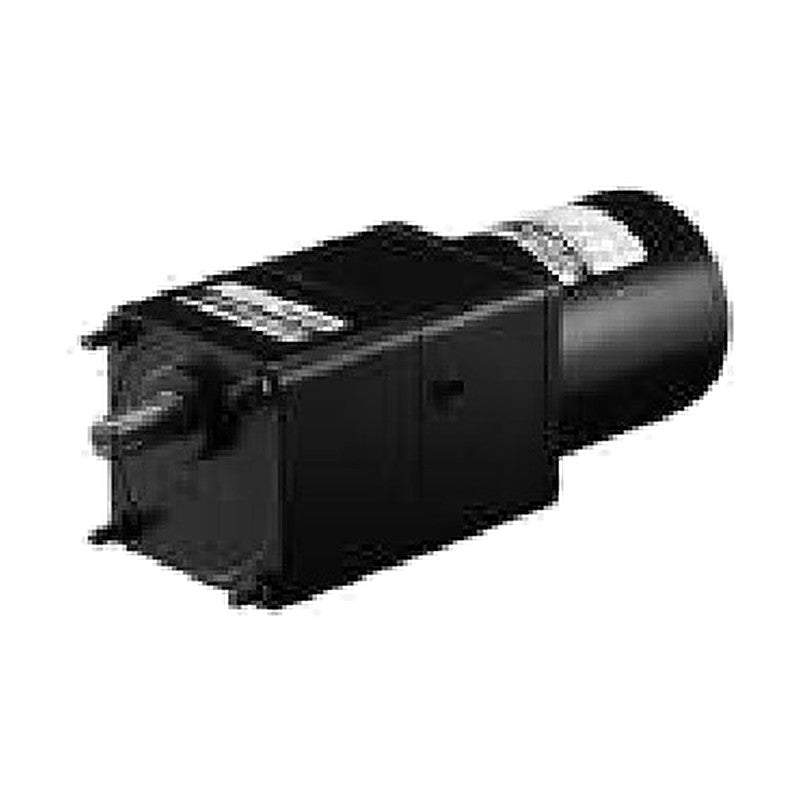

DKM 9CID-40 Clutch & Brake Motor 40W, 90 mm Frame
DKM 9CID-40 Clutch & Brake Motor 40W, 90 mm Frame
40 W single- and three-phase AC induction motor with built-in 24 VDC clutch & brake unit and 90 mm square frame, for frequent start/stop, positioning, indexing and incremental feeding; gear-type output shaft for direct mounting of a DKM gearbox.
Key features
- Internal clutch & brake mechanism between a continuously running induction motor and the gearbox
- Run/stop operation up to 100 times per minute
- Output shaft stops without influence of motor inertia; motor keeps rotating
- For unidirectional motion (not for frequent bi-directional start/stop)
- Clutch and brake coils: 24 VDC
Specifications
| Output | 40 W |
|---|---|
| Frame size | 90 mm square |
| Poles | 4 |
| Duty | Continuous |
| Rated speed | 1250 / 1300 / 1350 / 1550 / 1600 r/min (depends on voltage/frequency) |
| Rated torque | 0.244-0.312 N·m |
| Starting torque | 0.21-1.11 N·m |
| Shaft options | Gear type (G) only |
| Connection | Lead wire |
| Matching gearboxes | 9GBK□BMH, 9PBK□BH, 9PFK□BH (□ = gear ratio) |
| Clutch/brake coil | 24 VDC (clutch 0.354 A, brake 0.253 A) |
| Insulation class | Class B (130 °C) |
| 9CIDG1-40G | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9CIDGA-40G | |
| 9CIDGB-40G | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | |
| 9CIDGC-40G | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | |
| 9CIDG2-40G | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9CIDGD-40G | |
| 9CIDGE-40G | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | |
| 9CIDG3-40G | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9CIDGG-40G | |
| 9CIDGJ-40G | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: Gear type (G) for general box-type gearbox | |
| 9CIDG4-40G | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9CIDGK-40G | |
| 9CIDG5-40G | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9CIDGL-40G |
AC Clutch & Brake MotorsDKM
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
DKM 9CID-40 Clutch & Brake Motor 40W, 90 mm Frame
Available part numbers (9)
9CIDG1-40G, 9CIDGB-40G, 9CIDGC-40G, 9CIDG2-40G, 9CIDGE-40G, 9CIDG3-40G, 9CIDGJ-40G, 9CIDG4-40G, 9CIDG5-40G
How to order
Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
DKM
AC Clutch & Brake Motors
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| 9CIDG1-40G | Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9CIDGA-40G | ||
| 9CIDGB-40G | Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | ||
| 9CIDGC-40G | Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | ||
| 9CIDG2-40G | Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9CIDGD-40G | ||
| 9CIDGE-40G | Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | ||
| 9CIDG3-40G | Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9CIDGG-40G | ||
| 9CIDGJ-40G | Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: Gear type (G) for general box-type gearbox | ||
| 9CIDG4-40G | Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9CIDGK-40G | ||
| 9CIDG5-40G | Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9CIDGL-40G |
