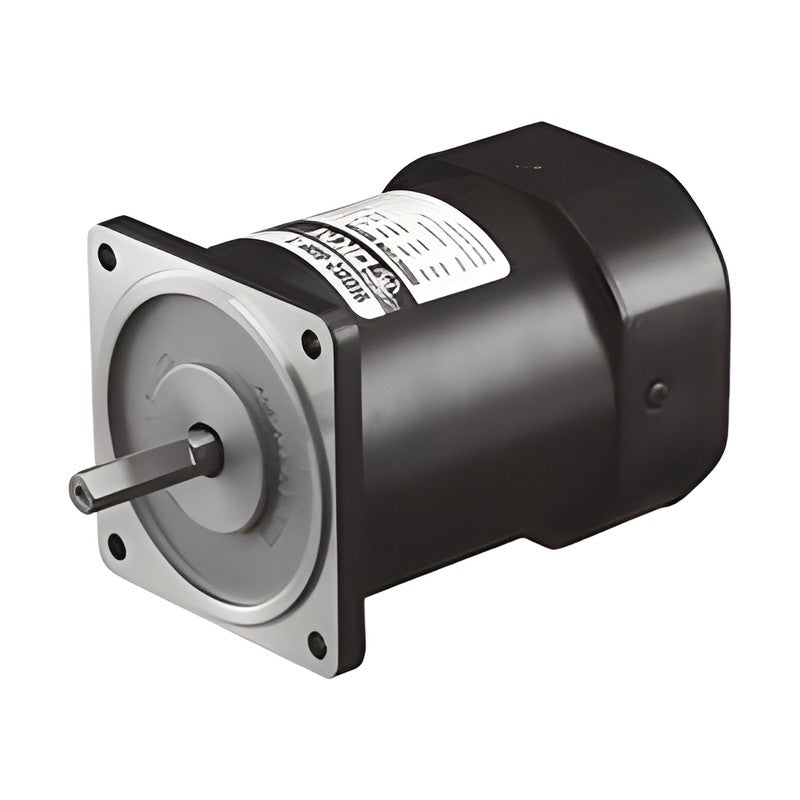

DKM 9ID-200F Induction Motor 200W, 90 mm Frame

DKM 9ID-200F Induction Motor 200W, 90 mm Frame

200 W three-phase AC induction motor with 90 mm square frame for unidirectional continuous operation such as conveyors; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Suitable for unidirectional continuous operation such as conveyor systems
  • Single-phase capacitor-run and three-phase versions
  • Three-phase versions offer higher starting torque and can run directly from a three-phase supply
  • Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only

Specifications

Output 200 W
Frame size 90 mm square
Poles 4
Duty Continuous
Rated speed 1300 / 1550 r/min (depends on voltage/frequency)
Rated torque 1.257-1.498 N·m
Starting torque 3.01-4.2 N·m
Shaft options D-cut, key, gear type (H, WH, HC)
Connection Lead wire or terminal box (-T)
Matching gearboxes 9HBK□BH, 9HFK□BH, 9WHD□-030, 9WHD□-040, 9HC□ (Helicross) (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
DKM 9ID-200F Induction Motor 200W, 90 mm Frame
9IDD3-200F Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-200F; terminal-box version 9IDD3-200F-T
9IDK3-200F Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-200F; terminal-box version 9IDK3-200F-T
9IDG3-200FH Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGG-200FH; terminal-box version 9IDG3-200FH-T
9IDG3-200FWH Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGG-200FWH; terminal-box version 9IDG3-200FWH-T
9IDG3-200FHC Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGG-200FHC; terminal-box version 9IDG3-200FHC-T
9IDD4-200F Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-200F; terminal-box version 9IDD4-200F-T
9IDK4-200F Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-200F; terminal-box version 9IDK4-200F-T
9IDG4-200FH Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGK-200FH; terminal-box version 9IDG4-200FH-T
9IDG4-200FWH Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGK-200FWH; terminal-box version 9IDG4-200FWH-T
9IDG4-200FHC Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGK-200FHC; terminal-box version 9IDG4-200FHC-T
9IDD5-200F Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-200F; terminal-box version 9IDD5-200F-T
9IDK5-200F Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-200F; terminal-box version 9IDK5-200F-T
9IDG5-200FH Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGL-200FH; terminal-box version 9IDG5-200FH-T
9IDG5-200FWH Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGL-200FWH; terminal-box version 9IDG5-200FWH-T
9IDG5-200FHC Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGL-200FHC; terminal-box version 9IDG5-200FHC-T
AC Induction MotorsDKM
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9ID-200F Induction Motor 200W, 90 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (15)

9IDD3-200F, 9IDK3-200F, 9IDG3-200FH, 9IDG3-200FWH, 9IDG3-200FHC, 9IDD4-200F, 9IDK4-200F, 9IDG4-200FH, 9IDG4-200FWH, 9IDG4-200FHC + 5 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9ID-200F Induction Motor 200W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9IDD3-200FPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-200F; terminal-box version 9IDD3-200F-T
9IDK3-200FPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-200F; terminal-box version 9IDK3-200F-T
9IDG3-200FHPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGG-200FH; terminal-box version 9IDG3-200FH-T
9IDG3-200FWHPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGG-200FWH; terminal-box version 9IDG3-200FWH-T
9IDG3-200FHCPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 1.17-1.33 A | Starting torque: 3.01-3.97 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGG-200FHC; terminal-box version 9IDG3-200FHC-T
9IDD4-200FPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-200F; terminal-box version 9IDD4-200F-T
9IDK4-200FPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-200F; terminal-box version 9IDK4-200F-T
9IDG4-200FHPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGK-200FH; terminal-box version 9IDG4-200FH-T
9IDG4-200FWHPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGK-200FWH; terminal-box version 9IDG4-200FWH-T
9IDG4-200FHCPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.67-0.81 A | Starting torque: 3.11-4.12 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGK-200FHC; terminal-box version 9IDG4-200FHC-T
9IDD5-200FPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-200F; terminal-box version 9IDD5-200F-T
9IDK5-200FPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-200F; terminal-box version 9IDK5-200F-T
9IDG5-200FHPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Gear type (H) for high-power box/flange-type gearbox | Variants: thermal-protector version 9IDGL-200FH; terminal-box version 9IDG5-200FH-T
9IDG5-200FWHPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Gear type (WH) for worm hollow-shaft gearbox | Variants: thermal-protector version 9IDGL-200FWH; terminal-box version 9IDG5-200FWH-T
9IDG5-200FHCPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1300 / 1550 r/min | Rated torque: 1.257-1.498 N·m | Rated current: 0.62-0.76 A | Starting torque: 3.11-4.2 N·m | Output shaft: Gear type (HC) for Helicross right-angle gearbox | Variants: thermal-protector version 9IDGL-200FHC; terminal-box version 9IDG5-200FHC-T
