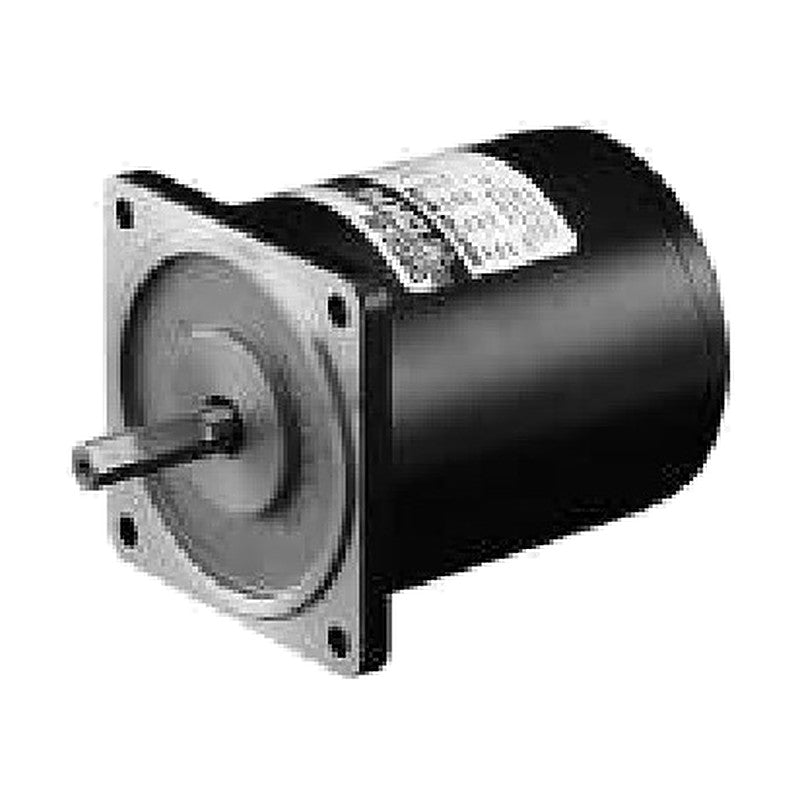

DKM 9ID-40 Induction Motor 40W, 90 mm Frame

DKM 9ID-40 Induction Motor 40W, 90 mm Frame

40 W single- and three-phase AC induction motor with 90 mm square frame for unidirectional continuous operation such as conveyors; D-cut, key or gear-type (pinion) output shaft for DKM gearboxes.

Key features

  • Suitable for unidirectional continuous operation such as conveyor systems
  • Single-phase capacitor-run and three-phase versions
  • Three-phase versions offer higher starting torque and can run directly from a three-phase supply
  • Gear-type shaft models combine with DKM gearboxes; D-cut and key shaft models are for use as a motor only

Specifications

Output 40 W
Frame size 90 mm square
Poles 4
Duty Continuous
Rated speed 1250 / 1300 / 1350 / 1550 / 1600 r/min (depends on voltage/frequency)
Rated torque 0.244-0.312 N·m
Starting torque 0.21-1.11 N·m
Shaft options D-cut, key, gear type (G, P, W)
Connection Lead wire or terminal box (-T)
Matching gearboxes 9GBK□BMH, 9PBK□BH, 9PFK□BH, 9WD□BL/BR/BRL (□ = gear ratio)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
DKM 9ID-40 Induction Motor 40W, 90 mm Frame
9IDD1-40 Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-40; terminal-box version 9IDD1-40-T
9IDK1-40 Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-40; terminal-box version 9IDK1-40-T
9IDG1-40G Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9IDGA-40G; terminal-box version 9IDG1-40G-T
9IDG1-40P Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGA-40P; terminal-box version 9IDG1-40P-T
9IDG1-40W Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGA-40W; terminal-box version 9IDG1-40W-T
9IDDB-40 Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDB-40-T
9IDKB-40 Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKB-40-T
9IDGB-40G Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9IDGB-40G-T
9IDGB-40P Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGB-40P-T
9IDGB-40W Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGB-40W-T
9IDDC-40 Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDC-40-T
9IDKC-40 Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKC-40-T
9IDGC-40G Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9IDGC-40G-T
9IDGC-40P Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGC-40P-T
9IDGC-40W Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGC-40W-T
9IDD2-40 Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-40; terminal-box version 9IDD2-40-T
9IDK2-40 Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-40; terminal-box version 9IDK2-40-T
9IDG2-40G Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9IDGD-40G; terminal-box version 9IDG2-40G-T
9IDG2-40P Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGD-40P; terminal-box version 9IDG2-40P-T
9IDG2-40W Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGD-40W; terminal-box version 9IDG2-40W-T
9IDDE-40 Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-40-T
9IDKE-40 Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-40-T
9IDGE-40G Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9IDGE-40G-T
9IDGE-40P Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGE-40P-T
9IDGE-40W Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGE-40W-T
9IDD3-40 Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-40; terminal-box version 9IDD3-40-T
9IDK3-40 Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-40; terminal-box version 9IDK3-40-T
9IDG3-40G Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9IDGG-40G; terminal-box version 9IDG3-40G-T
9IDG3-40P Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGG-40P; terminal-box version 9IDG3-40P-T
9IDG3-40W Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGG-40W; terminal-box version 9IDG3-40W-T
9IDDJ-40 Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDJ-40-T
9IDKJ-40 Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKJ-40-T
9IDGJ-40G Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9IDGJ-40G-T
9IDGJ-40P Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGJ-40P-T
9IDGJ-40W Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGJ-40W-T
9IDD4-40 Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-40; terminal-box version 9IDD4-40-T
9IDK4-40 Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-40; terminal-box version 9IDK4-40-T
9IDG4-40G Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9IDGK-40G; terminal-box version 9IDG4-40G-T
9IDG4-40P Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGK-40P; terminal-box version 9IDG4-40P-T
9IDG4-40W Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGK-40W; terminal-box version 9IDG4-40W-T
9IDD5-40 Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-40; terminal-box version 9IDD5-40-T
9IDK5-40 Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-40; terminal-box version 9IDK5-40-T
9IDG5-40G Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9IDGL-40G; terminal-box version 9IDG5-40G-T
9IDG5-40P Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGL-40P; terminal-box version 9IDG5-40P-T
9IDG5-40W Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGL-40W; terminal-box version 9IDG5-40W-T
AC Induction MotorsDKM
45 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9ID-40 Induction Motor 40W, 90 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (45)

9IDD1-40, 9IDK1-40, 9IDG1-40G, 9IDG1-40P, 9IDG1-40W, 9IDDB-40, 9IDKB-40, 9IDGB-40G, 9IDGB-40P, 9IDGB-40W + 35 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9ID-40 Induction Motor 40W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9IDD1-40Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-40; terminal-box version 9IDD1-40-T
9IDK1-40Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-40; terminal-box version 9IDK1-40-T
9IDG1-40GPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9IDGA-40G; terminal-box version 9IDG1-40G-T
9IDG1-40PPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGA-40P; terminal-box version 9IDG1-40P-T
9IDG1-40WPower supply: 1ø AC 110 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.8 A | Starting torque: 0.26 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGA-40W; terminal-box version 9IDG1-40W-T
9IDDB-40Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDB-40-T
9IDKB-40Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKB-40-T
9IDGB-40GPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9IDGB-40G-T
9IDGB-40PPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGB-40P-T
9IDGB-40WPower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 1250 / 1550 r/min | Rated torque: 0.252-0.312 N·m | Rated current: 0.81-0.89 A | Starting torque: 0.215-0.22 N·m | Capacitor: 10.0 µF / 250 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGB-40W-T
9IDDC-40Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDC-40-T
9IDKC-40Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKC-40-T
9IDGC-40GPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9IDGC-40G-T
9IDGC-40PPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGC-40P-T
9IDGC-40WPower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 1300 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.43-0.49 A | Starting torque: 0.275-0.299 N·m | Capacitor: 3.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGC-40W-T
9IDD2-40Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-40; terminal-box version 9IDD2-40-T
9IDK2-40Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-40; terminal-box version 9IDK2-40-T
9IDG2-40GPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9IDGD-40G; terminal-box version 9IDG2-40G-T
9IDG2-40PPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGD-40P; terminal-box version 9IDG2-40P-T
9IDG2-40WPower supply: 1ø AC 220 V, 60 Hz | Rated speed: 1600 r/min | Rated torque: 0.244 N·m | Rated current: 0.45 A | Starting torque: 0.26 N·m | Capacitor: 2.5 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGD-40W; terminal-box version 9IDG2-40W-T
9IDDE-40Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-40-T
9IDKE-40Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-40-T
9IDGE-40GPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9IDGE-40G-T
9IDGE-40PPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGE-40P-T
9IDGE-40WPower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 1300 r/min | Rated torque: 0.3 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.21-0.26 N·m | Capacitor: 2.0 µF / 450 VAC | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGE-40W-T
9IDD3-40Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-40; terminal-box version 9IDD3-40-T
9IDK3-40Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-40; terminal-box version 9IDK3-40-T
9IDG3-40GPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9IDGG-40G; terminal-box version 9IDG3-40G-T
9IDG3-40PPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGG-40P; terminal-box version 9IDG3-40P-T
9IDG3-40WPower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.31-0.35 A | Starting torque: 0.79-1.08 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGG-40W; terminal-box version 9IDG3-40W-T
9IDDJ-40Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDJ-40-T
9IDKJ-40Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKJ-40-T
9IDGJ-40GPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: terminal-box version 9IDGJ-40G-T
9IDGJ-40PPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: terminal-box version 9IDGJ-40P-T
9IDGJ-40WPower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 1300 / 1550 / 1350 / 1600 r/min | Rated torque: 0.244-0.3 N·m | Rated current: 0.31-0.34 A | Starting torque: 0.74-0.99 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: terminal-box version 9IDGJ-40W-T
9IDD4-40Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-40; terminal-box version 9IDD4-40-T
9IDK4-40Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-40; terminal-box version 9IDK4-40-T
9IDG4-40GPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9IDGK-40G; terminal-box version 9IDG4-40G-T
9IDG4-40PPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGK-40P; terminal-box version 9IDG4-40P-T
9IDG4-40WPower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.18-0.2 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGK-40W; terminal-box version 9IDG4-40W-T
9IDD5-40Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-40; terminal-box version 9IDD5-40-T
9IDK5-40Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-40; terminal-box version 9IDK5-40-T
9IDG5-40GPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (G) for general box-type gearbox | Variants: thermal-protector version 9IDGL-40G; terminal-box version 9IDG5-40G-T
9IDG5-40PPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (P) for powerful box/flange-type gearbox | Variants: thermal-protector version 9IDGL-40P; terminal-box version 9IDG5-40P-T
9IDG5-40WPower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 1350 / 1600 r/min | Rated torque: 0.244-0.289 N·m | Rated current: 0.16-0.18 A | Starting torque: 0.8-1.11 N·m | Output shaft: Gear type (W) for worm solid-shaft gearbox | Variants: thermal-protector version 9IDGL-40W; terminal-box version 9IDG5-40W-T
