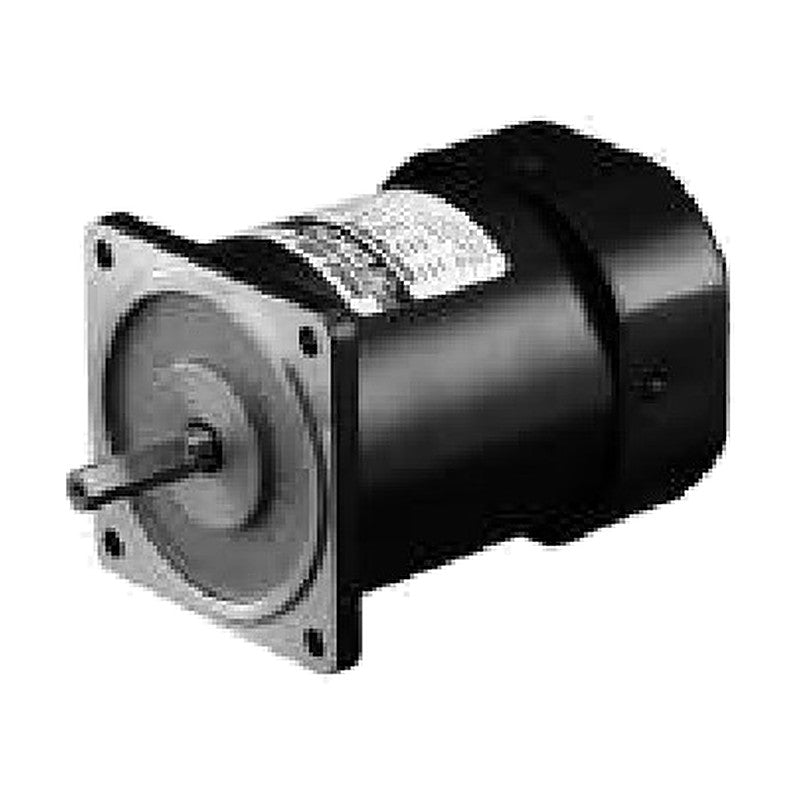

DKM 9ID-60F-A 2-Pole Induction Motor 60W, 90 mm Frame

DKM 9ID-60F-A 2-Pole Induction Motor 60W, 90 mm Frame

60 W single- and three-phase 2-pole AC induction motor with 90 mm square frame for high-speed (approx. 2,700-3,300 r/min) unidirectional continuous operation; D-cut or key output shaft.

Key features

  • 2-pole design for high-speed continuous operation
  • Single-phase capacitor-run and three-phase versions
  • D-cut or key output shaft for direct drive (no gearbox)
  • Lead-wire or terminal-box connection

Specifications

Output 60 W
Frame size 90 mm square
Poles 2
Duty Continuous
Rated speed 2600 / 2700 / 3100 / 3200 r/min (depends on voltage/frequency)
Rated torque 0.183-0.225 N·m
Starting torque 0.18-0.866 N·m
Shaft options D-cut, key
Connection Lead wire or terminal box (-T)
Insulation class Class B (130 °C)
Insulation resistance 100 MΩ min. at 500 VDC megger (windings to frame)
Dielectric strength 1.5 kV at 50/60 Hz for 1 minute
DKM 9ID-60F-A 2-Pole Induction Motor 60W, 90 mm Frame
9IDD1-60F-A Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.183 N·m | Rated current: 1.35 A | Starting torque: 0.215 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-60F-A; terminal-box version 9IDD1-60F-AT
9IDK1-60F-A Power supply: 1ø AC 110 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.183 N·m | Rated current: 1.35 A | Starting torque: 0.215 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-60F-A; terminal-box version 9IDK1-60F-AT
9IDDB-60F-A Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 1.1-1.25 A | Starting torque: 0.18 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDB-60F-AT
9IDKB-60F-A Power supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 1.1-1.25 A | Starting torque: 0.18 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKB-60F-AT
9IDDC-60F-A Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.83 A | Starting torque: 0.275-0.29 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDC-60F-AT
9IDKC-60F-A Power supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.83 A | Starting torque: 0.275-0.29 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKC-60F-AT
9IDD2-60F-A Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.183 N·m | Rated current: 0.86 A | Starting torque: 0.268 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-60F-A; terminal-box version 9IDD2-60F-AT
9IDK2-60F-A Power supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.183 N·m | Rated current: 0.86 A | Starting torque: 0.268 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-60F-A; terminal-box version 9IDK2-60F-AT
9IDDE-60F-A Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2700 r/min | Rated torque: 0.216 N·m | Rated current: 0.61-0.68 A | Starting torque: 0.249-0.306 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-60F-AT
9IDKE-60F-A Power supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2700 r/min | Rated torque: 0.216 N·m | Rated current: 0.61-0.68 A | Starting torque: 0.249-0.306 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-60F-AT
9IDD3-60F-A Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.55-0.746 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-60F-A; terminal-box version 9IDD3-60F-AT
9IDK3-60F-A Power supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.55-0.746 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-60F-A; terminal-box version 9IDK3-60F-AT
9IDDJ-60F-A Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 2600 / 3100 / 2700 / 3200 r/min | Rated torque: 0.183-0.225 N·m | Rated current: 0.33-0.37 A | Starting torque: 0.48-0.688 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDJ-60F-AT
9IDKJ-60F-A Power supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 2600 / 3100 / 2700 / 3200 r/min | Rated torque: 0.183-0.225 N·m | Rated current: 0.33-0.37 A | Starting torque: 0.48-0.688 N·m | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKJ-60F-AT
9IDD4-60F-A Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.21-0.23 A | Starting torque: 0.576-0.81 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-60F-A; terminal-box version 9IDD4-60F-AT
9IDK4-60F-A Power supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.21-0.23 A | Starting torque: 0.576-0.81 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-60F-A; terminal-box version 9IDK4-60F-AT
9IDD5-60F-A Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.2-0.23 A | Starting torque: 0.62-0.866 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-60F-A; terminal-box version 9IDD5-60F-AT
9IDK5-60F-A Power supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.2-0.23 A | Starting torque: 0.62-0.866 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-60F-A; terminal-box version 9IDK5-60F-AT
AC Induction MotorsDKM
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM 9ID-60F-A 2-Pole Induction Motor 60W, 90 mm Frame

Brand DKM·AC Induction Motors

Available part numbers (18)

9IDD1-60F-A, 9IDK1-60F-A, 9IDDB-60F-A, 9IDKB-60F-A, 9IDDC-60F-A, 9IDKC-60F-A, 9IDD2-60F-A, 9IDK2-60F-A, 9IDDE-60F-A, 9IDKE-60F-A + 8 more — see full table ↓

How to order

Send the DKM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
DKM 9ID-60F-A 2-Pole Induction Motor 60W, 90 mm Frame
0 selected
RFQ List (0)
Product codeSpec
9IDD1-60F-APower supply: 1ø AC 110 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.183 N·m | Rated current: 1.35 A | Starting torque: 0.215 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDA-60F-A; terminal-box version 9IDD1-60F-AT
9IDK1-60F-APower supply: 1ø AC 110 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.183 N·m | Rated current: 1.35 A | Starting torque: 0.215 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKA-60F-A; terminal-box version 9IDK1-60F-AT
9IDDB-60F-APower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 1.1-1.25 A | Starting torque: 0.18 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDB-60F-AT
9IDKB-60F-APower supply: 1ø AC 100 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 1.1-1.25 A | Starting torque: 0.18 N·m | Capacitor: 16.0 µF / 250 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKB-60F-AT
9IDDC-60F-APower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.83 A | Starting torque: 0.275-0.29 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDC-60F-AT
9IDKC-60F-APower supply: 1ø AC 200 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.83 A | Starting torque: 0.275-0.29 N·m | Capacitor: 6.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKC-60F-AT
9IDD2-60F-APower supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.183 N·m | Rated current: 0.86 A | Starting torque: 0.268 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDD-60F-A; terminal-box version 9IDD2-60F-AT
9IDK2-60F-APower supply: 1ø AC 220 V, 60 Hz | Rated speed: 3200 r/min | Rated torque: 0.183 N·m | Rated current: 0.86 A | Starting torque: 0.268 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKD-60F-A; terminal-box version 9IDK2-60F-AT
9IDDE-60F-APower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2700 r/min | Rated torque: 0.216 N·m | Rated current: 0.61-0.68 A | Starting torque: 0.249-0.306 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDE-60F-AT
9IDKE-60F-APower supply: 1ø AC 220 / 240 V, 50 Hz | Rated speed: 2700 r/min | Rated torque: 0.216 N·m | Rated current: 0.61-0.68 A | Starting torque: 0.249-0.306 N·m | Capacitor: 5.0 µF / 450 VAC | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKE-60F-AT
9IDD3-60F-APower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.55-0.746 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDG-60F-A; terminal-box version 9IDD3-60F-AT
9IDK3-60F-APower supply: 3ø AC 220 / 230 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.33-0.36 A | Starting torque: 0.55-0.746 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKG-60F-A; terminal-box version 9IDK3-60F-AT
9IDDJ-60F-APower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 2600 / 3100 / 2700 / 3200 r/min | Rated torque: 0.183-0.225 N·m | Rated current: 0.33-0.37 A | Starting torque: 0.48-0.688 N·m | Output shaft: D-cut (motor only) | Variants: terminal-box version 9IDDJ-60F-AT
9IDKJ-60F-APower supply: 3ø AC 200 / 220 V, 50/60 Hz | Rated speed: 2600 / 3100 / 2700 / 3200 r/min | Rated torque: 0.183-0.225 N·m | Rated current: 0.33-0.37 A | Starting torque: 0.48-0.688 N·m | Output shaft: Key (motor only) | Variants: terminal-box version 9IDKJ-60F-AT
9IDD4-60F-APower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.21-0.23 A | Starting torque: 0.576-0.81 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDK-60F-A; terminal-box version 9IDD4-60F-AT
9IDK4-60F-APower supply: 3ø AC 380 / 400 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.21-0.23 A | Starting torque: 0.576-0.81 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKK-60F-A; terminal-box version 9IDK4-60F-AT
9IDD5-60F-APower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.2-0.23 A | Starting torque: 0.62-0.866 N·m | Output shaft: D-cut (motor only) | Variants: thermal-protector version 9IDDL-60F-A; terminal-box version 9IDD5-60F-AT
9IDK5-60F-APower supply: 3ø AC 415 / 440 V, 50/60 Hz | Rated speed: 2700 / 3200 r/min | Rated torque: 0.183-0.216 N·m | Rated current: 0.2-0.23 A | Starting torque: 0.62-0.866 N·m | Output shaft: Key (motor only) | Variants: thermal-protector version 9IDKL-60F-A; terminal-box version 9IDK5-60F-AT
