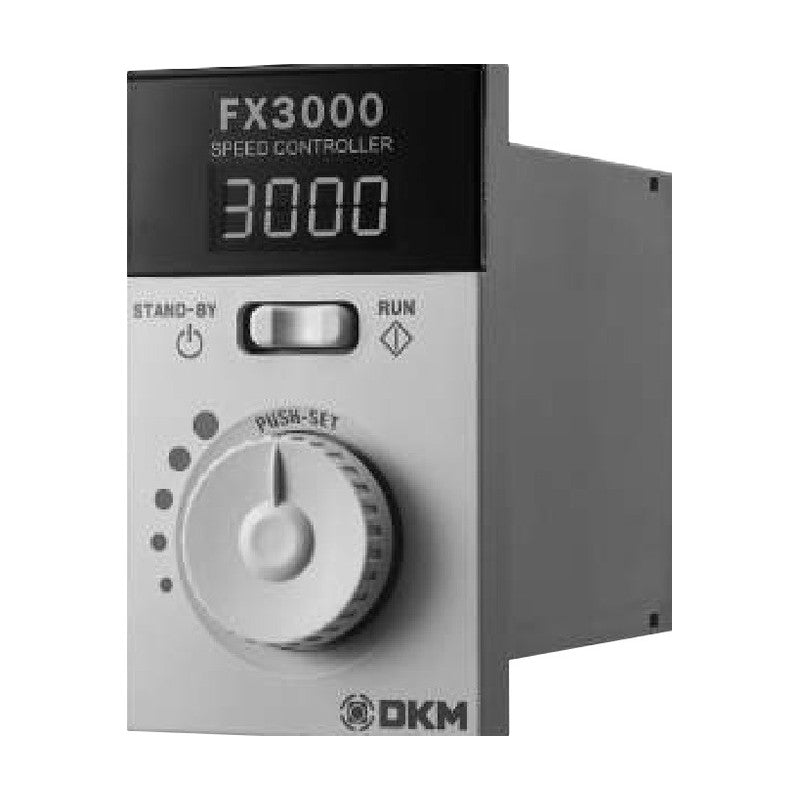

DKM FX3000 Speed Controller, Digital Display

DKM FX3000 Speed Controller, Digital Display

Panel-mount AC speed/torque controller with digital display, used with DKM speed control motors (S type) or torque motors (T type).

Key features

  • Speed and torque controlled with the front panel dial; motor and controller connected by connector
  • Screwless connector for easy wiring and maintenance
  • Digital display of current speed (r/min) and torque (%)
  • Various functions set by parameters; initial mode is speed control (set Pr04 to 1 for torque motors)

Specifications

Rated voltage 1-phase AC 220-240 V 50/60 Hz ±10%
Allowable current Below 6 A
Control function Speed control, torque control
Control system Phase control
Speed control range 90-1400 r/min (50 Hz) / 90-1700 r/min (60 Hz)
Torque control range 0-100%
Speed variation ±5% (standard value)
Motor output 3-180 W
Ambient temperature -10 to 55 °C
Ambient humidity 35-85% RH (no condensation)
Insulation resistance Over 100 MΩ at DC 500 V
Dielectric strength AC 1500 V for 1 min
FX3000-006S Type: Speed control motor | Motor output: 6 W | Applicable motor: 6SD/7SD 6 W
FX3000-010S Type: Speed control motor | Motor output: 10 W | Applicable motor: 7SD 10 W
FX3000-015S Type: Speed control motor | Motor output: 15 W | Applicable motor: 7SD/8SD 15 W
FX3000-025S Type: Speed control motor | Motor output: 25 W | Applicable motor: 8SD 25 W
FX3000-040S Type: Speed control motor | Motor output: 40 W | Applicable motor: 9SD 40 W
FX3000-060S Type: Speed control motor | Motor output: 60 W | Applicable motor: 9SD 60F2
FX3000-090S Type: Speed control motor | Motor output: 90 W | Applicable motor: 9SD 90F2
FX3000-120S Type: Speed control motor | Motor output: 120 W | Applicable motor: 9SD 120F2
FX3000-180S Type: Speed control motor | Motor output: 180 W | Applicable motor: 9SD 180F2
Speed ControllersDKM
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DKM FX3000 Speed Controller, Digital Display

Brand DKM·Speed Controllers

Available part numbers (9)

FX3000-006S, FX3000-010S, FX3000-015S, FX3000-025S, FX3000-040S, FX3000-060S, FX3000-090S, FX3000-120S, FX3000-180S
