Dongbo Chain DBC Side Roller Chain (PSR/SSR, Single and Double Pitch)

Dongbo Chain DBC Side Roller Chain (PSR/SSR, Single and Double Pitch)

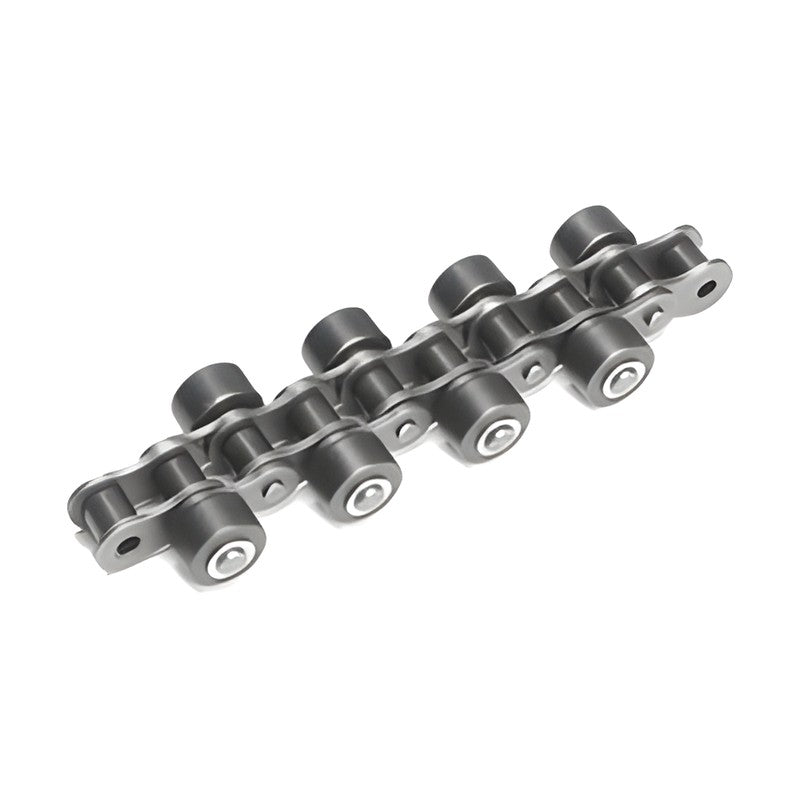

Free-flow chain with side rollers that both convey and accumulate light items on a continuously running line. Supplied with steel (SSR) or plastic (PSR) side rollers in Z (zigzag) or K (paired) arrangements.

Key features

  • Conveys and accumulates light items on a running chain
  • Steel side rollers (-10 to 150 C) or plastic for low noise (-10 to 60 C)
  • Z-type and K-type side roller arrangements
  • G-hole installation and guide plate anti-derail types
  • RoHS-compliant plastic materials

Specifications

Chain sizes 40-100 single pitch, 2040-2102 double pitch
Pitch range 12.70 - 63.50 mm
Side roller SSR steel, PSR plastic
Arrangement Z-type (every link), K-type (every 2nd link)
Designation example DBC 2040 S SSR-P-Z-2L-SS
Ordering State guide plate position and spacing for TG type
Unit mm
Source Dongbo Chain Side Roller Chain catalogue
DBC 40 PSR Pitch: 12.70 mm | Type: Single pitch | Side roller: Plastic | Roller dia: 7.92 mm
DBC 40 SSR Pitch: 12.70 mm | Type: Single pitch | Side roller: Steel | Roller dia: 7.92 mm
DBC 50 PSR Pitch: 15.875 mm | Type: Single pitch | Side roller: Plastic | Roller dia: 10.16 mm
DBC 50 SSR Pitch: 15.875 mm | Type: Single pitch | Side roller: Steel | Roller dia: 10.16 mm
DBC 60 PSR Pitch: 19.05 mm | Type: Single pitch | Side roller: Plastic | Roller dia: 11.91 mm
DBC 60 SSR Pitch: 19.05 mm | Type: Single pitch | Side roller: Steel | Roller dia: 11.91 mm
DBC 80 PSR Pitch: 25.40 mm | Type: Single pitch | Side roller: Plastic | Roller dia: 15.88 mm
DBC 80 SSR Pitch: 25.40 mm | Type: Single pitch | Side roller: Steel | Roller dia: 15.88 mm
DBC 100 PSR Pitch: 31.75 mm | Type: Single pitch | Side roller: Plastic | Roller dia: 19.05 mm
DBC 100 SSR Pitch: 31.75 mm | Type: Single pitch | Side roller: Steel | Roller dia: 19.05 mm
DBC 2040 PSR Pitch: 25.40 mm | Type: Double pitch | Side roller: Plastic | Roller dia: 7.92 mm
DBC 2040 SSR Pitch: 25.40 mm | Type: Double pitch | Side roller: Steel | Roller dia: 7.92 mm
DBC 2042 PSR Pitch: 25.40 mm | Type: Double pitch | Side roller: Plastic | Roller dia: 15.88 mm
DBC 2042 SSR Pitch: 25.40 mm | Type: Double pitch | Side roller: Steel | Roller dia: 15.88 mm
DBC 2050 PSR Pitch: 31.75 mm | Type: Double pitch | Side roller: Plastic | Roller dia: 10.16 mm
DBC 2050 SSR Pitch: 31.75 mm | Type: Double pitch | Side roller: Steel | Roller dia: 10.16 mm
DBC 2052 PSR Pitch: 31.75 mm | Type: Double pitch | Side roller: Plastic | Roller dia: 19.05 mm
DBC 2052 SSR Pitch: 31.75 mm | Type: Double pitch | Side roller: Steel | Roller dia: 19.05 mm
DBC 2060 PSR Pitch: 38.10 mm | Type: Double pitch | Side roller: Plastic | Roller dia: 11.91 mm
DBC 2060 SSR Pitch: 38.10 mm | Type: Double pitch | Side roller: Steel | Roller dia: 11.91 mm
DBC 2062 PSR Pitch: 38.10 mm | Type: Double pitch | Side roller: Plastic | Roller dia: 22.23 mm
DBC 2062 SSR Pitch: 38.10 mm | Type: Double pitch | Side roller: Steel | Roller dia: 22.23 mm
DBC 2080 PSR Pitch: 50.80 mm | Type: Double pitch | Side roller: Plastic | Roller dia: 15.88 mm
DBC 2080 SSR Pitch: 50.80 mm | Type: Double pitch | Side roller: Steel | Roller dia: 15.88 mm
DBC 2082 PSR Pitch: 50.80 mm | Type: Double pitch | Side roller: Plastic | Roller dia: 28.58 mm
DBC 2082 SSR Pitch: 50.80 mm | Type: Double pitch | Side roller: Steel | Roller dia: 28.58 mm
DBC 2100 PSR Pitch: 63.50 mm | Type: Double pitch | Side roller: Plastic | Roller dia: 19.05 mm
DBC 2100 SSR Pitch: 63.50 mm | Type: Double pitch | Side roller: Steel | Roller dia: 19.05 mm
DBC 2102 PSR Pitch: 63.50 mm | Type: Double pitch | Side roller: Plastic | Roller dia: 39.69 mm
DBC 2102 SSR Pitch: 63.50 mm | Type: Double pitch | Side roller: Steel | Roller dia: 39.69 mm
DBC 2040 PSR-GK Pitch: 25.4 mm | Type: G-hole installation | Side roller: Plastic | Roller dia: R-roller
DBC 2050 PSR-GK Pitch: 31.75 mm | Type: G-hole installation | Side roller: Plastic | Roller dia: R-roller
DBC 2060 PSR-GK Pitch: 38.10 mm | Type: G-hole installation | Side roller: Plastic | Roller dia: R-roller
DBC 2080 PSR-GK Pitch: 50.8 mm | Type: G-hole installation | Side roller: Plastic | Roller dia: R-roller
DBC 2080 SSR-TG Pitch: 50.8 mm | Type: Guide plate anti-derail | Side roller: Steel | Roller dia: 28.58 mm
DBC 2100 SSR-TG Pitch: 63.5 mm | Type: Guide plate anti-derail | Side roller: Steel | Roller dia: 39.69 mm
