Dongyang Chain Power Lock Keyless Locking Device DY PL Series

Dongyang Chain Power Lock Keyless Locking Device DY PL Series

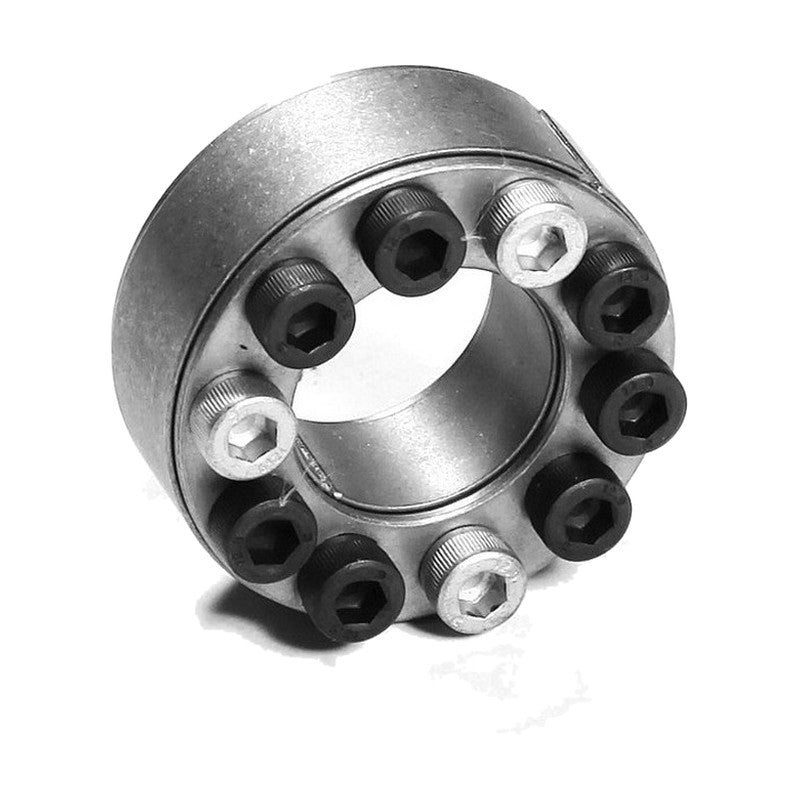

Power lock keyless shaft-hub locking device that clamps a hub to a shaft by friction using tapered rings tightened with DIN912 12.9 locking screws.

Key features

  • Sizes DY PL 19×47 to DY PL 200×260 cover shaft diameters from 19 to 200 mm
  • Transmissible torque ranges from 260 Nm to 53,000 Nm, and the catalog lists axial force, shaft and hub contact pressure and screw tightening torque for each size
DY PL 19×47 Shaft dia. d: 19 mm | Outer dia. D: 47 mm | L1/L2/L: 17/20/26 mm | Axial force Ft: 26.8 kN | Transmissible torque Mt: 260 Nm | Contact pressure shaft P: 220 | Contact pressure hub P1: 93 | Locking screws: 8 x M6×18 (DIN912-12.9) | Tightening torque Ts: 16 Nm
DY PL 20×47 Shaft dia. d: 20 mm | Outer dia. D: 47 mm | L1/L2/L: 17/20/26 mm | Axial force Ft: 26.8 kN | Transmissible torque Mt: 268 Nm | Contact pressure shaft P: 210 | Contact pressure hub P1: 93 | Locking screws: 8 x M6×18 (DIN912-12.9) | Tightening torque Ts: 16 Nm
DY PL 22×47 Shaft dia. d: 22 mm | Outer dia. D: 47 mm | L1/L2/L: 17/20/26 mm | Axial force Ft: 26.8 kN | Transmissible torque Mt: 283 Nm | Contact pressure shaft P: 207 | Contact pressure hub P1: 96 | Locking screws: 8 x M6×18 (DIN912-12.9) | Tightening torque Ts: 16 Nm
DY PL 24×50 Shaft dia. d: 24 mm | Outer dia. D: 50 mm | L1/L2/L: 17/20/26 mm | Axial force Ft: 30.1 kN | Transmissible torque Mt: 361 Nm | Contact pressure shaft P: 206 | Contact pressure hub P1: 103 | Locking screws: 9 x M6×18 (DIN912-12.9) | Tightening torque Ts: 16 Nm
DY PL 25×50 Shaft dia. d: 25 mm | Outer dia. D: 50 mm | L1/L2/L: 17/20/26 mm | Axial force Ft: 30.1 kN | Transmissible torque Mt: 376 Nm | Contact pressure shaft P: 206 | Contact pressure hub P1: 103 | Locking screws: 9 x M6×18 (DIN912-12.9) | Tightening torque Ts: 16 Nm
DY PL 28×55 Shaft dia. d: 28 mm | Outer dia. D: 55 mm | L1/L2/L: 17/20/26 mm | Axial force Ft: 33.5 kN | Transmissible torque Mt: 420 Nm | Contact pressure shaft P: 204 | Contact pressure hub P1: 103 | Locking screws: 10 x M6×18 (DIN912-12.9) | Tightening torque Ts: 16 Nm
DY PL 30×55 Shaft dia. d: 30 mm | Outer dia. D: 55 mm | L1/L2/L: 17/20/26 mm | Axial force Ft: 33.5 kN | Transmissible torque Mt: 450 Nm | Contact pressure shaft P: 190 | Contact pressure hub P1: 103 | Locking screws: 10 x M6×18 (DIN912-12.9) | Tightening torque Ts: 16 Nm
DY PL 32×60 Shaft dia. d: 32 mm | Outer dia. D: 60 mm | L1/L2/L: 17/20/26 mm | Axial force Ft: 40.2 kN | Transmissible torque Mt: 643 Nm | Contact pressure shaft P: 214 | Contact pressure hub P1: 114 | Locking screws: 12 x M6×18 (DIN912-12.9) | Tightening torque Ts: 16 Nm
DY PL 35×60 Shaft dia. d: 35 mm | Outer dia. D: 60 mm | L1/L2/L: 17/20/26 mm | Axial force Ft: 40.2 kN | Transmissible torque Mt: 703 Nm | Contact pressure shaft P: 196 | Contact pressure hub P1: 114 | Locking screws: 12 x M6×18 (DIN912-12.9) | Tightening torque Ts: 16 Nm
DY PL 38×65 Shaft dia. d: 38 mm | Outer dia. D: 65 mm | L1/L2/L: 17/20/26 mm | Axial force Ft: 46.9 kN | Transmissible torque Mt: 891 Nm | Contact pressure shaft P: 204 | Contact pressure hub P1: 122 | Locking screws: 14 x M6×18 (DIN912-12.9) | Tightening torque Ts: 16 Nm
DY PL 40×65 Shaft dia. d: 40 mm | Outer dia. D: 65 mm | L1/L2/L: 17/20/26 mm | Axial force Ft: 46.9 kN | Transmissible torque Mt: 938 Nm | Contact pressure shaft P: 200 | Contact pressure hub P1: 122 | Locking screws: 14 x M6×18 (DIN912-12.9) | Tightening torque Ts: 16 Nm
DY PL 42×75 Shaft dia. d: 42 mm | Outer dia. D: 75 mm | L1/L2/L: 20/24/32 mm | Axial force Ft: 73.2 kN | Transmissible torque Mt: 1537 Nm | Contact pressure shaft P: 228 | Contact pressure hub P1: 125 | Locking screws: 12 x M8×22 (DIN912-12.9) | Tightening torque Ts: 38 Nm
DY PL 45×75 Shaft dia. d: 45 mm | Outer dia. D: 75 mm | L1/L2/L: 20/24/32 mm | Axial force Ft: 73.2 kN | Transmissible torque Mt: 1647 Nm | Contact pressure shaft P: 208 | Contact pressure hub P1: 125 | Locking screws: 12 x M8×22 (DIN912-12.9) | Tightening torque Ts: 38 Nm
DY PL 48×80 Shaft dia. d: 48 mm | Outer dia. D: 80 mm | L1/L2/L: 20/24/32 mm | Axial force Ft: 73.2 kN | Transmissible torque Mt: 1756 Nm | Contact pressure shaft P: 190 | Contact pressure hub P1: 110 | Locking screws: 12 x M8×22 (DIN912-12.9) | Tightening torque Ts: 38 Nm
DY PL 50×80 Shaft dia. d: 50 mm | Outer dia. D: 80 mm | L1/L2/L: 20/24/32 mm | Axial force Ft: 73.2 kN | Transmissible torque Mt: 1830 Nm | Contact pressure shaft P: 189 | Contact pressure hub P1: 115 | Locking screws: 12 x M8×22 (DIN912-12.9) | Tightening torque Ts: 38 Nm
DY PL 55×85 Shaft dia. d: 55 mm | Outer dia. D: 85 mm | L1/L2/L: 20/24/32 mm | Axial force Ft: 85.4 kN | Transmissible torque Mt: 2348 Nm | Contact pressure shaft P: 200 | Contact pressure hub P1: 130 | Locking screws: 14 x M8×22 (DIN912-12.9) | Tightening torque Ts: 38 Nm
DY PL 60×90 Shaft dia. d: 60 mm | Outer dia. D: 90 mm | L1/L2/L: 20/24/32 mm | Axial force Ft: 85.4 kN | Transmissible torque Mt: 2560 Nm | Contact pressure shaft P: 180 | Contact pressure hub P1: 122 | Locking screws: 14 x M8×22 (DIN912-12.9) | Tightening torque Ts: 38 Nm
DY PL 65×95 Shaft dia. d: 65 mm | Outer dia. D: 95 mm | L1/L2/L: 20/24/32 mm | Axial force Ft: 97.6 kN | Transmissible torque Mt: 3170 Nm | Contact pressure shaft P: 191 | Contact pressure hub P1: 130 | Locking screws: 16 x M8×22 (DIN912-12.9) | Tightening torque Ts: 38 Nm
DY PL 70×110 Shaft dia. d: 70 mm | Outer dia. D: 110 mm | L1/L2/L: 24/28/38 mm | Axial force Ft: 134.4 kN | Transmissible torque Mt: 4700 Nm | Contact pressure shaft P: 211 | Contact pressure hub P1: 132 | Locking screws: 14 x M10×25 (DIN912-12.9) | Tightening torque Ts: 75 Nm
DY PL 75×115 Shaft dia. d: 75 mm | Outer dia. D: 115 mm | L1/L2/L: 24/28/38 mm | Axial force Ft: 134.4 kN | Transmissible torque Mt: 5000 Nm | Contact pressure shaft P: 194 | Contact pressure hub P1: 128 | Locking screws: 14 x M10×25 (DIN912-12.9) | Tightening torque Ts: 75 Nm
DY PL 80×120 Shaft dia. d: 80 mm | Outer dia. D: 120 mm | L1/L2/L: 24/28/38 mm | Axial force Ft: 134.4 kN | Transmissible torque Mt: 5300 Nm | Contact pressure shaft P: 182 | Contact pressure hub P1: 124 | Locking screws: 14 x M10×25 (DIN912-12.9) | Tightening torque Ts: 75 Nm
DY PL 85×125 Shaft dia. d: 85 mm | Outer dia. D: 125 mm | L1/L2/L: 24/28/38 mm | Axial force Ft: 153.6 kN | Transmissible torque Mt: 6500 Nm | Contact pressure shaft P: 196 | Contact pressure hub P1: 133 | Locking screws: 16 x M10×25 (DIN912-12.9) | Tightening torque Ts: 75 Nm
DY PL 90×130 Shaft dia. d: 90 mm | Outer dia. D: 130 mm | L1/L2/L: 24/28/38 mm | Axial force Ft: 153.6 kN | Transmissible torque Mt: 6900 Nm | Contact pressure shaft P: 181 | Contact pressure hub P1: 128 | Locking screws: 16 x M10×25 (DIN912-12.9) | Tightening torque Ts: 75 Nm
DY PL 95×135 Shaft dia. d: 95 mm | Outer dia. D: 135 mm | L1/L2/L: 24/28/38 mm | Axial force Ft: 172.8 kN | Transmissible torque Mt: 8200 Nm | Contact pressure shaft P: 196 | Contact pressure hub P1: 139 | Locking screws: 18 x M10×25 (DIN912-12.9) | Tightening torque Ts: 75 Nm
DY PL 100×145 Shaft dia. d: 100 mm | Outer dia. D: 145 mm | L1/L2/L: 26/33/45 mm | Axial force Ft: 197.4 kN | Transmissible torque Mt: 9870 Nm | Contact pressure shaft P: 198 | Contact pressure hub P1: 139 | Locking screws: 14 x M12×30 (DIN912-12.9) | Tightening torque Ts: 130 Nm
DY PL 110×155 Shaft dia. d: 110 mm | Outer dia. D: 155 mm | L1/L2/L: 26/33/45 mm | Axial force Ft: 187.4 kN | Transmissible torque Mt: 10800 Nm | Contact pressure shaft P: 181 | Contact pressure hub P1: 128 | Locking screws: 14 x M12×30 (DIN912-12.9) | Tightening torque Ts: 130 Nm
DY PL 120×165 Shaft dia. d: 120 mm | Outer dia. D: 165 mm | L1/L2/L: 26/33/45 mm | Axial force Ft: 225.6 kN | Transmissible torque Mt: 13500 Nm | Contact pressure shaft P: 187 | Contact pressure hub P1: 139 | Locking screws: 16 x M12×30 (DIN912-12.9) | Tightening torque Ts: 130 Nm
DY PL 130×180 Shaft dia. d: 130 mm | Outer dia. D: 180 mm | L1/L2/L: 34/38/50 mm | Axial force Ft: 282 kN | Transmissible torque Mt: 18300 Nm | Contact pressure shaft P: 168 | Contact pressure hub P1: 119 | Locking screws: 20 x M12×35 (DIN912-12.9) | Tightening torque Ts: 130 Nm
DY PL 140×190 Shaft dia. d: 140 mm | Outer dia. D: 190 mm | L1/L2/L: 34/38/50 mm | Axial force Ft: 310.1 kN | Transmissible torque Mt: 21700 Nm | Contact pressure shaft P: 168 | Contact pressure hub P1: 128 | Locking screws: 22 x M12×35 (DIN912-12.9) | Tightening torque Ts: 130 Nm
DY PL 150×200 Shaft dia. d: 150 mm | Outer dia. D: 200 mm | L1/L2/L: 34/38/50 mm | Axial force Ft: 338.4 kN | Transmissible torque Mt: 25300 Nm | Contact pressure shaft P: 170 | Contact pressure hub P1: 128 | Locking screws: 24 x M12×35 (DIN912-12.9) | Tightening torque Ts: 130 Nm
DY PL 160×210 Shaft dia. d: 160 mm | Outer dia. D: 210 mm | L1/L2/L: 34/38/50 mm | Axial force Ft: 366.6 kN | Transmissible torque Mt: 29300 Nm | Contact pressure shaft P: 171 | Contact pressure hub P1: 132 | Locking screws: 26 x M12×35 (DIN912-12.9) | Tightening torque Ts: 130 Nm
DY PL 170×225 Shaft dia. d: 170 mm | Outer dia. D: 225 mm | L1/L2/L: 38/44/58 mm | Axial force Ft: 389 kN | Transmissible torque Mt: 33000 Nm | Contact pressure shaft P: 162 | Contact pressure hub P1: 123 | Locking screws: 22 x M14×40 (DIN912-12.9) | Tightening torque Ts: 207 Nm
DY PL 180×235 Shaft dia. d: 180 mm | Outer dia. D: 235 mm | L1/L2/L: 38/44/58 mm | Axial force Ft: 424 kN | Transmissible torque Mt: 38000 Nm | Contact pressure shaft P: 168 | Contact pressure hub P1: 128 | Locking screws: 24 x M14×40 (DIN912-12.9) | Tightening torque Ts: 207 Nm
DY PL 190×250 Shaft dia. d: 190 mm | Outer dia. D: 250 mm | L1/L2/L: 46/52/66 mm | Axial force Ft: 495 kN | Transmissible torque Mt: 47000 Nm | Contact pressure shaft P: 154 | Contact pressure hub P1: 114 | Locking screws: 28 x M14×45 (DIN912-12.9) | Tightening torque Ts: 207 Nm
DY PL 200×260 Shaft dia. d: 200 mm | Outer dia. D: 260 mm | L1/L2/L: 46/52/66 mm | Axial force Ft: 531 kN | Transmissible torque Mt: 53000 Nm | Contact pressure shaft P: 157 | Contact pressure hub P1: 118 | Locking screws: 30 x M14×45 (DIN912-12.9) | Tightening torque Ts: 207 Nm
