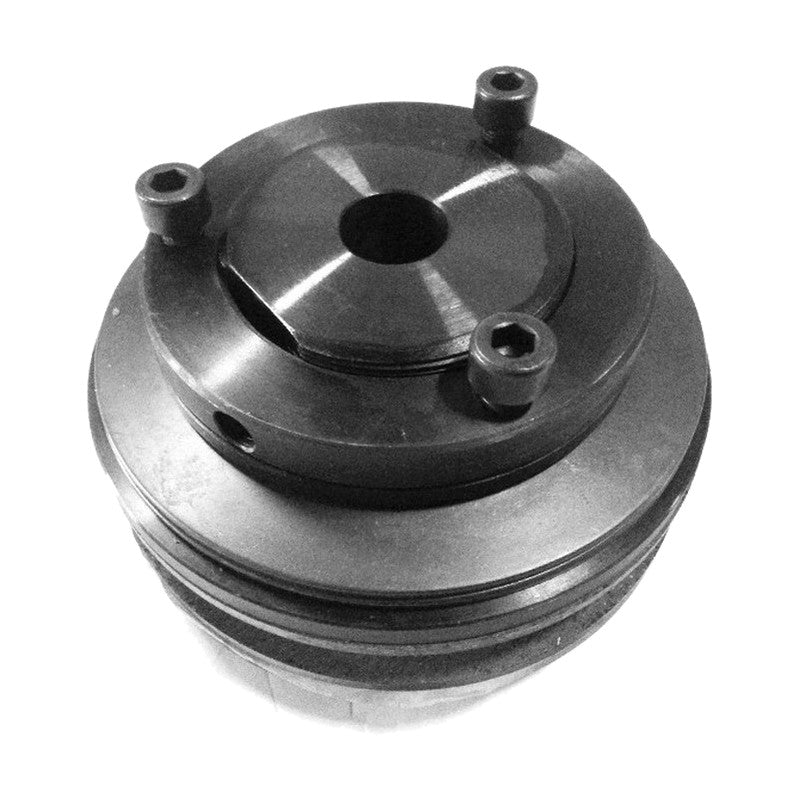

Dongyang Chain Torque Limiter DY TL Series

Dongyang Chain Torque Limiter DY TL Series

Friction-type torque limiter that slips when the transmitted torque exceeds a preset value, protecting machinery from overload damage.

Key features

  • A sprocket, pulley or gear is clamped between friction facings by disc springs and an adjusting nut, and the slip torque is adjustable
  • Sizes DY TL 200 to DY TL 14 cover torque ranges from 0.3 to 400 kgf·m and bores up to 100 mm
Dongyang Chain Torque Limiter DY TL Series reference 2
DY TL 200-1 Pilot bore (H10): 7 mm | Max. bore: 14 mm | Outer dia. D: 50 mm | Hub dia. DH: 24 mm | Length L: 29 mm | Bush length / OD: 4.3 / 30 mm | Adjust nut: M24 P1.0 | Torque range: 0.3~1 kgf·m
DY TL 200-2 Pilot bore (H10): 7 mm | Max. bore: 14 mm | Outer dia. D: 50 mm | Hub dia. DH: 24 mm | Length L: 29 mm | Bush length / OD: 4.3 / 30 mm | Adjust nut: M24 P1.0 | Torque range: 0.7~2 kgf·m
DY TL 250-1 Pilot bore (H10): 10 mm | Max. bore: 22 mm | Outer dia. D: 65 mm | Hub dia. DH: 35 mm | Length L: 48 mm | Bush length / OD: 4.3 / 41 mm | Adjust nut: M35 P1.5 | Torque range: 0.7~2.8 kgf·m | Set screw: M5
DY TL 250-2 Pilot bore (H10): 10 mm | Max. bore: 22 mm | Outer dia. D: 65 mm | Hub dia. DH: 35 mm | Length L: 48 mm | Bush length / OD: 4.3 / 41 mm | Adjust nut: M35 P1.5 | Torque range: 1.4~5.5 kgf·m | Set screw: M5
DY TL 350-1 Pilot bore (H10): 17 mm | Max. bore: 25 mm | Outer dia. D: 89 mm | Hub dia. DH: 42 mm | Length L: 62 mm | Bush length / OD: 7.2 / 49 mm | Adjust nut: M42 P1.5 | Torque range: 2.0~7.6 kgf·m | Set screw: M6
DY TL 350-2 Pilot bore (H10): 17 mm | Max. bore: 25 mm | Outer dia. D: 89 mm | Hub dia. DH: 42 mm | Length L: 62 mm | Bush length / OD: 7.2 / 49 mm | Adjust nut: M42 P1.5 | Torque range: 3.5~15.2 kgf·m | Set screw: M6
DY TL 500-1 Pilot bore (H10): 20 mm | Max. bore: 42 mm | Outer dia. D: 127 mm | Hub dia. DH: 65 mm | Length L: 76 mm | Bush length / OD: 8.7 / 74 mm | Adjust nut: M65 P1.5 | Torque range: 4.8~21.4 kgf·m | Adjust bolt: M8 P1.0 x3 | Set screw: M8
DY TL 500-2 Pilot bore (H10): 20 mm | Max. bore: 42 mm | Outer dia. D: 127 mm | Hub dia. DH: 65 mm | Length L: 76 mm | Bush length / OD: 8.7 / 74 mm | Adjust nut: M65 P1.5 | Torque range: 9.0~42.9 kgf·m | Adjust bolt: M8 P1.0 x3 | Set screw: M8
DY TL 700-1 Pilot bore (H10): 30 mm | Max. bore: 64 mm | Outer dia. D: 178 mm | Hub dia. DH: 95 mm | Length L: 98 mm | Bush length / OD: 11.7 / 105 mm | Adjust nut: M95 P1.5 | Torque range: 11.8~58.1 kgf·m | Adjust bolt: M10 P1.25 x3 | Set screw: M10
DY TL 700-2 Pilot bore (H10): 30 mm | Max. bore: 64 mm | Outer dia. D: 178 mm | Hub dia. DH: 95 mm | Length L: 98 mm | Bush length / OD: 11.7 / 105 mm | Adjust nut: M95 P1.5 | Torque range: 22.8~111 kgf·m | Adjust bolt: M10 P1.25 x3 | Set screw: M10
DY TL 10-16 Pilot bore (H10): 40 mm | Max. bore: 72 mm | Outer dia. D: 254 mm | Hub dia. DH: 100 mm | Length L: 115 mm | Bush length / OD: 14 / 135 mm | Adjust nut: M105 P1.5 | Torque range: 40~130 kgf·m | Adjust bolt: M18 P1.5 x8 | Set screw: M18
DY TL 10-24 Pilot bore (H10): 40 mm | Max. bore: 72 mm | Outer dia. D: 254 mm | Hub dia. DH: 100 mm | Length L: 115 mm | Bush length / OD: 14 / 135 mm | Adjust nut: M105 P1.5 | Torque range: 60~190 kgf·m | Adjust bolt: M18 P1.5 x8 | Set screw: M18
DY TL 14-10 Pilot bore (H10): 50 mm | Max. bore: 100 mm | Outer dia. D: 355 mm | Hub dia. DH: 146 mm | Length L: 155 mm | Bush length / OD: 20 / 183 mm | Adjust nut: M150 P2.0 | Torque range: 90~272 kgf·m | Adjust bolt: M26 P1.5 x5 | Set screw: M26
DY TL 14-15 Pilot bore (H10): 50 mm | Max. bore: 100 mm | Outer dia. D: 355 mm | Hub dia. DH: 146 mm | Length L: 155 mm | Bush length / OD: 20 / 183 mm | Adjust nut: M150 P2.0 | Torque range: 200~400 kgf·m | Adjust bolt: M26 P1.5 x5 | Set screw: M26
