• DWC CD01CA-0104 Center Drill (Carbide)
1 1

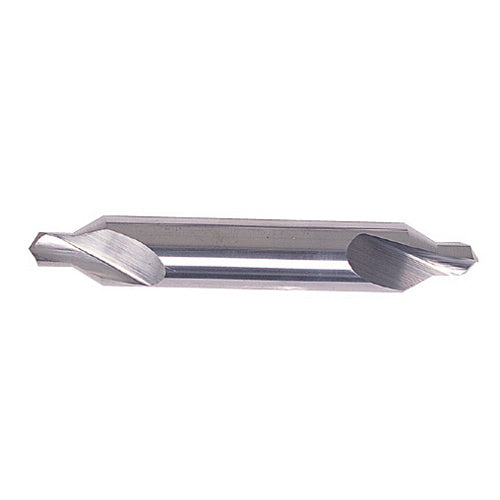

DWC CD01CA-0104 Center Drill (Carbide)

DWC CD01CA-0104 Center Drill (Carbide)

DWC CD01CA-0104 is a carbide center drill designed to create precise starting points for drilling operations, sourced direct from Korea.

Key features

  • Center drills like this are used across metal fabrication, machining centers, and lathe work to accurately locate and chamfer hole entries before full-depth drilling

Specifications

Angle 60
338-0439 MPN: CD01CA-0104 | 1.0*4 | Spec: 1.0 | Overall Length: 35 | Angle: 60 | Shank Diameter: 4
338-0448 MPN: CD01CA-0155 | 1.5*5 | Spec: 1.5 | Overall Length: 40 | Angle: 60 | Shank Diameter: 5
338-0457 MPN: CD01CA-0206 | 2.0*6 | Spec: 2.0 | Overall Length: 45 | Angle: 60 | Shank Diameter: 6
338-0466 MPN: CD01CA-0256 | 2.5*6 | Spec: 2.5 | Overall Length: 50 | Angle: 60 | Shank Diameter: 6
338-0475 MPN: CD01CA-0306 | 3.0*6 | Spec: 3.0 | Overall Length: 50 | Angle: 60 | Shank Diameter: 6
338-0484 MPN: CD01CA-0408 | 4.0*8 | Spec: 4.0 | Overall Length: 58 | Angle: 60 | Shank Diameter: 8
338-0493 MPN: CD01CA-0510 | 5.0*10 | Spec: 5.0 | Overall Length: 65 | Angle: 60 | Shank Diameter: 10
338-0509 MPN: CD01CA-0612 | 6.0*12 | Spec: 6.0 | Overall Length: 79 | Angle: 60 | Shank Diameter: 12
Center DrillsDWC
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

DWC CD01CA-0104 Center Drill (Carbide)

Brand DWC·Center Drills

Available part numbers (8)

338-0439, 338-0448, 338-0457, 338-0466, 338-0475, 338-0484, 338-0493, 338-0509

How to order

Send the DWC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
338-0439MPN: CD01CA-0104 | 1.0*4 | Spec: 1.0 | Overall Length: 35 | Angle: 60 | Shank Diameter: 4
338-0448MPN: CD01CA-0155 | 1.5*5 | Spec: 1.5 | Overall Length: 40 | Angle: 60 | Shank Diameter: 5
338-0457MPN: CD01CA-0206 | 2.0*6 | Spec: 2.0 | Overall Length: 45 | Angle: 60 | Shank Diameter: 6
338-0466MPN: CD01CA-0256 | 2.5*6 | Spec: 2.5 | Overall Length: 50 | Angle: 60 | Shank Diameter: 6
338-0475MPN: CD01CA-0306 | 3.0*6 | Spec: 3.0 | Overall Length: 50 | Angle: 60 | Shank Diameter: 6
338-0484MPN: CD01CA-0408 | 4.0*8 | Spec: 4.0 | Overall Length: 58 | Angle: 60 | Shank Diameter: 8
338-0493MPN: CD01CA-0510 | 5.0*10 | Spec: 5.0 | Overall Length: 65 | Angle: 60 | Shank Diameter: 10
338-0509MPN: CD01CA-0612 | 6.0*12 | Spec: 6.0 | Overall Length: 79 | Angle: 60 | Shank Diameter: 12
