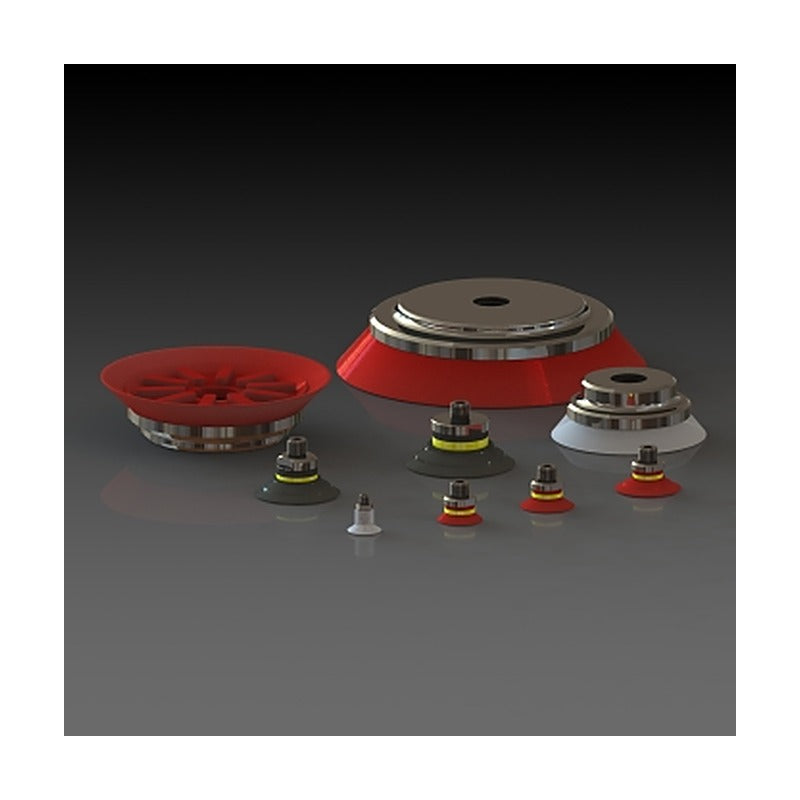

EVOTECH OF Flat Vacuum Pad (Ø16.5-150 mm)

EVOTECH OF Flat Vacuum Pad (Ø16.5-150 mm)

EVOTECH OF flat suction cups have support ribs on the underside, making them suited to picking up flat surfaces.

Key features

  • Flat (plate) suction cup
  • Ribs on the pad face for stable pick-up of flat surfaces
  • 9 sizes from Ø16.5 to Ø150 mm
  • Hex M4/M5 male or M5 female (OF15); M5, PF1/8, PF1/4, PF1/2 (OF20-150)
  • Material options: NBR, red/white/black silicone, conductive and high-temp silicone, Viton, urethane, mark-free coating, plus conductive NBR C.YN (yellow) and C.BN (blue)

Specifications

Brand EVOTECH
Series OF
Pad type Flat suction cup with ribs
Sizes Ø16.5, 22, 26.5, 32, 42, 53, 75, 111.5, 150 mm
Materials N, S, WS, BS, CS, BV, HS, MF, CM, U, C.YN, C.BN
Temperature range NBR -25~100 °C; silicone -60~190 °C; HS -70~280 °C
Order code OF<size>-<material>-<fitting>
Source EVOTECH OF catalogue, p. 107-112
OF15-N-X Pad diameter: Ø16.5 mm | Material: NBR (N) | Connection: None (pad only)
OF15-N-WM4 Pad diameter: Ø16.5 mm | Material: NBR (N) | Connection: Hex, M4 male
OF15-N-WM5 Pad diameter: Ø16.5 mm | Material: NBR (N) | Connection: Hex, M5 male
OF15-N-WM5F Pad diameter: Ø16.5 mm | Material: NBR (N) | Connection: Hex, M5 female
OF15-S-X Pad diameter: Ø16.5 mm | Material: Red silicone (S) | Connection: None (pad only)
OF15-S-WM4 Pad diameter: Ø16.5 mm | Material: Red silicone (S) | Connection: Hex, M4 male
OF15-S-WM5 Pad diameter: Ø16.5 mm | Material: Red silicone (S) | Connection: Hex, M5 male
OF15-S-WM5F Pad diameter: Ø16.5 mm | Material: Red silicone (S) | Connection: Hex, M5 female
OF15-WS-X Pad diameter: Ø16.5 mm | Material: White silicone (WS) | Connection: None (pad only)
OF15-WS-WM4 Pad diameter: Ø16.5 mm | Material: White silicone (WS) | Connection: Hex, M4 male
OF15-WS-WM5 Pad diameter: Ø16.5 mm | Material: White silicone (WS) | Connection: Hex, M5 male
OF15-WS-WM5F Pad diameter: Ø16.5 mm | Material: White silicone (WS) | Connection: Hex, M5 female
OF15-BS-X Pad diameter: Ø16.5 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF15-BS-WM4 Pad diameter: Ø16.5 mm | Material: Black silicone (BS) | Connection: Hex, M4 male
OF15-BS-WM5 Pad diameter: Ø16.5 mm | Material: Black silicone (BS) | Connection: Hex, M5 male
OF15-BS-WM5F Pad diameter: Ø16.5 mm | Material: Black silicone (BS) | Connection: Hex, M5 female
OF15-CS-X Pad diameter: Ø16.5 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF15-CS-WM4 Pad diameter: Ø16.5 mm | Material: Conductive silicone (CS) | Connection: Hex, M4 male
OF15-CS-WM5 Pad diameter: Ø16.5 mm | Material: Conductive silicone (CS) | Connection: Hex, M5 male
OF15-CS-WM5F Pad diameter: Ø16.5 mm | Material: Conductive silicone (CS) | Connection: Hex, M5 female
OF15-BV-X Pad diameter: Ø16.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF15-BV-WM4 Pad diameter: Ø16.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: Hex, M4 male
OF15-BV-WM5 Pad diameter: Ø16.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: Hex, M5 male
OF15-BV-WM5F Pad diameter: Ø16.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: Hex, M5 female
OF15-HS-X Pad diameter: Ø16.5 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF15-HS-WM4 Pad diameter: Ø16.5 mm | Material: High-temp silicone (HS) | Connection: Hex, M4 male
OF15-HS-WM5 Pad diameter: Ø16.5 mm | Material: High-temp silicone (HS) | Connection: Hex, M5 male
OF15-HS-WM5F Pad diameter: Ø16.5 mm | Material: High-temp silicone (HS) | Connection: Hex, M5 female
OF15-MF-X Pad diameter: Ø16.5 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF15-MF-WM4 Pad diameter: Ø16.5 mm | Material: Mark-free coating (MF) | Connection: Hex, M4 male
OF15-MF-WM5 Pad diameter: Ø16.5 mm | Material: Mark-free coating (MF) | Connection: Hex, M5 male
OF15-MF-WM5F Pad diameter: Ø16.5 mm | Material: Mark-free coating (MF) | Connection: Hex, M5 female
OF15-CM-X Pad diameter: Ø16.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF15-CM-WM4 Pad diameter: Ø16.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: Hex, M4 male
OF15-CM-WM5 Pad diameter: Ø16.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: Hex, M5 male
OF15-CM-WM5F Pad diameter: Ø16.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: Hex, M5 female
OF15-U-X Pad diameter: Ø16.5 mm | Material: Urethane (U) | Connection: None (pad only)
OF15-U-WM4 Pad diameter: Ø16.5 mm | Material: Urethane (U) | Connection: Hex, M4 male
OF15-U-WM5 Pad diameter: Ø16.5 mm | Material: Urethane (U) | Connection: Hex, M5 male
OF15-U-WM5F Pad diameter: Ø16.5 mm | Material: Urethane (U) | Connection: Hex, M5 female
OF15-C.YN-X Pad diameter: Ø16.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF15-C.YN-WM4 Pad diameter: Ø16.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: Hex, M4 male
OF15-C.YN-WM5 Pad diameter: Ø16.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: Hex, M5 male
OF15-C.YN-WM5F Pad diameter: Ø16.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: Hex, M5 female
OF15-C.BN-X Pad diameter: Ø16.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF15-C.BN-WM4 Pad diameter: Ø16.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: Hex, M4 male
OF15-C.BN-WM5 Pad diameter: Ø16.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: Hex, M5 male
OF15-C.BN-WM5F Pad diameter: Ø16.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: Hex, M5 female
OF20-N-X Pad diameter: Ø22 mm | Material: NBR (N) | Connection: None (pad only)
OF20-N-M5 Pad diameter: Ø22 mm | Material: NBR (N) | Connection: M5 male
OF20-N-18M Pad diameter: Ø22 mm | Material: NBR (N) | Connection: PF1/8 male
OF20-N-18F Pad diameter: Ø22 mm | Material: NBR (N) | Connection: PF1/8 female
OF20-S-X Pad diameter: Ø22 mm | Material: Red silicone (S) | Connection: None (pad only)
OF20-S-M5 Pad diameter: Ø22 mm | Material: Red silicone (S) | Connection: M5 male
OF20-S-18M Pad diameter: Ø22 mm | Material: Red silicone (S) | Connection: PF1/8 male
OF20-S-18F Pad diameter: Ø22 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF20-WS-X Pad diameter: Ø22 mm | Material: White silicone (WS) | Connection: None (pad only)
OF20-WS-M5 Pad diameter: Ø22 mm | Material: White silicone (WS) | Connection: M5 male
OF20-WS-18M Pad diameter: Ø22 mm | Material: White silicone (WS) | Connection: PF1/8 male
OF20-WS-18F Pad diameter: Ø22 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF20-BS-X Pad diameter: Ø22 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF20-BS-M5 Pad diameter: Ø22 mm | Material: Black silicone (BS) | Connection: M5 male
OF20-BS-18M Pad diameter: Ø22 mm | Material: Black silicone (BS) | Connection: PF1/8 male
OF20-BS-18F Pad diameter: Ø22 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF20-CS-X Pad diameter: Ø22 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF20-CS-M5 Pad diameter: Ø22 mm | Material: Conductive silicone (CS) | Connection: M5 male
OF20-CS-18M Pad diameter: Ø22 mm | Material: Conductive silicone (CS) | Connection: PF1/8 male
OF20-CS-18F Pad diameter: Ø22 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF20-BV-X Pad diameter: Ø22 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF20-BV-M5 Pad diameter: Ø22 mm | Material: Fluorine rubber (Viton) (BV) | Connection: M5 male
OF20-BV-18M Pad diameter: Ø22 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 male
OF20-BV-18F Pad diameter: Ø22 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF20-HS-X Pad diameter: Ø22 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF20-HS-M5 Pad diameter: Ø22 mm | Material: High-temp silicone (HS) | Connection: M5 male
OF20-HS-18M Pad diameter: Ø22 mm | Material: High-temp silicone (HS) | Connection: PF1/8 male
OF20-HS-18F Pad diameter: Ø22 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF20-MF-X Pad diameter: Ø22 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF20-MF-M5 Pad diameter: Ø22 mm | Material: Mark-free coating (MF) | Connection: M5 male
OF20-MF-18M Pad diameter: Ø22 mm | Material: Mark-free coating (MF) | Connection: PF1/8 male
OF20-MF-18F Pad diameter: Ø22 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF20-CM-X Pad diameter: Ø22 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF20-CM-M5 Pad diameter: Ø22 mm | Material: Conductive silicone + mark-free (CM) | Connection: M5 male
OF20-CM-18M Pad diameter: Ø22 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 male
OF20-CM-18F Pad diameter: Ø22 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF20-U-X Pad diameter: Ø22 mm | Material: Urethane (U) | Connection: None (pad only)
OF20-U-M5 Pad diameter: Ø22 mm | Material: Urethane (U) | Connection: M5 male
OF20-U-18M Pad diameter: Ø22 mm | Material: Urethane (U) | Connection: PF1/8 male
OF20-U-18F Pad diameter: Ø22 mm | Material: Urethane (U) | Connection: PF1/8 female
OF20-C.YN-X Pad diameter: Ø22 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF20-C.YN-M5 Pad diameter: Ø22 mm | Material: Conductive NBR, yellow (C.YN) | Connection: M5 male
OF20-C.YN-18M Pad diameter: Ø22 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 male
OF20-C.YN-18F Pad diameter: Ø22 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF20-C.BN-X Pad diameter: Ø22 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF20-C.BN-M5 Pad diameter: Ø22 mm | Material: Conductive NBR, blue (C.BN) | Connection: M5 male
OF20-C.BN-18M Pad diameter: Ø22 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 male
OF20-C.BN-18F Pad diameter: Ø22 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF25-N-X Pad diameter: Ø26.5 mm | Material: NBR (N) | Connection: None (pad only)
OF25-N-M5 Pad diameter: Ø26.5 mm | Material: NBR (N) | Connection: M5 male
OF25-N-18M Pad diameter: Ø26.5 mm | Material: NBR (N) | Connection: PF1/8 male
OF25-N-18F Pad diameter: Ø26.5 mm | Material: NBR (N) | Connection: PF1/8 female
OF25-S-X Pad diameter: Ø26.5 mm | Material: Red silicone (S) | Connection: None (pad only)
OF25-S-M5 Pad diameter: Ø26.5 mm | Material: Red silicone (S) | Connection: M5 male
OF25-S-18M Pad diameter: Ø26.5 mm | Material: Red silicone (S) | Connection: PF1/8 male
OF25-S-18F Pad diameter: Ø26.5 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF25-WS-X Pad diameter: Ø26.5 mm | Material: White silicone (WS) | Connection: None (pad only)
OF25-WS-M5 Pad diameter: Ø26.5 mm | Material: White silicone (WS) | Connection: M5 male
OF25-WS-18M Pad diameter: Ø26.5 mm | Material: White silicone (WS) | Connection: PF1/8 male
OF25-WS-18F Pad diameter: Ø26.5 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF25-BS-X Pad diameter: Ø26.5 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF25-BS-M5 Pad diameter: Ø26.5 mm | Material: Black silicone (BS) | Connection: M5 male
OF25-BS-18M Pad diameter: Ø26.5 mm | Material: Black silicone (BS) | Connection: PF1/8 male
OF25-BS-18F Pad diameter: Ø26.5 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF25-CS-X Pad diameter: Ø26.5 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF25-CS-M5 Pad diameter: Ø26.5 mm | Material: Conductive silicone (CS) | Connection: M5 male
OF25-CS-18M Pad diameter: Ø26.5 mm | Material: Conductive silicone (CS) | Connection: PF1/8 male
OF25-CS-18F Pad diameter: Ø26.5 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF25-BV-X Pad diameter: Ø26.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF25-BV-M5 Pad diameter: Ø26.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: M5 male
OF25-BV-18M Pad diameter: Ø26.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 male
OF25-BV-18F Pad diameter: Ø26.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF25-HS-X Pad diameter: Ø26.5 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF25-HS-M5 Pad diameter: Ø26.5 mm | Material: High-temp silicone (HS) | Connection: M5 male
OF25-HS-18M Pad diameter: Ø26.5 mm | Material: High-temp silicone (HS) | Connection: PF1/8 male
OF25-HS-18F Pad diameter: Ø26.5 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF25-MF-X Pad diameter: Ø26.5 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF25-MF-M5 Pad diameter: Ø26.5 mm | Material: Mark-free coating (MF) | Connection: M5 male
OF25-MF-18M Pad diameter: Ø26.5 mm | Material: Mark-free coating (MF) | Connection: PF1/8 male
OF25-MF-18F Pad diameter: Ø26.5 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF25-CM-X Pad diameter: Ø26.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF25-CM-M5 Pad diameter: Ø26.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: M5 male
OF25-CM-18M Pad diameter: Ø26.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 male
OF25-CM-18F Pad diameter: Ø26.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF25-U-X Pad diameter: Ø26.5 mm | Material: Urethane (U) | Connection: None (pad only)
OF25-U-M5 Pad diameter: Ø26.5 mm | Material: Urethane (U) | Connection: M5 male
OF25-U-18M Pad diameter: Ø26.5 mm | Material: Urethane (U) | Connection: PF1/8 male
OF25-U-18F Pad diameter: Ø26.5 mm | Material: Urethane (U) | Connection: PF1/8 female
OF25-C.YN-X Pad diameter: Ø26.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF25-C.YN-M5 Pad diameter: Ø26.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: M5 male
OF25-C.YN-18M Pad diameter: Ø26.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 male
OF25-C.YN-18F Pad diameter: Ø26.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF25-C.BN-X Pad diameter: Ø26.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF25-C.BN-M5 Pad diameter: Ø26.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: M5 male
OF25-C.BN-18M Pad diameter: Ø26.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 male
OF25-C.BN-18F Pad diameter: Ø26.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF30-N-X Pad diameter: Ø32 mm | Material: NBR (N) | Connection: None (pad only)
OF30-N-M5 Pad diameter: Ø32 mm | Material: NBR (N) | Connection: M5 male
OF30-N-18M Pad diameter: Ø32 mm | Material: NBR (N) | Connection: PF1/8 male
OF30-N-18F Pad diameter: Ø32 mm | Material: NBR (N) | Connection: PF1/8 female
OF30-S-X Pad diameter: Ø32 mm | Material: Red silicone (S) | Connection: None (pad only)
OF30-S-M5 Pad diameter: Ø32 mm | Material: Red silicone (S) | Connection: M5 male
OF30-S-18M Pad diameter: Ø32 mm | Material: Red silicone (S) | Connection: PF1/8 male
OF30-S-18F Pad diameter: Ø32 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF30-WS-X Pad diameter: Ø32 mm | Material: White silicone (WS) | Connection: None (pad only)
OF30-WS-M5 Pad diameter: Ø32 mm | Material: White silicone (WS) | Connection: M5 male
OF30-WS-18M Pad diameter: Ø32 mm | Material: White silicone (WS) | Connection: PF1/8 male
OF30-WS-18F Pad diameter: Ø32 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF30-BS-X Pad diameter: Ø32 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF30-BS-M5 Pad diameter: Ø32 mm | Material: Black silicone (BS) | Connection: M5 male
OF30-BS-18M Pad diameter: Ø32 mm | Material: Black silicone (BS) | Connection: PF1/8 male
OF30-BS-18F Pad diameter: Ø32 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF30-CS-X Pad diameter: Ø32 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF30-CS-M5 Pad diameter: Ø32 mm | Material: Conductive silicone (CS) | Connection: M5 male
OF30-CS-18M Pad diameter: Ø32 mm | Material: Conductive silicone (CS) | Connection: PF1/8 male
OF30-CS-18F Pad diameter: Ø32 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF30-BV-X Pad diameter: Ø32 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF30-BV-M5 Pad diameter: Ø32 mm | Material: Fluorine rubber (Viton) (BV) | Connection: M5 male
OF30-BV-18M Pad diameter: Ø32 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 male
OF30-BV-18F Pad diameter: Ø32 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF30-HS-X Pad diameter: Ø32 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF30-HS-M5 Pad diameter: Ø32 mm | Material: High-temp silicone (HS) | Connection: M5 male
OF30-HS-18M Pad diameter: Ø32 mm | Material: High-temp silicone (HS) | Connection: PF1/8 male
OF30-HS-18F Pad diameter: Ø32 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF30-MF-X Pad diameter: Ø32 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF30-MF-M5 Pad diameter: Ø32 mm | Material: Mark-free coating (MF) | Connection: M5 male
OF30-MF-18M Pad diameter: Ø32 mm | Material: Mark-free coating (MF) | Connection: PF1/8 male
OF30-MF-18F Pad diameter: Ø32 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF30-CM-X Pad diameter: Ø32 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF30-CM-M5 Pad diameter: Ø32 mm | Material: Conductive silicone + mark-free (CM) | Connection: M5 male
OF30-CM-18M Pad diameter: Ø32 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 male
OF30-CM-18F Pad diameter: Ø32 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF30-U-X Pad diameter: Ø32 mm | Material: Urethane (U) | Connection: None (pad only)
OF30-U-M5 Pad diameter: Ø32 mm | Material: Urethane (U) | Connection: M5 male
OF30-U-18M Pad diameter: Ø32 mm | Material: Urethane (U) | Connection: PF1/8 male
OF30-U-18F Pad diameter: Ø32 mm | Material: Urethane (U) | Connection: PF1/8 female
OF30-C.YN-X Pad diameter: Ø32 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF30-C.YN-M5 Pad diameter: Ø32 mm | Material: Conductive NBR, yellow (C.YN) | Connection: M5 male
OF30-C.YN-18M Pad diameter: Ø32 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 male
OF30-C.YN-18F Pad diameter: Ø32 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF30-C.BN-X Pad diameter: Ø32 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF30-C.BN-M5 Pad diameter: Ø32 mm | Material: Conductive NBR, blue (C.BN) | Connection: M5 male
OF30-C.BN-18M Pad diameter: Ø32 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 male
OF30-C.BN-18F Pad diameter: Ø32 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF40-N-X Pad diameter: Ø42 mm | Material: NBR (N) | Connection: None (pad only)
OF40-N-18M Pad diameter: Ø42 mm | Material: NBR (N) | Connection: PF1/8 male
OF40-N-18F Pad diameter: Ø42 mm | Material: NBR (N) | Connection: PF1/8 female
OF40-N-14M Pad diameter: Ø42 mm | Material: NBR (N) | Connection: PF1/4 male
OF40-S-X Pad diameter: Ø42 mm | Material: Red silicone (S) | Connection: None (pad only)
OF40-S-18M Pad diameter: Ø42 mm | Material: Red silicone (S) | Connection: PF1/8 male
OF40-S-18F Pad diameter: Ø42 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF40-S-14M Pad diameter: Ø42 mm | Material: Red silicone (S) | Connection: PF1/4 male
OF40-WS-X Pad diameter: Ø42 mm | Material: White silicone (WS) | Connection: None (pad only)
OF40-WS-18M Pad diameter: Ø42 mm | Material: White silicone (WS) | Connection: PF1/8 male
OF40-WS-18F Pad diameter: Ø42 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF40-WS-14M Pad diameter: Ø42 mm | Material: White silicone (WS) | Connection: PF1/4 male
OF40-BS-X Pad diameter: Ø42 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF40-BS-18M Pad diameter: Ø42 mm | Material: Black silicone (BS) | Connection: PF1/8 male
OF40-BS-18F Pad diameter: Ø42 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF40-BS-14M Pad diameter: Ø42 mm | Material: Black silicone (BS) | Connection: PF1/4 male
OF40-CS-X Pad diameter: Ø42 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF40-CS-18M Pad diameter: Ø42 mm | Material: Conductive silicone (CS) | Connection: PF1/8 male
OF40-CS-18F Pad diameter: Ø42 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF40-CS-14M Pad diameter: Ø42 mm | Material: Conductive silicone (CS) | Connection: PF1/4 male
OF40-BV-X Pad diameter: Ø42 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF40-BV-18M Pad diameter: Ø42 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 male
OF40-BV-18F Pad diameter: Ø42 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF40-BV-14M Pad diameter: Ø42 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/4 male
OF40-HS-X Pad diameter: Ø42 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF40-HS-18M Pad diameter: Ø42 mm | Material: High-temp silicone (HS) | Connection: PF1/8 male
OF40-HS-18F Pad diameter: Ø42 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF40-HS-14M Pad diameter: Ø42 mm | Material: High-temp silicone (HS) | Connection: PF1/4 male
OF40-MF-X Pad diameter: Ø42 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF40-MF-18M Pad diameter: Ø42 mm | Material: Mark-free coating (MF) | Connection: PF1/8 male
OF40-MF-18F Pad diameter: Ø42 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF40-MF-14M Pad diameter: Ø42 mm | Material: Mark-free coating (MF) | Connection: PF1/4 male
OF40-CM-X Pad diameter: Ø42 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF40-CM-18M Pad diameter: Ø42 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 male
OF40-CM-18F Pad diameter: Ø42 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF40-CM-14M Pad diameter: Ø42 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/4 male
OF40-U-X Pad diameter: Ø42 mm | Material: Urethane (U) | Connection: None (pad only)
OF40-U-18M Pad diameter: Ø42 mm | Material: Urethane (U) | Connection: PF1/8 male
OF40-U-18F Pad diameter: Ø42 mm | Material: Urethane (U) | Connection: PF1/8 female
OF40-U-14M Pad diameter: Ø42 mm | Material: Urethane (U) | Connection: PF1/4 male
OF40-C.YN-X Pad diameter: Ø42 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF40-C.YN-18M Pad diameter: Ø42 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 male
OF40-C.YN-18F Pad diameter: Ø42 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF40-C.YN-14M Pad diameter: Ø42 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/4 male
OF40-C.BN-X Pad diameter: Ø42 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF40-C.BN-18M Pad diameter: Ø42 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 male
OF40-C.BN-18F Pad diameter: Ø42 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF40-C.BN-14M Pad diameter: Ø42 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/4 male
OF50-N-X Pad diameter: Ø53 mm | Material: NBR (N) | Connection: None (pad only)
OF50-N-18M Pad diameter: Ø53 mm | Material: NBR (N) | Connection: PF1/8 male
OF50-N-18F Pad diameter: Ø53 mm | Material: NBR (N) | Connection: PF1/8 female
OF50-N-14M Pad diameter: Ø53 mm | Material: NBR (N) | Connection: PF1/4 male
OF50-S-X Pad diameter: Ø53 mm | Material: Red silicone (S) | Connection: None (pad only)
OF50-S-18M Pad diameter: Ø53 mm | Material: Red silicone (S) | Connection: PF1/8 male
OF50-S-18F Pad diameter: Ø53 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF50-S-14M Pad diameter: Ø53 mm | Material: Red silicone (S) | Connection: PF1/4 male
OF50-WS-X Pad diameter: Ø53 mm | Material: White silicone (WS) | Connection: None (pad only)
OF50-WS-18M Pad diameter: Ø53 mm | Material: White silicone (WS) | Connection: PF1/8 male
OF50-WS-18F Pad diameter: Ø53 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF50-WS-14M Pad diameter: Ø53 mm | Material: White silicone (WS) | Connection: PF1/4 male
OF50-BS-X Pad diameter: Ø53 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF50-BS-18M Pad diameter: Ø53 mm | Material: Black silicone (BS) | Connection: PF1/8 male
OF50-BS-18F Pad diameter: Ø53 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF50-BS-14M Pad diameter: Ø53 mm | Material: Black silicone (BS) | Connection: PF1/4 male
OF50-CS-X Pad diameter: Ø53 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF50-CS-18M Pad diameter: Ø53 mm | Material: Conductive silicone (CS) | Connection: PF1/8 male
OF50-CS-18F Pad diameter: Ø53 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF50-CS-14M Pad diameter: Ø53 mm | Material: Conductive silicone (CS) | Connection: PF1/4 male
OF50-BV-X Pad diameter: Ø53 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF50-BV-18M Pad diameter: Ø53 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 male
OF50-BV-18F Pad diameter: Ø53 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF50-BV-14M Pad diameter: Ø53 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/4 male
OF50-HS-X Pad diameter: Ø53 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF50-HS-18M Pad diameter: Ø53 mm | Material: High-temp silicone (HS) | Connection: PF1/8 male
OF50-HS-18F Pad diameter: Ø53 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF50-HS-14M Pad diameter: Ø53 mm | Material: High-temp silicone (HS) | Connection: PF1/4 male
OF50-MF-X Pad diameter: Ø53 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF50-MF-18M Pad diameter: Ø53 mm | Material: Mark-free coating (MF) | Connection: PF1/8 male
OF50-MF-18F Pad diameter: Ø53 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF50-MF-14M Pad diameter: Ø53 mm | Material: Mark-free coating (MF) | Connection: PF1/4 male
OF50-CM-X Pad diameter: Ø53 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF50-CM-18M Pad diameter: Ø53 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 male
OF50-CM-18F Pad diameter: Ø53 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF50-CM-14M Pad diameter: Ø53 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/4 male
OF50-U-X Pad diameter: Ø53 mm | Material: Urethane (U) | Connection: None (pad only)
OF50-U-18M Pad diameter: Ø53 mm | Material: Urethane (U) | Connection: PF1/8 male
OF50-U-18F Pad diameter: Ø53 mm | Material: Urethane (U) | Connection: PF1/8 female
OF50-U-14M Pad diameter: Ø53 mm | Material: Urethane (U) | Connection: PF1/4 male
OF50-C.YN-X Pad diameter: Ø53 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF50-C.YN-18M Pad diameter: Ø53 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 male
OF50-C.YN-18F Pad diameter: Ø53 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF50-C.YN-14M Pad diameter: Ø53 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/4 male
OF50-C.BN-X Pad diameter: Ø53 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF50-C.BN-18M Pad diameter: Ø53 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 male
OF50-C.BN-18F Pad diameter: Ø53 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF50-C.BN-14M Pad diameter: Ø53 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/4 male
OF75-N-X Pad diameter: Ø75 mm | Material: NBR (N) | Connection: None (pad only)
OF75-N-18F Pad diameter: Ø75 mm | Material: NBR (N) | Connection: PF1/8 female
OF75-N-12F Pad diameter: Ø75 mm | Material: NBR (N) | Connection: PF1/2 female
OF75-S-X Pad diameter: Ø75 mm | Material: Red silicone (S) | Connection: None (pad only)
OF75-S-18F Pad diameter: Ø75 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF75-S-12F Pad diameter: Ø75 mm | Material: Red silicone (S) | Connection: PF1/2 female
OF75-WS-X Pad diameter: Ø75 mm | Material: White silicone (WS) | Connection: None (pad only)
OF75-WS-18F Pad diameter: Ø75 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF75-WS-12F Pad diameter: Ø75 mm | Material: White silicone (WS) | Connection: PF1/2 female
OF75-BS-X Pad diameter: Ø75 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF75-BS-18F Pad diameter: Ø75 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF75-BS-12F Pad diameter: Ø75 mm | Material: Black silicone (BS) | Connection: PF1/2 female
OF75-CS-X Pad diameter: Ø75 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF75-CS-18F Pad diameter: Ø75 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF75-CS-12F Pad diameter: Ø75 mm | Material: Conductive silicone (CS) | Connection: PF1/2 female
OF75-BV-X Pad diameter: Ø75 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF75-BV-18F Pad diameter: Ø75 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF75-BV-12F Pad diameter: Ø75 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/2 female
OF75-HS-X Pad diameter: Ø75 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF75-HS-18F Pad diameter: Ø75 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF75-HS-12F Pad diameter: Ø75 mm | Material: High-temp silicone (HS) | Connection: PF1/2 female
OF75-MF-X Pad diameter: Ø75 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF75-MF-18F Pad diameter: Ø75 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF75-MF-12F Pad diameter: Ø75 mm | Material: Mark-free coating (MF) | Connection: PF1/2 female
OF75-CM-X Pad diameter: Ø75 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF75-CM-18F Pad diameter: Ø75 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF75-CM-12F Pad diameter: Ø75 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/2 female
OF75-U-X Pad diameter: Ø75 mm | Material: Urethane (U) | Connection: None (pad only)
OF75-U-18F Pad diameter: Ø75 mm | Material: Urethane (U) | Connection: PF1/8 female
OF75-U-12F Pad diameter: Ø75 mm | Material: Urethane (U) | Connection: PF1/2 female
OF75-C.YN-X Pad diameter: Ø75 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF75-C.YN-18F Pad diameter: Ø75 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF75-C.YN-12F Pad diameter: Ø75 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/2 female
OF75-C.BN-X Pad diameter: Ø75 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF75-C.BN-18F Pad diameter: Ø75 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF75-C.BN-12F Pad diameter: Ø75 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/2 female
OF110-N-X Pad diameter: Ø111.5 mm | Material: NBR (N) | Connection: None (pad only)
OF110-N-12F Pad diameter: Ø111.5 mm | Material: NBR (N) | Connection: PF1/2 female
OF110-S-X Pad diameter: Ø111.5 mm | Material: Red silicone (S) | Connection: None (pad only)
OF110-S-12F Pad diameter: Ø111.5 mm | Material: Red silicone (S) | Connection: PF1/2 female
OF110-WS-X Pad diameter: Ø111.5 mm | Material: White silicone (WS) | Connection: None (pad only)
OF110-WS-12F Pad diameter: Ø111.5 mm | Material: White silicone (WS) | Connection: PF1/2 female
OF110-BS-X Pad diameter: Ø111.5 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF110-BS-12F Pad diameter: Ø111.5 mm | Material: Black silicone (BS) | Connection: PF1/2 female
OF110-CS-X Pad diameter: Ø111.5 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF110-CS-12F Pad diameter: Ø111.5 mm | Material: Conductive silicone (CS) | Connection: PF1/2 female
OF110-BV-X Pad diameter: Ø111.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF110-BV-12F Pad diameter: Ø111.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/2 female
OF110-HS-X Pad diameter: Ø111.5 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF110-HS-12F Pad diameter: Ø111.5 mm | Material: High-temp silicone (HS) | Connection: PF1/2 female
OF110-MF-X Pad diameter: Ø111.5 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF110-MF-12F Pad diameter: Ø111.5 mm | Material: Mark-free coating (MF) | Connection: PF1/2 female
OF110-CM-X Pad diameter: Ø111.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF110-CM-12F Pad diameter: Ø111.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/2 female
OF110-U-X Pad diameter: Ø111.5 mm | Material: Urethane (U) | Connection: None (pad only)
OF110-U-12F Pad diameter: Ø111.5 mm | Material: Urethane (U) | Connection: PF1/2 female
OF110-C.YN-X Pad diameter: Ø111.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF110-C.YN-12F Pad diameter: Ø111.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/2 female
OF110-C.BN-X Pad diameter: Ø111.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF110-C.BN-12F Pad diameter: Ø111.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/2 female
OF150-N-X Pad diameter: Ø150 mm | Material: NBR (N) | Connection: None (pad only)
OF150-N-12F Pad diameter: Ø150 mm | Material: NBR (N) | Connection: PF1/2 female
OF150-S-X Pad diameter: Ø150 mm | Material: Red silicone (S) | Connection: None (pad only)
OF150-S-12F Pad diameter: Ø150 mm | Material: Red silicone (S) | Connection: PF1/2 female
OF150-WS-X Pad diameter: Ø150 mm | Material: White silicone (WS) | Connection: None (pad only)
OF150-WS-12F Pad diameter: Ø150 mm | Material: White silicone (WS) | Connection: PF1/2 female
OF150-BS-X Pad diameter: Ø150 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF150-BS-12F Pad diameter: Ø150 mm | Material: Black silicone (BS) | Connection: PF1/2 female
OF150-CS-X Pad diameter: Ø150 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF150-CS-12F Pad diameter: Ø150 mm | Material: Conductive silicone (CS) | Connection: PF1/2 female
OF150-BV-X Pad diameter: Ø150 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF150-BV-12F Pad diameter: Ø150 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/2 female
OF150-HS-X Pad diameter: Ø150 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF150-HS-12F Pad diameter: Ø150 mm | Material: High-temp silicone (HS) | Connection: PF1/2 female
OF150-MF-X Pad diameter: Ø150 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF150-MF-12F Pad diameter: Ø150 mm | Material: Mark-free coating (MF) | Connection: PF1/2 female
OF150-CM-X Pad diameter: Ø150 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF150-CM-12F Pad diameter: Ø150 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/2 female
OF150-U-X Pad diameter: Ø150 mm | Material: Urethane (U) | Connection: None (pad only)
OF150-U-12F Pad diameter: Ø150 mm | Material: Urethane (U) | Connection: PF1/2 female
OF150-C.YN-X Pad diameter: Ø150 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF150-C.YN-12F Pad diameter: Ø150 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/2 female
OF150-C.BN-X Pad diameter: Ø150 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF150-C.BN-12F Pad diameter: Ø150 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/2 female
Vacuum PadsEVOTECH
372 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

EVOTECH OF Flat Vacuum Pad (Ø16.5-150 mm)

Brand EVOTECH·Vacuum Pads

Available part numbers (372)

OF15-N-X, OF15-N-WM4, OF15-N-WM5, OF15-N-WM5F, OF15-S-X, OF15-S-WM4, OF15-S-WM5, OF15-S-WM5F, OF15-WS-X, OF15-WS-WM4 + 362 more — see full table ↓

How to order

Send the EVOTECH part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
OF15-N-XPad diameter: Ø16.5 mm | Material: NBR (N) | Connection: None (pad only)
OF15-N-WM4Pad diameter: Ø16.5 mm | Material: NBR (N) | Connection: Hex, M4 male
OF15-N-WM5Pad diameter: Ø16.5 mm | Material: NBR (N) | Connection: Hex, M5 male
OF15-N-WM5FPad diameter: Ø16.5 mm | Material: NBR (N) | Connection: Hex, M5 female
OF15-S-XPad diameter: Ø16.5 mm | Material: Red silicone (S) | Connection: None (pad only)
OF15-S-WM4Pad diameter: Ø16.5 mm | Material: Red silicone (S) | Connection: Hex, M4 male
OF15-S-WM5Pad diameter: Ø16.5 mm | Material: Red silicone (S) | Connection: Hex, M5 male
OF15-S-WM5FPad diameter: Ø16.5 mm | Material: Red silicone (S) | Connection: Hex, M5 female
OF15-WS-XPad diameter: Ø16.5 mm | Material: White silicone (WS) | Connection: None (pad only)
OF15-WS-WM4Pad diameter: Ø16.5 mm | Material: White silicone (WS) | Connection: Hex, M4 male
OF15-WS-WM5Pad diameter: Ø16.5 mm | Material: White silicone (WS) | Connection: Hex, M5 male
OF15-WS-WM5FPad diameter: Ø16.5 mm | Material: White silicone (WS) | Connection: Hex, M5 female
OF15-BS-XPad diameter: Ø16.5 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF15-BS-WM4Pad diameter: Ø16.5 mm | Material: Black silicone (BS) | Connection: Hex, M4 male
OF15-BS-WM5Pad diameter: Ø16.5 mm | Material: Black silicone (BS) | Connection: Hex, M5 male
OF15-BS-WM5FPad diameter: Ø16.5 mm | Material: Black silicone (BS) | Connection: Hex, M5 female
OF15-CS-XPad diameter: Ø16.5 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF15-CS-WM4Pad diameter: Ø16.5 mm | Material: Conductive silicone (CS) | Connection: Hex, M4 male
OF15-CS-WM5Pad diameter: Ø16.5 mm | Material: Conductive silicone (CS) | Connection: Hex, M5 male
OF15-CS-WM5FPad diameter: Ø16.5 mm | Material: Conductive silicone (CS) | Connection: Hex, M5 female
OF15-BV-XPad diameter: Ø16.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF15-BV-WM4Pad diameter: Ø16.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: Hex, M4 male
OF15-BV-WM5Pad diameter: Ø16.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: Hex, M5 male
OF15-BV-WM5FPad diameter: Ø16.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: Hex, M5 female
OF15-HS-XPad diameter: Ø16.5 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF15-HS-WM4Pad diameter: Ø16.5 mm | Material: High-temp silicone (HS) | Connection: Hex, M4 male
OF15-HS-WM5Pad diameter: Ø16.5 mm | Material: High-temp silicone (HS) | Connection: Hex, M5 male
OF15-HS-WM5FPad diameter: Ø16.5 mm | Material: High-temp silicone (HS) | Connection: Hex, M5 female
OF15-MF-XPad diameter: Ø16.5 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF15-MF-WM4Pad diameter: Ø16.5 mm | Material: Mark-free coating (MF) | Connection: Hex, M4 male
OF15-MF-WM5Pad diameter: Ø16.5 mm | Material: Mark-free coating (MF) | Connection: Hex, M5 male
OF15-MF-WM5FPad diameter: Ø16.5 mm | Material: Mark-free coating (MF) | Connection: Hex, M5 female
OF15-CM-XPad diameter: Ø16.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF15-CM-WM4Pad diameter: Ø16.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: Hex, M4 male
OF15-CM-WM5Pad diameter: Ø16.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: Hex, M5 male
OF15-CM-WM5FPad diameter: Ø16.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: Hex, M5 female
OF15-U-XPad diameter: Ø16.5 mm | Material: Urethane (U) | Connection: None (pad only)
OF15-U-WM4Pad diameter: Ø16.5 mm | Material: Urethane (U) | Connection: Hex, M4 male
OF15-U-WM5Pad diameter: Ø16.5 mm | Material: Urethane (U) | Connection: Hex, M5 male
OF15-U-WM5FPad diameter: Ø16.5 mm | Material: Urethane (U) | Connection: Hex, M5 female
OF15-C.YN-XPad diameter: Ø16.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF15-C.YN-WM4Pad diameter: Ø16.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: Hex, M4 male
OF15-C.YN-WM5Pad diameter: Ø16.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: Hex, M5 male
OF15-C.YN-WM5FPad diameter: Ø16.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: Hex, M5 female
OF15-C.BN-XPad diameter: Ø16.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF15-C.BN-WM4Pad diameter: Ø16.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: Hex, M4 male
OF15-C.BN-WM5Pad diameter: Ø16.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: Hex, M5 male
OF15-C.BN-WM5FPad diameter: Ø16.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: Hex, M5 female
OF20-N-XPad diameter: Ø22 mm | Material: NBR (N) | Connection: None (pad only)
OF20-N-M5Pad diameter: Ø22 mm | Material: NBR (N) | Connection: M5 male
OF20-N-18MPad diameter: Ø22 mm | Material: NBR (N) | Connection: PF1/8 male
OF20-N-18FPad diameter: Ø22 mm | Material: NBR (N) | Connection: PF1/8 female
OF20-S-XPad diameter: Ø22 mm | Material: Red silicone (S) | Connection: None (pad only)
OF20-S-M5Pad diameter: Ø22 mm | Material: Red silicone (S) | Connection: M5 male
OF20-S-18MPad diameter: Ø22 mm | Material: Red silicone (S) | Connection: PF1/8 male
OF20-S-18FPad diameter: Ø22 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF20-WS-XPad diameter: Ø22 mm | Material: White silicone (WS) | Connection: None (pad only)
OF20-WS-M5Pad diameter: Ø22 mm | Material: White silicone (WS) | Connection: M5 male
OF20-WS-18MPad diameter: Ø22 mm | Material: White silicone (WS) | Connection: PF1/8 male
OF20-WS-18FPad diameter: Ø22 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF20-BS-XPad diameter: Ø22 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF20-BS-M5Pad diameter: Ø22 mm | Material: Black silicone (BS) | Connection: M5 male
OF20-BS-18MPad diameter: Ø22 mm | Material: Black silicone (BS) | Connection: PF1/8 male
OF20-BS-18FPad diameter: Ø22 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF20-CS-XPad diameter: Ø22 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF20-CS-M5Pad diameter: Ø22 mm | Material: Conductive silicone (CS) | Connection: M5 male
OF20-CS-18MPad diameter: Ø22 mm | Material: Conductive silicone (CS) | Connection: PF1/8 male
OF20-CS-18FPad diameter: Ø22 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF20-BV-XPad diameter: Ø22 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF20-BV-M5Pad diameter: Ø22 mm | Material: Fluorine rubber (Viton) (BV) | Connection: M5 male
OF20-BV-18MPad diameter: Ø22 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 male
OF20-BV-18FPad diameter: Ø22 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF20-HS-XPad diameter: Ø22 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF20-HS-M5Pad diameter: Ø22 mm | Material: High-temp silicone (HS) | Connection: M5 male
OF20-HS-18MPad diameter: Ø22 mm | Material: High-temp silicone (HS) | Connection: PF1/8 male
OF20-HS-18FPad diameter: Ø22 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF20-MF-XPad diameter: Ø22 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF20-MF-M5Pad diameter: Ø22 mm | Material: Mark-free coating (MF) | Connection: M5 male
OF20-MF-18MPad diameter: Ø22 mm | Material: Mark-free coating (MF) | Connection: PF1/8 male
OF20-MF-18FPad diameter: Ø22 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF20-CM-XPad diameter: Ø22 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF20-CM-M5Pad diameter: Ø22 mm | Material: Conductive silicone + mark-free (CM) | Connection: M5 male
OF20-CM-18MPad diameter: Ø22 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 male
OF20-CM-18FPad diameter: Ø22 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF20-U-XPad diameter: Ø22 mm | Material: Urethane (U) | Connection: None (pad only)
OF20-U-M5Pad diameter: Ø22 mm | Material: Urethane (U) | Connection: M5 male
OF20-U-18MPad diameter: Ø22 mm | Material: Urethane (U) | Connection: PF1/8 male
OF20-U-18FPad diameter: Ø22 mm | Material: Urethane (U) | Connection: PF1/8 female
OF20-C.YN-XPad diameter: Ø22 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF20-C.YN-M5Pad diameter: Ø22 mm | Material: Conductive NBR, yellow (C.YN) | Connection: M5 male
OF20-C.YN-18MPad diameter: Ø22 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 male
OF20-C.YN-18FPad diameter: Ø22 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF20-C.BN-XPad diameter: Ø22 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF20-C.BN-M5Pad diameter: Ø22 mm | Material: Conductive NBR, blue (C.BN) | Connection: M5 male
OF20-C.BN-18MPad diameter: Ø22 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 male
OF20-C.BN-18FPad diameter: Ø22 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF25-N-XPad diameter: Ø26.5 mm | Material: NBR (N) | Connection: None (pad only)
OF25-N-M5Pad diameter: Ø26.5 mm | Material: NBR (N) | Connection: M5 male
OF25-N-18MPad diameter: Ø26.5 mm | Material: NBR (N) | Connection: PF1/8 male
OF25-N-18FPad diameter: Ø26.5 mm | Material: NBR (N) | Connection: PF1/8 female
OF25-S-XPad diameter: Ø26.5 mm | Material: Red silicone (S) | Connection: None (pad only)
OF25-S-M5Pad diameter: Ø26.5 mm | Material: Red silicone (S) | Connection: M5 male
OF25-S-18MPad diameter: Ø26.5 mm | Material: Red silicone (S) | Connection: PF1/8 male
OF25-S-18FPad diameter: Ø26.5 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF25-WS-XPad diameter: Ø26.5 mm | Material: White silicone (WS) | Connection: None (pad only)
OF25-WS-M5Pad diameter: Ø26.5 mm | Material: White silicone (WS) | Connection: M5 male
OF25-WS-18MPad diameter: Ø26.5 mm | Material: White silicone (WS) | Connection: PF1/8 male
OF25-WS-18FPad diameter: Ø26.5 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF25-BS-XPad diameter: Ø26.5 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF25-BS-M5Pad diameter: Ø26.5 mm | Material: Black silicone (BS) | Connection: M5 male
OF25-BS-18MPad diameter: Ø26.5 mm | Material: Black silicone (BS) | Connection: PF1/8 male
OF25-BS-18FPad diameter: Ø26.5 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF25-CS-XPad diameter: Ø26.5 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF25-CS-M5Pad diameter: Ø26.5 mm | Material: Conductive silicone (CS) | Connection: M5 male
OF25-CS-18MPad diameter: Ø26.5 mm | Material: Conductive silicone (CS) | Connection: PF1/8 male
OF25-CS-18FPad diameter: Ø26.5 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF25-BV-XPad diameter: Ø26.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF25-BV-M5Pad diameter: Ø26.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: M5 male
OF25-BV-18MPad diameter: Ø26.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 male
OF25-BV-18FPad diameter: Ø26.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF25-HS-XPad diameter: Ø26.5 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF25-HS-M5Pad diameter: Ø26.5 mm | Material: High-temp silicone (HS) | Connection: M5 male
OF25-HS-18MPad diameter: Ø26.5 mm | Material: High-temp silicone (HS) | Connection: PF1/8 male
OF25-HS-18FPad diameter: Ø26.5 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF25-MF-XPad diameter: Ø26.5 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF25-MF-M5Pad diameter: Ø26.5 mm | Material: Mark-free coating (MF) | Connection: M5 male
OF25-MF-18MPad diameter: Ø26.5 mm | Material: Mark-free coating (MF) | Connection: PF1/8 male
OF25-MF-18FPad diameter: Ø26.5 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF25-CM-XPad diameter: Ø26.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF25-CM-M5Pad diameter: Ø26.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: M5 male
OF25-CM-18MPad diameter: Ø26.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 male
OF25-CM-18FPad diameter: Ø26.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF25-U-XPad diameter: Ø26.5 mm | Material: Urethane (U) | Connection: None (pad only)
OF25-U-M5Pad diameter: Ø26.5 mm | Material: Urethane (U) | Connection: M5 male
OF25-U-18MPad diameter: Ø26.5 mm | Material: Urethane (U) | Connection: PF1/8 male
OF25-U-18FPad diameter: Ø26.5 mm | Material: Urethane (U) | Connection: PF1/8 female
OF25-C.YN-XPad diameter: Ø26.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF25-C.YN-M5Pad diameter: Ø26.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: M5 male
OF25-C.YN-18MPad diameter: Ø26.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 male
OF25-C.YN-18FPad diameter: Ø26.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF25-C.BN-XPad diameter: Ø26.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF25-C.BN-M5Pad diameter: Ø26.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: M5 male
OF25-C.BN-18MPad diameter: Ø26.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 male
OF25-C.BN-18FPad diameter: Ø26.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF30-N-XPad diameter: Ø32 mm | Material: NBR (N) | Connection: None (pad only)
OF30-N-M5Pad diameter: Ø32 mm | Material: NBR (N) | Connection: M5 male
OF30-N-18MPad diameter: Ø32 mm | Material: NBR (N) | Connection: PF1/8 male
OF30-N-18FPad diameter: Ø32 mm | Material: NBR (N) | Connection: PF1/8 female
OF30-S-XPad diameter: Ø32 mm | Material: Red silicone (S) | Connection: None (pad only)
OF30-S-M5Pad diameter: Ø32 mm | Material: Red silicone (S) | Connection: M5 male
OF30-S-18MPad diameter: Ø32 mm | Material: Red silicone (S) | Connection: PF1/8 male
OF30-S-18FPad diameter: Ø32 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF30-WS-XPad diameter: Ø32 mm | Material: White silicone (WS) | Connection: None (pad only)
OF30-WS-M5Pad diameter: Ø32 mm | Material: White silicone (WS) | Connection: M5 male
OF30-WS-18MPad diameter: Ø32 mm | Material: White silicone (WS) | Connection: PF1/8 male
OF30-WS-18FPad diameter: Ø32 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF30-BS-XPad diameter: Ø32 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF30-BS-M5Pad diameter: Ø32 mm | Material: Black silicone (BS) | Connection: M5 male
OF30-BS-18MPad diameter: Ø32 mm | Material: Black silicone (BS) | Connection: PF1/8 male
OF30-BS-18FPad diameter: Ø32 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF30-CS-XPad diameter: Ø32 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF30-CS-M5Pad diameter: Ø32 mm | Material: Conductive silicone (CS) | Connection: M5 male
OF30-CS-18MPad diameter: Ø32 mm | Material: Conductive silicone (CS) | Connection: PF1/8 male
OF30-CS-18FPad diameter: Ø32 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF30-BV-XPad diameter: Ø32 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF30-BV-M5Pad diameter: Ø32 mm | Material: Fluorine rubber (Viton) (BV) | Connection: M5 male
OF30-BV-18MPad diameter: Ø32 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 male
OF30-BV-18FPad diameter: Ø32 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF30-HS-XPad diameter: Ø32 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF30-HS-M5Pad diameter: Ø32 mm | Material: High-temp silicone (HS) | Connection: M5 male
OF30-HS-18MPad diameter: Ø32 mm | Material: High-temp silicone (HS) | Connection: PF1/8 male
OF30-HS-18FPad diameter: Ø32 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF30-MF-XPad diameter: Ø32 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF30-MF-M5Pad diameter: Ø32 mm | Material: Mark-free coating (MF) | Connection: M5 male
OF30-MF-18MPad diameter: Ø32 mm | Material: Mark-free coating (MF) | Connection: PF1/8 male
OF30-MF-18FPad diameter: Ø32 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF30-CM-XPad diameter: Ø32 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF30-CM-M5Pad diameter: Ø32 mm | Material: Conductive silicone + mark-free (CM) | Connection: M5 male
OF30-CM-18MPad diameter: Ø32 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 male
OF30-CM-18FPad diameter: Ø32 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF30-U-XPad diameter: Ø32 mm | Material: Urethane (U) | Connection: None (pad only)
OF30-U-M5Pad diameter: Ø32 mm | Material: Urethane (U) | Connection: M5 male
OF30-U-18MPad diameter: Ø32 mm | Material: Urethane (U) | Connection: PF1/8 male
OF30-U-18FPad diameter: Ø32 mm | Material: Urethane (U) | Connection: PF1/8 female
OF30-C.YN-XPad diameter: Ø32 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF30-C.YN-M5Pad diameter: Ø32 mm | Material: Conductive NBR, yellow (C.YN) | Connection: M5 male
OF30-C.YN-18MPad diameter: Ø32 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 male
OF30-C.YN-18FPad diameter: Ø32 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF30-C.BN-XPad diameter: Ø32 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF30-C.BN-M5Pad diameter: Ø32 mm | Material: Conductive NBR, blue (C.BN) | Connection: M5 male
OF30-C.BN-18MPad diameter: Ø32 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 male
OF30-C.BN-18FPad diameter: Ø32 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF40-N-XPad diameter: Ø42 mm | Material: NBR (N) | Connection: None (pad only)
OF40-N-18MPad diameter: Ø42 mm | Material: NBR (N) | Connection: PF1/8 male
OF40-N-18FPad diameter: Ø42 mm | Material: NBR (N) | Connection: PF1/8 female
OF40-N-14MPad diameter: Ø42 mm | Material: NBR (N) | Connection: PF1/4 male
OF40-S-XPad diameter: Ø42 mm | Material: Red silicone (S) | Connection: None (pad only)
OF40-S-18MPad diameter: Ø42 mm | Material: Red silicone (S) | Connection: PF1/8 male
OF40-S-18FPad diameter: Ø42 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF40-S-14MPad diameter: Ø42 mm | Material: Red silicone (S) | Connection: PF1/4 male
OF40-WS-XPad diameter: Ø42 mm | Material: White silicone (WS) | Connection: None (pad only)
OF40-WS-18MPad diameter: Ø42 mm | Material: White silicone (WS) | Connection: PF1/8 male
OF40-WS-18FPad diameter: Ø42 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF40-WS-14MPad diameter: Ø42 mm | Material: White silicone (WS) | Connection: PF1/4 male
OF40-BS-XPad diameter: Ø42 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF40-BS-18MPad diameter: Ø42 mm | Material: Black silicone (BS) | Connection: PF1/8 male
OF40-BS-18FPad diameter: Ø42 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF40-BS-14MPad diameter: Ø42 mm | Material: Black silicone (BS) | Connection: PF1/4 male
OF40-CS-XPad diameter: Ø42 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF40-CS-18MPad diameter: Ø42 mm | Material: Conductive silicone (CS) | Connection: PF1/8 male
OF40-CS-18FPad diameter: Ø42 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF40-CS-14MPad diameter: Ø42 mm | Material: Conductive silicone (CS) | Connection: PF1/4 male
OF40-BV-XPad diameter: Ø42 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF40-BV-18MPad diameter: Ø42 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 male
OF40-BV-18FPad diameter: Ø42 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF40-BV-14MPad diameter: Ø42 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/4 male
OF40-HS-XPad diameter: Ø42 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF40-HS-18MPad diameter: Ø42 mm | Material: High-temp silicone (HS) | Connection: PF1/8 male
OF40-HS-18FPad diameter: Ø42 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF40-HS-14MPad diameter: Ø42 mm | Material: High-temp silicone (HS) | Connection: PF1/4 male
OF40-MF-XPad diameter: Ø42 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF40-MF-18MPad diameter: Ø42 mm | Material: Mark-free coating (MF) | Connection: PF1/8 male
OF40-MF-18FPad diameter: Ø42 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF40-MF-14MPad diameter: Ø42 mm | Material: Mark-free coating (MF) | Connection: PF1/4 male
OF40-CM-XPad diameter: Ø42 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF40-CM-18MPad diameter: Ø42 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 male
OF40-CM-18FPad diameter: Ø42 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF40-CM-14MPad diameter: Ø42 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/4 male
OF40-U-XPad diameter: Ø42 mm | Material: Urethane (U) | Connection: None (pad only)
OF40-U-18MPad diameter: Ø42 mm | Material: Urethane (U) | Connection: PF1/8 male
OF40-U-18FPad diameter: Ø42 mm | Material: Urethane (U) | Connection: PF1/8 female
OF40-U-14MPad diameter: Ø42 mm | Material: Urethane (U) | Connection: PF1/4 male
OF40-C.YN-XPad diameter: Ø42 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF40-C.YN-18MPad diameter: Ø42 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 male
OF40-C.YN-18FPad diameter: Ø42 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF40-C.YN-14MPad diameter: Ø42 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/4 male
OF40-C.BN-XPad diameter: Ø42 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF40-C.BN-18MPad diameter: Ø42 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 male
OF40-C.BN-18FPad diameter: Ø42 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF40-C.BN-14MPad diameter: Ø42 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/4 male
OF50-N-XPad diameter: Ø53 mm | Material: NBR (N) | Connection: None (pad only)
OF50-N-18MPad diameter: Ø53 mm | Material: NBR (N) | Connection: PF1/8 male
OF50-N-18FPad diameter: Ø53 mm | Material: NBR (N) | Connection: PF1/8 female
OF50-N-14MPad diameter: Ø53 mm | Material: NBR (N) | Connection: PF1/4 male
OF50-S-XPad diameter: Ø53 mm | Material: Red silicone (S) | Connection: None (pad only)
OF50-S-18MPad diameter: Ø53 mm | Material: Red silicone (S) | Connection: PF1/8 male
OF50-S-18FPad diameter: Ø53 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF50-S-14MPad diameter: Ø53 mm | Material: Red silicone (S) | Connection: PF1/4 male
OF50-WS-XPad diameter: Ø53 mm | Material: White silicone (WS) | Connection: None (pad only)
OF50-WS-18MPad diameter: Ø53 mm | Material: White silicone (WS) | Connection: PF1/8 male
OF50-WS-18FPad diameter: Ø53 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF50-WS-14MPad diameter: Ø53 mm | Material: White silicone (WS) | Connection: PF1/4 male
OF50-BS-XPad diameter: Ø53 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF50-BS-18MPad diameter: Ø53 mm | Material: Black silicone (BS) | Connection: PF1/8 male
OF50-BS-18FPad diameter: Ø53 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF50-BS-14MPad diameter: Ø53 mm | Material: Black silicone (BS) | Connection: PF1/4 male
OF50-CS-XPad diameter: Ø53 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF50-CS-18MPad diameter: Ø53 mm | Material: Conductive silicone (CS) | Connection: PF1/8 male
OF50-CS-18FPad diameter: Ø53 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF50-CS-14MPad diameter: Ø53 mm | Material: Conductive silicone (CS) | Connection: PF1/4 male
OF50-BV-XPad diameter: Ø53 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF50-BV-18MPad diameter: Ø53 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 male
OF50-BV-18FPad diameter: Ø53 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF50-BV-14MPad diameter: Ø53 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/4 male
OF50-HS-XPad diameter: Ø53 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF50-HS-18MPad diameter: Ø53 mm | Material: High-temp silicone (HS) | Connection: PF1/8 male
OF50-HS-18FPad diameter: Ø53 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF50-HS-14MPad diameter: Ø53 mm | Material: High-temp silicone (HS) | Connection: PF1/4 male
OF50-MF-XPad diameter: Ø53 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF50-MF-18MPad diameter: Ø53 mm | Material: Mark-free coating (MF) | Connection: PF1/8 male
OF50-MF-18FPad diameter: Ø53 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF50-MF-14MPad diameter: Ø53 mm | Material: Mark-free coating (MF) | Connection: PF1/4 male
OF50-CM-XPad diameter: Ø53 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF50-CM-18MPad diameter: Ø53 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 male
OF50-CM-18FPad diameter: Ø53 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF50-CM-14MPad diameter: Ø53 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/4 male
OF50-U-XPad diameter: Ø53 mm | Material: Urethane (U) | Connection: None (pad only)
OF50-U-18MPad diameter: Ø53 mm | Material: Urethane (U) | Connection: PF1/8 male
OF50-U-18FPad diameter: Ø53 mm | Material: Urethane (U) | Connection: PF1/8 female
OF50-U-14MPad diameter: Ø53 mm | Material: Urethane (U) | Connection: PF1/4 male
OF50-C.YN-XPad diameter: Ø53 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF50-C.YN-18MPad diameter: Ø53 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 male
OF50-C.YN-18FPad diameter: Ø53 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF50-C.YN-14MPad diameter: Ø53 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/4 male
OF50-C.BN-XPad diameter: Ø53 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF50-C.BN-18MPad diameter: Ø53 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 male
OF50-C.BN-18FPad diameter: Ø53 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF50-C.BN-14MPad diameter: Ø53 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/4 male
OF75-N-XPad diameter: Ø75 mm | Material: NBR (N) | Connection: None (pad only)
OF75-N-18FPad diameter: Ø75 mm | Material: NBR (N) | Connection: PF1/8 female
OF75-N-12FPad diameter: Ø75 mm | Material: NBR (N) | Connection: PF1/2 female
OF75-S-XPad diameter: Ø75 mm | Material: Red silicone (S) | Connection: None (pad only)
OF75-S-18FPad diameter: Ø75 mm | Material: Red silicone (S) | Connection: PF1/8 female
OF75-S-12FPad diameter: Ø75 mm | Material: Red silicone (S) | Connection: PF1/2 female
OF75-WS-XPad diameter: Ø75 mm | Material: White silicone (WS) | Connection: None (pad only)
OF75-WS-18FPad diameter: Ø75 mm | Material: White silicone (WS) | Connection: PF1/8 female
OF75-WS-12FPad diameter: Ø75 mm | Material: White silicone (WS) | Connection: PF1/2 female
OF75-BS-XPad diameter: Ø75 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF75-BS-18FPad diameter: Ø75 mm | Material: Black silicone (BS) | Connection: PF1/8 female
OF75-BS-12FPad diameter: Ø75 mm | Material: Black silicone (BS) | Connection: PF1/2 female
OF75-CS-XPad diameter: Ø75 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF75-CS-18FPad diameter: Ø75 mm | Material: Conductive silicone (CS) | Connection: PF1/8 female
OF75-CS-12FPad diameter: Ø75 mm | Material: Conductive silicone (CS) | Connection: PF1/2 female
OF75-BV-XPad diameter: Ø75 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF75-BV-18FPad diameter: Ø75 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/8 female
OF75-BV-12FPad diameter: Ø75 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/2 female
OF75-HS-XPad diameter: Ø75 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF75-HS-18FPad diameter: Ø75 mm | Material: High-temp silicone (HS) | Connection: PF1/8 female
OF75-HS-12FPad diameter: Ø75 mm | Material: High-temp silicone (HS) | Connection: PF1/2 female
OF75-MF-XPad diameter: Ø75 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF75-MF-18FPad diameter: Ø75 mm | Material: Mark-free coating (MF) | Connection: PF1/8 female
OF75-MF-12FPad diameter: Ø75 mm | Material: Mark-free coating (MF) | Connection: PF1/2 female
OF75-CM-XPad diameter: Ø75 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF75-CM-18FPad diameter: Ø75 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/8 female
OF75-CM-12FPad diameter: Ø75 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/2 female
OF75-U-XPad diameter: Ø75 mm | Material: Urethane (U) | Connection: None (pad only)
OF75-U-18FPad diameter: Ø75 mm | Material: Urethane (U) | Connection: PF1/8 female
OF75-U-12FPad diameter: Ø75 mm | Material: Urethane (U) | Connection: PF1/2 female
OF75-C.YN-XPad diameter: Ø75 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF75-C.YN-18FPad diameter: Ø75 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/8 female
OF75-C.YN-12FPad diameter: Ø75 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/2 female
OF75-C.BN-XPad diameter: Ø75 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF75-C.BN-18FPad diameter: Ø75 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/8 female
OF75-C.BN-12FPad diameter: Ø75 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/2 female
OF110-N-XPad diameter: Ø111.5 mm | Material: NBR (N) | Connection: None (pad only)
OF110-N-12FPad diameter: Ø111.5 mm | Material: NBR (N) | Connection: PF1/2 female
OF110-S-XPad diameter: Ø111.5 mm | Material: Red silicone (S) | Connection: None (pad only)
OF110-S-12FPad diameter: Ø111.5 mm | Material: Red silicone (S) | Connection: PF1/2 female
OF110-WS-XPad diameter: Ø111.5 mm | Material: White silicone (WS) | Connection: None (pad only)
OF110-WS-12FPad diameter: Ø111.5 mm | Material: White silicone (WS) | Connection: PF1/2 female
OF110-BS-XPad diameter: Ø111.5 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF110-BS-12FPad diameter: Ø111.5 mm | Material: Black silicone (BS) | Connection: PF1/2 female
OF110-CS-XPad diameter: Ø111.5 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF110-CS-12FPad diameter: Ø111.5 mm | Material: Conductive silicone (CS) | Connection: PF1/2 female
OF110-BV-XPad diameter: Ø111.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF110-BV-12FPad diameter: Ø111.5 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/2 female
OF110-HS-XPad diameter: Ø111.5 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF110-HS-12FPad diameter: Ø111.5 mm | Material: High-temp silicone (HS) | Connection: PF1/2 female
OF110-MF-XPad diameter: Ø111.5 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF110-MF-12FPad diameter: Ø111.5 mm | Material: Mark-free coating (MF) | Connection: PF1/2 female
OF110-CM-XPad diameter: Ø111.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF110-CM-12FPad diameter: Ø111.5 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/2 female
OF110-U-XPad diameter: Ø111.5 mm | Material: Urethane (U) | Connection: None (pad only)
OF110-U-12FPad diameter: Ø111.5 mm | Material: Urethane (U) | Connection: PF1/2 female
OF110-C.YN-XPad diameter: Ø111.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF110-C.YN-12FPad diameter: Ø111.5 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/2 female
OF110-C.BN-XPad diameter: Ø111.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF110-C.BN-12FPad diameter: Ø111.5 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/2 female
OF150-N-XPad diameter: Ø150 mm | Material: NBR (N) | Connection: None (pad only)
OF150-N-12FPad diameter: Ø150 mm | Material: NBR (N) | Connection: PF1/2 female
OF150-S-XPad diameter: Ø150 mm | Material: Red silicone (S) | Connection: None (pad only)
OF150-S-12FPad diameter: Ø150 mm | Material: Red silicone (S) | Connection: PF1/2 female
OF150-WS-XPad diameter: Ø150 mm | Material: White silicone (WS) | Connection: None (pad only)
OF150-WS-12FPad diameter: Ø150 mm | Material: White silicone (WS) | Connection: PF1/2 female
OF150-BS-XPad diameter: Ø150 mm | Material: Black silicone (BS) | Connection: None (pad only)
OF150-BS-12FPad diameter: Ø150 mm | Material: Black silicone (BS) | Connection: PF1/2 female
OF150-CS-XPad diameter: Ø150 mm | Material: Conductive silicone (CS) | Connection: None (pad only)
OF150-CS-12FPad diameter: Ø150 mm | Material: Conductive silicone (CS) | Connection: PF1/2 female
OF150-BV-XPad diameter: Ø150 mm | Material: Fluorine rubber (Viton) (BV) | Connection: None (pad only)
OF150-BV-12FPad diameter: Ø150 mm | Material: Fluorine rubber (Viton) (BV) | Connection: PF1/2 female
OF150-HS-XPad diameter: Ø150 mm | Material: High-temp silicone (HS) | Connection: None (pad only)
OF150-HS-12FPad diameter: Ø150 mm | Material: High-temp silicone (HS) | Connection: PF1/2 female
OF150-MF-XPad diameter: Ø150 mm | Material: Mark-free coating (MF) | Connection: None (pad only)
OF150-MF-12FPad diameter: Ø150 mm | Material: Mark-free coating (MF) | Connection: PF1/2 female
OF150-CM-XPad diameter: Ø150 mm | Material: Conductive silicone + mark-free (CM) | Connection: None (pad only)
OF150-CM-12FPad diameter: Ø150 mm | Material: Conductive silicone + mark-free (CM) | Connection: PF1/2 female
OF150-U-XPad diameter: Ø150 mm | Material: Urethane (U) | Connection: None (pad only)
OF150-U-12FPad diameter: Ø150 mm | Material: Urethane (U) | Connection: PF1/2 female
OF150-C.YN-XPad diameter: Ø150 mm | Material: Conductive NBR, yellow (C.YN) | Connection: None (pad only)
OF150-C.YN-12FPad diameter: Ø150 mm | Material: Conductive NBR, yellow (C.YN) | Connection: PF1/2 female
OF150-C.BN-XPad diameter: Ø150 mm | Material: Conductive NBR, blue (C.BN) | Connection: None (pad only)
OF150-C.BN-12FPad diameter: Ø150 mm | Material: Conductive NBR, blue (C.BN) | Connection: PF1/2 female

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
