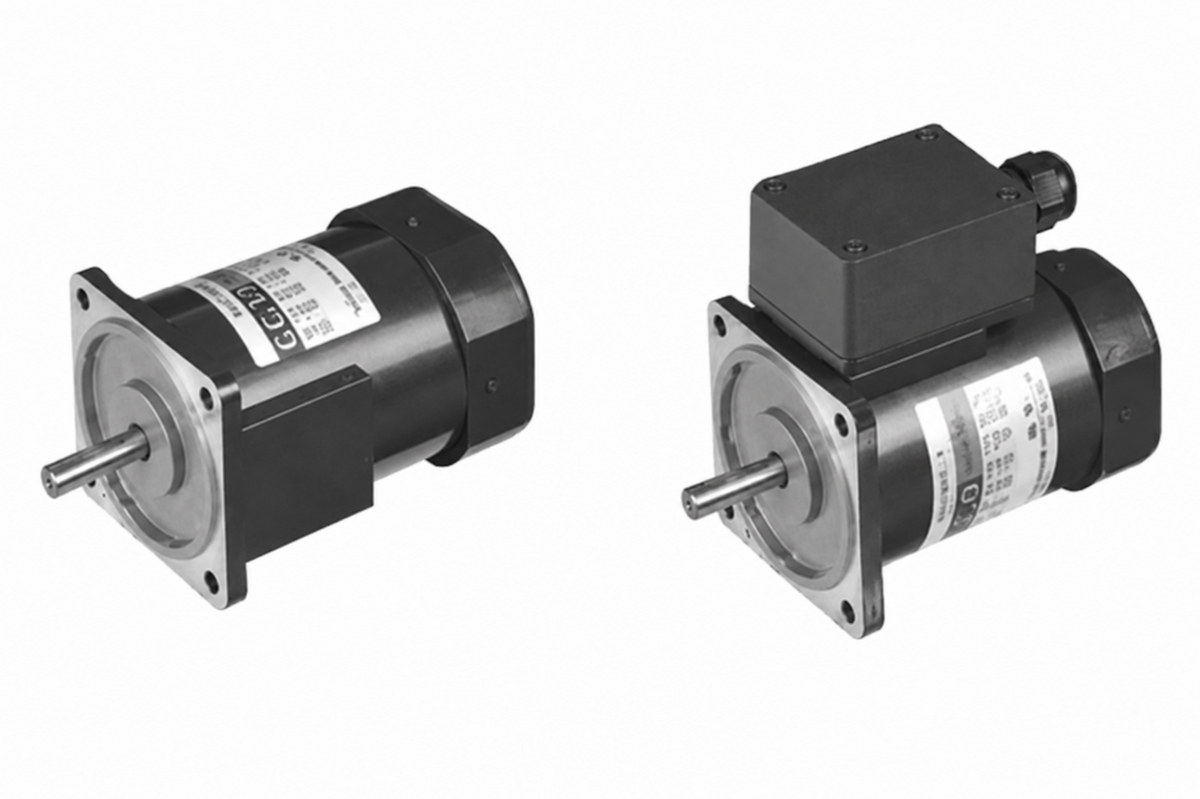

GGM 120W □90mm Single-phase AC Induction Geared Motor (60Hz, Terminal box (plastic))

GGM 120W □90mm Single-phase AC Induction Geared Motor (60Hz, Terminal box (plastic))

GGM 120W single-phase AC induction geared motor, □90mm frame, 4-pole, 60Hz rated (1550-1600rpm), continuous rating.

Key features

  • Terminal box type (plastic housing)
  • Straight (S) and pinion (P) shaft options. 60Hz voltages 100/110/115/200/220/230V with built-in capacitor
  • Compatible with K9P power gearheads (sold separately)

Specifications

Frame □90mm
Output 120W
Poles 4
Phase Single-phase
Frequency 60Hz
Output Type Terminal box type (plastic housing)
Speed basis 4-pole synchronous 1800rpm@60Hz
UL not listed for this variant
K9IS120FJ-T5 GGM 120W single-phase 4-pole geared motor, 60Hz, 100V, Straight shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 100V | Condenser: 35µF | Operating Points: 100V/60Hz: 2.2A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IP120FJ-T5 GGM 120W single-phase 4-pole geared motor, 60Hz, 100V, Pinion shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 100V | Condenser: 35µF | Operating Points: 100V/60Hz: 2.2A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IS120FU-T5 GGM 120W single-phase 4-pole geared motor, 60Hz, 110/115V, Straight shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 110/115V | Condenser: 30µF | Operating Points: 110V/60Hz: 2.13A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | 115V/60Hz: 2.3A, Start 0.7/7 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IP120FU-T5 GGM 120W single-phase 4-pole geared motor, 60Hz, 110/115V, Pinion shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 110/115V | Condenser: 30µF | Operating Points: 110V/60Hz: 2.13A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | 115V/60Hz: 2.3A, Start 0.7/7 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IS120FL-T5 GGM 120W single-phase 4-pole geared motor, 60Hz, 200V, Straight shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 200V | Condenser: 8µF | Operating Points: 200V/60Hz: 1.22A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.6/6 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IP120FL-T5 GGM 120W single-phase 4-pole geared motor, 60Hz, 200V, Pinion shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 200V | Condenser: 8µF | Operating Points: 200V/60Hz: 1.22A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.6/6 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IS120FC-T5 GGM 120W single-phase 4-pole geared motor, 60Hz, 220/230V, Straight shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 220/230V | Condenser: 7µF | Operating Points: 220V/60Hz: 1A, Start 0.6/6 N·m/kgf·cm, Rated 0.735/7.53 N·m/kgf·cm, 1600rpm | 230V/60Hz: 1.1A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.53 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IP120FC-T5 GGM 120W single-phase 4-pole geared motor, 60Hz, 220/230V, Pinion shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 220/230V | Condenser: 7µF | Operating Points: 220V/60Hz: 1A, Start 0.6/6 N·m/kgf·cm, Rated 0.735/7.53 N·m/kgf·cm, 1600rpm | 230V/60Hz: 1.1A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.53 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
AC Geared MotorsGGM
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM 120W □90mm Single-phase AC Induction Geared Motor (60Hz, Terminal box (plastic))

Brand GGM·AC Geared Motors

Available part numbers (8)

K9IS120FJ-T5, K9IP120FJ-T5, K9IS120FU-T5, K9IP120FU-T5, K9IS120FL-T5, K9IP120FL-T5, K9IS120FC-T5, K9IP120FC-T5

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K9IS120FJ-T5GGM 120W single-phase 4-pole geared motor, 60Hz, 100V, Straight shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 100V | Condenser: 35µF | Operating Points: 100V/60Hz: 2.2A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IP120FJ-T5GGM 120W single-phase 4-pole geared motor, 60Hz, 100V, Pinion shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 100V | Condenser: 35µF | Operating Points: 100V/60Hz: 2.2A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IS120FU-T5GGM 120W single-phase 4-pole geared motor, 60Hz, 110/115V, Straight shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 110/115V | Condenser: 30µF | Operating Points: 110V/60Hz: 2.13A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | 115V/60Hz: 2.3A, Start 0.7/7 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IP120FU-T5GGM 120W single-phase 4-pole geared motor, 60Hz, 110/115V, Pinion shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 110/115V | Condenser: 30µF | Operating Points: 110V/60Hz: 2.13A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | 115V/60Hz: 2.3A, Start 0.7/7 N·m/kgf·cm, Rated 0.735/7.35 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IS120FL-T5GGM 120W single-phase 4-pole geared motor, 60Hz, 200V, Straight shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 200V | Condenser: 8µF | Operating Points: 200V/60Hz: 1.22A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.6/6 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IP120FL-T5GGM 120W single-phase 4-pole geared motor, 60Hz, 200V, Pinion shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 200V | Condenser: 8µF | Operating Points: 200V/60Hz: 1.22A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.6/6 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IS120FC-T5GGM 120W single-phase 4-pole geared motor, 60Hz, 220/230V, Straight shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Straight | Output Type: Terminal box type (plastic housing) | Rated Voltage: 220/230V | Condenser: 7µF | Operating Points: 220V/60Hz: 1A, Start 0.6/6 N·m/kgf·cm, Rated 0.735/7.53 N·m/kgf·cm, 1600rpm | 230V/60Hz: 1.1A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.53 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
K9IP120FC-T5GGM 120W single-phase 4-pole geared motor, 60Hz, 220/230V, Pinion shaft, Terminal box (plastic) | Frame: □90mm | Output: 120W | Poles: 4 | Phase: Single-phase | Frequency: 60Hz | Shaft: Pinion | Output Type: Terminal box type (plastic housing) | Rated Voltage: 220/230V | Condenser: 7µF | Operating Points: 220V/60Hz: 1A, Start 0.6/6 N·m/kgf·cm, Rated 0.735/7.53 N·m/kgf·cm, 1600rpm | 230V/60Hz: 1.1A, Start 0.65/6.5 N·m/kgf·cm, Rated 0.735/7.53 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1800rpm@60Hz | UL: not listed for this variant
