• GGM 90W □90mm 2-Pole Three-phase AC Induction Motor (High-Speed, Lead Wire)
1 1

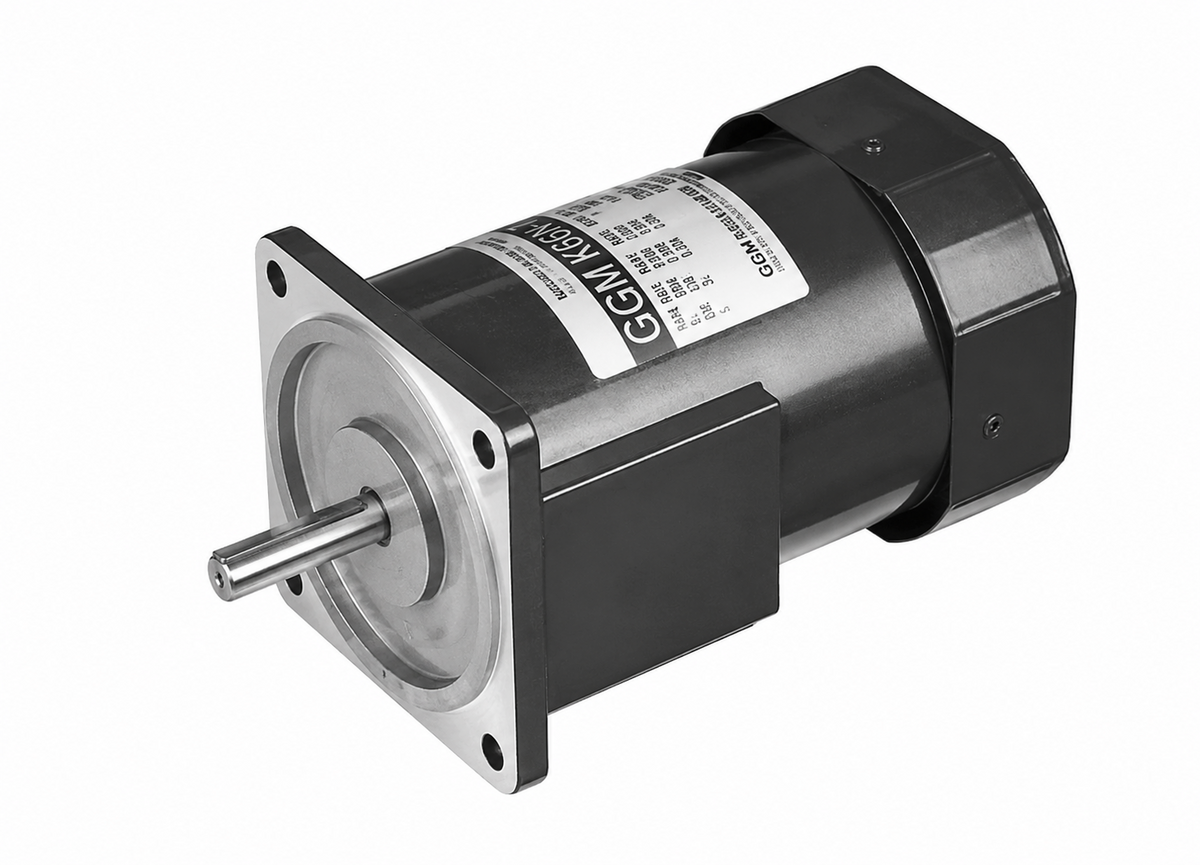

GGM 90W □90mm 2-Pole Three-phase AC Induction Motor (High-Speed, Lead Wire)

GGM 90W □90mm 2-Pole Three-phase AC Induction Motor (High-Speed, Lead Wire)

GGM 90W three-phase AC induction motor, □90mm frame, 2-pole high-speed (2700rpm@50Hz / 3200rpm@60Hz), continuous rating.

Key features

  • Lead wire type, straight (S) shaft
  • Three-phase 220/230/380/440V

Specifications

Frame □90mm
Output 90W
Poles 2 (high-speed)
Phase Three-phase
Shaft Straight (S)
Output Type Lead wire type (300mm, UL Style 3271 AWG20)
Speed basis 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz
Weight 2.56kg
K9IS90FH-2P GGM 90W 2-pole Three-phase induction motor, 220/230V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Operating Points: 220V/50Hz: 0.53A, Start 1.14/11.40 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 220V/60Hz: 0.52A, Start 0.93/9.30 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | 230V/50Hz: 0.56A, Start 1.24/12.40 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 230V/60Hz: 0.54A, Start 0.99/9.90 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg
K9IS90FM-2P GGM 90W 2-pole Three-phase induction motor, 380V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 380V | Operating Points: 380V/50Hz: 0.30A, Start 1.08/10.80 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 380V/60Hz: 0.30A, Start 0.89/8.90 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg
K9IS90FZ-2P GGM 90W 2-pole Three-phase induction motor, 440V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 440V | Operating Points: 440V/50Hz: 0.26A, Start 1.08/10.80 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 440V/60Hz: 0.26A, Start 0.87/8.70 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg
AC Geared MotorsGGM
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM 90W □90mm 2-Pole Three-phase AC Induction Motor (High-Speed, Lead Wire)

Brand GGM·AC Geared Motors

Available part numbers (3)

K9IS90FH-2P, K9IS90FM-2P, K9IS90FZ-2P

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K9IS90FH-2PGGM 90W 2-pole Three-phase induction motor, 220/230V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Operating Points: 220V/50Hz: 0.53A, Start 1.14/11.40 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 220V/60Hz: 0.52A, Start 0.93/9.30 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | 230V/50Hz: 0.56A, Start 1.24/12.40 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 230V/60Hz: 0.54A, Start 0.99/9.90 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg
K9IS90FM-2PGGM 90W 2-pole Three-phase induction motor, 380V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 380V | Operating Points: 380V/50Hz: 0.30A, Start 1.08/10.80 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 380V/60Hz: 0.30A, Start 0.89/8.90 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg
K9IS90FZ-2PGGM 90W 2-pole Three-phase induction motor, 440V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 2 (high-speed) | Phase: Three-phase | Shaft: Straight (S) | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 440V | Operating Points: 440V/50Hz: 0.26A, Start 1.08/10.80 N·m/kgf·cm, Rated 0.32/3.20 N·m/kgf·cm, 2700rpm | 440V/60Hz: 0.26A, Start 0.87/8.70 N·m/kgf·cm, Rated 0.27/2.70 N·m/kgf·cm, 3200rpm | Speed basis: 2-pole synchronous 3000rpm@50Hz / 3600rpm@60Hz | Weight: 2.56kg
