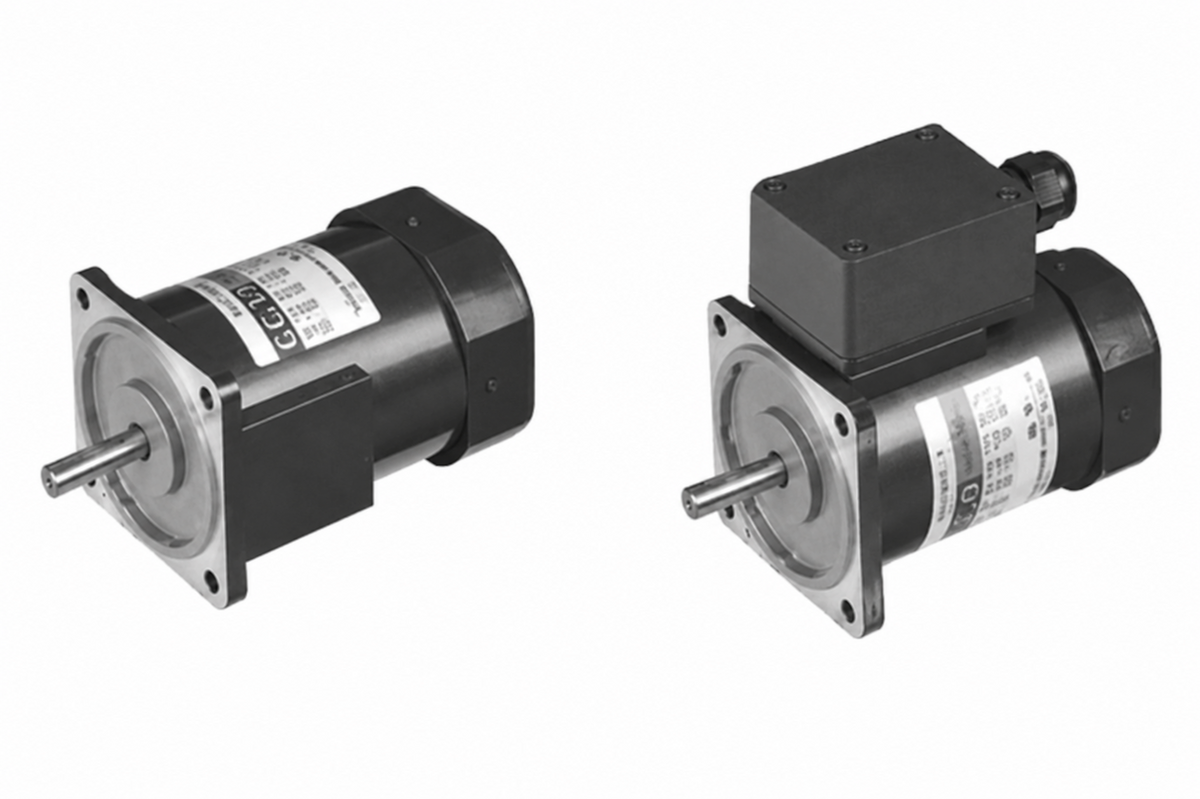

GGM 90W □90mm Single-phase AC Induction Geared Motor (Lead wire)

GGM 90W □90mm Single-phase AC Induction Geared Motor (Lead wire)

GGM 90W single-phase AC induction geared motor, □90mm frame, 4-pole, continuous rating.

Key features

  • Lead wire type (300mm, UL Style 3271 AWG20)
  • Straight (S) and pinion (P) shaft options
  • Single-phase 100/110/115/200/220/230/240V with built-in capacitor
  • Compatible with K9P power gearheads (sold separately)

Specifications

Frame □90mm
Output 90W
Poles 4
Phase Single-phase
Output Type Lead wire type (300mm, UL Style 3271 AWG20)
Speed basis 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz
K9IS90FJ GGM 90W Single-phase geared motor, 100V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 30µF | Operating Points: 100V/50Hz: 2.07A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 100V/60Hz: 1.97A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IP90FJ GGM 90W Single-phase geared motor, 100V, Pinion shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 30µF | Operating Points: 100V/50Hz: 2.07A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 100V/60Hz: 1.97A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IS90FU GGM 90W Single-phase geared motor, 110/115V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 110/115V | Condenser: 20µF | Operating Points: 110V/60Hz: 1.47A, Start 0.44/4.4 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 115V/60Hz: 1.52A, Start 0.485/4.85 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified)
K9IP90FU GGM 90W Single-phase geared motor, 110/115V, Pinion shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 110/115V | Condenser: 20µF | Operating Points: 110V/60Hz: 1.47A, Start 0.44/4.4 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 115V/60Hz: 1.52A, Start 0.485/4.85 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified)
K9IS90FL GGM 90W Single-phase geared motor, 200V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 7µF | Operating Points: 200V/50Hz: 0.75A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 200V/60Hz: 0.97A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IP90FL GGM 90W Single-phase geared motor, 200V, Pinion shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 7µF | Operating Points: 200V/50Hz: 0.75A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 200V/60Hz: 0.97A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IS90FC GGM 90W Single-phase geared motor, 220/230V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.8A, Start 0.45/4.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 220V/60Hz: 0.9A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | 230V/50Hz: 0.87A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 230V/60Hz: 0.93A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified)
K9IP90FC GGM 90W Single-phase geared motor, 220/230V, Pinion shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.8A, Start 0.45/4.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 220V/60Hz: 0.9A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | 230V/50Hz: 0.87A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 230V/60Hz: 0.93A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified)
K9IS90FD GGM 90W Single-phase geared motor, 240V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 5µF | Operating Points: 240V/50Hz: 0.85A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IP90FD GGM 90W Single-phase geared motor, 240V, Pinion shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 5µF | Operating Points: 240V/50Hz: 0.85A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
AC Geared MotorsGGM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM 90W □90mm Single-phase AC Induction Geared Motor (Lead wire)

Brand GGM·AC Geared Motors

Available part numbers (10)

K9IS90FJ, K9IP90FJ, K9IS90FU, K9IP90FU, K9IS90FL, K9IP90FL, K9IS90FC, K9IP90FC, K9IS90FD, K9IP90FD

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K9IS90FJGGM 90W Single-phase geared motor, 100V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 30µF | Operating Points: 100V/50Hz: 2.07A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 100V/60Hz: 1.97A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IP90FJGGM 90W Single-phase geared motor, 100V, Pinion shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 100V | Condenser: 30µF | Operating Points: 100V/50Hz: 2.07A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 100V/60Hz: 1.97A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IS90FUGGM 90W Single-phase geared motor, 110/115V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 110/115V | Condenser: 20µF | Operating Points: 110V/60Hz: 1.47A, Start 0.44/4.4 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 115V/60Hz: 1.52A, Start 0.485/4.85 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified)
K9IP90FUGGM 90W Single-phase geared motor, 110/115V, Pinion shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 110/115V | Condenser: 20µF | Operating Points: 110V/60Hz: 1.47A, Start 0.44/4.4 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | 115V/60Hz: 1.52A, Start 0.485/4.85 N·m/kgf·cm, Rated 0.55/5.5 N·m/kgf·cm, 1600rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified)
K9IS90FLGGM 90W Single-phase geared motor, 200V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 7µF | Operating Points: 200V/50Hz: 0.75A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 200V/60Hz: 0.97A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IP90FLGGM 90W Single-phase geared motor, 200V, Pinion shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 200V | Condenser: 7µF | Operating Points: 200V/50Hz: 0.75A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 200V/60Hz: 0.97A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IS90FCGGM 90W Single-phase geared motor, 220/230V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.8A, Start 0.45/4.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 220V/60Hz: 0.9A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | 230V/50Hz: 0.87A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 230V/60Hz: 0.93A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified)
K9IP90FCGGM 90W Single-phase geared motor, 220/230V, Pinion shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 220/230V | Condenser: 6µF | Operating Points: 220V/50Hz: 0.8A, Start 0.45/4.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 220V/60Hz: 0.9A, Start 0.5/5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | 230V/50Hz: 0.87A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | 230V/60Hz: 0.93A, Start 0.55/5.5 N·m/kgf·cm, Rated 0.57/5.7 N·m/kgf·cm, 1550rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: E204632 (certified)
K9IS90FDGGM 90W Single-phase geared motor, 240V, Straight shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Straight | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 5µF | Operating Points: 240V/50Hz: 0.85A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
K9IP90FDGGM 90W Single-phase geared motor, 240V, Pinion shaft, Lead wire | Frame: □90mm | Output: 90W | Poles: 4 | Phase: Single-phase | Shaft: Pinion | Output Type: Lead wire type (300mm, UL Style 3271 AWG20) | Rated Voltage: 240V | Condenser: 5µF | Operating Points: 240V/50Hz: 0.85A, Start 0.5/5 N·m/kgf·cm, Rated 0.675/6.75 N·m/kgf·cm, 1300rpm | Speed basis: 4-pole synchronous 1500rpm@50Hz / 1800rpm@60Hz | UL: not listed for this variant
