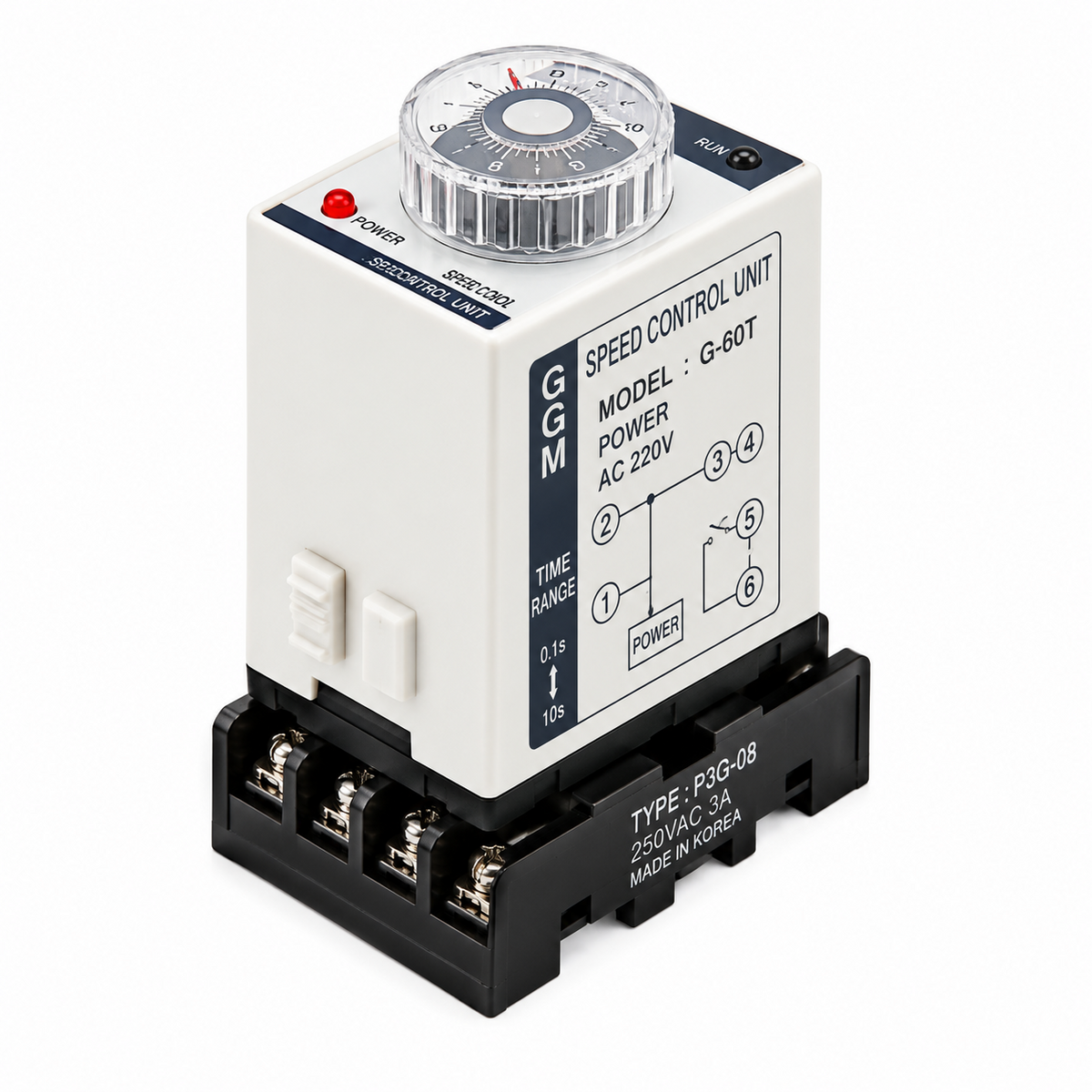

• GGM GPA Plug-in Speed Control Unit for AC Geared Motors (Built-in Setter, Electrical Brake, Single-phase)
1 1

GGM GPA Plug-in Speed Control Unit for AC Geared Motors (Built-in Setter, Electrical Brake, Single-phase)

GGM GPA Plug-in Speed Control Unit for AC Geared Motors (Built-in Setter, Electrical Brake, Single-phase)

GGM GPA plug-in speed control unit for AC induction (6–180W), reversible (6–90W) & brake (6–180W) geared motors.

Key features

  • Built-in speed setter with electrical brake moment-stop, 90–1700 r/min (60Hz)

Specifications

Applied motor induction 6–180W / reversible 6–90W / speed&brake 6–180W
Speed range 90–1700 r/min @60Hz, 90–1400 @50Hz
Type plug-in (socket type)
Speed setter built-in (external = special order)
Brake electrical moment-stop, 0.5s (no retention)
Slow run/stop none (use GSA series)
GPA-U GGM GPA-U plug-in speed control unit, single-phase AC 110/115V 50/60Hz | Input: 1-ph AC 110/115V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series)
GPA-J GGM GPA-J plug-in speed control unit, single-phase AC 100V 50/60Hz | Input: 1-ph AC 100V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series)
GPA-C GGM GPA-C plug-in speed control unit, single-phase AC 220/230/240V 50/60Hz | Input: 1-ph AC 220/230/240V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series)
GPA-L GGM GPA-L plug-in speed control unit, single-phase AC 200V 50/60Hz | Input: 1-ph AC 200V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series)
Speed ControllersGGM
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM GPA Plug-in Speed Control Unit for AC Geared Motors (Built-in Setter, Electrical Brake, Single-phase)

Brand GGM·Speed Controllers

Available part numbers (4)

GPA-U, GPA-J, GPA-C, GPA-L

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GPA-UGGM GPA-U plug-in speed control unit, single-phase AC 110/115V 50/60Hz | Input: 1-ph AC 110/115V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series)
GPA-JGGM GPA-J plug-in speed control unit, single-phase AC 100V 50/60Hz | Input: 1-ph AC 100V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series)
GPA-CGGM GPA-C plug-in speed control unit, single-phase AC 220/230/240V 50/60Hz | Input: 1-ph AC 220/230/240V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series)
GPA-LGGM GPA-L plug-in speed control unit, single-phase AC 200V 50/60Hz | Input: 1-ph AC 200V 50/60Hz (±10%) | Applied motor: induction 6–180W / reversible 6–90W / speed&brake 6–180W | Speed range: 90–1700 r/min @60Hz, 90–1400 @50Hz | Type: plug-in (socket type) | Speed setter: built-in (external = special order) | Brake: electrical moment-stop, 0.5s (no retention) | Slow run/stop: none (use GSA series)

Need a different model, or a part not listed here? Send us your parts list →
