• GGM K10F400N Brushless DC Motor Unit 400W (□104mm, Single/Three-phase 200~240V AC Input, F Series)
1 1

GGM K10F400N Brushless DC Motor Unit 400W (□104mm, Single/Three-phase 200~240V AC Input, F Series)

GGM K10F400N Brushless DC Motor Unit 400W (□104mm, Single/Three-phase 200~240V AC Input, F Series)

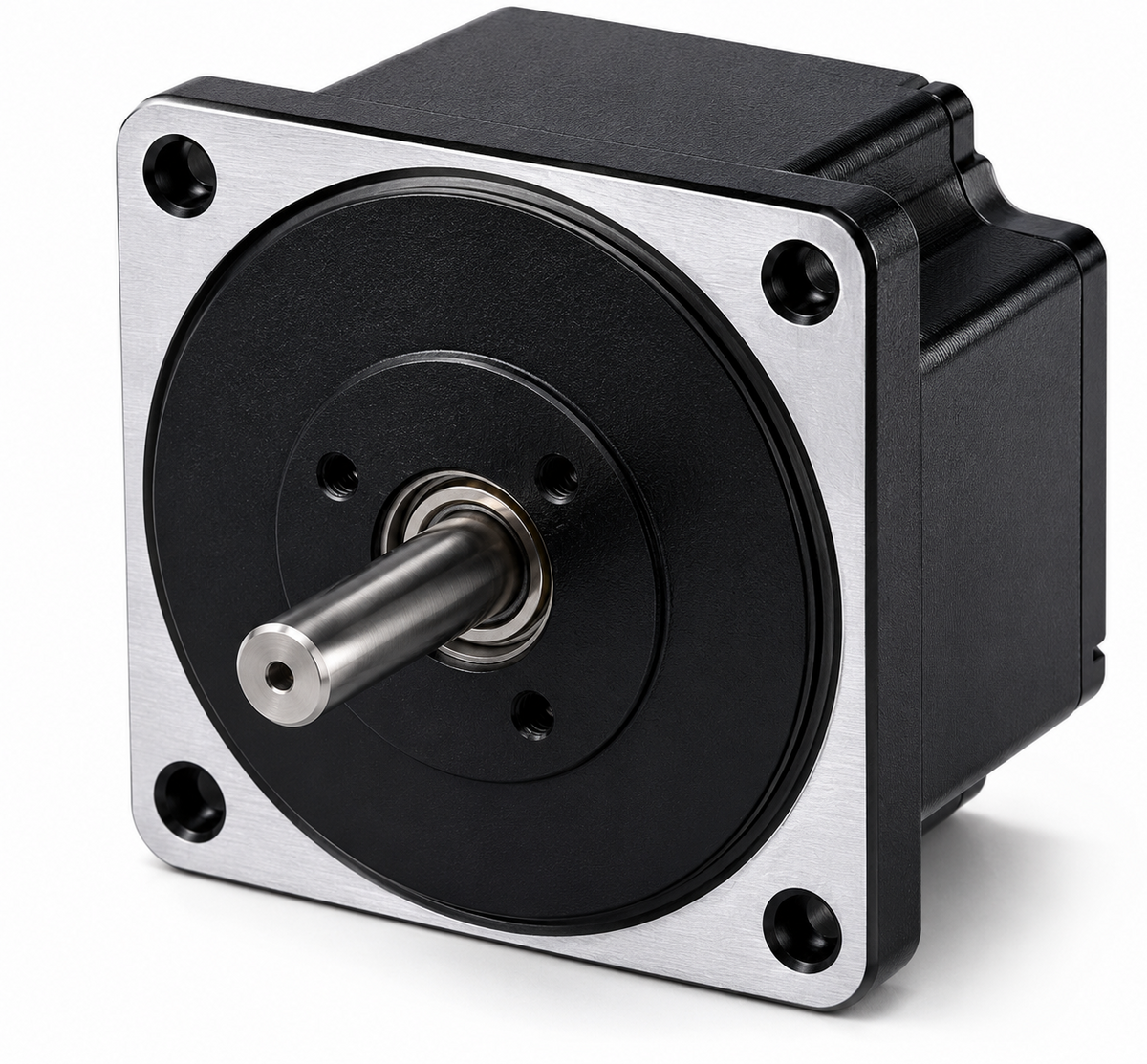

GGM K10F400N Brushless DC Motor Unit, 400W, □104mm frame.

Key features

  • F-Series driver accepts single-phase or three-phase 200~240V AC voltage input (±10%)
  • Gear type (pinion shaft) and D-cut output shaft, UL certified (E504659)
  • Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE)
  • Rated torque 1.30 N·m, starting torque 1.80 N·m, rated speed 3,000 r/min, speed control 100~4,000 r/min
  • Insulation class E (120℃), IP65 (except output/mounting parts)

Specifications

Output 400W
Frame □104mm
Voltage Single-phase or Three-phase 200~240V (±10%)
Frequency 50/60Hz
Rated Input Current 4.0A (single-phase) / 3.0A (three-phase)
Max Input Current 7.8A (single-phase) / 5.0A (three-phase)
Rated Output Current 2.30A
Rated Torque 1.30 N·m
Starting Torque 1.80 N·m
Rated Speed 3,000 r/min
Speed Control Range 100~4,000 r/min
Insulation Class E (120℃)
K10FH400NC 400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Standard | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately)
K10FH400NC-B 400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Brake | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately)
K10FH400NC-E 400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Encoder | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately)
K10FH400NC-BE 400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Brake + Encoder | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately)
K10FS400NC 400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Standard | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling
K10FS400NC-B 400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Brake | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling
K10FS400NC-E 400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Encoder | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling
K10FS400NC-BE 400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Brake + Encoder | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling
Brushless DC MotorsGGM
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K10F400N Brushless DC Motor Unit 400W (□104mm, Single/Three-phase 200~240V AC Input, F Series)

Brand GGM·Brushless DC Motors

Available part numbers (8)

K10FH400NC, K10FH400NC-B, K10FH400NC-E, K10FH400NC-BE, K10FS400NC, K10FS400NC-B, K10FS400NC-E, K10FS400NC-BE

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K10FH400NC400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Standard | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately)
K10FH400NC-B400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Brake | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately)
K10FH400NC-E400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Encoder | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately)
K10FH400NC-BE400W BLDC (F Series), Gear type (pinion shaft), Single/Three-phase 200~240V, Brake + Encoder | Output: 400W | Frame: □104mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K10H□BU / K10H□BTH gearhead assembly (gearhead sold separately)
K10FS400NC400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Standard | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.4kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling
K10FS400NC-B400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Brake | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.0kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling
K10FS400NC-E400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Encoder | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 2.5kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling
K10FS400NC-BE400W BLDC (F Series), D-cut type, Single/Three-phase 200~240V, Brake + Encoder | Output: 400W | Frame: □104mm | Shaft: D-cut type | Voltage: Single-phase or Three-phase 200~240V (±10%) | Frequency: 50/60Hz | Rated Input Current: 4.0A (single-phase) / 3.0A (three-phase) | Max Input Current: 7.8A (single-phase) / 5.0A (three-phase) | Rated Output Current: 2.30A | Rated Torque: 1.30 N·m | Starting Torque: 1.80 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 3.1kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø15 (h7), spigot Ø94 (h7), for direct coupling
