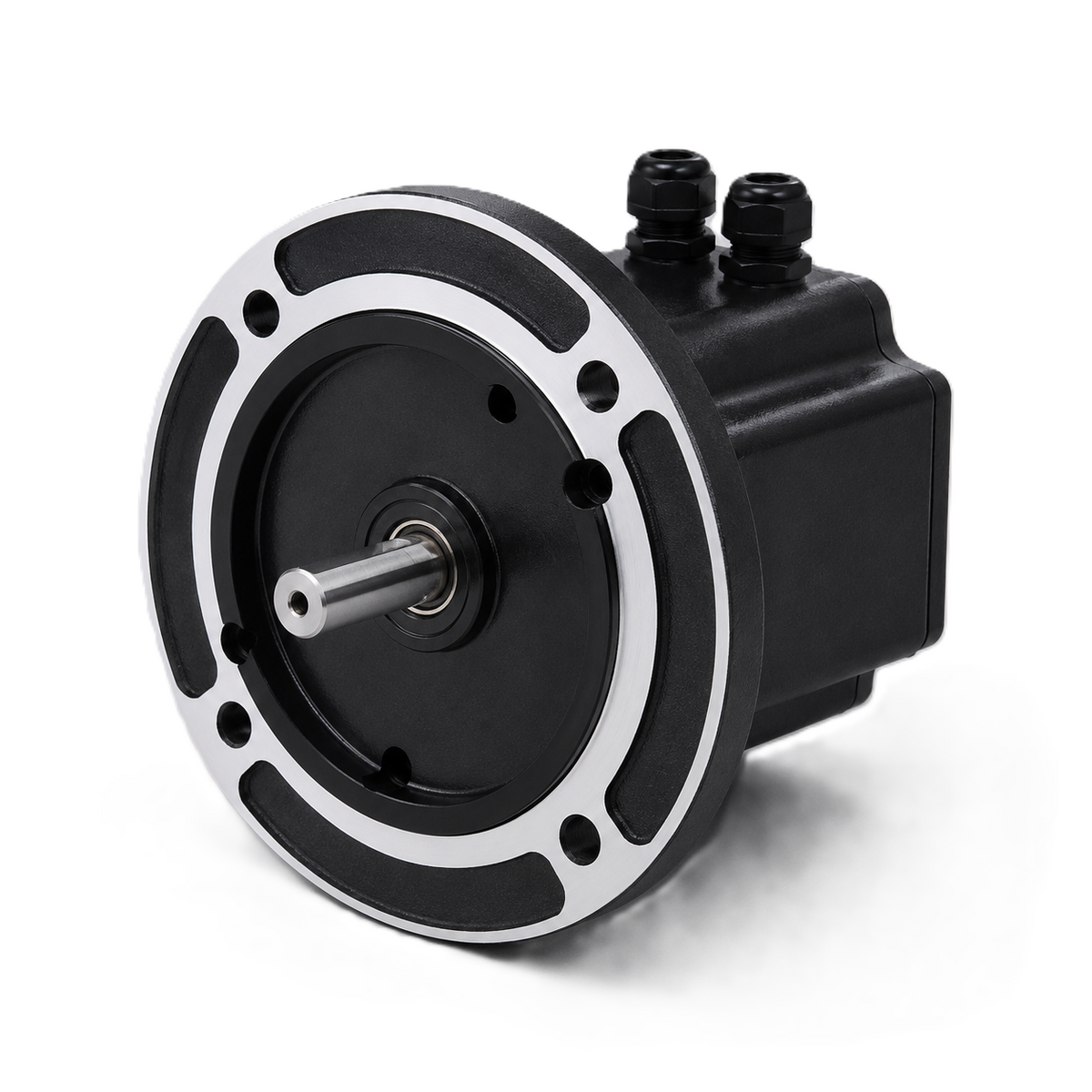

• GGM K20B750N Brushless DC Motor Unit 750W (Ø200 Flange / □104mm, Single-phase 200~230V AC Input, IEC, B Series)
1 1

GGM K20B750N Brushless DC Motor Unit 750W (Ø200 Flange / □104mm, Single-phase 200~230V AC Input, IEC, B Series)

GGM K20B750N Brushless DC Motor Unit 750W (Ø200 Flange / □104mm, Single-phase 200~230V AC Input, IEC, B Series)

GGM K20B750N Brushless DC Motor Unit, 750W, Ø200 round-flange IEC mount (□104mm body), single-phase 200~230V AC voltage input.

Key features

  • Key output shaft Ø19 (h7) with 6mm key
  • Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE)
  • Rated torque 2.4 N·m, starting torque 3.5 N·m, rated speed 3,000 r/min, speed control 100~3,000 r/min
  • Insulation class E (120℃), IP65 (except output/mounting parts)

Specifications

Output 750W
Frame Ø200 round flange / □104mm body (IEC)
Shaft Key type
Voltage Single-phase 200~230V
Frequency 50/60Hz
Rated Input Current 7A
Max Input Current 10A
Rated Output Current 5A
Rated Torque 2.4 N·m
Starting Torque 3.5 N·m
Rated Speed 3,000 r/min
Speed Control Range 100~3,000 r/min
K20BK750NC 750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Standard | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 5.3kg | Option: Standard | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount
K20BK750NC-B 750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Brake | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 5.9kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount
K20BK750NC-E 750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Encoder | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 5.4kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount
K20BK750NC-BE 750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Brake + Encoder | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 6.0kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount
Brushless DC MotorsGGM
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K20B750N Brushless DC Motor Unit 750W (Ø200 Flange / □104mm, Single-phase 200~230V AC Input, IEC, B Series)

Brand GGM·Brushless DC Motors

Available part numbers (4)

K20BK750NC, K20BK750NC-B, K20BK750NC-E, K20BK750NC-BE

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K20BK750NC750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Standard | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 5.3kg | Option: Standard | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount
K20BK750NC-B750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Brake | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 5.9kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount
K20BK750NC-E750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Encoder | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 5.4kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount
K20BK750NC-BE750W BLDC, Key type (IEC Ø200 flange), Single-phase 200~230V, Brake + Encoder | Output: 750W | Frame: Ø200 round flange / □104mm body (IEC) | Shaft: Key type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 7A | Max Input Current: 10A | Rated Output Current: 5A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 6.0kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: N/A (catalog omission; IEC type) | Shaft Note: Key type — keyed output shaft Ø19 (h7), 6mm key; Ø200 round flange (PCD Ø165, spigot Ø130, 4-Ø10.5 holes), IEC mount
