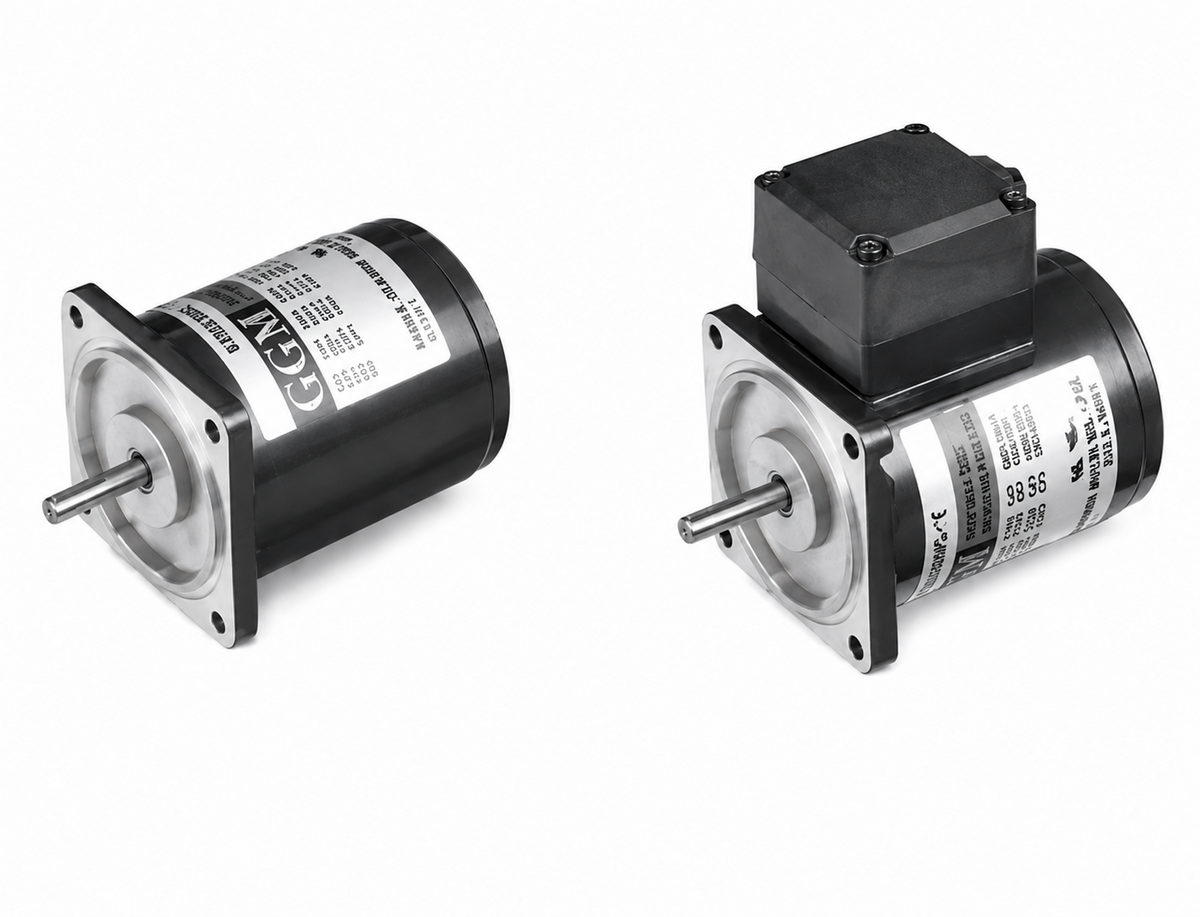

GGM K7I□15N Series 15W Single-Phase AC Induction Motor (□70mm, 4-Pole, Lead Wire)

GGM K7I□15N Series 15W Single-Phase AC Induction Motor (□70mm, 4-Pole, Lead Wire)

GGM K7I□15N series 15W single-phase AC induction motor. □70mm frame, 4-pole, continuous rating, lead wire (300mm, ul style 3271 awg20).

Key features

  • Straight (S) and pinion (G) shaft; 100–240V (50/60Hz)
  • Pinion-shaft type combines with K7G□ gear heads (matching face/teeth)
  • U variant (110/115V) UL certified, UL FILE NO
  • E204632

Specifications

Output 15W
Poles 4
Phase Single-phase
Frame □70mm
Connection Lead wire (300mm, UL Style 3271 AWG20)
K7IS15NJ GGM 15W AC induction motor K7IS15NJ — Straight shaft, 100V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 100V | Condenser: 5μF | Operating Points: 100V/50Hz: 0.45A, Start 0.08/0.8N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.41A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IG15NJ GGM 15W AC induction motor K7IG15NJ — Pinion (for gear head) shaft, 100V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 100V | Condenser: 5μF | Operating Points: 100V/50Hz: 0.45A, Start 0.08/0.8N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.41A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IS15NU GGM 15W AC induction motor K7IS15NU — Straight shaft, 110/115V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 110/115V | Condenser: 4.5μF | Operating Points: 110V/60Hz: 0.38A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.39A, Start 0.09/0.9N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: Certified (E204632)
K7IG15NU GGM 15W AC induction motor K7IG15NU — Pinion (for gear head) shaft, 110/115V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 110/115V | Condenser: 4.5μF | Operating Points: 110V/60Hz: 0.38A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.39A, Start 0.09/0.9N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: Certified (E204632)
K7IS15NL GGM 15W AC induction motor K7IS15NL — Straight shaft, 200V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 200V | Condenser: 1.5μF | Operating Points: 200V/50Hz: 0.21A, Start 0.09/0.9N·m·kgf·cm, Rated 0.122/1.22N·m·kgf·cm, 1200rpm ; 200V/60Hz: 0.22A, Start 0.095/0.95N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IG15NL GGM 15W AC induction motor K7IG15NL — Pinion (for gear head) shaft, 200V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 200V | Condenser: 1.5μF | Operating Points: 200V/50Hz: 0.21A, Start 0.09/0.9N·m·kgf·cm, Rated 0.122/1.22N·m·kgf·cm, 1200rpm ; 200V/60Hz: 0.22A, Start 0.095/0.95N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IS15NC GGM 15W AC induction motor K7IS15NC — Straight shaft, 220/230V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 1μF | Operating Points: 220V/50Hz: 0.20A, Start 0.075/0.75N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.19A, Start 0.075/0.75N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.21A, Start 0.08/0.8N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.20A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IG15NC GGM 15W AC induction motor K7IG15NC — Pinion (for gear head) shaft, 220/230V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 1μF | Operating Points: 220V/50Hz: 0.20A, Start 0.075/0.75N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.19A, Start 0.075/0.75N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.21A, Start 0.08/0.8N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.20A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IS15ND GGM 15W AC induction motor K7IS15ND — Straight shaft, 240V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 240V | Condenser: 1μF | Operating Points: 240V/50Hz: 0.23A, Start 0.085/0.85N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm | UL: —
K7IG15ND GGM 15W AC induction motor K7IG15ND — Pinion (for gear head) shaft, 240V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 240V | Condenser: 1μF | Operating Points: 240V/50Hz: 0.23A, Start 0.085/0.85N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm | UL: —
AC Geared MotorsGGM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K7I□15N Series 15W Single-Phase AC Induction Motor (□70mm, 4-Pole, Lead Wire)

Brand GGM·AC Geared Motors

Available part numbers (10)

K7IS15NJ, K7IG15NJ, K7IS15NU, K7IG15NU, K7IS15NL, K7IG15NL, K7IS15NC, K7IG15NC, K7IS15ND, K7IG15ND

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K7IS15NJGGM 15W AC induction motor K7IS15NJ — Straight shaft, 100V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 100V | Condenser: 5μF | Operating Points: 100V/50Hz: 0.45A, Start 0.08/0.8N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.41A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IG15NJGGM 15W AC induction motor K7IG15NJ — Pinion (for gear head) shaft, 100V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 100V | Condenser: 5μF | Operating Points: 100V/50Hz: 0.45A, Start 0.08/0.8N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.41A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IS15NUGGM 15W AC induction motor K7IS15NU — Straight shaft, 110/115V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 110/115V | Condenser: 4.5μF | Operating Points: 110V/60Hz: 0.38A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.39A, Start 0.09/0.9N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: Certified (E204632)
K7IG15NUGGM 15W AC induction motor K7IG15NU — Pinion (for gear head) shaft, 110/115V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 110/115V | Condenser: 4.5μF | Operating Points: 110V/60Hz: 0.38A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.39A, Start 0.09/0.9N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: Certified (E204632)
K7IS15NLGGM 15W AC induction motor K7IS15NL — Straight shaft, 200V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 200V | Condenser: 1.5μF | Operating Points: 200V/50Hz: 0.21A, Start 0.09/0.9N·m·kgf·cm, Rated 0.122/1.22N·m·kgf·cm, 1200rpm ; 200V/60Hz: 0.22A, Start 0.095/0.95N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IG15NLGGM 15W AC induction motor K7IG15NL — Pinion (for gear head) shaft, 200V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 200V | Condenser: 1.5μF | Operating Points: 200V/50Hz: 0.21A, Start 0.09/0.9N·m·kgf·cm, Rated 0.122/1.22N·m·kgf·cm, 1200rpm ; 200V/60Hz: 0.22A, Start 0.095/0.95N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IS15NCGGM 15W AC induction motor K7IS15NC — Straight shaft, 220/230V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 1μF | Operating Points: 220V/50Hz: 0.20A, Start 0.075/0.75N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.19A, Start 0.075/0.75N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.21A, Start 0.08/0.8N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.20A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IG15NCGGM 15W AC induction motor K7IG15NC — Pinion (for gear head) shaft, 220/230V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 1μF | Operating Points: 220V/50Hz: 0.20A, Start 0.075/0.75N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.19A, Start 0.075/0.75N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.21A, Start 0.08/0.8N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.20A, Start 0.08/0.8N·m·kgf·cm, Rated 0.1/1N·m·kgf·cm, 1500rpm | UL: —
K7IS15NDGGM 15W AC induction motor K7IS15ND — Straight shaft, 240V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 240V | Condenser: 1μF | Operating Points: 240V/50Hz: 0.23A, Start 0.085/0.85N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm | UL: —
K7IG15NDGGM 15W AC induction motor K7IG15ND — Pinion (for gear head) shaft, 240V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 15W | Poles: 4 | Phase: Single-phase | Frame: □70mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 240V | Condenser: 1μF | Operating Points: 240V/50Hz: 0.23A, Start 0.085/0.85N·m·kgf·cm, Rated 0.12/1.2N·m·kgf·cm, 1250rpm | UL: —
