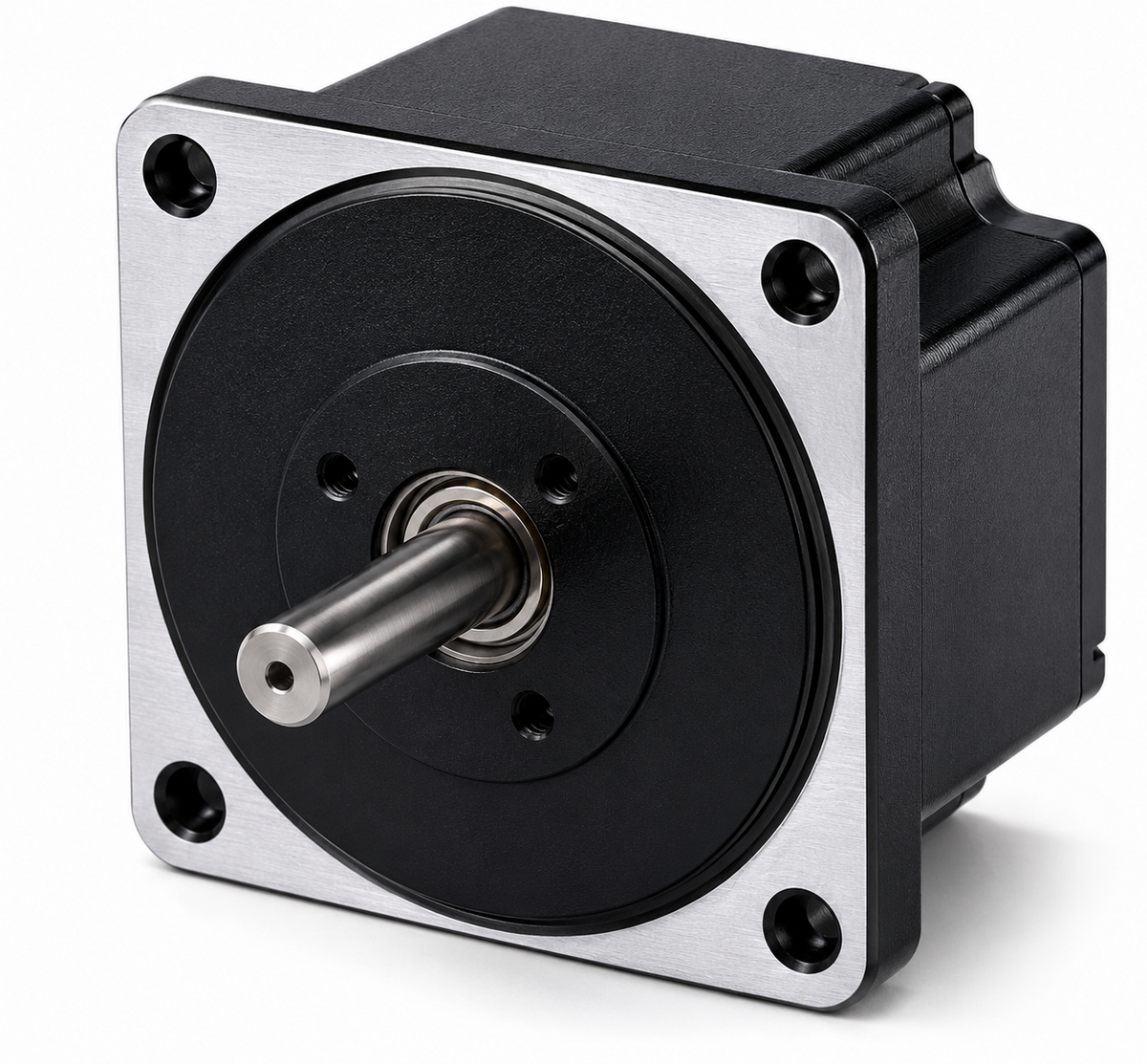

• GGM K8B60N Brushless DC Motor Unit 60W (□80mm, Single-phase AC Input, B Series)
1 1

GGM K8B60N Brushless DC Motor Unit 60W (□80mm, Single-phase AC Input, B Series)

GGM K8B60N Brushless DC Motor Unit 60W (□80mm, Single-phase AC Input, B Series)

GGM K8B60N Brushless DC Motor Unit, 60W, □80mm frame, single-phase AC voltage input.

Key features

  • Gear type (pinion shaft for gearhead) and D-cut output shaft, 100~115V (NU) and 200~230V (NC, UL certified E504659)
  • Optional electromagnetic brake (-B), 1,000PPR line-driver encoder (-E), or both (-BE)
  • Rated torque 0.2 N·m, starting torque 0.3 N·m, rated speed 3,000 r/min, speed control 100~3,000 r/min
  • Insulation class E (120℃), IP65 (except output/mounting parts)

Specifications

Output 60W
Frame □80mm
Frequency 50/60Hz
Rated Torque 0.2 N·m
Starting Torque 0.3 N·m
Rated Speed 3,000 r/min
Speed Control Range 100~3,000 r/min
Insulation Class E (120℃)
Protection IP65 (except output/mounting parts)
K8BH60NU 60W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Standard | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Standard | UL: No | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NU-B 60W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Brake | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.3kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: No | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NU-E 60W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Encoder | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: No | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NU-BE 60W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Brake + Encoder | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.4kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: No | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NC 60W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Standard | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NC-B 60W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.3kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NC-E 60W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Encoder | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NC-BE 60W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake + Encoder | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.4kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BS60NU 60W BLDC, D-cut type, Single-phase 100~115V, Standard | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Standard | UL: No | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NU-B 60W BLDC, D-cut type, Single-phase 100~115V, Brake | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.3kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: No | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NU-E 60W BLDC, D-cut type, Single-phase 100~115V, Encoder | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: No | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NU-BE 60W BLDC, D-cut type, Single-phase 100~115V, Brake + Encoder | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.4kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: No | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NC 60W BLDC, D-cut type, Single-phase 200~230V, Standard | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NC-B 60W BLDC, D-cut type, Single-phase 200~230V, Brake | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.3kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NC-E 60W BLDC, D-cut type, Single-phase 200~230V, Encoder | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NC-BE 60W BLDC, D-cut type, Single-phase 200~230V, Brake + Encoder | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.4kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
Brushless DC MotorsGGM
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K8B60N Brushless DC Motor Unit 60W (□80mm, Single-phase AC Input, B Series)

Brand GGM·Brushless DC Motors

Available part numbers (16)

K8BH60NU, K8BH60NU-B, K8BH60NU-E, K8BH60NU-BE, K8BH60NC, K8BH60NC-B, K8BH60NC-E, K8BH60NC-BE, K8BS60NU, K8BS60NU-B + 6 more — see full table ↓

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K8BH60NU60W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Standard | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Standard | UL: No | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NU-B60W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Brake | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.3kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: No | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NU-E60W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Encoder | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: No | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NU-BE60W BLDC, Gear type (pinion shaft), Single-phase 100~115V, Brake + Encoder | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.4kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: No | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NC60W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Standard | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NC-B60W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.3kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NC-E60W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Encoder | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BH60NC-BE60W BLDC, Gear type (pinion shaft), Single-phase 200~230V, Brake + Encoder | Output: 60W | Frame: □80mm | Shaft: Gear type (pinion shaft) | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.4kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: Pinion shaft for K8H□B / K8H□BTH gearhead assembly (gearhead sold separately)
K8BS60NU60W BLDC, D-cut type, Single-phase 100~115V, Standard | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Standard | UL: No | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NU-B60W BLDC, D-cut type, Single-phase 100~115V, Brake | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.3kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: No | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NU-E60W BLDC, D-cut type, Single-phase 100~115V, Encoder | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: No | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NU-BE60W BLDC, D-cut type, Single-phase 100~115V, Brake + Encoder | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 100~115V | Frequency: 50/60Hz | Rated Input Current: 1.5A | Max Input Current: 3.5A | Rated Output Current: 0.65A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.4kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: No | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NC60W BLDC, D-cut type, Single-phase 200~230V, Standard | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.8kg | Option: Standard | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NC-B60W BLDC, D-cut type, Single-phase 200~230V, Brake | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.3kg | Option: Brake | Option Detail: Built-in electromagnetic brake | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NC-E60W BLDC, D-cut type, Single-phase 200~230V, Encoder | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 0.9kg | Option: Encoder | Option Detail: Built-in encoder 1,000PPR (Line Driver, +5Vdc±10%, 150mA below) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
K8BS60NC-BE60W BLDC, D-cut type, Single-phase 200~230V, Brake + Encoder | Output: 60W | Frame: □80mm | Shaft: D-cut type | Voltage: Single-phase 200~230V | Frequency: 50/60Hz | Rated Input Current: 1.0A | Max Input Current: 3.0A | Rated Output Current: 0.45A | Rated Torque: 0.2 N·m | Starting Torque: 0.3 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Insulation: Class E (120℃) | Protection: IP65 (except output/mounting parts) | Weight: 1.4kg | Option: Brake + Encoder | Option Detail: Built-in electromagnetic brake + encoder 1,000PPR (Line Driver, +5Vdc±10%) | UL: Yes (UL FILE E504659) | Shaft Note: D-cut output shaft Ø10 (h7), spigot Ø73 (h7), for direct coupling
