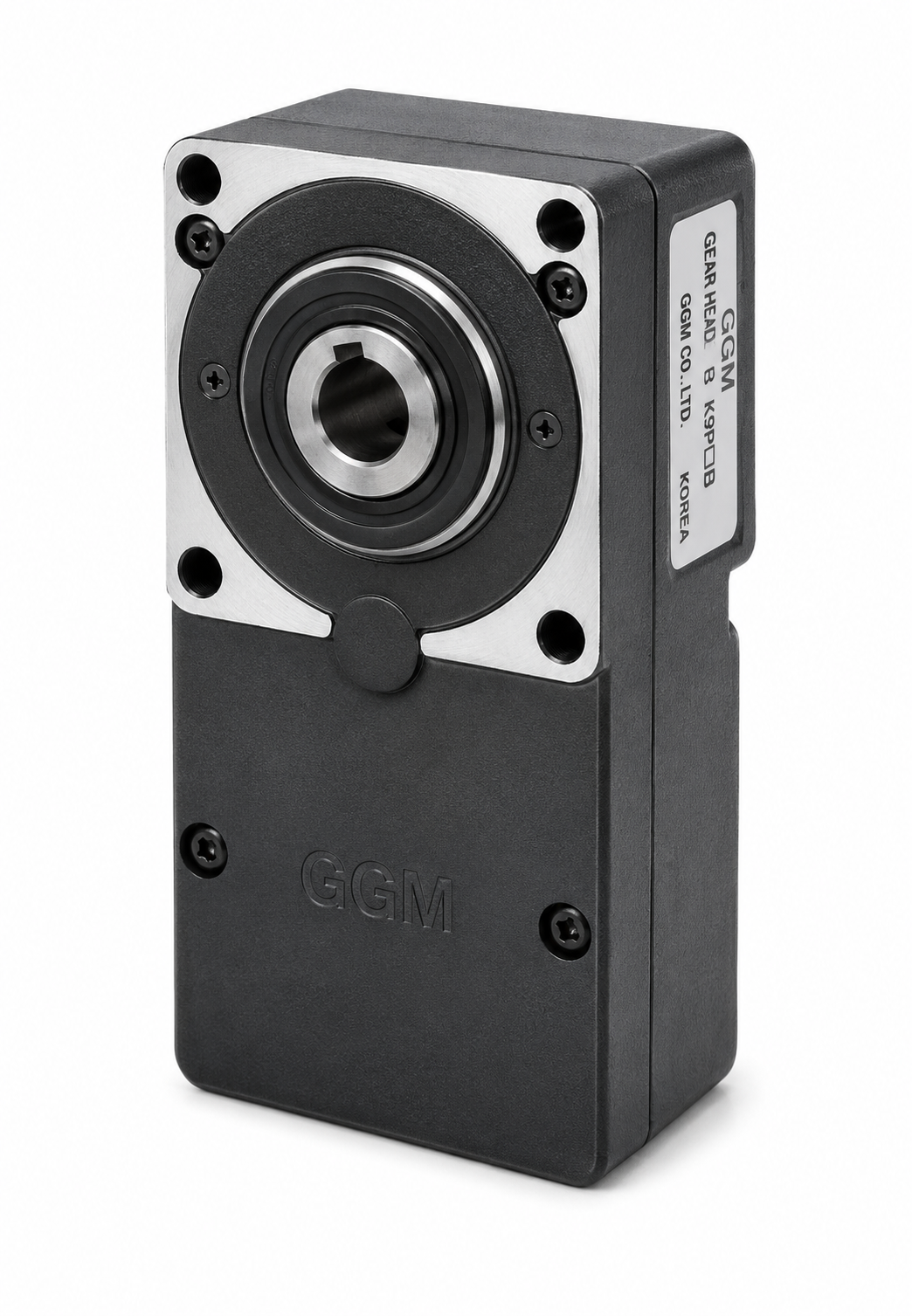

GGM K8H□BTH Flat Hollow-Shaft Gearhead (for K8 50/60W Brushless Motor Unit, ø15 hollow, 1/5~1/200)

GGM K8H□BTH Flat Hollow-Shaft Gearhead (for K8 50/60W Brushless Motor Unit, ø15 hollow, 1/5~1/200)

GGM K8H□BTH flat hollow-shaft gearhead for K8 50/60W brushless motor units, with ø15 hollow output bore (H8), ø72 pilot flange and M6×70 fixing bolt set (included).

Key features

  • Deceleration ratios 1/5 to 1/200 (8 steps), allowed output torque up to 34 N·m, 85% efficiency; motor sold separately

Specifications

Type Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit)
Gearhead Efficiency 85%
Allowed Thrust Load 400 N
Output Shaft ø15 hollow bore (H8), key type
Flange ø72 (h7), P.C.D ø94
Fixing Bolt M6 P1.0×70 (set included)
K8H5BTH GGM K8H□BTH flat hollow-shaft gearhead, ratio 1/5, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/5 | Output Speed Range: 20~600 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 0.85 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 800 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H10BTH GGM K8H□BTH flat hollow-shaft gearhead, ratio 1/10, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/10 | Output Speed Range: 10~300 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 1.7 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 800 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H15BTH GGM K8H□BTH flat hollow-shaft gearhead, ratio 1/15, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/15 | Output Speed Range: 6.7~200 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 2.6 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H20BTH GGM K8H□BTH flat hollow-shaft gearhead, ratio 1/20, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/20 | Output Speed Range: 5~150 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 3.4 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H30BTH GGM K8H□BTH flat hollow-shaft gearhead, ratio 1/30, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/30 | Output Speed Range: 3.3~100 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 5.1 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H50BTH GGM K8H□BTH flat hollow-shaft gearhead, ratio 1/50, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/50 | Output Speed Range: 2~60 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 8.5 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H100BTH GGM K8H□BTH flat hollow-shaft gearhead, ratio 1/100, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/100 | Output Speed Range: 1~30 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 17 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H200BTH GGM K8H□BTH flat hollow-shaft gearhead, ratio 1/200, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/200 | Output Speed Range: 0.5~15 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 34 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
GearheadsGGM
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K8H□BTH Flat Hollow-Shaft Gearhead (for K8 50/60W Brushless Motor Unit, ø15 hollow, 1/5~1/200)

Brand GGM·Gearheads

Available part numbers (8)

K8H5BTH, K8H10BTH, K8H15BTH, K8H20BTH, K8H30BTH, K8H50BTH, K8H100BTH, K8H200BTH

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K8H5BTHGGM K8H□BTH flat hollow-shaft gearhead, ratio 1/5, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/5 | Output Speed Range: 20~600 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 0.85 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 800 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H10BTHGGM K8H□BTH flat hollow-shaft gearhead, ratio 1/10, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/10 | Output Speed Range: 10~300 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 1.7 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 800 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H15BTHGGM K8H□BTH flat hollow-shaft gearhead, ratio 1/15, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/15 | Output Speed Range: 6.7~200 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 2.6 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H20BTHGGM K8H□BTH flat hollow-shaft gearhead, ratio 1/20, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/20 | Output Speed Range: 5~150 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 3.4 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H30BTHGGM K8H□BTH flat hollow-shaft gearhead, ratio 1/30, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/30 | Output Speed Range: 3.3~100 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 5.1 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H50BTHGGM K8H□BTH flat hollow-shaft gearhead, ratio 1/50, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/50 | Output Speed Range: 2~60 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 8.5 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H100BTHGGM K8H□BTH flat hollow-shaft gearhead, ratio 1/100, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/100 | Output Speed Range: 1~30 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 17 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
K8H200BTHGGM K8H□BTH flat hollow-shaft gearhead, ratio 1/200, ø15 hollow bore, for K8 50/60W brushless motor unit | Type: Flat Hollow-Shaft Gearhead (for K8 Brushless Motor Unit) | Deceleration Ratio: 1/200 | Output Speed Range: 0.5~15 r/min (with K8BH 100-3000 r/min motor) | Allowed Output Torque: 34 N·m (K8 50/60W brushless, AC type) | Gearhead Efficiency: 85% | Allowed Overhang Load: 1200 N (at 10mm from shaft end) | Allowed Thrust Load: 400 N | Output Shaft: ø15 hollow bore (H8), key type | Flange: ø72 (h7), P.C.D ø94 | Fixing Bolt: M6 P1.0×70 (set included)
