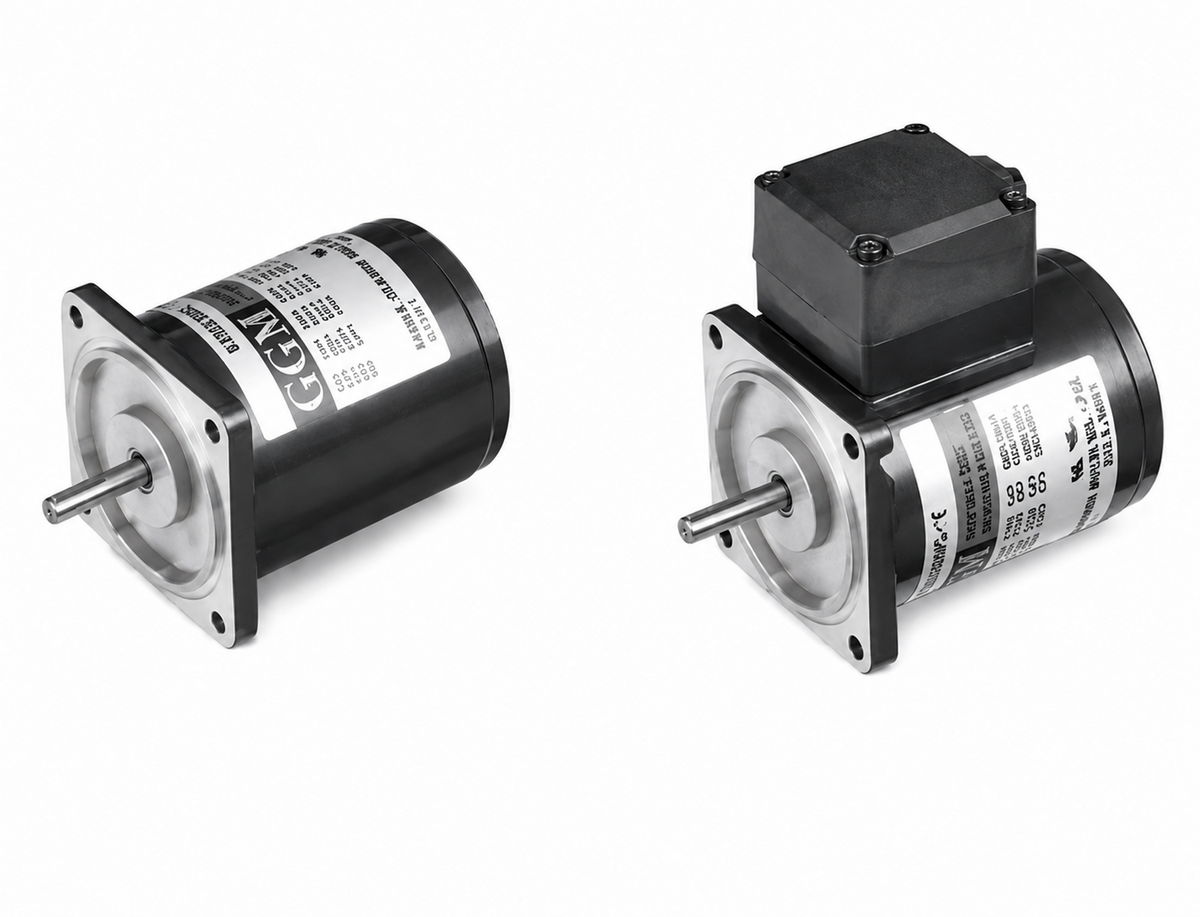

GGM K8I□25N Series 25W Single-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)

GGM K8I□25N Series 25W Single-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)

GGM K8I□25N series 25W single-phase AC induction motor. □80mm frame, 4-pole, continuous rating, lead wire (300mm, ul style 3271 awg20).

Key features

  • Straight (S) and pinion (G) shaft; 100–240V (50/60Hz)
  • Pinion-shaft type combines with K8G□ gear heads (matching face/teeth)
  • U variant (110/115V) UL certified (E204632)

Specifications

Output 25W
Poles 4
Phase Single-phase
Frame □80mm
Connection Lead wire (300mm, UL Style 3271 AWG20)
K8IS25NJ GGM 25W single-phase AC induction motor K8IS25NJ — Straight shaft, 100V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 25W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 100V | Condenser: 7μF | Operating Points: 100V/50Hz: 0.59A, Start 0.11/1.1N·m·kgf·cm, Rated 0.195/1.95N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.54A, Start 0.11/1.1N·m·kgf·cm, Rated 0.16/1.6N·m·kgf·cm, 1550rpm | UL: —
K8IG25NJ GGM 25W single-phase AC induction motor K8IG25NJ — Pinion (for gear head) shaft, 100V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 25W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 100V | Condenser: 7μF | Operating Points: 100V/50Hz: 0.59A, Start 0.11/1.1N·m·kgf·cm, Rated 0.195/1.95N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.54A, Start 0.11/1.1N·m·kgf·cm, Rated 0.16/1.6N·m·kgf·cm, 1550rpm | UL: —
K8IS25NU GGM 25W single-phase AC induction motor K8IS25NU — Straight shaft, 110/115V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 25W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 110/115V | Condenser: 5μF | Operating Points: 110V/60Hz: 0.48A, Start 0.09/0.9N·m·kgf·cm, Rated 0.165/1.65N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.50A, Start 0.095/0.95N·m·kgf·cm, Rated 0.165/1.65N·m·kgf·cm, 1500rpm | UL: Certified (E204632)
K8IG25NU GGM 25W single-phase AC induction motor K8IG25NU — Pinion (for gear head) shaft, 110/115V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 25W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 110/115V | Condenser: 5μF | Operating Points: 110V/60Hz: 0.48A, Start 0.09/0.9N·m·kgf·cm, Rated 0.165/1.65N·m·kgf·cm, 1500rpm ; 115V/60Hz: 0.50A, Start 0.095/0.95N·m·kgf·cm, Rated 0.165/1.65N·m·kgf·cm, 1500rpm | UL: Certified (E204632)
K8IS25NL GGM 25W single-phase AC induction motor K8IS25NL — Straight shaft, 200V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 25W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 200V | Condenser: 1.8μF | Operating Points: 200V/50Hz: 0.26A, Start 0.115/1.15N·m·kgf·cm, Rated 0.195/1.95N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.28A, Start 0.115/1.15N·m·kgf·cm, Rated 0.16/1.6N·m·kgf·cm, 1550rpm | UL: —
K8IG25NL GGM 25W single-phase AC induction motor K8IG25NL — Pinion (for gear head) shaft, 200V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 25W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 200V | Condenser: 1.8μF | Operating Points: 200V/50Hz: 0.26A, Start 0.115/1.15N·m·kgf·cm, Rated 0.195/1.95N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.28A, Start 0.115/1.15N·m·kgf·cm, Rated 0.16/1.6N·m·kgf·cm, 1550rpm | UL: —
K8IS25NC GGM 25W single-phase AC induction motor K8IS25NC — Straight shaft, 220/230V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 25W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 1.5μF | Operating Points: 220V/50Hz: 0.28A, Start 0.11/1.1N·m·kgf·cm, Rated 0.195/1.95N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.25A, Start 0.11/1.1N·m·kgf·cm, Rated 0.16/1.6N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.29A, Start 0.12/1.2N·m·kgf·cm, Rated 0.195/1.95N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.26A, Start 0.12/1.2N·m·kgf·cm, Rated 0.16/1.6N·m·kgf·cm, 1550rpm | UL: —
K8IG25NC GGM 25W single-phase AC induction motor K8IG25NC — Pinion (for gear head) shaft, 220/230V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 25W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 1.5μF | Operating Points: 220V/50Hz: 0.28A, Start 0.11/1.1N·m·kgf·cm, Rated 0.195/1.95N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.25A, Start 0.11/1.1N·m·kgf·cm, Rated 0.16/1.6N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.29A, Start 0.12/1.2N·m·kgf·cm, Rated 0.195/1.95N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.26A, Start 0.12/1.2N·m·kgf·cm, Rated 0.16/1.6N·m·kgf·cm, 1550rpm | UL: —
K8IS25ND GGM 25W single-phase AC induction motor K8IS25ND — Straight shaft, 240V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 25W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 240V | Condenser: 1.2μF | Operating Points: 240V/50Hz: 0.30A, Start 0.11/1.1N·m·kgf·cm, Rated 0.195/1.95N·m·kgf·cm, 1250rpm | UL: —
K8IG25ND GGM 25W single-phase AC induction motor K8IG25ND — Pinion (for gear head) shaft, 240V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 25W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 240V | Condenser: 1.2μF | Operating Points: 240V/50Hz: 0.30A, Start 0.11/1.1N·m·kgf·cm, Rated 0.195/1.95N·m·kgf·cm, 1250rpm | UL: —
AC Geared MotorsGGM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K8I□25N Series 25W Single-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)

Brand GGM·AC Geared Motors

Available part numbers (10)

K8IS25NJ, K8IG25NJ, K8IS25NU, K8IG25NU, K8IS25NL, K8IG25NL, K8IS25NC, K8IG25NC, K8IS25ND, K8IG25ND
