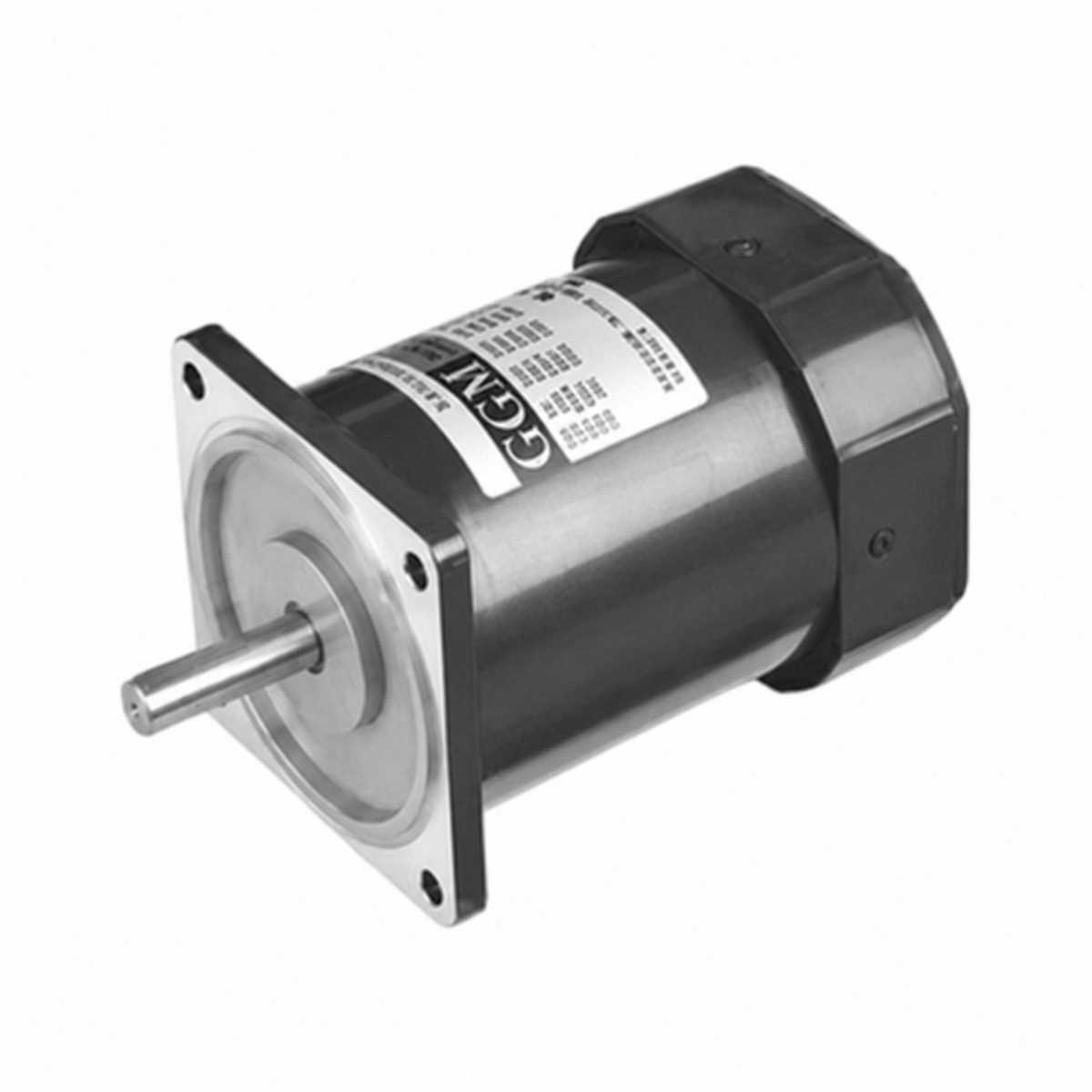

GGM K8I□40F Series 40W Single-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)

GGM K8I□40F Series 40W Single-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)

GGM K8I□40F series 40W single-phase AC induction motor. □80mm frame, 4-pole, continuous rating, lead wire (300mm, UL Style 3271 AWG20).

Key features

  • Straight (S) and pinion (G) shaft; 220/230V (50/60Hz)
  • Pinion-shaft type combines with K8G□ gear heads (matching face/teeth)
  • Capacitor-run (2.5μF)

Specifications

Output 40W
Poles 4
Phase Single-phase
Frame □80mm
Connection Lead wire (300mm, UL Style 3271 AWG20)
Voltage 220/230V
Condenser 2.5μF
K8IS40FC GGM 40W single-phase AC induction motor K8IS40FC — Straight shaft, 220/230V, lead wire | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 2.5μF | Operating Points: 220V/50Hz: 0.45A, Start 0.23/2.30N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.43A, Start 0.23/2.30N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.50A, Start 0.27/2.70N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.45A, Start 0.24/2.40N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm
K8IG40FC GGM 40W single-phase AC induction motor K8IG40FC — Pinion (for gear head) shaft, 220/230V, lead wire | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 2.5μF | Operating Points: 220V/50Hz: 0.45A, Start 0.23/2.30N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.43A, Start 0.23/2.30N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.50A, Start 0.27/2.70N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.45A, Start 0.24/2.40N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm
AC Geared MotorsGGM
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K8I□40F Series 40W Single-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)

Brand GGM·AC Geared Motors

Available part numbers (2)

K8IS40FC, K8IG40FC

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K8IS40FCGGM 40W single-phase AC induction motor K8IS40FC — Straight shaft, 220/230V, lead wire | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 2.5μF | Operating Points: 220V/50Hz: 0.45A, Start 0.23/2.30N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.43A, Start 0.23/2.30N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.50A, Start 0.27/2.70N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.45A, Start 0.24/2.40N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm
K8IG40FCGGM 40W single-phase AC induction motor K8IG40FC — Pinion (for gear head) shaft, 220/230V, lead wire | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 2.5μF | Operating Points: 220V/50Hz: 0.45A, Start 0.23/2.30N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.43A, Start 0.23/2.30N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1500rpm ; 230V/50Hz: 0.50A, Start 0.27/2.70N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.45A, Start 0.24/2.40N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm
