• GGM K8I□40F Series 40W Three-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)
1 1

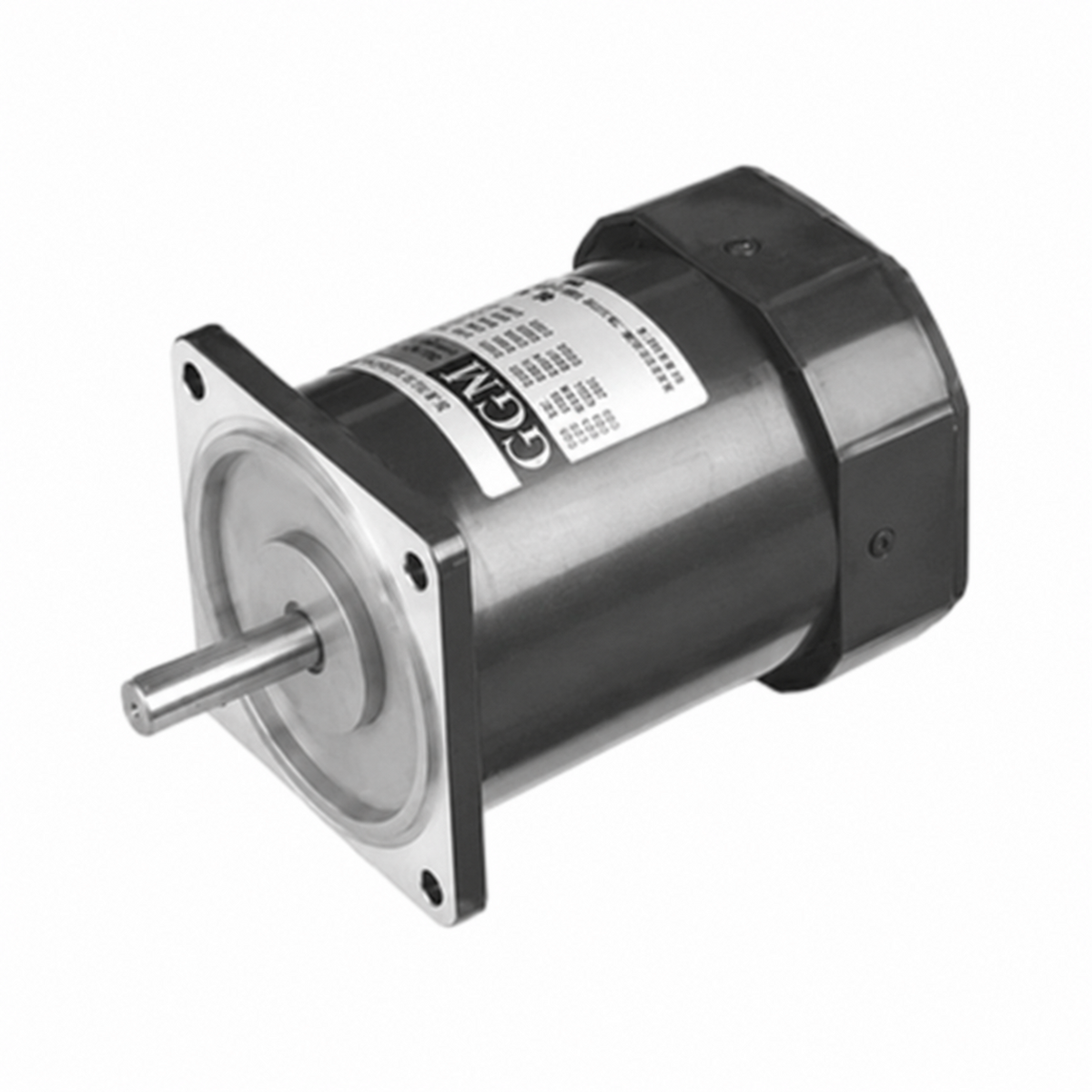

GGM K8I□40F Series 40W Three-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)

GGM K8I□40F Series 40W Three-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)

GGM K8I□40F series 40W three-phase AC induction motor. □80mm frame, 4-pole, continuous rating, lead wire (300mm, UL Style 3271 AWG20).

Key features

  • Straight (S) and pinion (G) shaft; 220/230V and 380V (50/60Hz)
  • Pinion-shaft type combines with K8G□ gear heads (matching face/teeth)
  • Note: 380V (FM) cannot be used with an inverter (winding insulation damage)

Specifications

Output 40W
Poles 4
Phase Three-phase
Frame □80mm
Connection Lead wire (300mm, UL Style 3271 AWG20)
K8IS40FH GGM 40W three-phase AC induction motor K8IS40FH — Straight shaft, 220/230V, lead wire | Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Operating Points: 220V/50Hz: 0.48A, Start 0.97/9.70N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 220V/60Hz: 0.35A, Start 0.71/7.10N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm ; 230V/50Hz: 0.50A, Start 1.01/10.1N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 230V/60Hz: 0.37A, Start 0.74/7.40N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm
K8IG40FH GGM 40W three-phase AC induction motor K8IG40FH — Pinion (for gear head) shaft, 220/230V, lead wire | Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Operating Points: 220V/50Hz: 0.48A, Start 0.97/9.70N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 220V/60Hz: 0.35A, Start 0.71/7.10N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm ; 230V/50Hz: 0.50A, Start 1.01/10.1N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 230V/60Hz: 0.37A, Start 0.74/7.40N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm
K8IS40FM GGM 40W three-phase AC induction motor K8IS40FM — Straight shaft, 380V, lead wire | Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 380V | Operating Points: 380V/50Hz: 0.26A, Start 0.76/7.60N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 380V/60Hz: 0.20A, Start 0.66/6.60N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm | Caution: 380V 3-phase: not for inverter use (winding insulation damage)
K8IG40FM GGM 40W three-phase AC induction motor K8IG40FM — Pinion (for gear head) shaft, 380V, lead wire | Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 380V | Operating Points: 380V/50Hz: 0.26A, Start 0.76/7.60N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 380V/60Hz: 0.20A, Start 0.66/6.60N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm | Caution: 380V 3-phase: not for inverter use (winding insulation damage)
AC Geared MotorsGGM
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K8I□40F Series 40W Three-phase AC Induction Motor (□80mm, 4-Pole, Lead Wire)

Brand GGM·AC Geared Motors

Available part numbers (4)

K8IS40FH, K8IG40FH, K8IS40FM, K8IG40FM

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K8IS40FHGGM 40W three-phase AC induction motor K8IS40FH — Straight shaft, 220/230V, lead wire | Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Operating Points: 220V/50Hz: 0.48A, Start 0.97/9.70N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 220V/60Hz: 0.35A, Start 0.71/7.10N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm ; 230V/50Hz: 0.50A, Start 1.01/10.1N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 230V/60Hz: 0.37A, Start 0.74/7.40N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm
K8IG40FHGGM 40W three-phase AC induction motor K8IG40FH — Pinion (for gear head) shaft, 220/230V, lead wire | Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Operating Points: 220V/50Hz: 0.48A, Start 0.97/9.70N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 220V/60Hz: 0.35A, Start 0.71/7.10N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm ; 230V/50Hz: 0.50A, Start 1.01/10.1N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 230V/60Hz: 0.37A, Start 0.74/7.40N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm
K8IS40FMGGM 40W three-phase AC induction motor K8IS40FM — Straight shaft, 380V, lead wire | Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 380V | Operating Points: 380V/50Hz: 0.26A, Start 0.76/7.60N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 380V/60Hz: 0.20A, Start 0.66/6.60N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm | Caution: 380V 3-phase: not for inverter use (winding insulation damage)
K8IG40FMGGM 40W three-phase AC induction motor K8IG40FM — Pinion (for gear head) shaft, 380V, lead wire | Output: 40W | Poles: 4 | Phase: Three-phase | Frame: □80mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 380V | Operating Points: 380V/50Hz: 0.26A, Start 0.76/7.60N·m·kgf·cm, Rated 0.300/3.00N·m·kgf·cm, 1300rpm ; 380V/60Hz: 0.20A, Start 0.66/6.60N·m·kgf·cm, Rated 0.245/2.45N·m·kgf·cm, 1600rpm | Caution: 380V 3-phase: not for inverter use (winding insulation damage)
