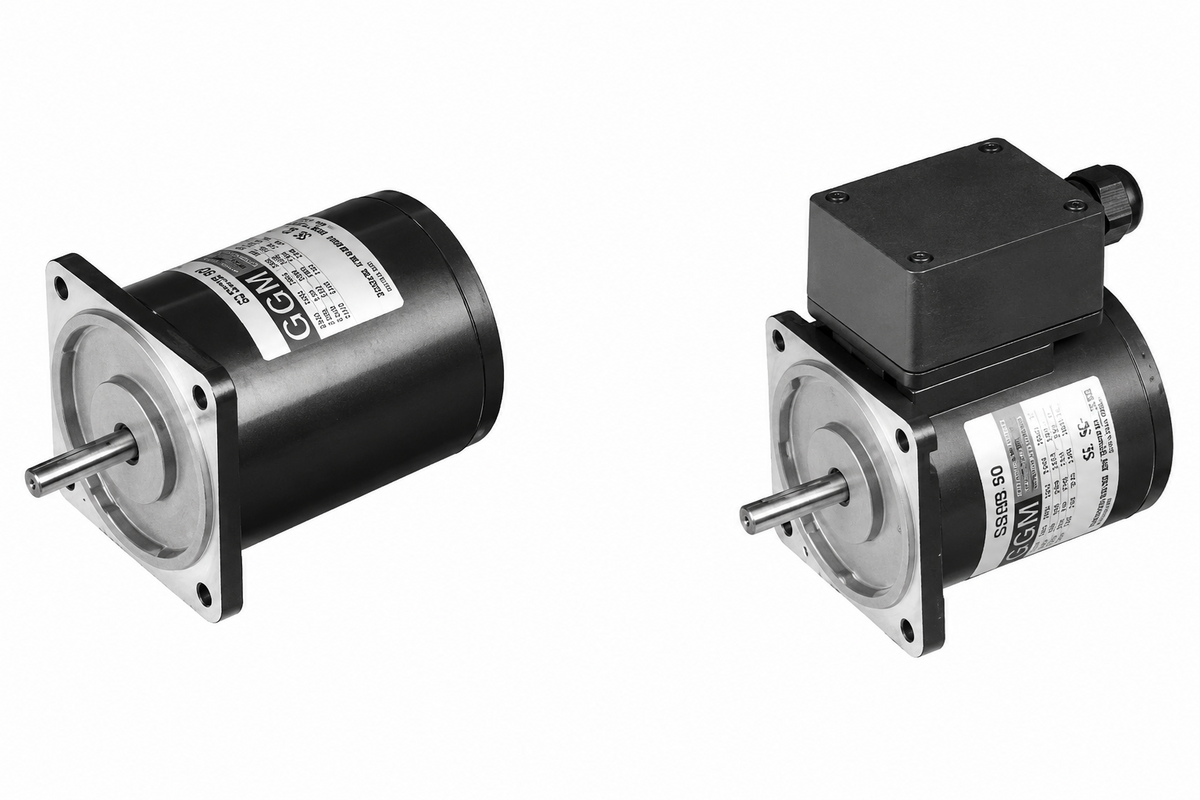

GGM K9I□40N-T Series 40W Single-phase AC Induction Motor (□90mm, 4-Pole, Terminal Box)

GGM K9I□40N-T Series 40W Single-phase AC Induction Motor (□90mm, 4-Pole, Terminal Box)

GGM K9I□40N series 40W single-phase AC induction motor. □90mm frame, 4-pole, continuous rating, terminal box (metal).

Key features

  • Straight (S) and pinion (G) shaft; 100–240V (50/60Hz)
  • Pinion-shaft type combines with K9G□ gear heads (matching face/teeth)
  • U variant (110/115V) UL certified (E204632)

Specifications

Output 40W
Poles 4
Phase Single-phase
Frame □90mm
Connection Terminal Box (metal)
UL —
K9IS40NJ-T GGM 40W single-phase AC induction motor K9IS40NJ-T — Straight shaft, 100V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 100V | Condenser: 12μF | Operating Points: 100V/50Hz: 0.86A, Start 0.21/2.1N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.84A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IG40NJ-T GGM 40W single-phase AC induction motor K9IG40NJ-T — Pinion (for gear head) shaft, 100V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 100V | Condenser: 12μF | Operating Points: 100V/50Hz: 0.86A, Start 0.21/2.1N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.84A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IS40NU-T GGM 40W single-phase AC induction motor K9IS40NU-T — Straight shaft, 110/115V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 110/115V | Condenser: 8μF | Operating Points: 110V/60Hz: 0.65A, Start 0.19/1.9N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 115V/60Hz: 0.68A, Start 0.2/2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IG40NU-T GGM 40W single-phase AC induction motor K9IG40NU-T — Pinion (for gear head) shaft, 110/115V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 110/115V | Condenser: 8μF | Operating Points: 110V/60Hz: 0.65A, Start 0.19/1.9N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 115V/60Hz: 0.68A, Start 0.2/2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IS40NL-T GGM 40W single-phase AC induction motor K9IS40NL-T — Straight shaft, 200V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 200V | Condenser: 3μF | Operating Points: 200V/50Hz: 0.40A, Start 0.22/2.2N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.41A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IG40NL-T GGM 40W single-phase AC induction motor K9IG40NL-T — Pinion (for gear head) shaft, 200V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 200V | Condenser: 3μF | Operating Points: 200V/50Hz: 0.40A, Start 0.22/2.2N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.41A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IS40NC-T GGM 40W single-phase AC induction motor K9IS40NC-T — Straight shaft, 220/230V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 220/230V | Condenser: 2.5μF | Operating Points: 220V/50Hz: 0.38A, Start 0.24/2.4N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.37A, Start 0.24/2.4N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.40A, Start 0.26/2.6N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.38A, Start 0.26/2.6N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IG40NC-T GGM 40W single-phase AC induction motor K9IG40NC-T — Pinion (for gear head) shaft, 220/230V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 220/230V | Condenser: 2.5μF | Operating Points: 220V/50Hz: 0.38A, Start 0.24/2.4N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.37A, Start 0.24/2.4N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.40A, Start 0.26/2.6N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.38A, Start 0.26/2.6N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IS40ND-T GGM 40W single-phase AC induction motor K9IS40ND-T — Straight shaft, 240V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 240V | Condenser: 2μF | Operating Points: 240V/50Hz: 0.39A, Start 0.2/2N·m·kgf·cm, Rated 0.3/3N·m·kgf·cm, 1300rpm | UL: —
K9IG40ND-T GGM 40W single-phase AC induction motor K9IG40ND-T — Pinion (for gear head) shaft, 240V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 240V | Condenser: 2μF | Operating Points: 240V/50Hz: 0.39A, Start 0.2/2N·m·kgf·cm, Rated 0.3/3N·m·kgf·cm, 1300rpm | UL: —
AC Geared MotorsGGM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K9I□40N-T Series 40W Single-phase AC Induction Motor (□90mm, 4-Pole, Terminal Box)

Brand GGM·AC Geared Motors

Available part numbers (10)

K9IS40NJ-T, K9IG40NJ-T, K9IS40NU-T, K9IG40NU-T, K9IS40NL-T, K9IG40NL-T, K9IS40NC-T, K9IG40NC-T, K9IS40ND-T, K9IG40ND-T

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K9IS40NJ-TGGM 40W single-phase AC induction motor K9IS40NJ-T — Straight shaft, 100V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 100V | Condenser: 12μF | Operating Points: 100V/50Hz: 0.86A, Start 0.21/2.1N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.84A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IG40NJ-TGGM 40W single-phase AC induction motor K9IG40NJ-T — Pinion (for gear head) shaft, 100V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 100V | Condenser: 12μF | Operating Points: 100V/50Hz: 0.86A, Start 0.21/2.1N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 100V/60Hz: 0.84A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IS40NU-TGGM 40W single-phase AC induction motor K9IS40NU-T — Straight shaft, 110/115V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 110/115V | Condenser: 8μF | Operating Points: 110V/60Hz: 0.65A, Start 0.19/1.9N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 115V/60Hz: 0.68A, Start 0.2/2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IG40NU-TGGM 40W single-phase AC induction motor K9IG40NU-T — Pinion (for gear head) shaft, 110/115V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 110/115V | Condenser: 8μF | Operating Points: 110V/60Hz: 0.65A, Start 0.19/1.9N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 115V/60Hz: 0.68A, Start 0.2/2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IS40NL-TGGM 40W single-phase AC induction motor K9IS40NL-T — Straight shaft, 200V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 200V | Condenser: 3μF | Operating Points: 200V/50Hz: 0.40A, Start 0.22/2.2N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.41A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IG40NL-TGGM 40W single-phase AC induction motor K9IG40NL-T — Pinion (for gear head) shaft, 200V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 200V | Condenser: 3μF | Operating Points: 200V/50Hz: 0.40A, Start 0.22/2.2N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.41A, Start 0.22/2.2N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IS40NC-TGGM 40W single-phase AC induction motor K9IS40NC-T — Straight shaft, 220/230V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 220/230V | Condenser: 2.5μF | Operating Points: 220V/50Hz: 0.38A, Start 0.24/2.4N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.37A, Start 0.24/2.4N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.40A, Start 0.26/2.6N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.38A, Start 0.26/2.6N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IG40NC-TGGM 40W single-phase AC induction motor K9IG40NC-T — Pinion (for gear head) shaft, 220/230V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 220/230V | Condenser: 2.5μF | Operating Points: 220V/50Hz: 0.38A, Start 0.24/2.4N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.37A, Start 0.24/2.4N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.40A, Start 0.26/2.6N·m·kgf·cm, Rated 0.315/3.15N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.38A, Start 0.26/2.6N·m·kgf·cm, Rated 0.255/2.55N·m·kgf·cm, 1550rpm | UL: —
K9IS40ND-TGGM 40W single-phase AC induction motor K9IS40ND-T — Straight shaft, 240V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 240V | Condenser: 2μF | Operating Points: 240V/50Hz: 0.39A, Start 0.2/2N·m·kgf·cm, Rated 0.3/3N·m·kgf·cm, 1300rpm | UL: —
K9IG40ND-TGGM 40W single-phase AC induction motor K9IG40ND-T — Pinion (for gear head) shaft, 240V, Terminal Box (metal) | Output: 40W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 240V | Condenser: 2μF | Operating Points: 240V/50Hz: 0.39A, Start 0.2/2N·m·kgf·cm, Rated 0.3/3N·m·kgf·cm, 1300rpm | UL: —
