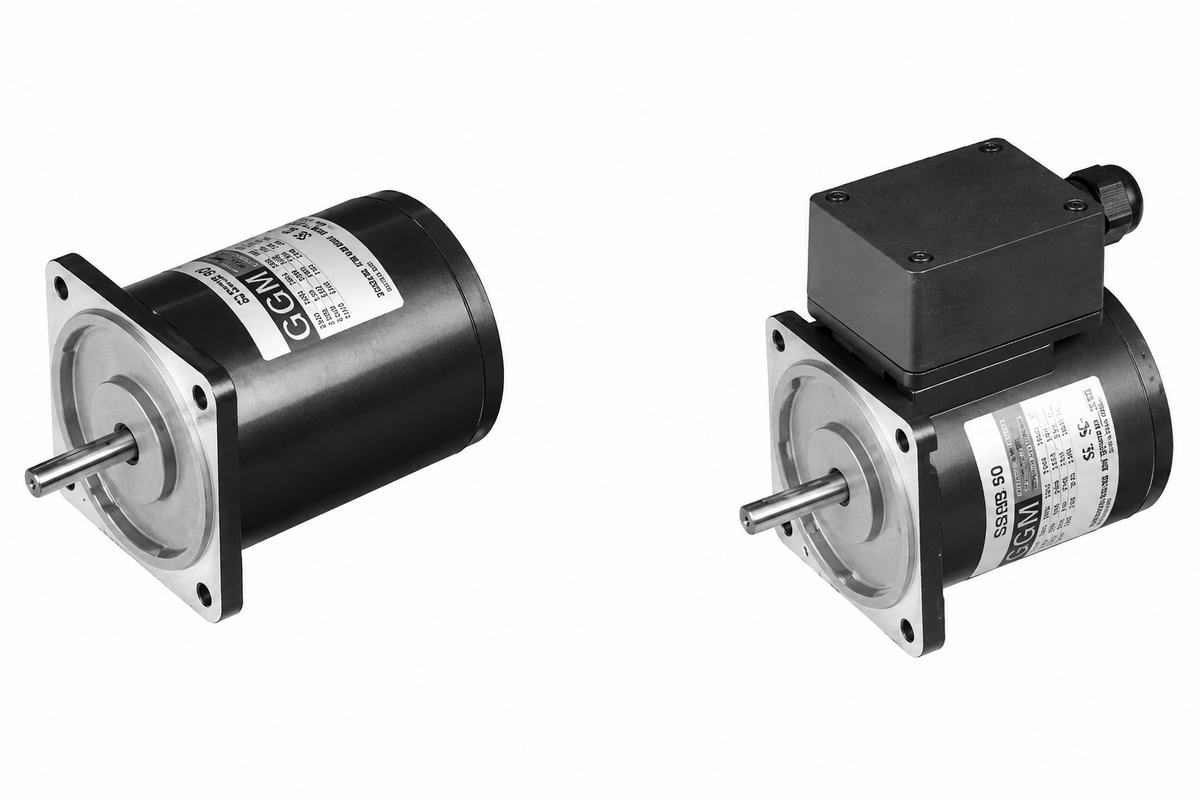

• GGM K9I□60F Series 60W Single-phase AC Induction Motor (□90mm, 4-Pole, Lead Wire)
1 1

GGM K9I□60F Series 60W Single-phase AC Induction Motor (□90mm, 4-Pole, Lead Wire)

GGM K9I□60F Series 60W Single-phase AC Induction Motor (□90mm, 4-Pole, Lead Wire)

GGM K9I□60F series 60W single-phase AC induction motor. □90mm frame, 4-pole, continuous rating, lead wire (300mm, ul style 3271 awg20).

Key features

  • Straight (S) and pinion (P) shaft; 100–240V (50/60Hz)
  • Pinion-shaft type combines with K9P□ high-power gear heads (matching face/teeth)
  • U/C variants (110/115V, 220/230V) UL certified (E204632)

Specifications

Output 60W
Poles 4
Phase Single-phase
Frame □90mm
Connection Lead wire (300mm, UL Style 3271 AWG20)
K9IS60FJ GGM 60W single-phase AC induction motor K9IS60FJ — Straight shaft, 100V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 100V | Condenser: 20μF | Operating Points: 100V/50Hz: 1.36A, Start 0.38/3.8N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 100V/60Hz: 1.37A, Start 0.38/3.8N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IP60FJ GGM 60W single-phase AC induction motor K9IP60FJ — Pinion (for gear head) shaft, 100V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 100V | Condenser: 20μF | Operating Points: 100V/50Hz: 1.36A, Start 0.38/3.8N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 100V/60Hz: 1.37A, Start 0.38/3.8N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IS60FU GGM 60W single-phase AC induction motor K9IS60FU — Straight shaft, 110/115V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 110/115V | Condenser: 16μF | Operating Points: 110V/60Hz: 1.21A, Start 0.37/3.7N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm ; 115V/60Hz: 1.27A, Start 0.37/3.7N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: Certified (E204632)
K9IP60FU GGM 60W single-phase AC induction motor K9IP60FU — Pinion (for gear head) shaft, 110/115V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 110/115V | Condenser: 16μF | Operating Points: 110V/60Hz: 1.21A, Start 0.37/3.7N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm ; 115V/60Hz: 1.27A, Start 0.37/3.7N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: Certified (E204632)
K9IS60FL GGM 60W single-phase AC induction motor K9IS60FL — Straight shaft, 200V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 200V | Condenser: 5μF | Operating Points: 200V/50Hz: 0.67A, Start 0.4/4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.69A, Start 0.4/4N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IP60FL GGM 60W single-phase AC induction motor K9IP60FL — Pinion (for gear head) shaft, 200V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 200V | Condenser: 5μF | Operating Points: 200V/50Hz: 0.67A, Start 0.4/4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.69A, Start 0.4/4N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IS60FC GGM 60W single-phase AC induction motor K9IS60FC — Straight shaft, 220/230V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 4μF | Operating Points: 220V/50Hz: 0.58A, Start 0.38/3.8N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.57A, Start 0.38/3.8N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.63A, Start 0.4/4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.63A, Start 0.4/4N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: Certified (E204632)
K9IP60FC GGM 60W single-phase AC induction motor K9IP60FC — Pinion (for gear head) shaft, 220/230V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 4μF | Operating Points: 220V/50Hz: 0.58A, Start 0.38/3.8N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.57A, Start 0.38/3.8N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.63A, Start 0.4/4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.63A, Start 0.4/4N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: Certified (E204632)
K9IS60FD GGM 60W single-phase AC induction motor K9IS60FD — Straight shaft, 240V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 240V | Condenser: 4μF | Operating Points: 240V/50Hz: 0.69A, Start 0.44/4.4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm | UL: —
K9IP60FD GGM 60W single-phase AC induction motor K9IP60FD — Pinion (for gear head) shaft, 240V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 240V | Condenser: 4μF | Operating Points: 240V/50Hz: 0.69A, Start 0.44/4.4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm | UL: —
AC Geared MotorsGGM
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K9I□60F Series 60W Single-phase AC Induction Motor (□90mm, 4-Pole, Lead Wire)

Brand GGM·AC Geared Motors

Available part numbers (10)

K9IS60FJ, K9IP60FJ, K9IS60FU, K9IP60FU, K9IS60FL, K9IP60FL, K9IS60FC, K9IP60FC, K9IS60FD, K9IP60FD

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K9IS60FJGGM 60W single-phase AC induction motor K9IS60FJ — Straight shaft, 100V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 100V | Condenser: 20μF | Operating Points: 100V/50Hz: 1.36A, Start 0.38/3.8N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 100V/60Hz: 1.37A, Start 0.38/3.8N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IP60FJGGM 60W single-phase AC induction motor K9IP60FJ — Pinion (for gear head) shaft, 100V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 100V | Condenser: 20μF | Operating Points: 100V/50Hz: 1.36A, Start 0.38/3.8N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 100V/60Hz: 1.37A, Start 0.38/3.8N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IS60FUGGM 60W single-phase AC induction motor K9IS60FU — Straight shaft, 110/115V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 110/115V | Condenser: 16μF | Operating Points: 110V/60Hz: 1.21A, Start 0.37/3.7N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm ; 115V/60Hz: 1.27A, Start 0.37/3.7N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: Certified (E204632)
K9IP60FUGGM 60W single-phase AC induction motor K9IP60FU — Pinion (for gear head) shaft, 110/115V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 110/115V | Condenser: 16μF | Operating Points: 110V/60Hz: 1.21A, Start 0.37/3.7N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm ; 115V/60Hz: 1.27A, Start 0.37/3.7N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: Certified (E204632)
K9IS60FLGGM 60W single-phase AC induction motor K9IS60FL — Straight shaft, 200V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 200V | Condenser: 5μF | Operating Points: 200V/50Hz: 0.67A, Start 0.4/4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.69A, Start 0.4/4N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IP60FLGGM 60W single-phase AC induction motor K9IP60FL — Pinion (for gear head) shaft, 200V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 200V | Condenser: 5μF | Operating Points: 200V/50Hz: 0.67A, Start 0.4/4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 200V/60Hz: 0.69A, Start 0.4/4N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IS60FCGGM 60W single-phase AC induction motor K9IS60FC — Straight shaft, 220/230V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 4μF | Operating Points: 220V/50Hz: 0.58A, Start 0.38/3.8N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.57A, Start 0.38/3.8N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.63A, Start 0.4/4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.63A, Start 0.4/4N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: Certified (E204632)
K9IP60FCGGM 60W single-phase AC induction motor K9IP60FC — Pinion (for gear head) shaft, 220/230V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 220/230V | Condenser: 4μF | Operating Points: 220V/50Hz: 0.58A, Start 0.38/3.8N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 220V/60Hz: 0.57A, Start 0.38/3.8N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm ; 230V/50Hz: 0.63A, Start 0.4/4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm ; 230V/60Hz: 0.63A, Start 0.4/4N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: Certified (E204632)
K9IS60FDGGM 60W single-phase AC induction motor K9IS60FD — Straight shaft, 240V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Straight | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 240V | Condenser: 4μF | Operating Points: 240V/50Hz: 0.69A, Start 0.44/4.4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm | UL: —
K9IP60FDGGM 60W single-phase AC induction motor K9IP60FD — Pinion (for gear head) shaft, 240V, Lead wire (300mm, UL Style 3271 AWG20) | Output: 60W | Poles: 4 | Phase: Single-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Lead wire (300mm, UL Style 3271 AWG20) | Voltage: 240V | Condenser: 4μF | Operating Points: 240V/50Hz: 0.69A, Start 0.44/4.4N·m·kgf·cm, Rated 0.47/4.7N·m·kgf·cm, 1250rpm | UL: —
