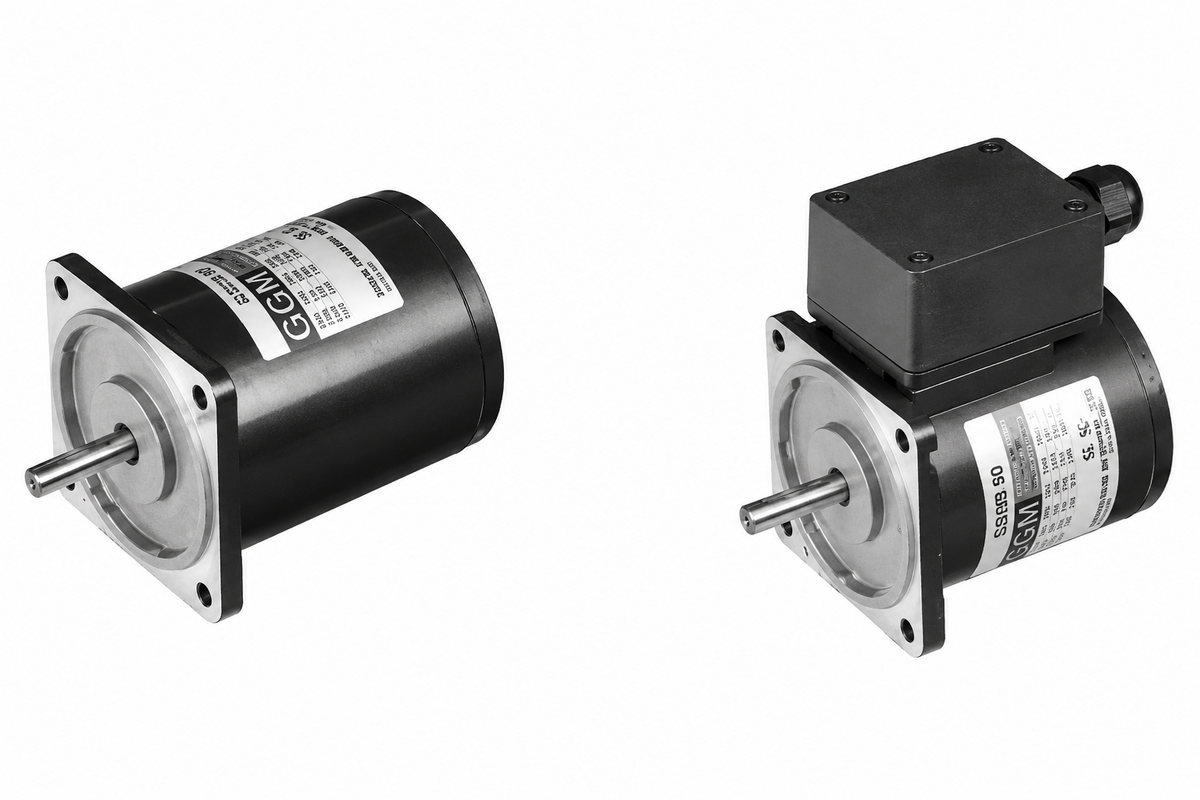

GGM K9I□60F-T Series 60W Three-phase AC Induction Motor (□90mm, 4-Pole, Terminal Box)

GGM K9I□60F-T Series 60W Three-phase AC Induction Motor (□90mm, 4-Pole, Terminal Box)

GGM K9I□60F series 60W three-phase AC induction motor. □90mm frame, 4-pole, continuous rating, terminal box (metal).

Key features

  • Straight (S) and pinion (P) shaft; 200–440V (50/60Hz)
  • Pinion-shaft type combines with K9P□ high-power gear heads (matching face/teeth)
  • H variant (220/230V) UL certified (E204632)
  • Note: 3-phase motors for 380V and over cannot be used with an inverter

Specifications

Output 60W
Poles 4
Phase Three-phase
Frame □90mm
Connection Terminal Box (metal)
K9IS60FT-T GGM 60W three-phase AC induction motor K9IS60FT-T — Straight shaft, 200V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 200V | Operating Points: 200V/50Hz: 0.49A, Start 1.35/13.5N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 200V/60Hz: 0.45A, Start 1.05/10.5N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IP60FT-T GGM 60W three-phase AC induction motor K9IP60FT-T — Pinion (for gear head) shaft, 200V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 200V | Operating Points: 200V/50Hz: 0.49A, Start 1.35/13.5N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 200V/60Hz: 0.45A, Start 1.05/10.5N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IS60FH-T GGM 60W three-phase AC induction motor K9IS60FH-T — Straight shaft, 220/230V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 220/230V | Operating Points: 220V/50Hz: 0.55A, Start 1.6/16N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 220V/60Hz: 0.47A, Start 1.2/12N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm ; 230V/50Hz: 0.60A, Start 1.65/16.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 230V/60Hz: 0.52A, Start 1.3/13N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: Certified (E204632)
K9IP60FH-T GGM 60W three-phase AC induction motor K9IP60FH-T — Pinion (for gear head) shaft, 220/230V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 220/230V | Operating Points: 220V/50Hz: 0.55A, Start 1.6/16N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 220V/60Hz: 0.47A, Start 1.2/12N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm ; 230V/50Hz: 0.60A, Start 1.65/16.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 230V/60Hz: 0.52A, Start 1.3/13N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: Certified (E204632)
K9IS60FM-T GGM 60W three-phase AC induction motor K9IS60FM-T — Straight shaft, 380V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 380V | Operating Points: 380V/50Hz: 0.34A, Start 1.55/15.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 380V/60Hz: 0.25A, Start 1.19/11.9N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IP60FM-T GGM 60W three-phase AC induction motor K9IP60FM-T — Pinion (for gear head) shaft, 380V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 380V | Operating Points: 380V/50Hz: 0.34A, Start 1.55/15.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 380V/60Hz: 0.25A, Start 1.19/11.9N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IS60FV-T GGM 60W three-phase AC induction motor K9IS60FV-T — Straight shaft, 400V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 400V | Operating Points: 400V/50Hz: 0.37A, Start 1.85/18.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 400V/60Hz: 0.28A, Start 1.42/14.2N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IP60FV-T GGM 60W three-phase AC induction motor K9IP60FV-T — Pinion (for gear head) shaft, 400V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 400V | Operating Points: 400V/50Hz: 0.37A, Start 1.85/18.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 400V/60Hz: 0.28A, Start 1.42/14.2N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IS60FQ-T GGM 60W three-phase AC induction motor K9IS60FQ-T — Straight shaft, 415V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 415V | Operating Points: 415V/50Hz: 0.26A, Start 1.45/14.5N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 415V/60Hz: 0.21A, Start 1.15/11.5N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IP60FQ-T GGM 60W three-phase AC induction motor K9IP60FQ-T — Pinion (for gear head) shaft, 415V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 415V | Operating Points: 415V/50Hz: 0.26A, Start 1.45/14.5N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 415V/60Hz: 0.21A, Start 1.15/11.5N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IS60FZ-T GGM 60W three-phase AC induction motor K9IS60FZ-T — Straight shaft, 440V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 440V | Operating Points: 440V/50Hz: 0.28A, Start 1.6/16N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 440V/60Hz: 0.23A, Start 1.25/12.5N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IP60FZ-T GGM 60W three-phase AC induction motor K9IP60FZ-T — Pinion (for gear head) shaft, 440V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 440V | Operating Points: 440V/50Hz: 0.28A, Start 1.6/16N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 440V/60Hz: 0.23A, Start 1.25/12.5N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
AC Geared MotorsGGM
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K9I□60F-T Series 60W Three-phase AC Induction Motor (□90mm, 4-Pole, Terminal Box)

Brand GGM·AC Geared Motors

Available part numbers (12)

K9IS60FT-T, K9IP60FT-T, K9IS60FH-T, K9IP60FH-T, K9IS60FM-T, K9IP60FM-T, K9IS60FV-T, K9IP60FV-T, K9IS60FQ-T, K9IP60FQ-T + 2 more — see full table ↓

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K9IS60FT-TGGM 60W three-phase AC induction motor K9IS60FT-T — Straight shaft, 200V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 200V | Operating Points: 200V/50Hz: 0.49A, Start 1.35/13.5N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 200V/60Hz: 0.45A, Start 1.05/10.5N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IP60FT-TGGM 60W three-phase AC induction motor K9IP60FT-T — Pinion (for gear head) shaft, 200V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 200V | Operating Points: 200V/50Hz: 0.49A, Start 1.35/13.5N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 200V/60Hz: 0.45A, Start 1.05/10.5N·m·kgf·cm, Rated 0.38/3.8N·m·kgf·cm, 1550rpm | UL: —
K9IS60FH-TGGM 60W three-phase AC induction motor K9IS60FH-T — Straight shaft, 220/230V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 220/230V | Operating Points: 220V/50Hz: 0.55A, Start 1.6/16N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 220V/60Hz: 0.47A, Start 1.2/12N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm ; 230V/50Hz: 0.60A, Start 1.65/16.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 230V/60Hz: 0.52A, Start 1.3/13N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: Certified (E204632)
K9IP60FH-TGGM 60W three-phase AC induction motor K9IP60FH-T — Pinion (for gear head) shaft, 220/230V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 220/230V | Operating Points: 220V/50Hz: 0.55A, Start 1.6/16N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 220V/60Hz: 0.47A, Start 1.2/12N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm ; 230V/50Hz: 0.60A, Start 1.65/16.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 230V/60Hz: 0.52A, Start 1.3/13N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: Certified (E204632)
K9IS60FM-TGGM 60W three-phase AC induction motor K9IS60FM-T — Straight shaft, 380V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 380V | Operating Points: 380V/50Hz: 0.34A, Start 1.55/15.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 380V/60Hz: 0.25A, Start 1.19/11.9N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IP60FM-TGGM 60W three-phase AC induction motor K9IP60FM-T — Pinion (for gear head) shaft, 380V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 380V | Operating Points: 380V/50Hz: 0.34A, Start 1.55/15.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 380V/60Hz: 0.25A, Start 1.19/11.9N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IS60FV-TGGM 60W three-phase AC induction motor K9IS60FV-T — Straight shaft, 400V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 400V | Operating Points: 400V/50Hz: 0.37A, Start 1.85/18.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 400V/60Hz: 0.28A, Start 1.42/14.2N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IP60FV-TGGM 60W three-phase AC induction motor K9IP60FV-T — Pinion (for gear head) shaft, 400V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 400V | Operating Points: 400V/50Hz: 0.37A, Start 1.85/18.5N·m·kgf·cm, Rated 0.435/4.35N·m·kgf·cm, 1350rpm ; 400V/60Hz: 0.28A, Start 1.42/14.2N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IS60FQ-TGGM 60W three-phase AC induction motor K9IS60FQ-T — Straight shaft, 415V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 415V | Operating Points: 415V/50Hz: 0.26A, Start 1.45/14.5N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 415V/60Hz: 0.21A, Start 1.15/11.5N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IP60FQ-TGGM 60W three-phase AC induction motor K9IP60FQ-T — Pinion (for gear head) shaft, 415V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 415V | Operating Points: 415V/50Hz: 0.26A, Start 1.45/14.5N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 415V/60Hz: 0.21A, Start 1.15/11.5N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IS60FZ-TGGM 60W three-phase AC induction motor K9IS60FZ-T — Straight shaft, 440V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Straight | Connection: Terminal Box (metal) | Voltage: 440V | Operating Points: 440V/50Hz: 0.28A, Start 1.6/16N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 440V/60Hz: 0.23A, Start 1.25/12.5N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
K9IP60FZ-TGGM 60W three-phase AC induction motor K9IP60FZ-T — Pinion (for gear head) shaft, 440V, Terminal Box (metal) | Output: 60W | Poles: 4 | Phase: Three-phase | Frame: □90mm | Shaft: Pinion (for gear head) | Connection: Terminal Box (metal) | Voltage: 440V | Operating Points: 440V/50Hz: 0.28A, Start 1.6/16N·m·kgf·cm, Rated 0.45/4.5N·m·kgf·cm, 1300rpm ; 440V/60Hz: 0.23A, Start 1.25/12.5N·m·kgf·cm, Rated 0.37/3.7N·m·kgf·cm, 1600rpm | UL: — | Caution: 380V+ 3-phase: not for inverter use (winding insulation damage)
