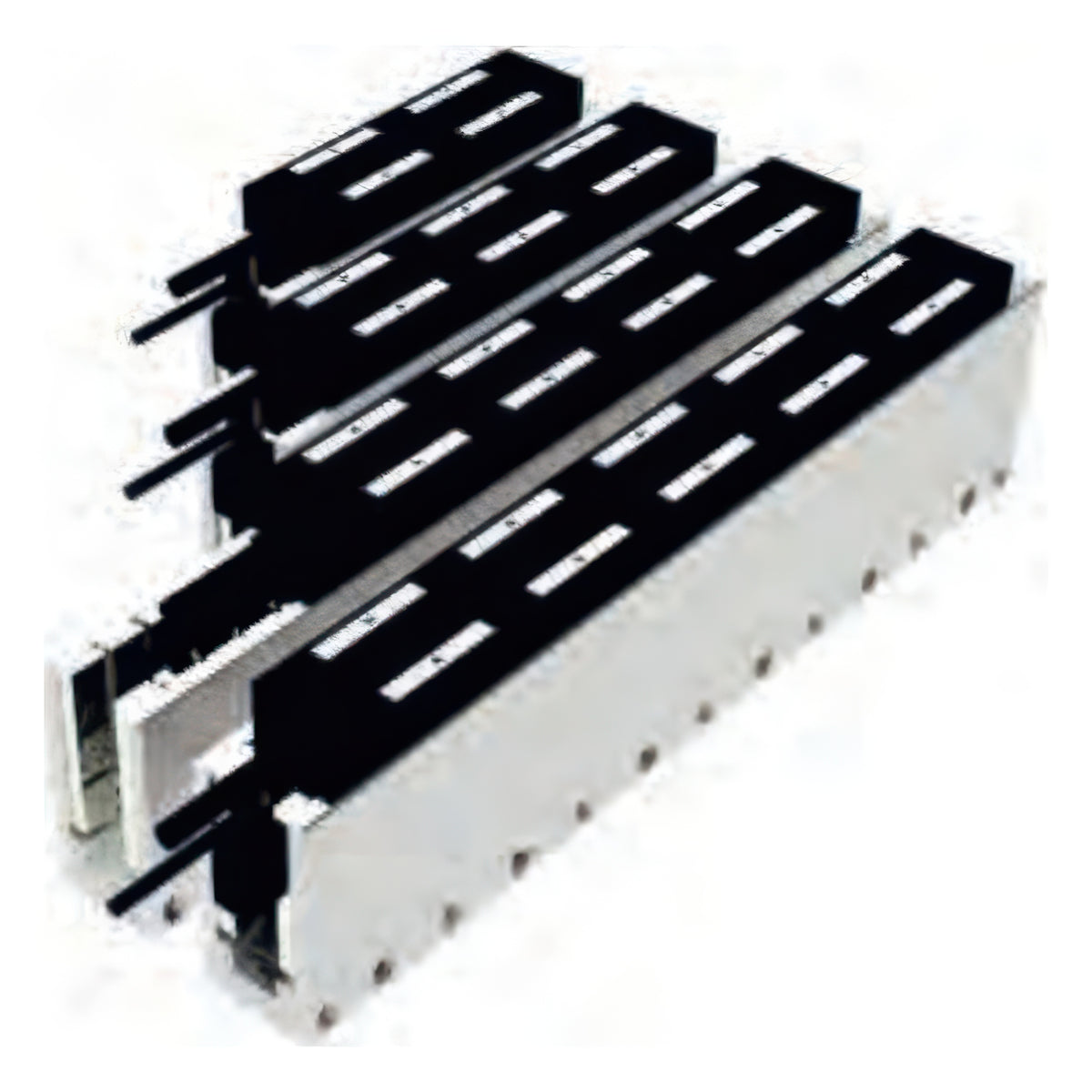

TPC Mechatronics GEX Series Coreless Linear Servo Motor

TPC Mechatronics GEX Series Coreless Linear Servo Motor

The GEX series is a coreless linear servo motor made up of a moving coil assembly (forcer) and a permanent-magnet stator track.

Key features

  • Peak force ranges from 2400 to 4800 N and continuous force from 800 to 1600 N across the coil lengths, with an assembly envelope of 65.2 x 200 mm
  • Magnet tracks can be joined for an unlimited stroke length
  • The coreless design has no magnetic attraction force and no cogging, giving smooth motion for precision stages
  • Insulation withstands AC 1500 V for 1 min (class F, 155 C), insulation resistance is 10 MOhm at DC 500 V and the operating temperature is 0 to 40 C
  • Recommended drives of about 5 kW include Panasonic A6L, RS Automation CSD7, Servotronix CDHD2 and Delta A3

Specifications

Motor type coreless
Force constant 78 N/Arms
Magnetic attraction force 0 N
Assembly height x width 65.2 x 200 mm
GEX360A370S Motor type: coreless | Peak force: 2400 N | Continuous force: 800 N | Peak current: 36 Arms | Continuous current: 12 Arms | Force constant: 78 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 5 kg | Assembly height x width: 65.2 x 200 mm
GEX540A540S Motor type: coreless | Peak force: 3600 N | Continuous force: 1200 N | Peak current: 54 Arms | Continuous current: 18 Arms | Force constant: 78 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 7.4 kg | Assembly height x width: 65.2 x 200 mm
GEX720A710S Motor type: coreless | Peak force: 4800 N | Continuous force: 1600 N | Peak current: 72 Arms | Continuous current: 24 Arms | Force constant: 78 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 10 kg | Assembly height x width: 65.2 x 200 mm
Linear MotorsTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics GEX Series Coreless Linear Servo Motor

Brand TPC Mechatronics·Linear Motors

Available part numbers (3)

GEX360A370S, GEX540A540S, GEX720A710S

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GEX360A370SMotor type: coreless | Peak force: 2400 N | Continuous force: 800 N | Peak current: 36 Arms | Continuous current: 12 Arms | Force constant: 78 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 5 kg | Assembly height x width: 65.2 x 200 mm
GEX540A540SMotor type: coreless | Peak force: 3600 N | Continuous force: 1200 N | Peak current: 54 Arms | Continuous current: 18 Arms | Force constant: 78 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 7.4 kg | Assembly height x width: 65.2 x 200 mm
GEX720A710SMotor type: coreless | Peak force: 4800 N | Continuous force: 1600 N | Peak current: 72 Arms | Continuous current: 24 Arms | Force constant: 78 N/Arms | Magnetic attraction force: 0 N | Moving part mass: 10 kg | Assembly height x width: 65.2 x 200 mm

Need a different model, or a part not listed here? Send us your parts list →
