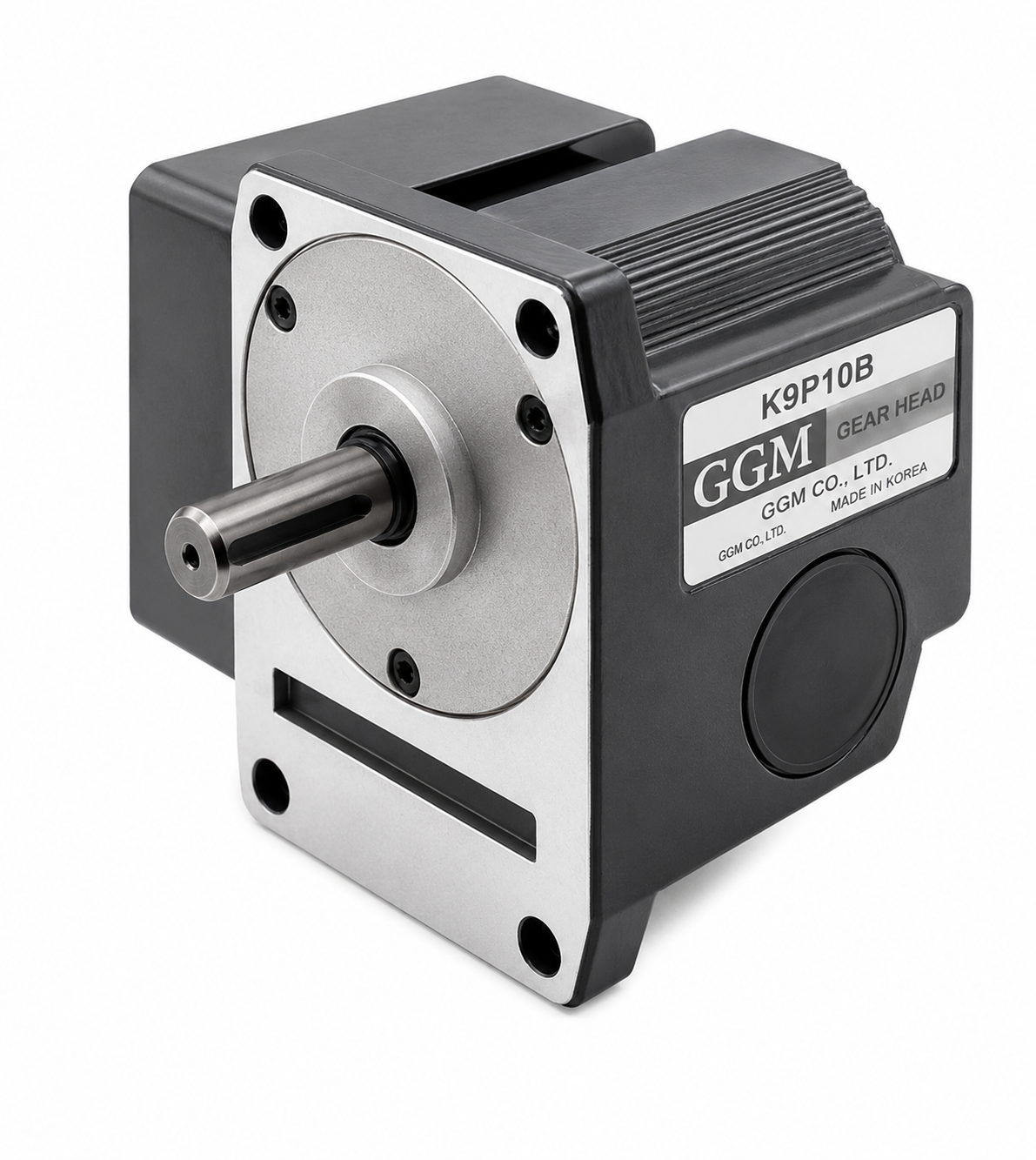

GGM K9P□BRS Right-Angle Solid-Shaft Gearhead (□90, for 60/90/120W motor, 20 N·m, 1/3~1/180)

GGM K9P□BRS Right-Angle Solid-Shaft Gearhead (□90, for 60/90/120W motor, 20 N·m, 1/3~1/180)

GGM K9P□BRS right-angle solid-shaft gearhead for □90 frame 60/90/120W induction motors, with ø15 keyed output shaft (h7) and M6 mounting bolts.

Key features

  • Gear ratios 1/3 to 1/180 (20 steps), output speed 8.3–500 rpm, max permissible torque 20 N·m; motor sold separately

Specifications

Type Right-Angle Solid-Shaft Gearhead
Frame □90 (for K9I□60F/90F/120F, 60/90/120W)
Max Permissible Torque 20 N·m (200 kgf·cm)
Output Shaft ø15 solid, key type
Mounting M6 P1.0
K9P3BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/3, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/3 | Output Speed: 500 rpm (50Hz) / 600 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P3.6BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/3.6, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/3.6 | Output Speed: 416 rpm (50Hz) / 500 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P5BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/5, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/5 | Output Speed: 300 rpm (50Hz) / 360 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P6BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/6, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/6 | Output Speed: 250 rpm (50Hz) / 300 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P7.5BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/7.5, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/7.5 | Output Speed: 200 rpm (50Hz) / 240 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P9BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/9, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/9 | Output Speed: 166 rpm (50Hz) / 200 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P12.5BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/12.5, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/12.5 | Output Speed: 120 rpm (50Hz) / 144 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P15BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/15, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/15 | Output Speed: 100 rpm (50Hz) / 120 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P18BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/18, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/18 | Output Speed: 83 rpm (50Hz) / 100 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P25BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/25, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/25 | Output Speed: 60 rpm (50Hz) / 72 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P30BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/30, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/30 | Output Speed: 50 rpm (50Hz) / 60 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P36BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/36, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/36 | Output Speed: 42 rpm (50Hz) / 50 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P50BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/50, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/50 | Output Speed: 30 rpm (50Hz) / 36 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P60BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/60, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/60 | Output Speed: 25 rpm (50Hz) / 30 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P75BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/75, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/75 | Output Speed: 20 rpm (50Hz) / 24 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P90BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/90, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/90 | Output Speed: 17 rpm (50Hz) / 20 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P100BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/100, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/100 | Output Speed: 15 rpm (50Hz) / 18 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P120BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/120, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/120 | Output Speed: 12.5 rpm (50Hz) / 15 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P150BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/150, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/150 | Output Speed: 10 rpm (50Hz) / 12 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P180BRS GGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/180, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/180 | Output Speed: 8.3 rpm (50Hz) / 10 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
GearheadsGGM
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM K9P□BRS Right-Angle Solid-Shaft Gearhead (□90, for 60/90/120W motor, 20 N·m, 1/3~1/180)

Brand GGM·Gearheads

Available part numbers (20)

K9P3BRS, K9P3.6BRS, K9P5BRS, K9P6BRS, K9P7.5BRS, K9P9BRS, K9P12.5BRS, K9P15BRS, K9P18BRS, K9P25BRS + 10 more — see full table ↓

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K9P3BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/3, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/3 | Output Speed: 500 rpm (50Hz) / 600 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P3.6BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/3.6, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/3.6 | Output Speed: 416 rpm (50Hz) / 500 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P5BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/5, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/5 | Output Speed: 300 rpm (50Hz) / 360 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P6BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/6, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/6 | Output Speed: 250 rpm (50Hz) / 300 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P7.5BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/7.5, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/7.5 | Output Speed: 200 rpm (50Hz) / 240 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P9BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/9, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/9 | Output Speed: 166 rpm (50Hz) / 200 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P12.5BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/12.5, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/12.5 | Output Speed: 120 rpm (50Hz) / 144 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P15BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/15, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/15 | Output Speed: 100 rpm (50Hz) / 120 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P18BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/18, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/18 | Output Speed: 83 rpm (50Hz) / 100 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P25BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/25, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/25 | Output Speed: 60 rpm (50Hz) / 72 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P30BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/30, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/30 | Output Speed: 50 rpm (50Hz) / 60 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P36BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/36, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/36 | Output Speed: 42 rpm (50Hz) / 50 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P50BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/50, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/50 | Output Speed: 30 rpm (50Hz) / 36 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P60BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/60, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/60 | Output Speed: 25 rpm (50Hz) / 30 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P75BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/75, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/75 | Output Speed: 20 rpm (50Hz) / 24 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P90BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/90, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/90 | Output Speed: 17 rpm (50Hz) / 20 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P100BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/100, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/100 | Output Speed: 15 rpm (50Hz) / 18 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P120BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/120, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/120 | Output Speed: 12.5 rpm (50Hz) / 15 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P150BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/150, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/150 | Output Speed: 10 rpm (50Hz) / 12 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
K9P180BRSGGM K9P□BRS right-angle solid-shaft gearhead, ratio 1/180, ø15 keyed shaft, □90/60-120W | Type: Right-Angle Solid-Shaft Gearhead | Frame: □90 (for K9I□60F/90F/120F, 60/90/120W) | Gear Ratio: 1/180 | Output Speed: 8.3 rpm (50Hz) / 10 rpm (60Hz) | Max Permissible Torque: 20 N·m (200 kgf·cm) | Output Shaft: ø15 solid, key type | Mounting: M6 P1.0
