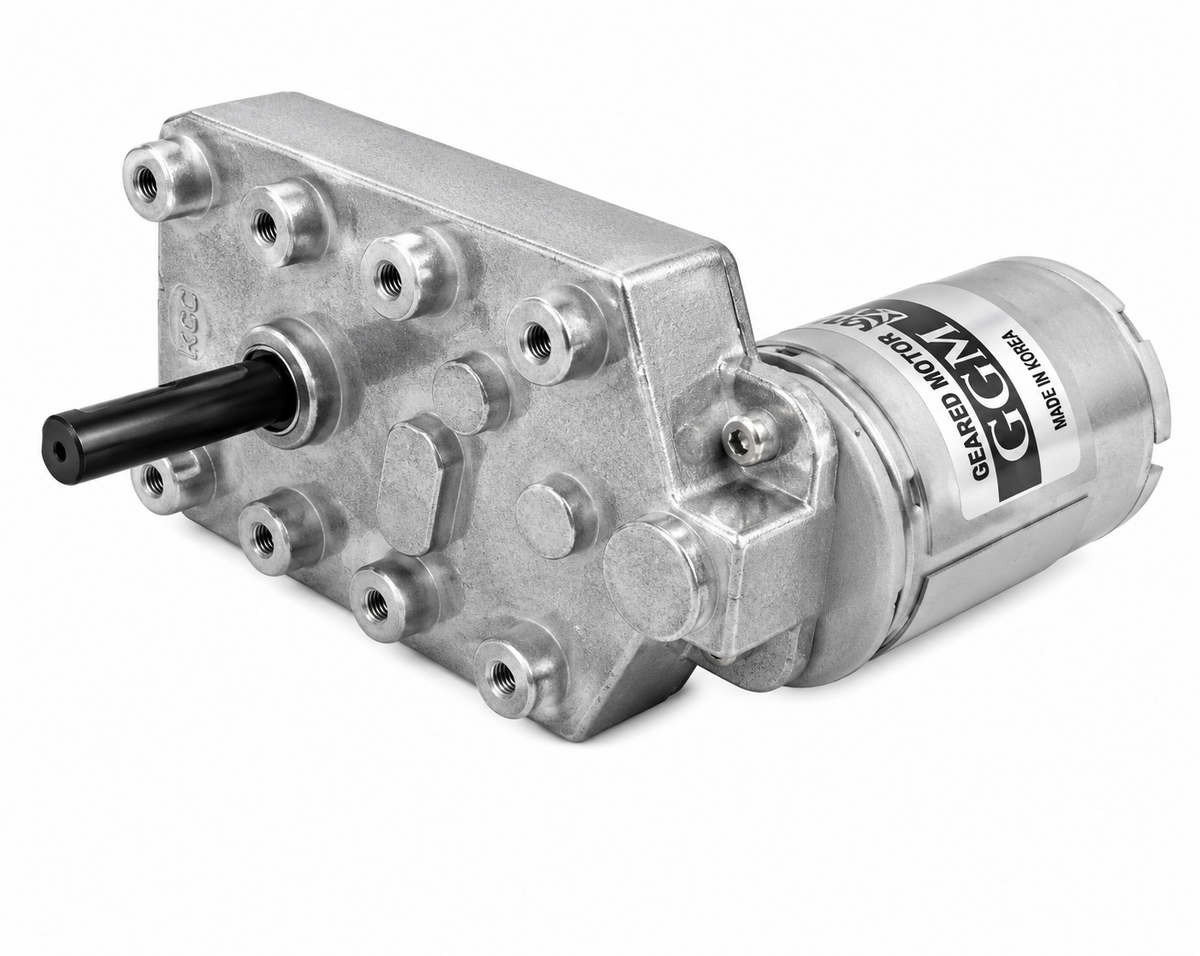

GGM KGE-3657-U1 R-Type Offset Geared DC Motor (DC 12V, 6000rpm base, 18 ratios 1/22-1/687)

GGM KGE-3657-U1 r-type offset parallel-shaft geared DC motor, DC 12V (6000 rpm base motor). 18 gear ratios 1/22-1/687, output torque up to 20 kgf·cm, ø8 output shaft, 8-M4 mounting on 56x100.5 housing.

Key features

R-Type shaft orientation (F-Type is standard)
Stall 10 A / 1.6 kgf·cm

Specifications

Shaft Type	R-Type

KGE-0022-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/22, 227rpm, 3.2kgf·cm \| Gear Ratio: 1/22 \| Output Speed: 227 rpm \| Output Torque: 3.2 kgf·cm \| Shaft Type: R-Type
KGE-0034-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/34, 147rpm, 4.9kgf·cm \| Gear Ratio: 1/34 \| Output Speed: 147 rpm \| Output Torque: 4.9 kgf·cm \| Shaft Type: R-Type
KGE-0043-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/43, 116rpm, 6.2kgf·cm \| Gear Ratio: 1/43 \| Output Speed: 116 rpm \| Output Torque: 6.2 kgf·cm \| Shaft Type: R-Type
KGE-0050-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/50, 100rpm, 7.3kgf·cm \| Gear Ratio: 1/50 \| Output Speed: 100 rpm \| Output Torque: 7.3 kgf·cm \| Shaft Type: R-Type
KGE-0062-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/62, 80rpm, 9kgf·cm \| Gear Ratio: 1/62 \| Output Speed: 80 rpm \| Output Torque: 9 kgf·cm \| Shaft Type: R-Type
KGE-0068-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/68, 73rpm, 9.9kgf·cm \| Gear Ratio: 1/68 \| Output Speed: 73 rpm \| Output Torque: 9.9 kgf·cm \| Shaft Type: R-Type
KGE-0083-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/83, 60rpm, 12.1kgf·cm \| Gear Ratio: 1/83 \| Output Speed: 60 rpm \| Output Torque: 12.1 kgf·cm \| Shaft Type: R-Type
KGE-0105-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/105, 47rpm, 15.3kgf·cm \| Gear Ratio: 1/105 \| Output Speed: 47 rpm \| Output Torque: 15.3 kgf·cm \| Shaft Type: R-Type
KGE-0116-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/116, 43rpm, 16.9kgf·cm \| Gear Ratio: 1/116 \| Output Speed: 43 rpm \| Output Torque: 16.9 kgf·cm \| Shaft Type: R-Type
KGE-0162-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/162, 30rpm, 20kgf·cm \| Gear Ratio: 1/162 \| Output Speed: 30 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
KGE-0182-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/182, 27rpm, 20kgf·cm \| Gear Ratio: 1/182 \| Output Speed: 27 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
KGE-0204-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/204, 24rpm, 20kgf·cm \| Gear Ratio: 1/204 \| Output Speed: 24 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
KGE-0240-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/240, 20rpm, 20kgf·cm \| Gear Ratio: 1/240 \| Output Speed: 20 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
KGE-0308-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/308, 16.2rpm, 20kgf·cm \| Gear Ratio: 1/308 \| Output Speed: 16.2 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
KGE-0350-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/350, 14.2rpm, 20kgf·cm \| Gear Ratio: 1/350 \| Output Speed: 14.2 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
KGE-0452-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/452, 11rpm, 20kgf·cm \| Gear Ratio: 1/452 \| Output Speed: 11 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
KGE-0615-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/615, 8.1rpm, 20kgf·cm \| Gear Ratio: 1/615 \| Output Speed: 8.1 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
KGE-0687-KD3657U1-R		KGE-3657-U1 R-Type offset geared, 1/687, 7.2rpm, 20kgf·cm \| Gear Ratio: 1/687 \| Output Speed: 7.2 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type

DCGGM

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM KGE-3657-U1 R-Type Offset Geared DC Motor (DC 12V, 6000rpm base, 18 ratios 1/22-1/687)

Brand GGM·DC

Available part numbers (18)

KGE-0022-KD3657U1-R, KGE-0034-KD3657U1-R, KGE-0043-KD3657U1-R, KGE-0050-KD3657U1-R, KGE-0062-KD3657U1-R, KGE-0068-KD3657U1-R, KGE-0083-KD3657U1-R, KGE-0105-KD3657U1-R, KGE-0116-KD3657U1-R, KGE-0162-KD3657U1-R + 8 more — see full table ↓

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	KGE-0022-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/22, 227rpm, 3.2kgf·cm \| Gear Ratio: 1/22 \| Output Speed: 227 rpm \| Output Torque: 3.2 kgf·cm \| Shaft Type: R-Type
	KGE-0034-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/34, 147rpm, 4.9kgf·cm \| Gear Ratio: 1/34 \| Output Speed: 147 rpm \| Output Torque: 4.9 kgf·cm \| Shaft Type: R-Type
	KGE-0043-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/43, 116rpm, 6.2kgf·cm \| Gear Ratio: 1/43 \| Output Speed: 116 rpm \| Output Torque: 6.2 kgf·cm \| Shaft Type: R-Type
	KGE-0050-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/50, 100rpm, 7.3kgf·cm \| Gear Ratio: 1/50 \| Output Speed: 100 rpm \| Output Torque: 7.3 kgf·cm \| Shaft Type: R-Type
	KGE-0062-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/62, 80rpm, 9kgf·cm \| Gear Ratio: 1/62 \| Output Speed: 80 rpm \| Output Torque: 9 kgf·cm \| Shaft Type: R-Type
	KGE-0068-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/68, 73rpm, 9.9kgf·cm \| Gear Ratio: 1/68 \| Output Speed: 73 rpm \| Output Torque: 9.9 kgf·cm \| Shaft Type: R-Type
	KGE-0083-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/83, 60rpm, 12.1kgf·cm \| Gear Ratio: 1/83 \| Output Speed: 60 rpm \| Output Torque: 12.1 kgf·cm \| Shaft Type: R-Type
	KGE-0105-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/105, 47rpm, 15.3kgf·cm \| Gear Ratio: 1/105 \| Output Speed: 47 rpm \| Output Torque: 15.3 kgf·cm \| Shaft Type: R-Type
	KGE-0116-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/116, 43rpm, 16.9kgf·cm \| Gear Ratio: 1/116 \| Output Speed: 43 rpm \| Output Torque: 16.9 kgf·cm \| Shaft Type: R-Type
	KGE-0162-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/162, 30rpm, 20kgf·cm \| Gear Ratio: 1/162 \| Output Speed: 30 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
	KGE-0182-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/182, 27rpm, 20kgf·cm \| Gear Ratio: 1/182 \| Output Speed: 27 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
	KGE-0204-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/204, 24rpm, 20kgf·cm \| Gear Ratio: 1/204 \| Output Speed: 24 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
	KGE-0240-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/240, 20rpm, 20kgf·cm \| Gear Ratio: 1/240 \| Output Speed: 20 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
	KGE-0308-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/308, 16.2rpm, 20kgf·cm \| Gear Ratio: 1/308 \| Output Speed: 16.2 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
	KGE-0350-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/350, 14.2rpm, 20kgf·cm \| Gear Ratio: 1/350 \| Output Speed: 14.2 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
	KGE-0452-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/452, 11rpm, 20kgf·cm \| Gear Ratio: 1/452 \| Output Speed: 11 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
	KGE-0615-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/615, 8.1rpm, 20kgf·cm \| Gear Ratio: 1/615 \| Output Speed: 8.1 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type
	KGE-0687-KD3657U1-R	KGE-3657-U1 R-Type offset geared, 1/687, 7.2rpm, 20kgf·cm \| Gear Ratio: 1/687 \| Output Speed: 7.2 rpm \| Output Torque: 20 kgf·cm \| Shaft Type: R-Type

Need a different model, or a part not listed here? Send us your parts list →
