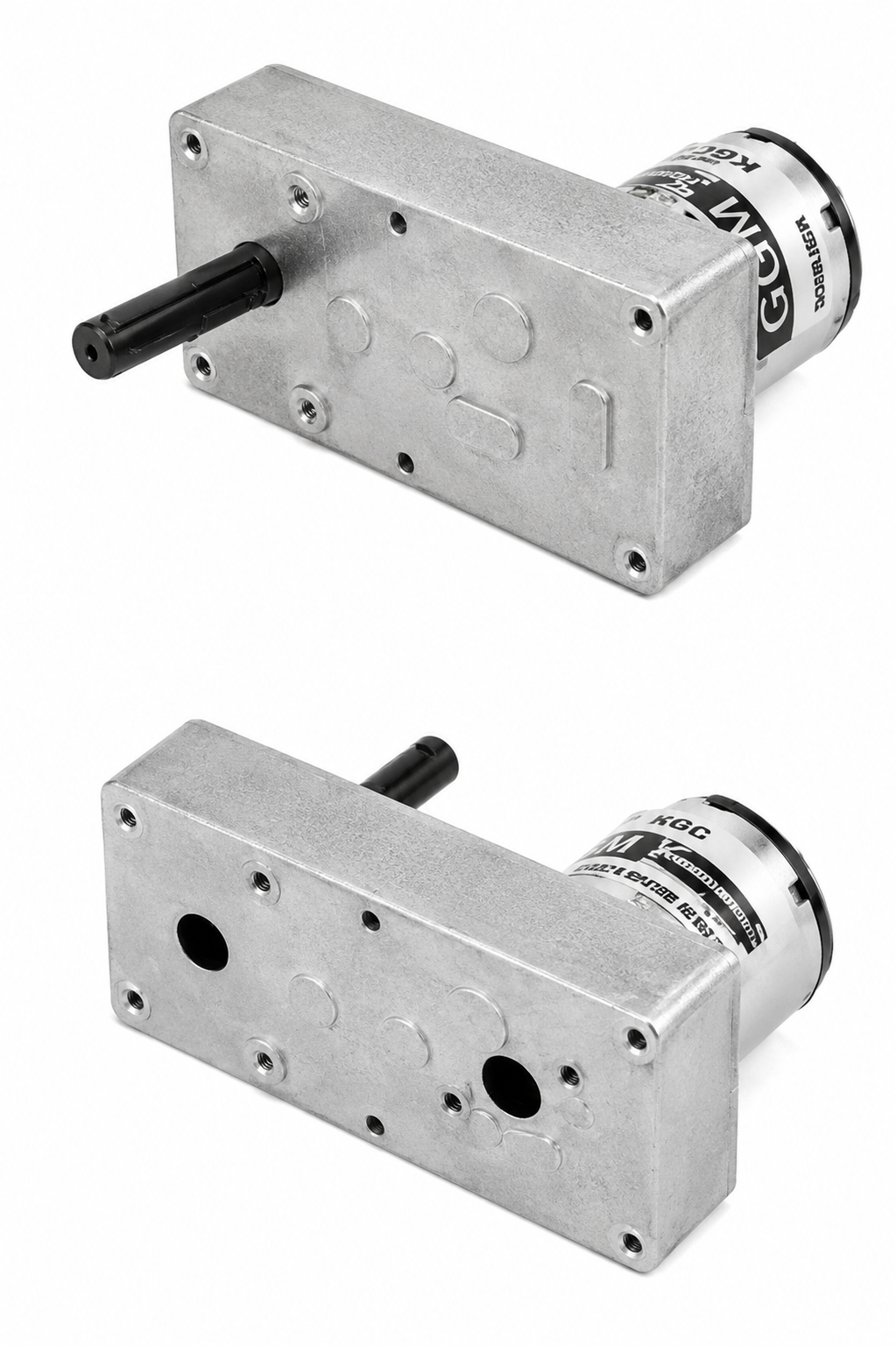

GGM KGG-3429-S1 Offset Geared DC Motor (DC 12V, 5200rpm base, 4 ratios 1/78-1/512, F/R shaft)

GGM KGG-3429-S1 offset parallel-shaft geared DC motor, DC 12V (5200 rpm base motor). 4 gear ratios 1/78-1/512, output torque up to 6 kgf·cm, ø8 output shaft, 4-M4 mounting.

Key features

Output rotation same as motor
F-Type shaft is standard (R-Type optional)

KGG-0078-KD3429S1		KGG-3429-S1 F-Type offset geared, 1/78, 57.7rpm, 2kgf·cm \| Gear Ratio: 1/78 \| Output Speed: 57.7 rpm \| Output Torque: 2 kgf·cm \| Shaft Type: F-Type
KGG-0101-KD3429S1		KGG-3429-S1 F-Type offset geared, 1/101, 44.6rpm, 2.6kgf·cm \| Gear Ratio: 1/101 \| Output Speed: 44.6 rpm \| Output Torque: 2.6 kgf·cm \| Shaft Type: F-Type
KGG-0227-KD3429S1		KGG-3429-S1 F-Type offset geared, 1/227, 19.8rpm, 5.4kgf·cm \| Gear Ratio: 1/227 \| Output Speed: 19.8 rpm \| Output Torque: 5.4 kgf·cm \| Shaft Type: F-Type
KGG-0512-KD3429S1		KGG-3429-S1 F-Type offset geared, 1/512, 8.8rpm, 6kgf·cm \| Gear Ratio: 1/512 \| Output Speed: 8.8 rpm \| Output Torque: 6 kgf·cm \| Shaft Type: F-Type
KGG-0078-KD3429S1-R		KGG-3429-S1 R-Type offset geared, 1/78, 57.7rpm, 2kgf·cm \| Gear Ratio: 1/78 \| Output Speed: 57.7 rpm \| Output Torque: 2 kgf·cm \| Shaft Type: R-Type
KGG-0101-KD3429S1-R		KGG-3429-S1 R-Type offset geared, 1/101, 44.6rpm, 2.6kgf·cm \| Gear Ratio: 1/101 \| Output Speed: 44.6 rpm \| Output Torque: 2.6 kgf·cm \| Shaft Type: R-Type
KGG-0227-KD3429S1-R		KGG-3429-S1 R-Type offset geared, 1/227, 19.8rpm, 5.4kgf·cm \| Gear Ratio: 1/227 \| Output Speed: 19.8 rpm \| Output Torque: 5.4 kgf·cm \| Shaft Type: R-Type
KGG-0512-KD3429S1-R		KGG-3429-S1 R-Type offset geared, 1/512, 8.8rpm, 6kgf·cm \| Gear Ratio: 1/512 \| Output Speed: 8.8 rpm \| Output Torque: 6 kgf·cm \| Shaft Type: R-Type

DCGGM

8 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM KGG-3429-S1 Offset Geared DC Motor (DC 12V, 5200rpm base, 4 ratios 1/78-1/512, F/R shaft)

Brand GGM·DC

Available part numbers (8)

KGG-0078-KD3429S1, KGG-0101-KD3429S1, KGG-0227-KD3429S1, KGG-0512-KD3429S1, KGG-0078-KD3429S1-R, KGG-0101-KD3429S1-R, KGG-0227-KD3429S1-R, KGG-0512-KD3429S1-R

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	KGG-0078-KD3429S1	KGG-3429-S1 F-Type offset geared, 1/78, 57.7rpm, 2kgf·cm \| Gear Ratio: 1/78 \| Output Speed: 57.7 rpm \| Output Torque: 2 kgf·cm \| Shaft Type: F-Type
	KGG-0101-KD3429S1	KGG-3429-S1 F-Type offset geared, 1/101, 44.6rpm, 2.6kgf·cm \| Gear Ratio: 1/101 \| Output Speed: 44.6 rpm \| Output Torque: 2.6 kgf·cm \| Shaft Type: F-Type
	KGG-0227-KD3429S1	KGG-3429-S1 F-Type offset geared, 1/227, 19.8rpm, 5.4kgf·cm \| Gear Ratio: 1/227 \| Output Speed: 19.8 rpm \| Output Torque: 5.4 kgf·cm \| Shaft Type: F-Type
	KGG-0512-KD3429S1	KGG-3429-S1 F-Type offset geared, 1/512, 8.8rpm, 6kgf·cm \| Gear Ratio: 1/512 \| Output Speed: 8.8 rpm \| Output Torque: 6 kgf·cm \| Shaft Type: F-Type
	KGG-0078-KD3429S1-R	KGG-3429-S1 R-Type offset geared, 1/78, 57.7rpm, 2kgf·cm \| Gear Ratio: 1/78 \| Output Speed: 57.7 rpm \| Output Torque: 2 kgf·cm \| Shaft Type: R-Type
	KGG-0101-KD3429S1-R	KGG-3429-S1 R-Type offset geared, 1/101, 44.6rpm, 2.6kgf·cm \| Gear Ratio: 1/101 \| Output Speed: 44.6 rpm \| Output Torque: 2.6 kgf·cm \| Shaft Type: R-Type
	KGG-0227-KD3429S1-R	KGG-3429-S1 R-Type offset geared, 1/227, 19.8rpm, 5.4kgf·cm \| Gear Ratio: 1/227 \| Output Speed: 19.8 rpm \| Output Torque: 5.4 kgf·cm \| Shaft Type: R-Type
	KGG-0512-KD3429S1-R	KGG-3429-S1 R-Type offset geared, 1/512, 8.8rpm, 6kgf·cm \| Gear Ratio: 1/512 \| Output Speed: 8.8 rpm \| Output Torque: 6 kgf·cm \| Shaft Type: R-Type
