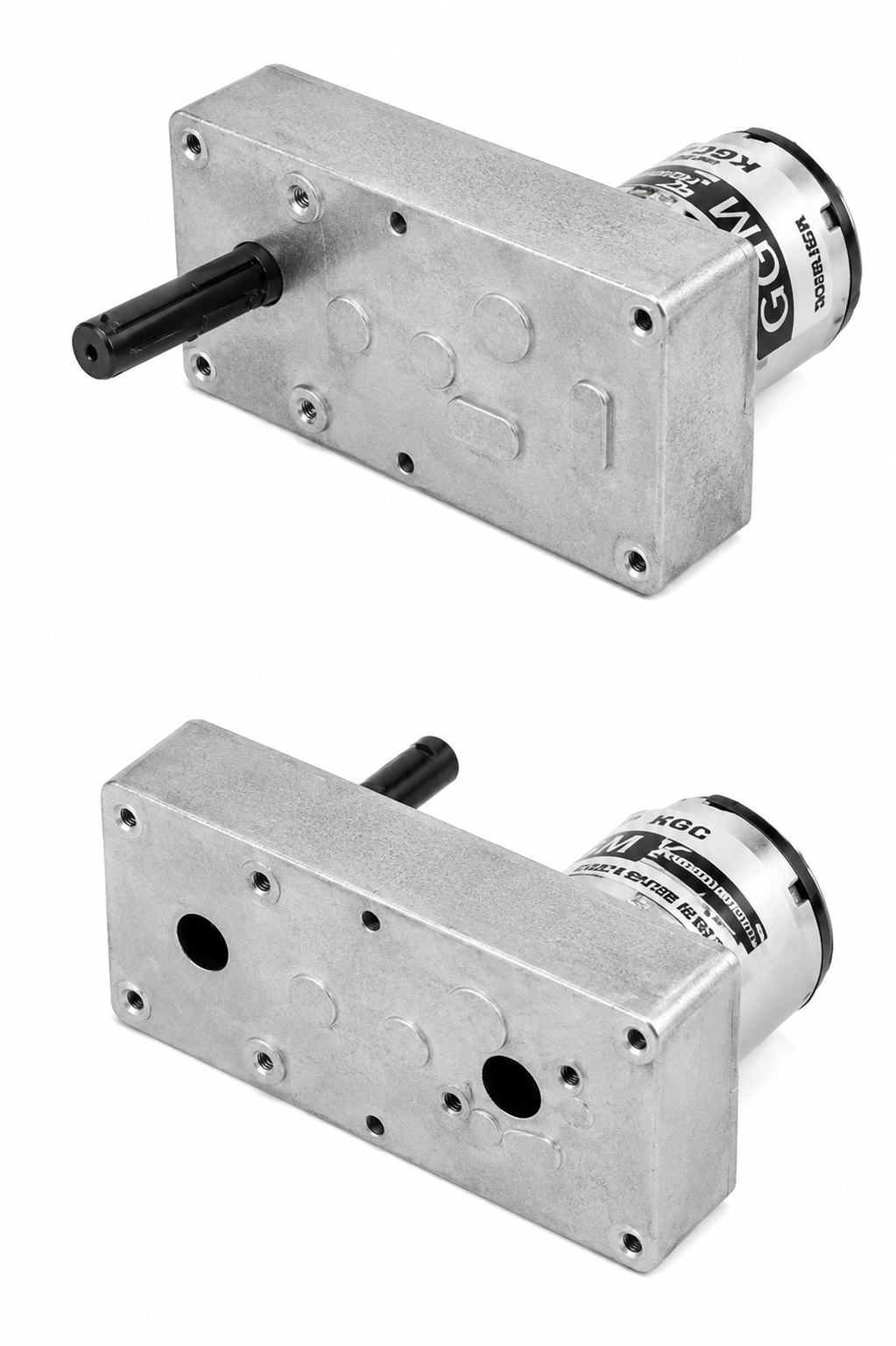

GGM KGG-3448-S1 Offset Geared DC Motor (DC 12V, 5200rpm base, 4 ratios 1/78-1/512, F/R shaft)

GGM KGG-3448-S1 Offset Geared DC Motor (DC 12V, 5200rpm base, 4 ratios 1/78-1/512, F/R shaft)

GGM KGG-3448-S1 offset parallel-shaft geared DC motor, DC 12V (5200 rpm base motor). 4 gear ratios 1/78-1/512, output torque up to 6 kgf·cm, ø8 output shaft, 4-M4 mounting.

Key features

  • Output rotation same as motor
  • F-Type shaft is standard (R-Type optional)
KGG-0078-KD3448S1 KGG-3448-S1 F-Type offset geared, 1/78, 57.7rpm, 4kgf·cm | Gear Ratio: 1/78 | Output Speed: 57.7 rpm | Output Torque: 4 kgf·cm | Shaft Type: F-Type
KGG-0101-KD3448S1 KGG-3448-S1 F-Type offset geared, 1/101, 44.6rpm, 5.2kgf·cm | Gear Ratio: 1/101 | Output Speed: 44.6 rpm | Output Torque: 5.2 kgf·cm | Shaft Type: F-Type
KGG-0227-KD3448S1 KGG-3448-S1 F-Type offset geared, 1/227, 19.8rpm, 6kgf·cm | Gear Ratio: 1/227 | Output Speed: 19.8 rpm | Output Torque: 6 kgf·cm | Shaft Type: F-Type
KGG-0512-KD3448S1 KGG-3448-S1 F-Type offset geared, 1/512, 8.8rpm, 6kgf·cm | Gear Ratio: 1/512 | Output Speed: 8.8 rpm | Output Torque: 6 kgf·cm | Shaft Type: F-Type
KGG-0078-KD3448S1-R KGG-3448-S1 R-Type offset geared, 1/78, 57.7rpm, 4kgf·cm | Gear Ratio: 1/78 | Output Speed: 57.7 rpm | Output Torque: 4 kgf·cm | Shaft Type: R-Type
KGG-0101-KD3448S1-R KGG-3448-S1 R-Type offset geared, 1/101, 44.6rpm, 5.2kgf·cm | Gear Ratio: 1/101 | Output Speed: 44.6 rpm | Output Torque: 5.2 kgf·cm | Shaft Type: R-Type
KGG-0227-KD3448S1-R KGG-3448-S1 R-Type offset geared, 1/227, 19.8rpm, 6kgf·cm | Gear Ratio: 1/227 | Output Speed: 19.8 rpm | Output Torque: 6 kgf·cm | Shaft Type: R-Type
KGG-0512-KD3448S1-R KGG-3448-S1 R-Type offset geared, 1/512, 8.8rpm, 6kgf·cm | Gear Ratio: 1/512 | Output Speed: 8.8 rpm | Output Torque: 6 kgf·cm | Shaft Type: R-Type
DCGGM
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM KGG-3448-S1 Offset Geared DC Motor (DC 12V, 5200rpm base, 4 ratios 1/78-1/512, F/R shaft)

Brand GGM·DC

Available part numbers (8)

KGG-0078-KD3448S1, KGG-0101-KD3448S1, KGG-0227-KD3448S1, KGG-0512-KD3448S1, KGG-0078-KD3448S1-R, KGG-0101-KD3448S1-R, KGG-0227-KD3448S1-R, KGG-0512-KD3448S1-R

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGG-0078-KD3448S1KGG-3448-S1 F-Type offset geared, 1/78, 57.7rpm, 4kgf·cm | Gear Ratio: 1/78 | Output Speed: 57.7 rpm | Output Torque: 4 kgf·cm | Shaft Type: F-Type
KGG-0101-KD3448S1KGG-3448-S1 F-Type offset geared, 1/101, 44.6rpm, 5.2kgf·cm | Gear Ratio: 1/101 | Output Speed: 44.6 rpm | Output Torque: 5.2 kgf·cm | Shaft Type: F-Type
KGG-0227-KD3448S1KGG-3448-S1 F-Type offset geared, 1/227, 19.8rpm, 6kgf·cm | Gear Ratio: 1/227 | Output Speed: 19.8 rpm | Output Torque: 6 kgf·cm | Shaft Type: F-Type
KGG-0512-KD3448S1KGG-3448-S1 F-Type offset geared, 1/512, 8.8rpm, 6kgf·cm | Gear Ratio: 1/512 | Output Speed: 8.8 rpm | Output Torque: 6 kgf·cm | Shaft Type: F-Type
KGG-0078-KD3448S1-RKGG-3448-S1 R-Type offset geared, 1/78, 57.7rpm, 4kgf·cm | Gear Ratio: 1/78 | Output Speed: 57.7 rpm | Output Torque: 4 kgf·cm | Shaft Type: R-Type
KGG-0101-KD3448S1-RKGG-3448-S1 R-Type offset geared, 1/101, 44.6rpm, 5.2kgf·cm | Gear Ratio: 1/101 | Output Speed: 44.6 rpm | Output Torque: 5.2 kgf·cm | Shaft Type: R-Type
KGG-0227-KD3448S1-RKGG-3448-S1 R-Type offset geared, 1/227, 19.8rpm, 6kgf·cm | Gear Ratio: 1/227 | Output Speed: 19.8 rpm | Output Torque: 6 kgf·cm | Shaft Type: R-Type
KGG-0512-KD3448S1-RKGG-3448-S1 R-Type offset geared, 1/512, 8.8rpm, 6kgf·cm | Gear Ratio: 1/512 | Output Speed: 8.8 rpm | Output Torque: 6 kgf·cm | Shaft Type: R-Type
