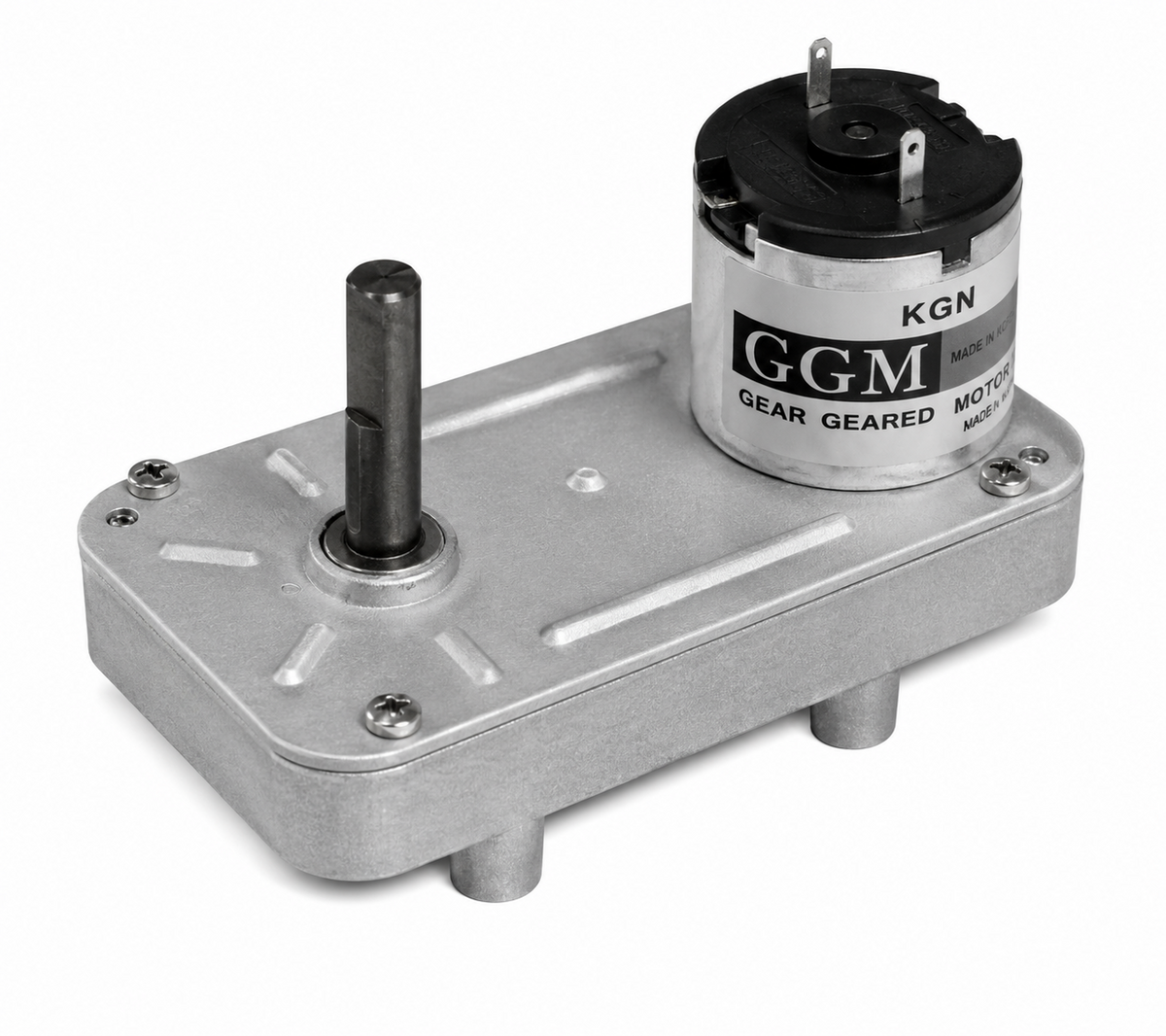

GGM KGN-3448-T2 Worm Geared DC Motor (DC 24V, 7500rpm base, 3 ratios 1/43-1/105, F/R shaft)

GGM KGN-3448-T2 Worm Geared DC Motor (DC 24V, 7500rpm base, 3 ratios 1/43-1/105, F/R shaft)

GGM KGN-3448-T2 worm geared DC motor, DC 24V (7500 rpm base motor). 3 gear ratios 1/43-1/105, output torque up to 6 kgf·cm, ø8 output shaft, 2-M4 mounting.

Key features

  • Output rotation opposite to motor
  • F-Type and R-Type shaft orientations
KGN-0043-KD3448T2-F KGN-3448-T2 F-Type worm geared, 1/43, 151rpm, 2.5kgf·cm | Gear Ratio: 1/43 | Output Speed: 151 rpm | Output Torque: 2.5 kgf·cm | Shaft Type: F-Type
KGN-0050-KD3448T2-F KGN-3448-T2 F-Type worm geared, 1/50, 130rpm, 2.9kgf·cm | Gear Ratio: 1/50 | Output Speed: 130 rpm | Output Torque: 2.9 kgf·cm | Shaft Type: F-Type
KGN-0105-KD3448T2-F KGN-3448-T2 F-Type worm geared, 1/105, 62rpm, 6kgf·cm | Gear Ratio: 1/105 | Output Speed: 62 rpm | Output Torque: 6 kgf·cm | Shaft Type: F-Type
KGN-0043-KD3448T2-R KGN-3448-T2 R-Type worm geared, 1/43, 151rpm, 2.5kgf·cm | Gear Ratio: 1/43 | Output Speed: 151 rpm | Output Torque: 2.5 kgf·cm | Shaft Type: R-Type
KGN-0050-KD3448T2-R KGN-3448-T2 R-Type worm geared, 1/50, 130rpm, 2.9kgf·cm | Gear Ratio: 1/50 | Output Speed: 130 rpm | Output Torque: 2.9 kgf·cm | Shaft Type: R-Type
KGN-0105-KD3448T2-R KGN-3448-T2 R-Type worm geared, 1/105, 62rpm, 6kgf·cm | Gear Ratio: 1/105 | Output Speed: 62 rpm | Output Torque: 6 kgf·cm | Shaft Type: R-Type
DCGGM
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM KGN-3448-T2 Worm Geared DC Motor (DC 24V, 7500rpm base, 3 ratios 1/43-1/105, F/R shaft)

Brand GGM·DC

Available part numbers (6)

KGN-0043-KD3448T2-F, KGN-0050-KD3448T2-F, KGN-0105-KD3448T2-F, KGN-0043-KD3448T2-R, KGN-0050-KD3448T2-R, KGN-0105-KD3448T2-R

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGN-0043-KD3448T2-FKGN-3448-T2 F-Type worm geared, 1/43, 151rpm, 2.5kgf·cm | Gear Ratio: 1/43 | Output Speed: 151 rpm | Output Torque: 2.5 kgf·cm | Shaft Type: F-Type
KGN-0050-KD3448T2-FKGN-3448-T2 F-Type worm geared, 1/50, 130rpm, 2.9kgf·cm | Gear Ratio: 1/50 | Output Speed: 130 rpm | Output Torque: 2.9 kgf·cm | Shaft Type: F-Type
KGN-0105-KD3448T2-FKGN-3448-T2 F-Type worm geared, 1/105, 62rpm, 6kgf·cm | Gear Ratio: 1/105 | Output Speed: 62 rpm | Output Torque: 6 kgf·cm | Shaft Type: F-Type
KGN-0043-KD3448T2-RKGN-3448-T2 R-Type worm geared, 1/43, 151rpm, 2.5kgf·cm | Gear Ratio: 1/43 | Output Speed: 151 rpm | Output Torque: 2.5 kgf·cm | Shaft Type: R-Type
KGN-0050-KD3448T2-RKGN-3448-T2 R-Type worm geared, 1/50, 130rpm, 2.9kgf·cm | Gear Ratio: 1/50 | Output Speed: 130 rpm | Output Torque: 2.9 kgf·cm | Shaft Type: R-Type
KGN-0105-KD3448T2-RKGN-3448-T2 R-Type worm geared, 1/105, 62rpm, 6kgf·cm | Gear Ratio: 1/105 | Output Speed: 62 rpm | Output Torque: 6 kgf·cm | Shaft Type: R-Type
