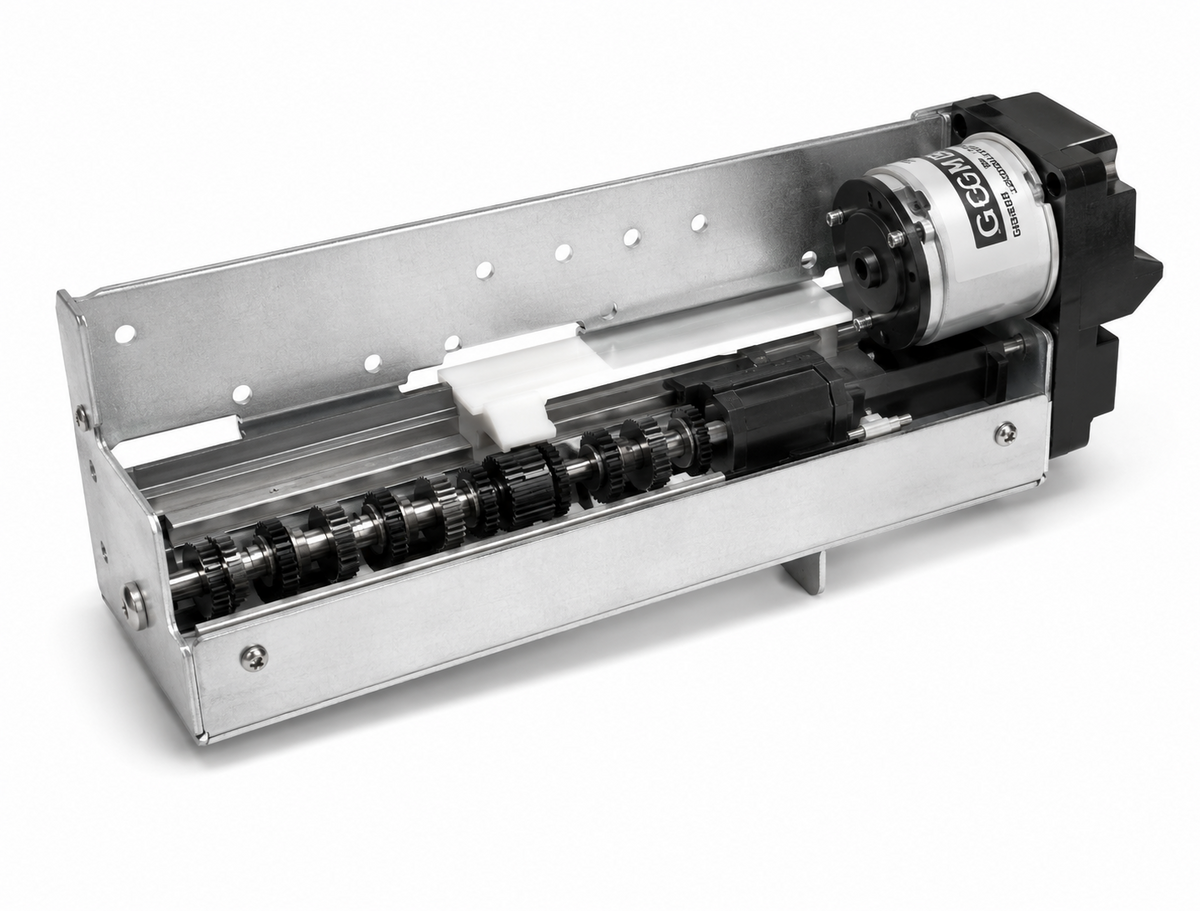

GGM KGU-0035 Linear Actuator (Lead Screw, 135mm Stroke, KD3429 motor, DC 12V/24V, 6 motor options)

GGM KGU-0035 Linear Actuator (Lead Screw, 135mm Stroke, KD3429 motor, DC 12V/24V, 6 motor options)

GGM KGU-0035 lead-screw linear actuator with 135mm stroke, KD3429 DC motor.

Key features

  • Six motor options (S/T/P speed grades, DC 12V/24V)
  • Output thrust up to 2 kgf·cm at max efficiency, up to 18 cycles/min no-load

Specifications

Stroke 135 mm
KGU-0035-KD3429S1 KGU-0035 linear actuator, KD3429S1, DC 12V, 135mm stroke, 9 cycle/min @ max eff | Motor: KD3429S1 | Voltage: DC 12V | Stroke: 135 mm | No-load Speed: 140 rpm / 10 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 126 rpm / 9 cycle/min | Stall Thrust: 9.2 kgf·cm | Stall Current: 1.7 A
KGU-0035-KD3429S2 KGU-0035 linear actuator, KD3429S2, DC 24V, 135mm stroke, 9 cycle/min @ max eff | Motor: KD3429S2 | Voltage: DC 24V | Stroke: 135 mm | No-load Speed: 140 rpm / 10 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 126 rpm / 9 cycle/min | Stall Thrust: 9.5 kgf·cm | Stall Current: 1 A
KGU-0035-KD3429T1 KGU-0035 linear actuator, KD3429T1, DC 12V, 135mm stroke, 12 cycle/min @ max eff | Motor: KD3429T1 | Voltage: DC 12V | Stroke: 135 mm | No-load Speed: 210 rpm / 14 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 168 rpm / 12 cycle/min | Stall Thrust: 10.8 kgf·cm | Stall Current: 3.8 A
KGU-0035-KD3429T2 KGU-0035 linear actuator, KD3429T2, DC 24V, 135mm stroke, 12 cycle/min @ max eff | Motor: KD3429T2 | Voltage: DC 24V | Stroke: 135 mm | No-load Speed: 210 rpm / 14 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 168 rpm / 12 cycle/min | Stall Thrust: 8.2 kgf·cm | Stall Current: 1.2 A
KGU-0035-KD3429P1 KGU-0035 linear actuator, KD3429P1, DC 12V, 135mm stroke, 15 cycle/min @ max eff | Motor: KD3429P1 | Voltage: DC 12V | Stroke: 135 mm | No-load Speed: 252 rpm / 18 cycle/min | Max-Eff Thrust: 2 kgf·cm | Max-Eff Speed: 210 rpm / 15 cycle/min | Stall Thrust: 8.5 kgf·cm | Stall Current: 3.8 A
KGU-0035-KD3429P2 KGU-0035 linear actuator, KD3429P2, DC 24V, 135mm stroke, 15 cycle/min @ max eff | Motor: KD3429P2 | Voltage: DC 24V | Stroke: 135 mm | No-load Speed: 252 rpm / 18 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 210 rpm / 15 cycle/min | Stall Thrust: 9 kgf·cm | Stall Current: 2 A
DCGGM
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM KGU-0035 Linear Actuator (Lead Screw, 135mm Stroke, KD3429 motor, DC 12V/24V, 6 motor options)

Brand GGM·DC

Available part numbers (6)

KGU-0035-KD3429S1, KGU-0035-KD3429S2, KGU-0035-KD3429T1, KGU-0035-KD3429T2, KGU-0035-KD3429P1, KGU-0035-KD3429P2

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGU-0035-KD3429S1KGU-0035 linear actuator, KD3429S1, DC 12V, 135mm stroke, 9 cycle/min @ max eff | Motor: KD3429S1 | Voltage: DC 12V | Stroke: 135 mm | No-load Speed: 140 rpm / 10 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 126 rpm / 9 cycle/min | Stall Thrust: 9.2 kgf·cm | Stall Current: 1.7 A
KGU-0035-KD3429S2KGU-0035 linear actuator, KD3429S2, DC 24V, 135mm stroke, 9 cycle/min @ max eff | Motor: KD3429S2 | Voltage: DC 24V | Stroke: 135 mm | No-load Speed: 140 rpm / 10 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 126 rpm / 9 cycle/min | Stall Thrust: 9.5 kgf·cm | Stall Current: 1 A
KGU-0035-KD3429T1KGU-0035 linear actuator, KD3429T1, DC 12V, 135mm stroke, 12 cycle/min @ max eff | Motor: KD3429T1 | Voltage: DC 12V | Stroke: 135 mm | No-load Speed: 210 rpm / 14 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 168 rpm / 12 cycle/min | Stall Thrust: 10.8 kgf·cm | Stall Current: 3.8 A
KGU-0035-KD3429T2KGU-0035 linear actuator, KD3429T2, DC 24V, 135mm stroke, 12 cycle/min @ max eff | Motor: KD3429T2 | Voltage: DC 24V | Stroke: 135 mm | No-load Speed: 210 rpm / 14 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 168 rpm / 12 cycle/min | Stall Thrust: 8.2 kgf·cm | Stall Current: 1.2 A
KGU-0035-KD3429P1KGU-0035 linear actuator, KD3429P1, DC 12V, 135mm stroke, 15 cycle/min @ max eff | Motor: KD3429P1 | Voltage: DC 12V | Stroke: 135 mm | No-load Speed: 252 rpm / 18 cycle/min | Max-Eff Thrust: 2 kgf·cm | Max-Eff Speed: 210 rpm / 15 cycle/min | Stall Thrust: 8.5 kgf·cm | Stall Current: 3.8 A
KGU-0035-KD3429P2KGU-0035 linear actuator, KD3429P2, DC 24V, 135mm stroke, 15 cycle/min @ max eff | Motor: KD3429P2 | Voltage: DC 24V | Stroke: 135 mm | No-load Speed: 252 rpm / 18 cycle/min | Max-Eff Thrust: 1 kgf·cm | Max-Eff Speed: 210 rpm / 15 cycle/min | Stall Thrust: 9 kgf·cm | Stall Current: 2 A
