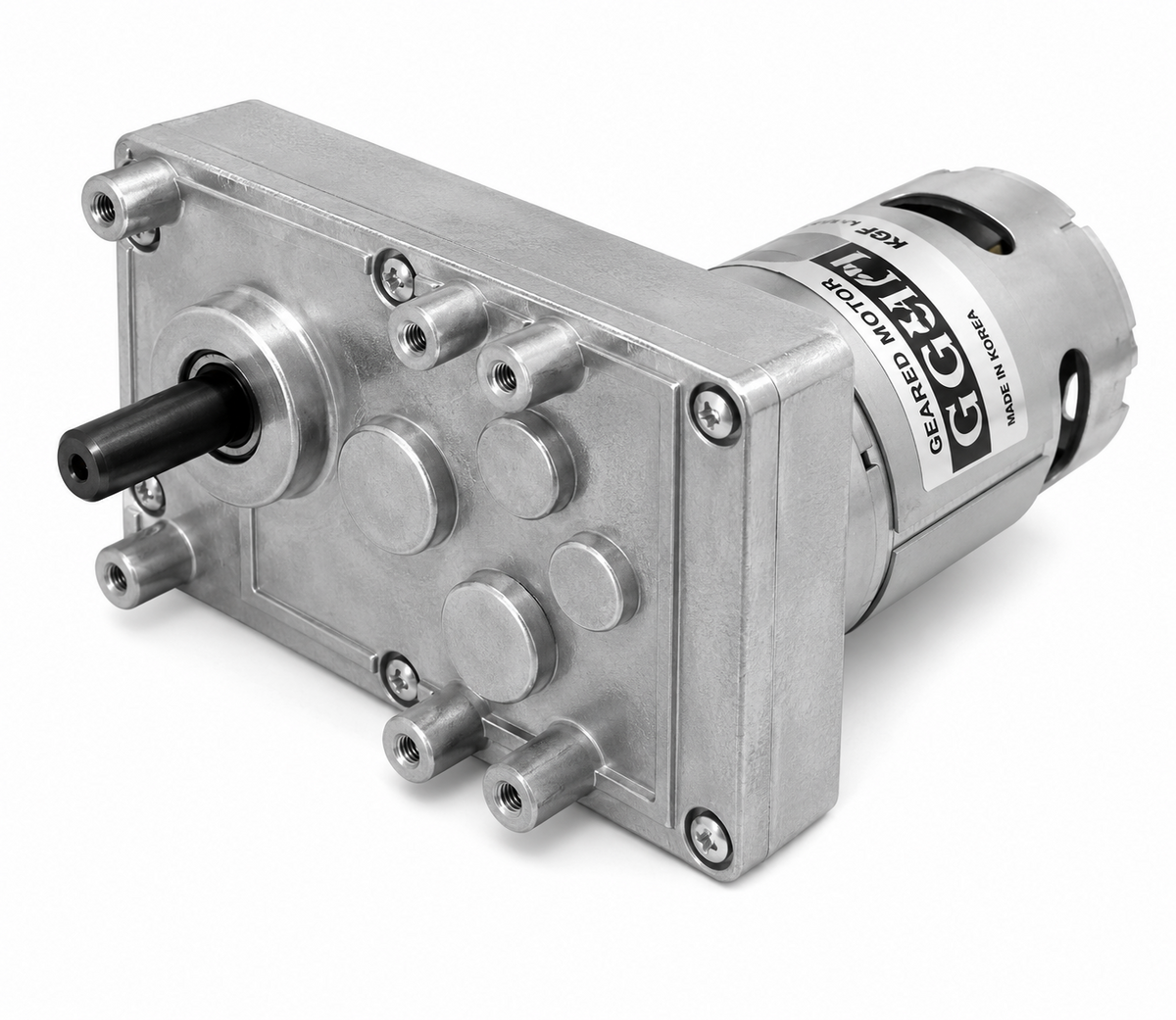

GGM KGV-3657-U2 Geared DC Motor (DC 24V, 6000rpm base, 4 ratios 1/60-1/120)

GGM KGV-3657-U2 Geared DC Motor (DC 24V, 6000rpm base, 4 ratios 1/60-1/120)

GGM KGV-3657-U2 geared DC motor, DC 24V (6000 rpm base motor). 4 gear ratios 1/60-1/120, output torque up to 13.9 kgf·cm, ø8 output shaft, 6-M4 mounting.

Key features

  • Output shaft rotates CW with motor (+) to (+)
  • Stall 5 A / 1.6 kgf·cm
KGV-0060-KD3657U2 KGV-3657-U2 geared, 1/60, 83rpm, 6.9kgf·cm | Gear Ratio: 1/60 | Output Speed: 83 rpm | Output Torque: 6.9 kgf·cm
KGV-0090-KD3657U2 KGV-3657-U2 geared, 1/90, 55rpm, 10.4kgf·cm | Gear Ratio: 1/90 | Output Speed: 55 rpm | Output Torque: 10.4 kgf·cm
KGV-0105-KD3657U2 KGV-3657-U2 geared, 1/105, 47rpm, 12kgf·cm | Gear Ratio: 1/105 | Output Speed: 47 rpm | Output Torque: 12 kgf·cm
KGV-0120-KD3657U2 KGV-3657-U2 geared, 1/120, 41rpm, 13.9kgf·cm | Gear Ratio: 1/120 | Output Speed: 41 rpm | Output Torque: 13.9 kgf·cm
DCGGM
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM KGV-3657-U2 Geared DC Motor (DC 24V, 6000rpm base, 4 ratios 1/60-1/120)

Brand GGM·DC

Available part numbers (4)

KGV-0060-KD3657U2, KGV-0090-KD3657U2, KGV-0105-KD3657U2, KGV-0120-KD3657U2

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGV-0060-KD3657U2KGV-3657-U2 geared, 1/60, 83rpm, 6.9kgf·cm | Gear Ratio: 1/60 | Output Speed: 83 rpm | Output Torque: 6.9 kgf·cm
KGV-0090-KD3657U2KGV-3657-U2 geared, 1/90, 55rpm, 10.4kgf·cm | Gear Ratio: 1/90 | Output Speed: 55 rpm | Output Torque: 10.4 kgf·cm
KGV-0105-KD3657U2KGV-3657-U2 geared, 1/105, 47rpm, 12kgf·cm | Gear Ratio: 1/105 | Output Speed: 47 rpm | Output Torque: 12 kgf·cm
KGV-0120-KD3657U2KGV-3657-U2 geared, 1/120, 41rpm, 13.9kgf·cm | Gear Ratio: 1/120 | Output Speed: 41 rpm | Output Torque: 13.9 kgf·cm
