• GGM KGV2-3448 Geared Motor, KD3448S1 (DC 12V, 9 ratios 1/60–1/660, F/R output)
1 1

GGM KGV2-3448 Geared Motor, KD3448S1 (DC 12V, 9 ratios 1/60–1/660, F/R output)

GGM KGV2-3448 Geared Motor, KD3448S1 (DC 12V, 9 ratios 1/60–1/660, F/R output)

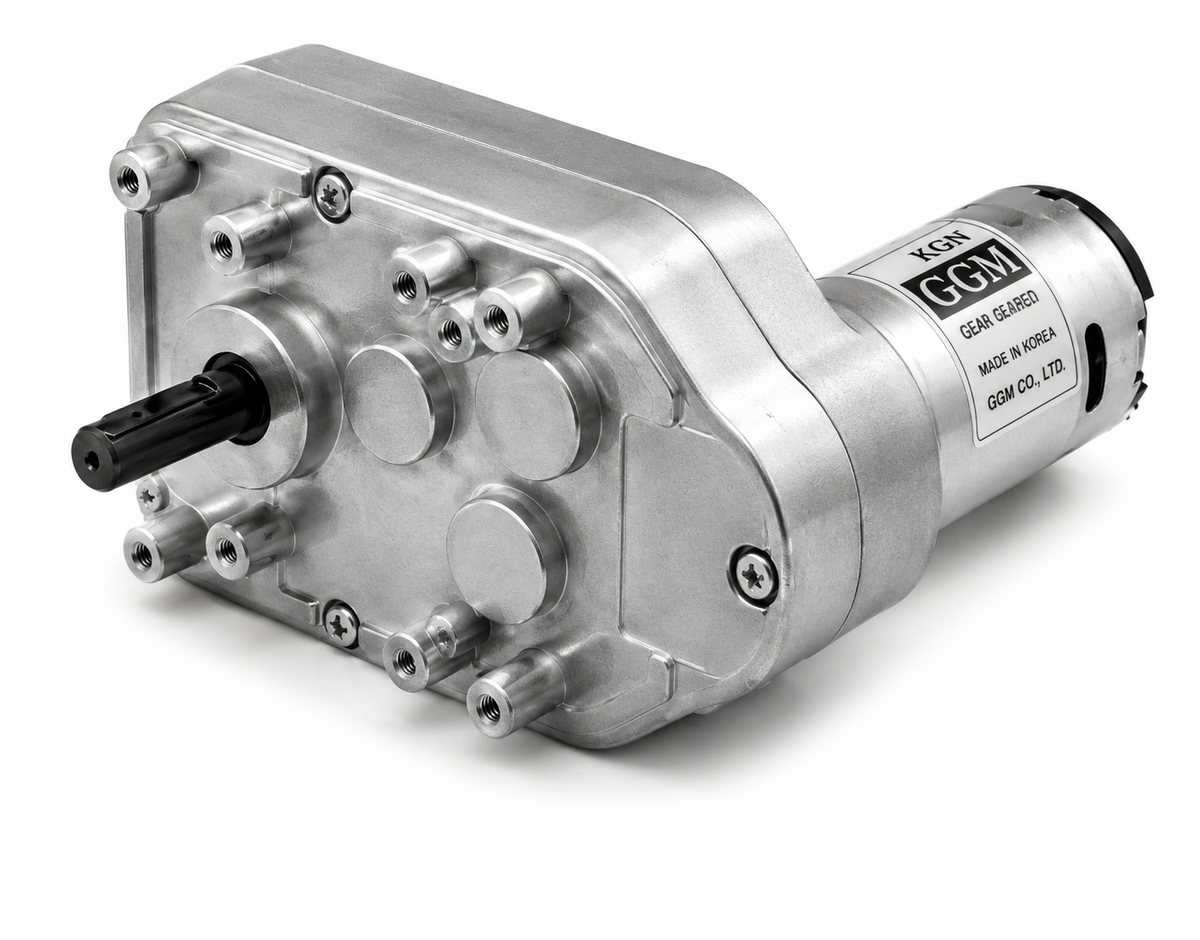

GGM KGV2-3448 DC geared motor with KD3448S1 brushed motor (DC 12V, no-load 5200 rpm). 9 reduction ratios 1/60–1/660, F-type/R-type output shaft, output torque up to 20 kgf·cm.

KGV2-0060-KD3448S1-F KGV2-3448 KD3448S1 geared motor, 1/60, F-TYPE | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 2.8 kgf·cm | Output Shaft: F-TYPE
KGV2-0060-KD3448S1-R KGV2-3448 KD3448S1 geared motor, 1/60, R-TYPE | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 2.8 kgf·cm | Output Shaft: R-TYPE
KGV2-0070-KD3448S1-F KGV2-3448 KD3448S1 geared motor, 1/70, F-TYPE | Gear Ratio: 1/70 | Output Speed: 64.2 rpm | Output Torque: 3.2 kgf·cm | Output Shaft: F-TYPE
KGV2-0070-KD3448S1-R KGV2-3448 KD3448S1 geared motor, 1/70, R-TYPE | Gear Ratio: 1/70 | Output Speed: 64.2 rpm | Output Torque: 3.2 kgf·cm | Output Shaft: R-TYPE
KGV2-0090-KD3448S1-F KGV2-3448 KD3448S1 geared motor, 1/90, F-TYPE | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 4 kgf·cm | Output Shaft: F-TYPE
KGV2-0090-KD3448S1-R KGV2-3448 KD3448S1 geared motor, 1/90, R-TYPE | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 4 kgf·cm | Output Shaft: R-TYPE
KGV2-0105-KD3448S1-F KGV2-3448 KD3448S1 geared motor, 1/105, F-TYPE | Gear Ratio: 1/105 | Output Speed: 42.8 rpm | Output Torque: 4.8 kgf·cm | Output Shaft: F-TYPE
KGV2-0105-KD3448S1-R KGV2-3448 KD3448S1 geared motor, 1/105, R-TYPE | Gear Ratio: 1/105 | Output Speed: 42.8 rpm | Output Torque: 4.8 kgf·cm | Output Shaft: R-TYPE
KGV2-0135-KD3448S1-F KGV2-3448 KD3448S1 geared motor, 1/135, F-TYPE | Gear Ratio: 1/135 | Output Speed: 33.3 rpm | Output Torque: 5.6 kgf·cm | Output Shaft: F-TYPE
KGV2-0135-KD3448S1-R KGV2-3448 KD3448S1 geared motor, 1/135, R-TYPE | Gear Ratio: 1/135 | Output Speed: 33.3 rpm | Output Torque: 5.6 kgf·cm | Output Shaft: R-TYPE
KGV2-0200-KD3448S1-F KGV2-3448 KD3448S1 geared motor, 1/200, F-TYPE | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 8.4 kgf·cm | Output Shaft: F-TYPE
KGV2-0200-KD3448S1-R KGV2-3448 KD3448S1 geared motor, 1/200, R-TYPE | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 8.4 kgf·cm | Output Shaft: R-TYPE
KGV2-0350-KD3448S1-F KGV2-3448 KD3448S1 geared motor, 1/350, F-TYPE | Gear Ratio: 1/350 | Output Speed: 12.8 rpm | Output Torque: 14.6 kgf·cm | Output Shaft: F-TYPE
KGV2-0350-KD3448S1-R KGV2-3448 KD3448S1 geared motor, 1/350, R-TYPE | Gear Ratio: 1/350 | Output Speed: 12.8 rpm | Output Torque: 14.6 kgf·cm | Output Shaft: R-TYPE
KGV2-0500-KD3448S1-F KGV2-3448 KD3448S1 geared motor, 1/500, F-TYPE | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0500-KD3448S1-R KGV2-3448 KD3448S1 geared motor, 1/500, R-TYPE | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE
KGV2-0660-KD3448S1-F KGV2-3448 KD3448S1 geared motor, 1/660, F-TYPE | Gear Ratio: 1/660 | Output Speed: 6.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0660-KD3448S1-R KGV2-3448 KD3448S1 geared motor, 1/660, R-TYPE | Gear Ratio: 1/660 | Output Speed: 6.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE
DCGGM
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM KGV2-3448 Geared Motor, KD3448S1 (DC 12V, 9 ratios 1/60–1/660, F/R output)

Brand GGM·DC

Available part numbers (18)

KGV2-0060-KD3448S1-F, KGV2-0060-KD3448S1-R, KGV2-0070-KD3448S1-F, KGV2-0070-KD3448S1-R, KGV2-0090-KD3448S1-F, KGV2-0090-KD3448S1-R, KGV2-0105-KD3448S1-F, KGV2-0105-KD3448S1-R, KGV2-0135-KD3448S1-F, KGV2-0135-KD3448S1-R + 8 more — see full table ↓

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGV2-0060-KD3448S1-FKGV2-3448 KD3448S1 geared motor, 1/60, F-TYPE | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 2.8 kgf·cm | Output Shaft: F-TYPE
KGV2-0060-KD3448S1-RKGV2-3448 KD3448S1 geared motor, 1/60, R-TYPE | Gear Ratio: 1/60 | Output Speed: 75 rpm | Output Torque: 2.8 kgf·cm | Output Shaft: R-TYPE
KGV2-0070-KD3448S1-FKGV2-3448 KD3448S1 geared motor, 1/70, F-TYPE | Gear Ratio: 1/70 | Output Speed: 64.2 rpm | Output Torque: 3.2 kgf·cm | Output Shaft: F-TYPE
KGV2-0070-KD3448S1-RKGV2-3448 KD3448S1 geared motor, 1/70, R-TYPE | Gear Ratio: 1/70 | Output Speed: 64.2 rpm | Output Torque: 3.2 kgf·cm | Output Shaft: R-TYPE
KGV2-0090-KD3448S1-FKGV2-3448 KD3448S1 geared motor, 1/90, F-TYPE | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 4 kgf·cm | Output Shaft: F-TYPE
KGV2-0090-KD3448S1-RKGV2-3448 KD3448S1 geared motor, 1/90, R-TYPE | Gear Ratio: 1/90 | Output Speed: 50 rpm | Output Torque: 4 kgf·cm | Output Shaft: R-TYPE
KGV2-0105-KD3448S1-FKGV2-3448 KD3448S1 geared motor, 1/105, F-TYPE | Gear Ratio: 1/105 | Output Speed: 42.8 rpm | Output Torque: 4.8 kgf·cm | Output Shaft: F-TYPE
KGV2-0105-KD3448S1-RKGV2-3448 KD3448S1 geared motor, 1/105, R-TYPE | Gear Ratio: 1/105 | Output Speed: 42.8 rpm | Output Torque: 4.8 kgf·cm | Output Shaft: R-TYPE
KGV2-0135-KD3448S1-FKGV2-3448 KD3448S1 geared motor, 1/135, F-TYPE | Gear Ratio: 1/135 | Output Speed: 33.3 rpm | Output Torque: 5.6 kgf·cm | Output Shaft: F-TYPE
KGV2-0135-KD3448S1-RKGV2-3448 KD3448S1 geared motor, 1/135, R-TYPE | Gear Ratio: 1/135 | Output Speed: 33.3 rpm | Output Torque: 5.6 kgf·cm | Output Shaft: R-TYPE
KGV2-0200-KD3448S1-FKGV2-3448 KD3448S1 geared motor, 1/200, F-TYPE | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 8.4 kgf·cm | Output Shaft: F-TYPE
KGV2-0200-KD3448S1-RKGV2-3448 KD3448S1 geared motor, 1/200, R-TYPE | Gear Ratio: 1/200 | Output Speed: 22.5 rpm | Output Torque: 8.4 kgf·cm | Output Shaft: R-TYPE
KGV2-0350-KD3448S1-FKGV2-3448 KD3448S1 geared motor, 1/350, F-TYPE | Gear Ratio: 1/350 | Output Speed: 12.8 rpm | Output Torque: 14.6 kgf·cm | Output Shaft: F-TYPE
KGV2-0350-KD3448S1-RKGV2-3448 KD3448S1 geared motor, 1/350, R-TYPE | Gear Ratio: 1/350 | Output Speed: 12.8 rpm | Output Torque: 14.6 kgf·cm | Output Shaft: R-TYPE
KGV2-0500-KD3448S1-FKGV2-3448 KD3448S1 geared motor, 1/500, F-TYPE | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0500-KD3448S1-RKGV2-3448 KD3448S1 geared motor, 1/500, R-TYPE | Gear Ratio: 1/500 | Output Speed: 9 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE
KGV2-0660-KD3448S1-FKGV2-3448 KD3448S1 geared motor, 1/660, F-TYPE | Gear Ratio: 1/660 | Output Speed: 6.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0660-KD3448S1-RKGV2-3448 KD3448S1 geared motor, 1/660, R-TYPE | Gear Ratio: 1/660 | Output Speed: 6.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE
