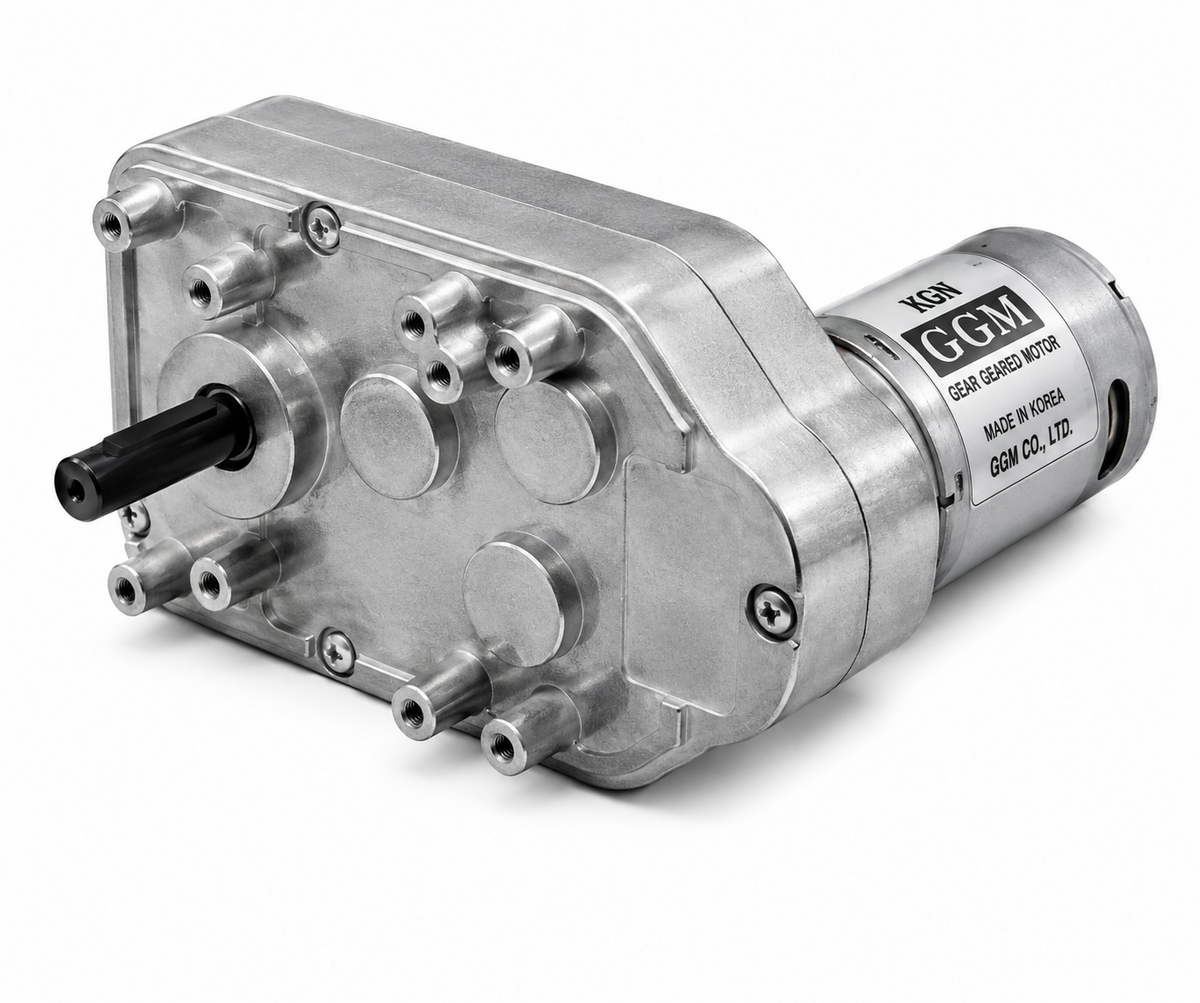

GGM KGV2-3640 BLDC Geared Motor, KB3640S2 (DC 24V, 9 ratios 1/60–1/660, F/R output)

GGM KGV2-3640 BLDC Geared Motor, KB3640S2 (DC 24V, 9 ratios 1/60–1/660, F/R output)

GGM KGV2-3640 BLDC geared motor, KB3640S2 (DC 24V, no-load 5000 rpm). 9 ratios 1/60–1/660, F/R output shaft, PWM speed control with CW/CCW and brake, torque up to 20 kgf·cm.

KGV2-0060-KB3640S2-F KGV2-3640 BLDC KB3640S2 geared motor, 1/60, F-TYPE | Gear Ratio: 1/60 | Output Speed: 65 rpm | Output Torque: 8.7 kgf·cm | Output Shaft: F-TYPE
KGV2-0060-KB3640S2-R KGV2-3640 BLDC KB3640S2 geared motor, 1/60, R-TYPE | Gear Ratio: 1/60 | Output Speed: 65 rpm | Output Torque: 8.7 kgf·cm | Output Shaft: R-TYPE
KGV2-0070-KB3640S2-F KGV2-3640 BLDC KB3640S2 geared motor, 1/70, F-TYPE | Gear Ratio: 1/70 | Output Speed: 55.7 rpm | Output Torque: 10.2 kgf·cm | Output Shaft: F-TYPE
KGV2-0070-KB3640S2-R KGV2-3640 BLDC KB3640S2 geared motor, 1/70, R-TYPE | Gear Ratio: 1/70 | Output Speed: 55.7 rpm | Output Torque: 10.2 kgf·cm | Output Shaft: R-TYPE
KGV2-0090-KB3640S2-F KGV2-3640 BLDC KB3640S2 geared motor, 1/90, F-TYPE | Gear Ratio: 1/90 | Output Speed: 43.3 rpm | Output Torque: 13 kgf·cm | Output Shaft: F-TYPE
KGV2-0090-KB3640S2-R KGV2-3640 BLDC KB3640S2 geared motor, 1/90, R-TYPE | Gear Ratio: 1/90 | Output Speed: 43.3 rpm | Output Torque: 13 kgf·cm | Output Shaft: R-TYPE
KGV2-0105-KB3640S2-F KGV2-3640 BLDC KB3640S2 geared motor, 1/105, F-TYPE | Gear Ratio: 1/105 | Output Speed: 37 rpm | Output Torque: 15.3 kgf·cm | Output Shaft: F-TYPE
KGV2-0105-KB3640S2-R KGV2-3640 BLDC KB3640S2 geared motor, 1/105, R-TYPE | Gear Ratio: 1/105 | Output Speed: 37 rpm | Output Torque: 15.3 kgf·cm | Output Shaft: R-TYPE
KGV2-0135-KB3640S2-F KGV2-3640 BLDC KB3640S2 geared motor, 1/135, F-TYPE | Gear Ratio: 1/135 | Output Speed: 28.8 rpm | Output Torque: 17.7 kgf·cm | Output Shaft: F-TYPE
KGV2-0135-KB3640S2-R KGV2-3640 BLDC KB3640S2 geared motor, 1/135, R-TYPE | Gear Ratio: 1/135 | Output Speed: 28.8 rpm | Output Torque: 17.7 kgf·cm | Output Shaft: R-TYPE
KGV2-0200-KB3640S2-F KGV2-3640 BLDC KB3640S2 geared motor, 1/200, F-TYPE | Gear Ratio: 1/200 | Output Speed: 19.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0200-KB3640S2-R KGV2-3640 BLDC KB3640S2 geared motor, 1/200, R-TYPE | Gear Ratio: 1/200 | Output Speed: 19.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE
KGV2-0350-KB3640S2-F KGV2-3640 BLDC KB3640S2 geared motor, 1/350, F-TYPE | Gear Ratio: 1/350 | Output Speed: 11 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0350-KB3640S2-R KGV2-3640 BLDC KB3640S2 geared motor, 1/350, R-TYPE | Gear Ratio: 1/350 | Output Speed: 11 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE
KGV2-0500-KB3640S2-F KGV2-3640 BLDC KB3640S2 geared motor, 1/500, F-TYPE | Gear Ratio: 1/500 | Output Speed: 7.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0500-KB3640S2-R KGV2-3640 BLDC KB3640S2 geared motor, 1/500, R-TYPE | Gear Ratio: 1/500 | Output Speed: 7.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE
KGV2-0660-KB3640S2-F KGV2-3640 BLDC KB3640S2 geared motor, 1/660, F-TYPE | Gear Ratio: 1/660 | Output Speed: 5.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0660-KB3640S2-R KGV2-3640 BLDC KB3640S2 geared motor, 1/660, R-TYPE | Gear Ratio: 1/660 | Output Speed: 5.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE
DCGGM
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM KGV2-3640 BLDC Geared Motor, KB3640S2 (DC 24V, 9 ratios 1/60–1/660, F/R output)

Brand GGM·DC

Available part numbers (18)

KGV2-0060-KB3640S2-F, KGV2-0060-KB3640S2-R, KGV2-0070-KB3640S2-F, KGV2-0070-KB3640S2-R, KGV2-0090-KB3640S2-F, KGV2-0090-KB3640S2-R, KGV2-0105-KB3640S2-F, KGV2-0105-KB3640S2-R, KGV2-0135-KB3640S2-F, KGV2-0135-KB3640S2-R + 8 more — see full table ↓

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KGV2-0060-KB3640S2-FKGV2-3640 BLDC KB3640S2 geared motor, 1/60, F-TYPE | Gear Ratio: 1/60 | Output Speed: 65 rpm | Output Torque: 8.7 kgf·cm | Output Shaft: F-TYPE
KGV2-0060-KB3640S2-RKGV2-3640 BLDC KB3640S2 geared motor, 1/60, R-TYPE | Gear Ratio: 1/60 | Output Speed: 65 rpm | Output Torque: 8.7 kgf·cm | Output Shaft: R-TYPE
KGV2-0070-KB3640S2-FKGV2-3640 BLDC KB3640S2 geared motor, 1/70, F-TYPE | Gear Ratio: 1/70 | Output Speed: 55.7 rpm | Output Torque: 10.2 kgf·cm | Output Shaft: F-TYPE
KGV2-0070-KB3640S2-RKGV2-3640 BLDC KB3640S2 geared motor, 1/70, R-TYPE | Gear Ratio: 1/70 | Output Speed: 55.7 rpm | Output Torque: 10.2 kgf·cm | Output Shaft: R-TYPE
KGV2-0090-KB3640S2-FKGV2-3640 BLDC KB3640S2 geared motor, 1/90, F-TYPE | Gear Ratio: 1/90 | Output Speed: 43.3 rpm | Output Torque: 13 kgf·cm | Output Shaft: F-TYPE
KGV2-0090-KB3640S2-RKGV2-3640 BLDC KB3640S2 geared motor, 1/90, R-TYPE | Gear Ratio: 1/90 | Output Speed: 43.3 rpm | Output Torque: 13 kgf·cm | Output Shaft: R-TYPE
KGV2-0105-KB3640S2-FKGV2-3640 BLDC KB3640S2 geared motor, 1/105, F-TYPE | Gear Ratio: 1/105 | Output Speed: 37 rpm | Output Torque: 15.3 kgf·cm | Output Shaft: F-TYPE
KGV2-0105-KB3640S2-RKGV2-3640 BLDC KB3640S2 geared motor, 1/105, R-TYPE | Gear Ratio: 1/105 | Output Speed: 37 rpm | Output Torque: 15.3 kgf·cm | Output Shaft: R-TYPE
KGV2-0135-KB3640S2-FKGV2-3640 BLDC KB3640S2 geared motor, 1/135, F-TYPE | Gear Ratio: 1/135 | Output Speed: 28.8 rpm | Output Torque: 17.7 kgf·cm | Output Shaft: F-TYPE
KGV2-0135-KB3640S2-RKGV2-3640 BLDC KB3640S2 geared motor, 1/135, R-TYPE | Gear Ratio: 1/135 | Output Speed: 28.8 rpm | Output Torque: 17.7 kgf·cm | Output Shaft: R-TYPE
KGV2-0200-KB3640S2-FKGV2-3640 BLDC KB3640S2 geared motor, 1/200, F-TYPE | Gear Ratio: 1/200 | Output Speed: 19.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0200-KB3640S2-RKGV2-3640 BLDC KB3640S2 geared motor, 1/200, R-TYPE | Gear Ratio: 1/200 | Output Speed: 19.5 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE
KGV2-0350-KB3640S2-FKGV2-3640 BLDC KB3640S2 geared motor, 1/350, F-TYPE | Gear Ratio: 1/350 | Output Speed: 11 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0350-KB3640S2-RKGV2-3640 BLDC KB3640S2 geared motor, 1/350, R-TYPE | Gear Ratio: 1/350 | Output Speed: 11 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE
KGV2-0500-KB3640S2-FKGV2-3640 BLDC KB3640S2 geared motor, 1/500, F-TYPE | Gear Ratio: 1/500 | Output Speed: 7.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0500-KB3640S2-RKGV2-3640 BLDC KB3640S2 geared motor, 1/500, R-TYPE | Gear Ratio: 1/500 | Output Speed: 7.8 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE
KGV2-0660-KB3640S2-FKGV2-3640 BLDC KB3640S2 geared motor, 1/660, F-TYPE | Gear Ratio: 1/660 | Output Speed: 5.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: F-TYPE
KGV2-0660-KB3640S2-RKGV2-3640 BLDC KB3640S2 geared motor, 1/660, R-TYPE | Gear Ratio: 1/660 | Output Speed: 5.9 rpm | Output Torque: 20 kgf·cm | Output Shaft: R-TYPE

Need a different model, or a part not listed here? Send us your parts list →
