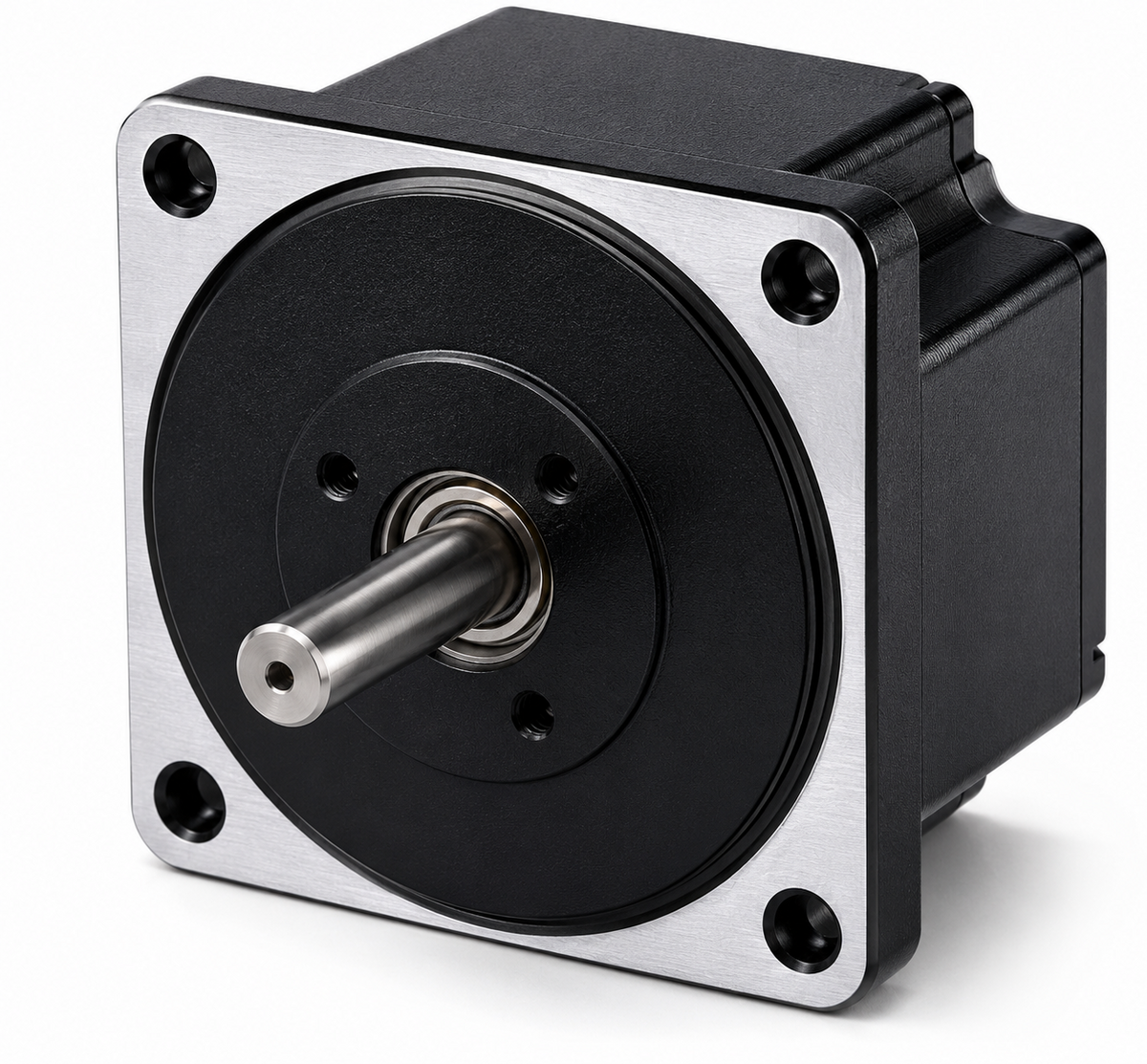

GGM X Series K10X200N2 200W Brushless DC Motor Unit (□104mm, DC 24V)

GGM X Series K10X200N2 200W Brushless DC Motor Unit (□104mm, DC 24V)

GGM Brushless DC Motor Unit, X Series (DC voltage input). 200W continuous output, □104mm frame, DC 24V input (±10%).

Key features

  • Rated speed 3,000 r/min, speed control range 100~4,000 r/min
  • Rated torque 0.65 N·m, starting torque 1.15 N·m
  • Shaft types: Gear (H) / Straight (S) / Key (K)
  • Electromagnetic brake and 1,000PPR line-driver encoder options
  • Insulation class E (120℃), IP65 (except output mounting part), ambient 0~+50℃. UL certified (E504659)

Specifications

Series X (Brushless DC, DC voltage input)
Frame K10 (□104mm)
Rated Output 200W (continuous)
Input Voltage DC 24V (±10%)
Rated Input Current 13 A
Max Input Current 25 A
Rated Torque 0.65 N·m
Starting Torque 1.15 N·m
Rated Speed 3,000 r/min
Speed Control Range 100~4,000 r/min
Output Shaft Ø15 (h7)
Spigot Ø94 (h7)
K10XH200N2 X Series 200W DC BLDC, Gear type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XH200N2-B X Series 200W DC BLDC, Gear type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XH200N2-E X Series 200W DC BLDC, Gear type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XH200N2-BE X Series 200W DC BLDC, Gear type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
K10XS200N2 X Series 200W DC BLDC, Straight type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XS200N2-B X Series 200W DC BLDC, Straight type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XS200N2-E X Series 200W DC BLDC, Straight type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XS200N2-BE X Series 200W DC BLDC, Straight type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
K10XK200N2 X Series 200W DC BLDC, Key type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XK200N2-B X Series 200W DC BLDC, Key type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XK200N2-E X Series 200W DC BLDC, Key type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XK200N2-BE X Series 200W DC BLDC, Key type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
Brushless DC MotorsGGM
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM X Series K10X200N2 200W Brushless DC Motor Unit (□104mm, DC 24V)

Brand GGM·Brushless DC Motors

Available part numbers (12)

K10XH200N2, K10XH200N2-B, K10XH200N2-E, K10XH200N2-BE, K10XS200N2, K10XS200N2-B, K10XS200N2-E, K10XS200N2-BE, K10XK200N2, K10XK200N2-B + 2 more — see full table ↓

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K10XH200N2X Series 200W DC BLDC, Gear type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XH200N2-BX Series 200W DC BLDC, Gear type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XH200N2-EX Series 200W DC BLDC, Gear type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XH200N2-BEX Series 200W DC BLDC, Gear type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
K10XS200N2X Series 200W DC BLDC, Straight type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XS200N2-BX Series 200W DC BLDC, Straight type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XS200N2-EX Series 200W DC BLDC, Straight type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XS200N2-BEX Series 200W DC BLDC, Straight type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
K10XK200N2X Series 200W DC BLDC, Key type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XK200N2-BX Series 200W DC BLDC, Key type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XK200N2-EX Series 200W DC BLDC, Key type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XK200N2-BEX Series 200W DC BLDC, Key type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 200W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 13 A | Max Input Current: 25 A | Rated Torque: 0.65 N·m | Starting Torque: 1.15 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
