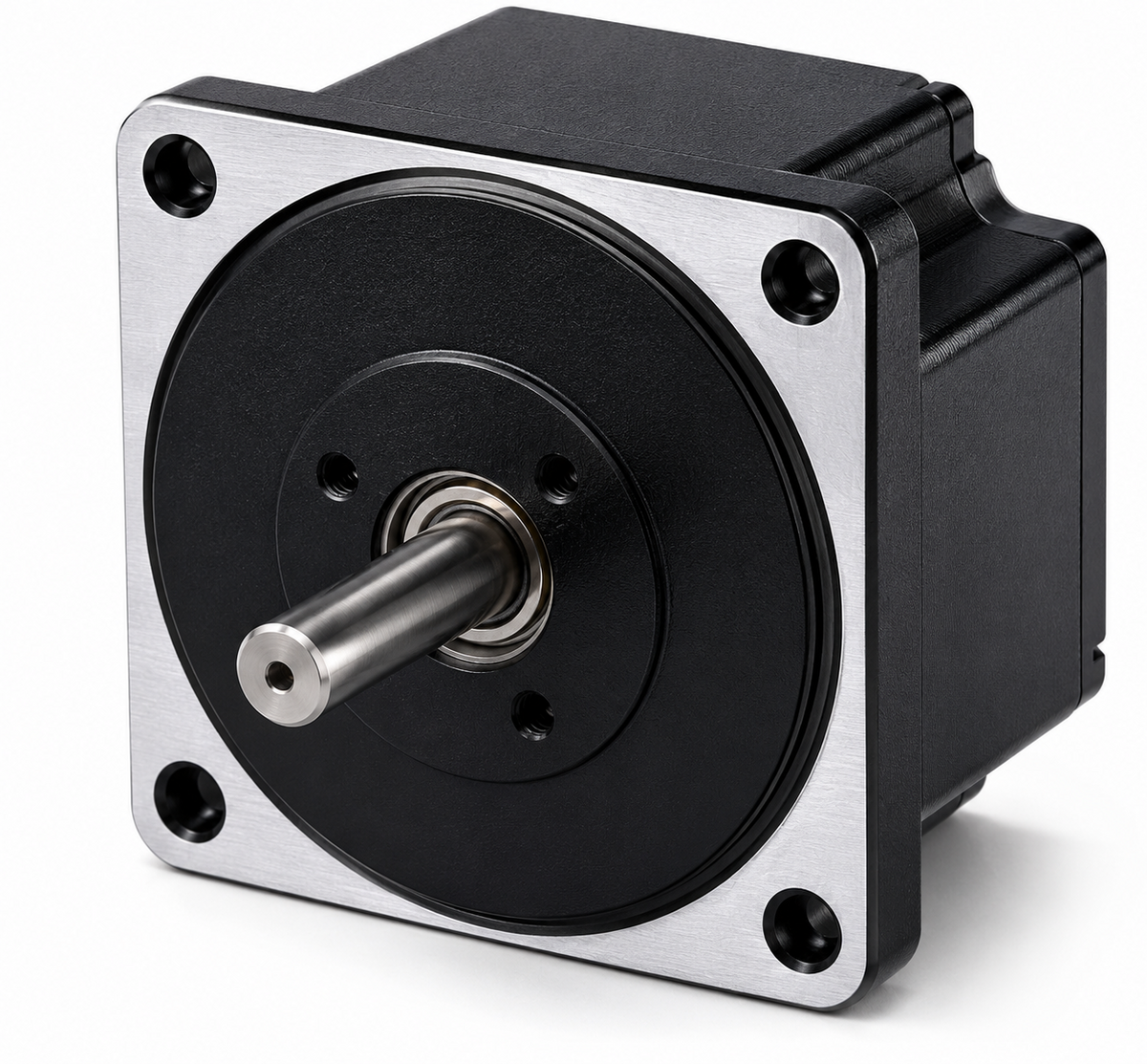

GGM X Series K10X400N9 400W Brushless DC Motor Unit (□104mm, DC 48V)

GGM X Series K10X400N9 400W Brushless DC Motor Unit (□104mm, DC 48V)

GGM Brushless DC Motor Unit, X Series (DC voltage input). 400W continuous output, □104mm frame, DC 48V input (±10%).

Key features

  • Rated speed 3,000 r/min, speed control range 100~4,000 r/min
  • Rated torque 1.3 N·m, starting torque 1.8 N·m
  • Shaft types: Gear (H) / Straight (S) / Key (K)
  • Electromagnetic brake and 1,000PPR line-driver encoder options
  • Insulation class E (120℃), IP65 (except output mounting part), ambient 0~+50℃. UL certified (E504659)

Specifications

Series X (Brushless DC, DC voltage input)
Frame K10 (□104mm)
Rated Output 400W (continuous)
Input Voltage DC 48V (±10%)
Rated Input Current 11 A
Max Input Current 18 A
Rated Torque 1.3 N·m
Starting Torque 1.8 N·m
Rated Speed 3,000 r/min
Speed Control Range 100~4,000 r/min
Output Shaft Ø15 (h7)
Spigot Ø94 (h7)
K10XH400N9 X Series 400W DC BLDC, Gear type, DC 48V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XH400N9-B X Series 400W DC BLDC, Gear type, DC 48V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XH400N9-E X Series 400W DC BLDC, Gear type, DC 48V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XH400N9-BE X Series 400W DC BLDC, Gear type, DC 48V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
K10XS400N9 X Series 400W DC BLDC, Straight type, DC 48V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XS400N9-B X Series 400W DC BLDC, Straight type, DC 48V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XS400N9-E X Series 400W DC BLDC, Straight type, DC 48V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XS400N9-BE X Series 400W DC BLDC, Straight type, DC 48V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
K10XK400N9 X Series 400W DC BLDC, Key type, DC 48V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XK400N9-B X Series 400W DC BLDC, Key type, DC 48V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XK400N9-E X Series 400W DC BLDC, Key type, DC 48V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XK400N9-BE X Series 400W DC BLDC, Key type, DC 48V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
Brushless DC MotorsGGM
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM X Series K10X400N9 400W Brushless DC Motor Unit (□104mm, DC 48V)

Brand GGM·Brushless DC Motors

Available part numbers (12)

K10XH400N9, K10XH400N9-B, K10XH400N9-E, K10XH400N9-BE, K10XS400N9, K10XS400N9-B, K10XS400N9-E, K10XS400N9-BE, K10XK400N9, K10XK400N9-B + 2 more — see full table ↓

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K10XH400N9X Series 400W DC BLDC, Gear type, DC 48V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XH400N9-BX Series 400W DC BLDC, Gear type, DC 48V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XH400N9-EX Series 400W DC BLDC, Gear type, DC 48V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XH400N9-BEX Series 400W DC BLDC, Gear type, DC 48V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Gear type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
K10XS400N9X Series 400W DC BLDC, Straight type, DC 48V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XS400N9-BX Series 400W DC BLDC, Straight type, DC 48V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XS400N9-EX Series 400W DC BLDC, Straight type, DC 48V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XS400N9-BEX Series 400W DC BLDC, Straight type, DC 48V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Straight type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
K10XK400N9X Series 400W DC BLDC, Key type, DC 48V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Standard | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.4 kg | UL: E504659
K10XK400N9-BX Series 400W DC BLDC, Key type, DC 48V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.0 kg | UL: E504659
K10XK400N9-EX Series 400W DC BLDC, Key type, DC 48V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 2.5 kg | UL: E504659
K10XK400N9-BEX Series 400W DC BLDC, Key type, DC 48V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 400W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 11 A | Max Input Current: 18 A | Rated Torque: 1.3 N·m | Starting Torque: 1.8 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~4,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø15 (h7) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 3.1 kg | UL: E504659
