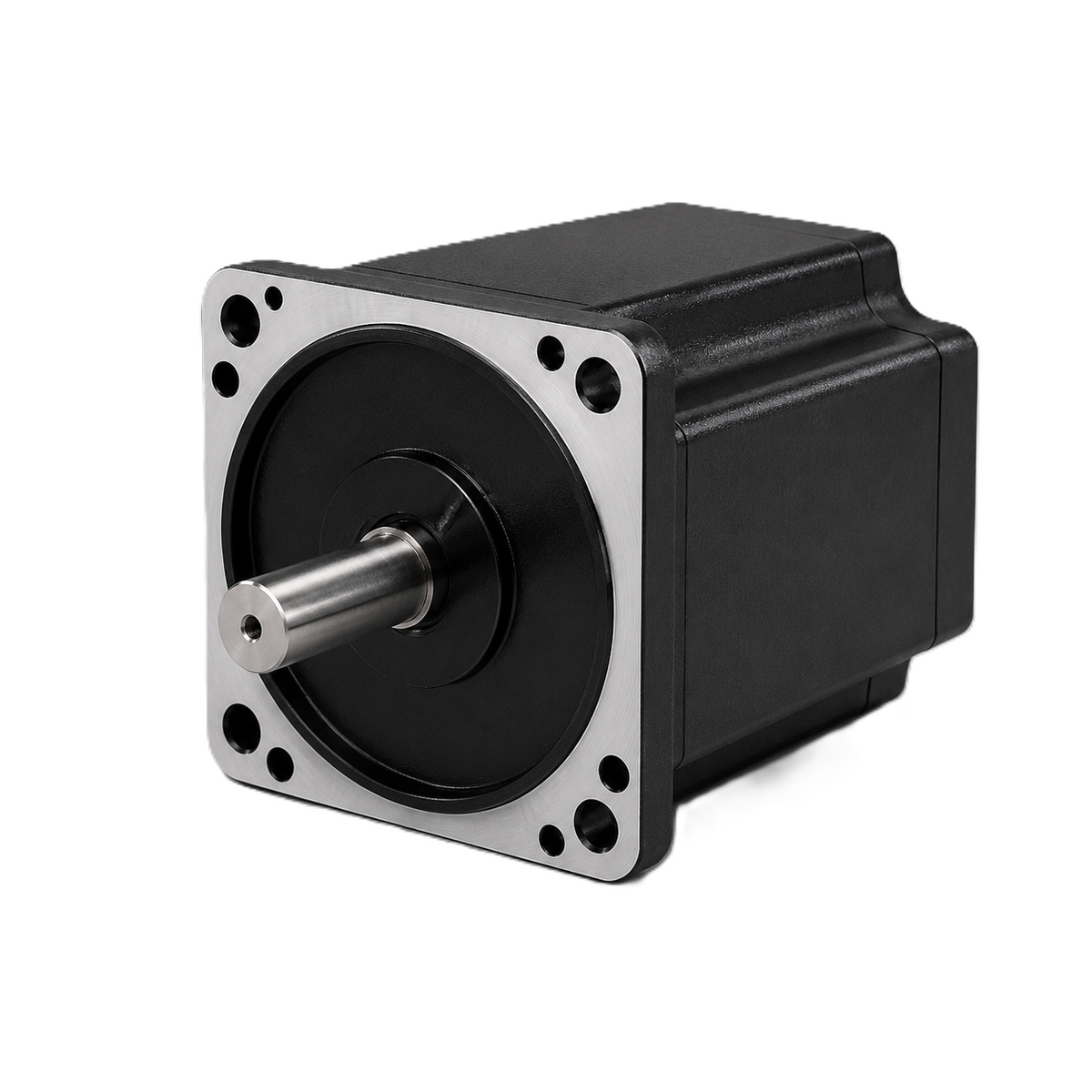

GGM X Series K10X750N9 750W Brushless DC Motor Unit (□104mm, DC 48V)

GGM X Series K10X750N9 750W Brushless DC Motor Unit (□104mm, DC 48V)

GGM Brushless DC Motor Unit, X Series (DC voltage input). 750W continuous output, □104mm frame, DC 48V input (±10%).

Key features

  • Rated speed 3,000 r/min, speed control range 100~3,000 r/min
  • Rated torque 2.4 N·m, starting torque 3.5 N·m
  • Key (K) output shaft only
  • Electromagnetic brake and 1,000PPR line-driver encoder options
  • Insulation class E (120℃), IP65 (except output mounting part), ambient 0~+50℃. IEC type (UL not stated in catalog)

Specifications

Series X (Brushless DC, DC voltage input)
Frame K10 (□104mm)
Rated Output 750W (continuous)
Shaft Type Key type
Input Voltage DC 48V (±10%)
Rated Input Current 18 A
Max Input Current 30 A
Rated Torque 2.4 N·m
Starting Torque 3.5 N·m
Rated Speed 3,000 r/min
Speed Control Range 100~3,000 r/min
Output Shaft Ø19 (key 6mm)
K10XK750N9 X Series 750W DC BLDC, Key type, DC 48V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 750W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 18 A | Max Input Current: 30 A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø19 (key 6mm) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 4.7 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
K10XK750N9-B X Series 750W DC BLDC, Key type, DC 48V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 750W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 18 A | Max Input Current: 30 A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø19 (key 6mm) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 5.3 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
K10XK750N9-E X Series 750W DC BLDC, Key type, DC 48V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 750W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 18 A | Max Input Current: 30 A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø19 (key 6mm) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 4.8 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
K10XK750N9-BE X Series 750W DC BLDC, Key type, DC 48V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K10 (□104mm) | Rated Output: 750W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 18 A | Max Input Current: 30 A | Rated Torque: 2.4 N·m | Starting Torque: 3.5 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø19 (key 6mm) | Spigot: Ø94 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 5.4 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
Brushless DC MotorsGGM
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM X Series K10X750N9 750W Brushless DC Motor Unit (□104mm, DC 48V)

Brand GGM·Brushless DC Motors

Available part numbers (4)

K10XK750N9, K10XK750N9-B, K10XK750N9-E, K10XK750N9-BE
