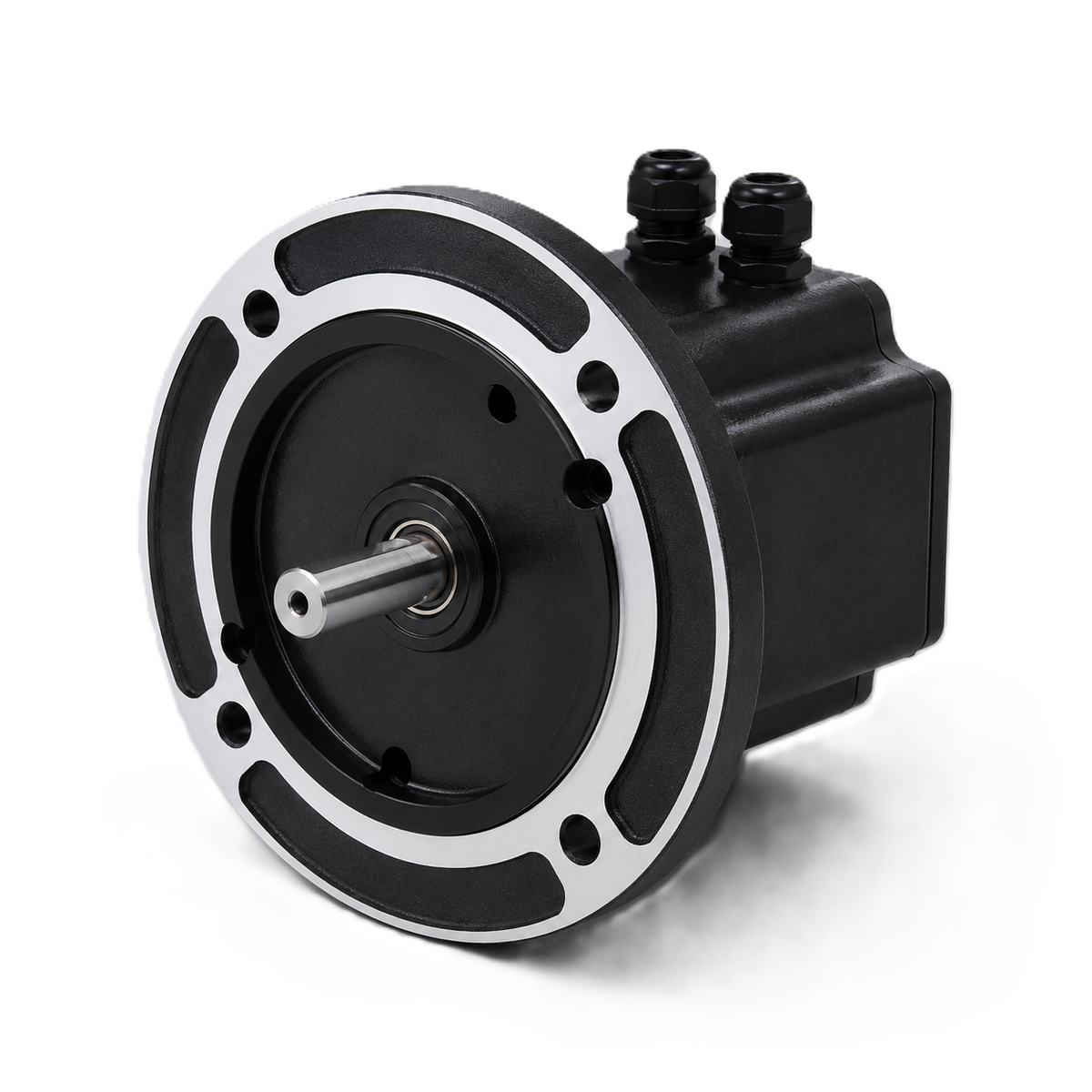

GGM X Series K20X1000N9 1000W Brushless DC Motor Unit (Ø200 flange / □104mm, DC 48V)

GGM X Series K20X1000N9 1000W Brushless DC Motor Unit (Ø200 flange / □104mm, DC 48V)

GGM Brushless DC Motor Unit, X Series (DC voltage input). 1000W continuous output, Ø200 flange / □104mm frame, DC 48V input (±10%).

Key features

  • Rated speed 3,000 r/min, speed control range 100~3,000 r/min
  • Rated torque 3.2 N·m, starting torque 4 N·m
  • Key (K) output shaft only
  • Electromagnetic brake and 1,000PPR line-driver encoder options
  • Insulation class E (120℃), IP65 (except output mounting part), ambient 0~+50℃. IEC type (UL not stated in catalog)

Specifications

Series X (Brushless DC, DC voltage input)
Frame K20 (Ø200 flange / □104mm)
Rated Output 1000W (continuous)
Shaft Type Key type
Input Voltage DC 48V (±10%)
Rated Input Current 28 A
Max Input Current 40 A
Rated Torque 3.2 N·m
Starting Torque 4 N·m
Rated Speed 3,000 r/min
Speed Control Range 100~3,000 r/min
Output Shaft Ø19 (key 6mm)
K20XK1000N9 X Series 1000W DC BLDC, Key type, DC 48V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 1000W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 28 A | Max Input Current: 40 A | Rated Torque: 3.2 N·m | Starting Torque: 4 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 7.0 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
K20XK1000N9-B X Series 1000W DC BLDC, Key type, DC 48V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 1000W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 28 A | Max Input Current: 40 A | Rated Torque: 3.2 N·m | Starting Torque: 4 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 7.6 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
K20XK1000N9-E X Series 1000W DC BLDC, Key type, DC 48V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 1000W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 28 A | Max Input Current: 40 A | Rated Torque: 3.2 N·m | Starting Torque: 4 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 7.1 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
K20XK1000N9-BE X Series 1000W DC BLDC, Key type, DC 48V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 1000W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 28 A | Max Input Current: 40 A | Rated Torque: 3.2 N·m | Starting Torque: 4 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 7.7 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
Brushless DC MotorsGGM
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM X Series K20X1000N9 1000W Brushless DC Motor Unit (Ø200 flange / □104mm, DC 48V)

Brand GGM·Brushless DC Motors

Available part numbers (4)

K20XK1000N9, K20XK1000N9-B, K20XK1000N9-E, K20XK1000N9-BE

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K20XK1000N9X Series 1000W DC BLDC, Key type, DC 48V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 1000W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 28 A | Max Input Current: 40 A | Rated Torque: 3.2 N·m | Starting Torque: 4 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 7.0 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
K20XK1000N9-BX Series 1000W DC BLDC, Key type, DC 48V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 1000W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 28 A | Max Input Current: 40 A | Rated Torque: 3.2 N·m | Starting Torque: 4 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 7.6 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
K20XK1000N9-EX Series 1000W DC BLDC, Key type, DC 48V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 1000W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 28 A | Max Input Current: 40 A | Rated Torque: 3.2 N·m | Starting Torque: 4 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 7.1 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
K20XK1000N9-BEX Series 1000W DC BLDC, Key type, DC 48V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K20 (Ø200 flange / □104mm) | Rated Output: 1000W (continuous) | Shaft Type: Key type | Input Voltage: DC 48V (±10%) | Rated Input Current: 28 A | Max Input Current: 40 A | Rated Torque: 3.2 N·m | Starting Torque: 4 N·m | Rated Speed: 3,000 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø19 (key 6mm) | Spigot: Ø130 | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 7.7 kg | Mount Type: IEC | UL: N/A (catalog omission; IEC type)
