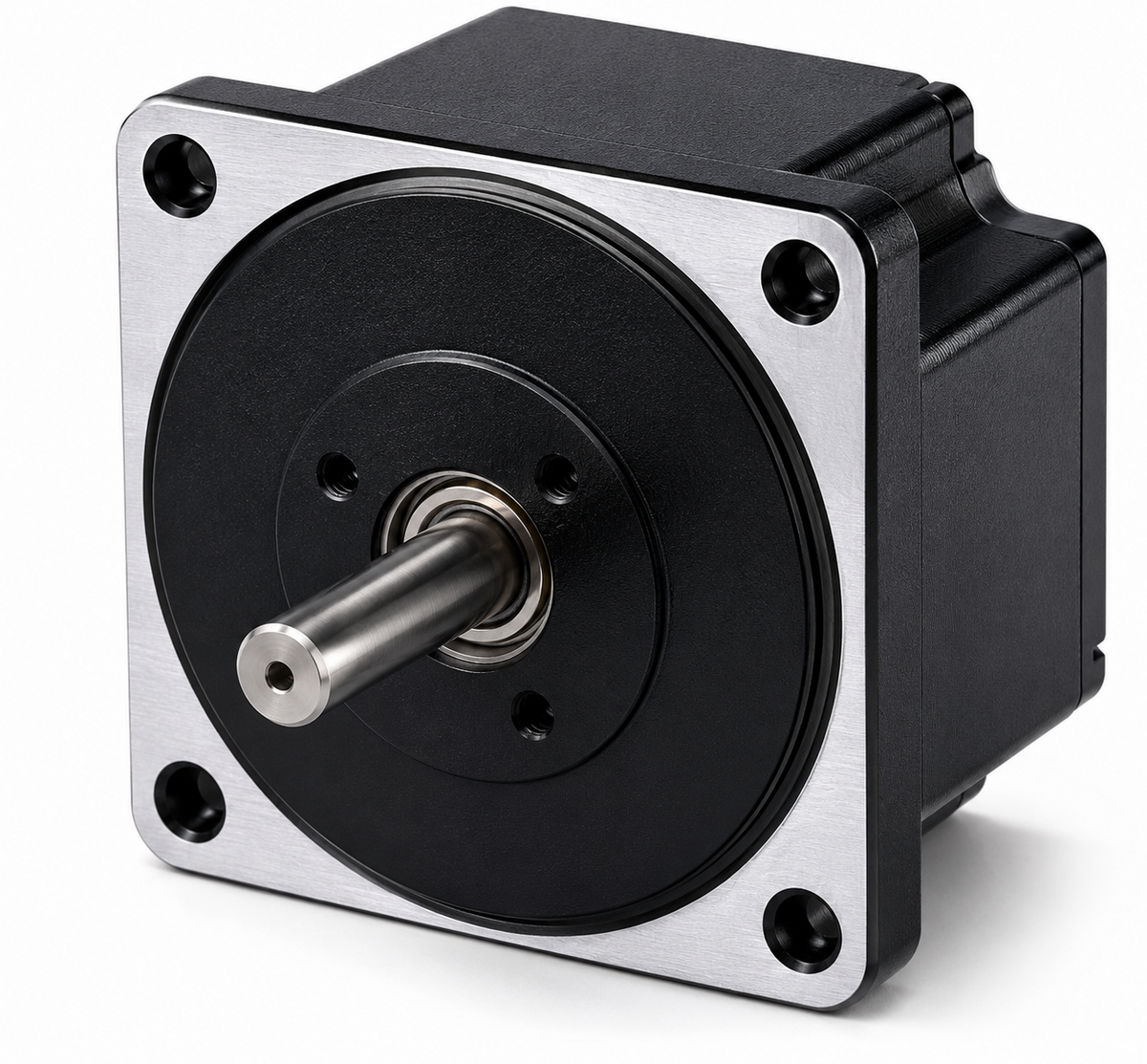

GGM X Series K6X30N2 30W Brushless DC Motor Unit (□60mm, DC 24V)

GGM X Series K6X30N2 30W Brushless DC Motor Unit (□60mm, DC 24V)

GGM Brushless DC Motor Unit, X Series (DC voltage input). 30W continuous output, □60mm frame, DC 24V input (±10%).

Key features

  • Rated speed 2,500 r/min, speed control range 100~3,000 r/min
  • Rated torque 0.12 N·m, starting torque 0.15 N·m
  • Shaft types: Gear (H) / Straight (S) / Key (K)
  • Electromagnetic brake and 1,000PPR line-driver encoder options
  • Insulation class E (120℃), IP65 (except output mounting part), ambient 0~+50℃. UL certified (E504659)

Specifications

Series X (Brushless DC, DC voltage input)
Frame K6 (□60mm)
Rated Output 30W (continuous)
Input Voltage DC 24V (±10%)
Rated Input Current 2.1 A
Max Input Current 3.7 A
Rated Torque 0.12 N·m
Starting Torque 0.15 N·m
Rated Speed 2,500 r/min
Speed Control Range 100~3,000 r/min
Output Shaft Ø8 (h7)
Spigot Ø54 (h7)
K6XH30N2 X Series 30W DC BLDC, Gear type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.5 kg | UL: E504659
K6XH30N2-B X Series 30W DC BLDC, Gear type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.8 kg | UL: E504659
K6XH30N2-E X Series 30W DC BLDC, Gear type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.6 kg | UL: E504659
K6XH30N2-BE X Series 30W DC BLDC, Gear type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.9 kg | UL: E504659
K6XS30N2 X Series 30W DC BLDC, Straight type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.5 kg | UL: E504659
K6XS30N2-B X Series 30W DC BLDC, Straight type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.8 kg | UL: E504659
K6XS30N2-E X Series 30W DC BLDC, Straight type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.6 kg | UL: E504659
K6XS30N2-BE X Series 30W DC BLDC, Straight type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.9 kg | UL: E504659
K6XK30N2 X Series 30W DC BLDC, Key type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.5 kg | UL: E504659
K6XK30N2-B X Series 30W DC BLDC, Key type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.8 kg | UL: E504659
K6XK30N2-E X Series 30W DC BLDC, Key type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.6 kg | UL: E504659
K6XK30N2-BE X Series 30W DC BLDC, Key type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.9 kg | UL: E504659
Brushless DC MotorsGGM
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

GGM X Series K6X30N2 30W Brushless DC Motor Unit (□60mm, DC 24V)

Brand GGM·Brushless DC Motors

Available part numbers (12)

K6XH30N2, K6XH30N2-B, K6XH30N2-E, K6XH30N2-BE, K6XS30N2, K6XS30N2-B, K6XS30N2-E, K6XS30N2-BE, K6XK30N2, K6XK30N2-B + 2 more — see full table ↓

How to order

Send the GGM part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K6XH30N2X Series 30W DC BLDC, Gear type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.5 kg | UL: E504659
K6XH30N2-BX Series 30W DC BLDC, Gear type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.8 kg | UL: E504659
K6XH30N2-EX Series 30W DC BLDC, Gear type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.6 kg | UL: E504659
K6XH30N2-BEX Series 30W DC BLDC, Gear type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Gear type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.9 kg | UL: E504659
K6XS30N2X Series 30W DC BLDC, Straight type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.5 kg | UL: E504659
K6XS30N2-BX Series 30W DC BLDC, Straight type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.8 kg | UL: E504659
K6XS30N2-EX Series 30W DC BLDC, Straight type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.6 kg | UL: E504659
K6XS30N2-BEX Series 30W DC BLDC, Straight type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Straight type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.9 kg | UL: E504659
K6XK30N2X Series 30W DC BLDC, Key type, DC 24V, Standard | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Standard | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.5 kg | UL: E504659
K6XK30N2-BX Series 30W DC BLDC, Key type, DC 24V, Brake | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.8 kg | UL: E504659
K6XK30N2-EX Series 30W DC BLDC, Key type, DC 24V, Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.6 kg | UL: E504659
K6XK30N2-BEX Series 30W DC BLDC, Key type, DC 24V, Brake + Encoder | Series: X (Brushless DC, DC voltage input) | Frame: K6 (□60mm) | Rated Output: 30W (continuous) | Shaft Type: Key type | Input Voltage: DC 24V (±10%) | Rated Input Current: 2.1 A | Max Input Current: 3.7 A | Rated Torque: 0.12 N·m | Starting Torque: 0.15 N·m | Rated Speed: 2,500 r/min | Speed Control Range: 100~3,000 r/min | Option: Brake + Encoder | Encoder: 1,000PPR Line Driver, +5Vdc±10%, 150mA below | Brake: Built-in electromagnetic brake (BRAKE WIRE 400mm) | Output Shaft: Ø8 (h7) | Spigot: Ø54 (h7) | Insulation Class: E (120℃) | Protection: IP65 (except output mounting part) | Ambient: 0~+50℃, ≤85% RH | Weight: 0.9 kg | UL: E504659
